Bosch / Climate 5000 Gen 4
Bosch Climate 5000 G4 36k Regular R-454B 208/230V 5-Zone Mini-Split
The Bosch Climate 5000 5-Zone 36k (BMS500-AAM036-1CSXRD) is the standard-tier five-zone on current low-GWP R-454B refrigerant, and one of the top-scoring multi-zones in our catalog. It reaches a certified nominal SEER2 of 24 with EER2 12 and HSPF2 9.5, is ENERGY STAR certified, and is AHRI cold-climate designated.
It puts five heads on one 36,000 BTU outdoor unit backed by Bosch's global engineering and warranty reputation. Dealer-quoted (lead-gen); professional installation required.
5 zonesProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes

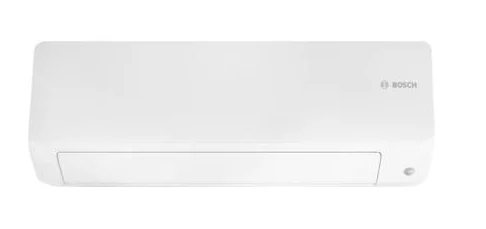

Image: Hydrowest Products
Data completeness: 97%
- Last sourced
- Jul 28, 2026
SplitAtlas score
8.9 / 10
Cooling efficiencyTop 10%
(24.0 SEER2) among 36k systems
Heating efficiencyAbove average
(9.5 HSPF2) among 36k systems
Cold-weather performanceBelow average
(70.3% heat retained at 5F; -13 F heating floor) among 36k systems
WarrantyAbove average
(10 yr parts / 10 yr compressor) across the catalogue
Feature setTop quartile
(6 verified features) across the catalogue
Documentation & partsBelow average
(7 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- 5-zone projects in the 36k outdoor capacity class.
- High-efficiency shortlists; SEER2 is 24.
Install difficulty
Professional flared-line install
- Electrical: 230V; MCA 30.5 A; breaker/fuse 35 A.
- Line set: Flared line connections; precharged 24.6 ft; max 262.4 ft.
- 5-zone condenser; indoor-head matching and branch layout are part of the job.
Alternatives
- LG Multi F MAX LGRED 5-Zone 36,000 BTU R-32 208/230V (KUMXA361A)
9.0 score / 36k / SEER2 22 / -13 F heating floor / 230V
Exact destination at HVACDirect: $4,319.00, checked Jul 28, 2026
Availability and price context
We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-28.
Source date
- Model data sourced
- Jul 28, 2026
- Page reviewed
- Jul 28, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 28, 2026
Warranty tiers
Warranty: 10 years parts and compressor as standard.
Model context
- Install path
- This is professional-install equipment; no verified current retail offer is attached.
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.
Strengths
- Standard-tier five-zone on current low-GWP R-454B refrigerant.
- Certified nominal SEER2 24 / EER2 12 / HSPF2 9.5, high efficiency for a five-zone.
- Bosch global engineering brand and warranty reputation.
Weaknesses
- 36,000 BTU across five zones is modest per room - size each head.
- For deep-cold heating, step up to the matching Max Performance five-zone.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Rated heating at 5F
- 26,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 17F
- 31,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 47F
- 37,000 BTU/hNon-Ducted Indoor Units[2]
Specifications
ShowHide
- Manufacturer
- Bosch
- Brand
- Bosch
- Product line
- Climate 5000 Gen 4
- Model number
- BMS500-AAM036-1CSXRD
- Indoor unit model
- Indoor heads are selected separately on a multi-zone system
- Outdoor unit model
- BMS500-AAM036-1CSXRD
- Number of zones
- 5
- Max indoor units
- 5 units[1]
- Rated cooling capacity
- 36,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating capacity
- 37,000 BTU/hNon-Ducted Indoor Units[2]
- Voltage
- 230 V[1]
- MCA
- 30.5 A[1]
- Maximum fuse or breaker size
- 35 A[1]
- Breaker needed
- not published
- SEER2
- 24 SEER2Non-Ducted Indoor Units[2]
- EER2
- 12 EER2Non-Ducted Indoor Units[2]
- HSPF2 (Region 4)
- 9.5 HSPF2Non-Ducted Indoor Units[2]
- HSPF2 (Region 5)
- Certified per indoor-unit combination, not per outdoor unit
- COP
- not published
- COP at 47F
- 3.5 COP[1]
- COP at 5F
- 2 COPNon-Ducted Indoor Units[2]
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- -13 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- Indoor heads are selected separately on a multi-zone system
- Outdoor noise rating
- 62.5 dBA[1]
- Indoor weight
- Indoor heads are selected separately on a multi-zone system
- Outdoor weight
- 168.87 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 120.63 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in x 5 liquid / 3/8 in x 4 + 1/2 in x 1 suction
- Included line-set length
- Indoor heads are selected separately on a multi-zone system
- Maximum line-set length
- 262.4 ft[1]
- Max line set per indoor
- 114.8 ft[1]
- Maximum elevation difference
- 49.2 ft[1]
- Max height between indoor units
- 33 ft[1]
- Wi-Fi support
- Indoor heads are selected separately on a multi-zone system
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215223334Non-Ducted Indoor Units[2]
- Warranty
- Standard: 10 yr parts / 10 yr compressor (limited residential warranty terms). 10-year compressor / 10-year parts limited warranty
- Install path
- Professional install
- Retail price
- We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-28.
- Available retailers
- not published
- Manual links
- AHRI public detail 215223334, ENERGY STAR exact row 215223334, Bosch Climate 5000 R-454B current official product page, HVACDirect exact-offer audit for BMS500-AAM036-1CSXRD, BMS500-AAM036-1CSXRD Bosch Climate 5000 Gen 4 Regular submittal, Bosch ductless engineering submittal sheet index, Bosch Climate 5000 R-454B warranty summary
- Specification sheet
- BMS500-AAM036-1CSXRD Bosch Climate 5000 Gen 4 Regular submittal
- Last sourced date
- Jul 28, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in x 5[1]
- Suction line
- 3/8 in x 4 + 1/2 in x 1[1]
- Line connection type
- Flared line connections[1]
- Precharged length
- 24.6 ft[1]
- Included line-set length
- Indoor heads are selected separately on a multi-zone system
- Maximum line-set length
- 262.4 ft[1]
- Max line set per indoor
- 114.8 ft[1]
- Max height between indoor units
- 33 ft[1]
- Indoor dimensions
- Indoor heads are selected separately on a multi-zone system
- Outdoor dimensions
- 37.24 x 16.14 x 31.89 in[1]
- Indoor weight
- Indoor heads are selected separately on a multi-zone system
- Outdoor weight
- 168.87 lb[1]
- Drain size
- not published
