Bosch / Climate 5000 Gen 4
Bosch Climate 5000 G4 36k Max R-454B 208/230V 5-Zone Mini-Split
The Bosch Climate 5000 5-Zone 36k Max Performance (BMS500-AAM036-1CSXHD) is the cold-climate five-zone on current low-GWP R-454B refrigerant. It pairs a certified nominal SEER2 of 23 with EER2 13 and HSPF2 10.7, is ENERGY STAR certified, and is AHRI cold-climate designated.
Certified heating is 36,000 BTU at 47F, 38,000 BTU at 17F and 36,000 BTU at 5F - full rated capacity at 5F, backed by Bosch's engineering and warranty reputation. Dealer-quoted; professional installation required.
5 zonesProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes

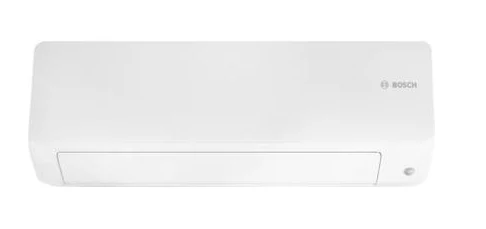

Image: Hydrowest Products
Data completeness: 97%
- Last sourced
- Jul 28, 2026
SplitAtlas score
9.5 / 10
Cooling efficiencyTop quartile
(23.0 SEER2) among 36k systems
Heating efficiencyTop 10%
(10.7 HSPF2) among 36k systems
Cold-weather performanceTop quartile
(5F certified capacity: 100% of the 47F rating; -22 F heating floor) among 36k systems
WarrantyTop quartile
(10 yr parts / 10 yr compressor) across the catalogue
Feature setTop quartile
(6 verified features) across the catalogue
Documentation & partsBelow average
(7 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- 5-zone projects in the 36k outdoor capacity class.
- High-efficiency shortlists; SEER2 is 23.
Install difficulty
Professional flared-line install
- Electrical: 230V; MCA 37 A; breaker/fuse 40 A.
- Line set: Flared line connections; precharged 24.6 ft; max 262.4 ft.
- 5-zone condenser; indoor-head matching and branch layout are part of the job.
Availability and price context
This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.
Source date
- Model data sourced
- Jul 28, 2026
- Page reviewed
- Jul 28, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 28, 2026
Warranty tiers
- Base
- 10 yr parts / 10 yr compressor - limited residential warranty terms
The score uses Base. Additional published terms are shown for reference and not counted in the score.
Model context
- Install path
- This is professional-install equipment; price it with an installed quote.
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- Cold-climate five-zone on current low-GWP R-454B refrigerant.
- Certified at 38,000 BTU at 17F, above its 36,000 BTU 47F rating, and 36,000 BTU at 5F.
- Certified nominal SEER2 23 / EER2 13 / HSPF2 10.7, ENERGY STAR certified.
- AHRI cold-climate designated; Bosch global engineering and warranty reputation.
Weaknesses
- Costs a bit more than the standard five-zone for the cold-climate tuning.
- 36,000 BTU across five zones is modest per room - size each head.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Certified heating at 5F
- 36,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 17F
- 38,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 47F
- 36,000 BTU/hNon-Ducted Indoor Units[2]
Specifications
ShowHide
- Manufacturer
- Bosch
- Brand
- Bosch
- Product line
- Climate 5000 Gen 4
- Model number
- BMS500-AAM036-1CSXHD
- Indoor unit model
- Depends on the indoor units you choose
- Outdoor unit model
- BMS500-AAM036-1CSXHD
- Number of zones
- 5
- Max indoor units
- 5 units[1]
- Rated cooling capacity
- 36,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating capacity
- 36,000 BTU/hNon-Ducted Indoor Units[2]
- Voltage
- 230 V[1]
- MCA
- 37 A[1]
- Maximum fuse or breaker size
- 40 A[1]
- Breaker needed
- not published
- SEER2
- 23 SEER2Non-Ducted Indoor Units[2]
- EER2
- 13 EER2Non-Ducted Indoor Units[2]
- HSPF2 (Region 4)
- 10.7 HSPF2Non-Ducted Indoor Units[2]
- HSPF2 (Region 5)
- Varies by indoor-unit combination
- COP
- not published
- COP at 47F
- 4 COP[1]
- COP at 5F
- 2 COPNon-Ducted Indoor Units[2]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- -22 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- Depends on the indoor units you choose
- Outdoor noise rating
- 65 dBA[1]
- Indoor weight
- Depends on the indoor units you choose
- Outdoor weight
- 211.86 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 134.04 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in x 5 liquid / 3/8 in x 3 + 1/2 in x 2 suction
- Included line-set length
- Depends on the indoor units you choose
- Maximum line-set length
- 262.4 ft[1]
- Max line set per indoor
- 114.8 ft[1]
- Maximum elevation difference
- 49.2 ft[1]
- Max height between indoor units
- 33 ft[1]
- Wi-Fi support
- Depends on the indoor units you choose
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215223322Non-Ducted Indoor Units[2]
- Warranty
- Base: 10 yr parts / 10 yr compressor (limited residential warranty terms). Score uses Base.. 10-year compressor / 10-year parts limited warranty
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- AHRI public detail 215223322, ENERGY STAR exact row 215223322, Bosch Climate 5000 R-454B current official product page, BMS500-AAM036-1CSXHD Bosch Climate 5000 Gen 4 Max Performance submittal, Bosch ductless engineering submittal sheet index, Bosch Climate 5000 R-454B warranty summary
- Specification sheet
- BMS500-AAM036-1CSXHD Bosch Climate 5000 Gen 4 Max Performance submittal
- Last sourced date
- Jul 28, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in x 5[1]
- Suction line
- 3/8 in x 3 + 1/2 in x 2[1]
- Line connection type
- Flared line connections[1]
- Precharged length
- 24.6 ft[1]
- Included line-set length
- Depends on the indoor units you choose
- Maximum line-set length
- 262.4 ft[1]
- Max line set per indoor
- 114.8 ft[1]
- Max height between indoor units
- 33 ft[1]
- Indoor dimensions
- Depends on the indoor units you choose
- Outdoor dimensions
- 38.58 x 16.34 x 38.39 in[1]
- Indoor weight
- Depends on the indoor units you choose
- Outdoor weight
- 211.86 lb[1]
- Drain size
- not published
