Carrier / Infinity 25

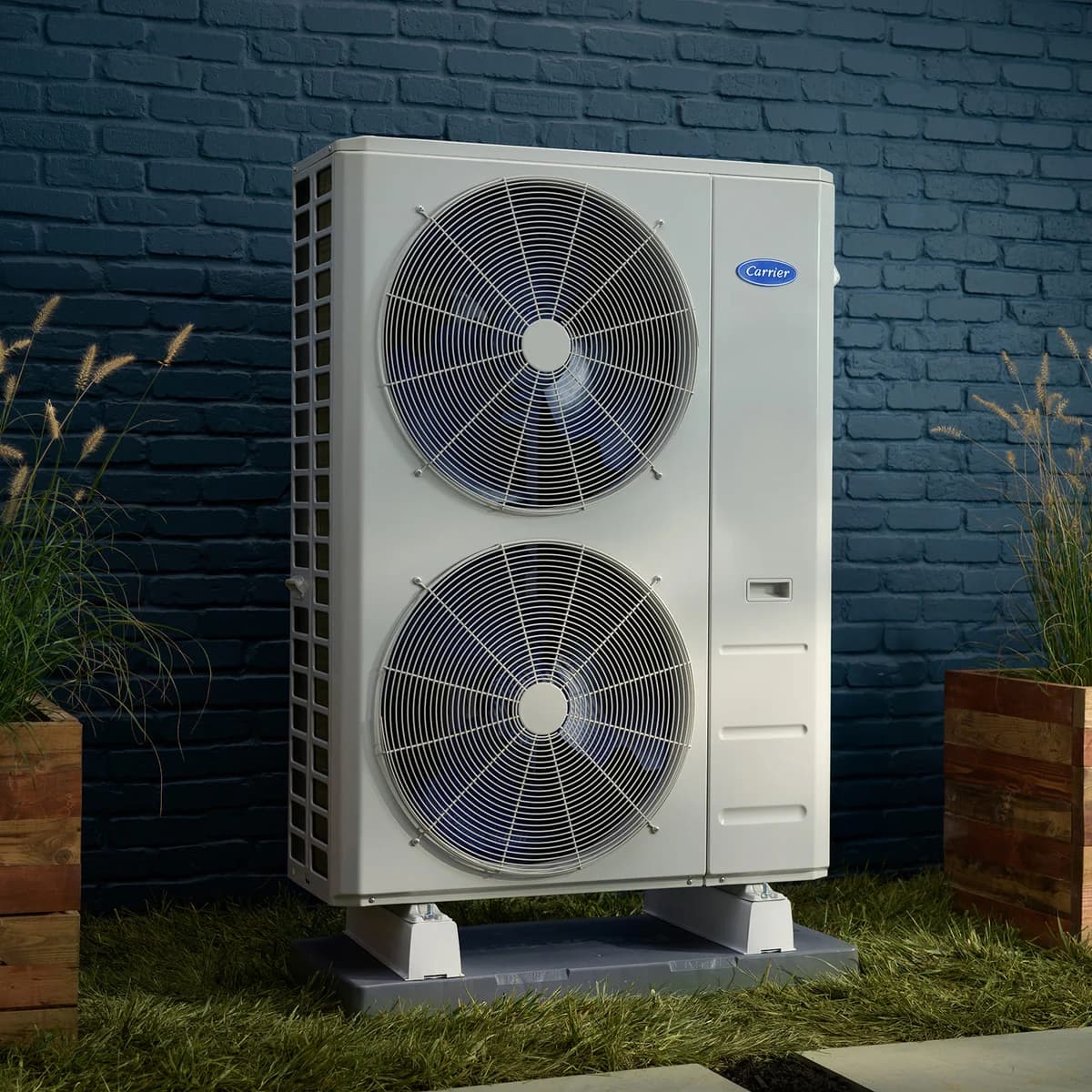

Carrier Infinity 25 24k R-454B 208/230V 4-Zone Mini-Split
The Carrier Infinity 25 4-Zone 24k (37MGHAQ24DA3) is the premium cold-climate step to four indoor heads, and unlike the dealer-quoted Performance line, this Infinity condenser is stocked and purchasable at retail - a priced condenser you can buy, still professionally installed. It carries a certified nominal SEER2 of 24, EER2 13, and HSPF2 10, is ENERGY STAR certified and AHRI cold-climate designated, on current low-GWP R-454B refrigerant.
Cooling is rated at 24000 BTU, with heating of 25000 BTU at 47F, 23600 at 17F, and back to 25000 at 5F. The 5F output recovers to the full 47F level - genuine deep-cold heat that does not fall off when you need it most.
Professional installation required.
Refrigerant generation
R-454B - current-generation refrigerant
Image: Carrier
- Last sourced
- Jul 28, 2026
SplitAtlas score
9.0 / 10
(24.0 SEER2) among 24k systems
(10.0 HSPF2) among 24k systems
(100% heat retained at 5F; -22 F heating floor) among 24k systems
(10 yr parts / 10 yr compressor) across the catalogue
(7 verified features) across the catalogue
(7 manuals) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
quote-only - no retail price to evaluate
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- 4-zone projects in the 24k outdoor capacity class.
- High-efficiency shortlists; SEER2 is 24.
Install difficulty
- Electrical: 230V; MCA 30 A; breaker/fuse 35 A.
- Line set: Flared line connections; precharged 24.6 ft; max 262.5 ft.
- 4-zone condenser; indoor-head matching and branch layout are part of the job.
Availability and price context
- Warranty warning: Warranty coverage does not apply to any product purchased over the Internet. Online listing: $3,599.99 at HVACDirect; checked Jul 28, 2026; price source is HVACDirect.
Purchase channel policy
Carrier's ductless warranty excludes products purchased over the Internet; buyers should treat public online carts as outside the warranty-covered purchase channel.
- Warranty consequence
- Warranty coverage does not apply to any product purchased over the Internet.
- Authorized channel
- Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.
Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.
Compare online-purchase warranty rules by brand
Source: Carrier Corporation: CAC/BDP Limited Warranty Certificate - Limited Warranty for Ductless Split Units; retrieved Aug 15, 2026.
Source date
- Model data sourced
- Jul 28, 2026
- Page reviewed
- Jul 28, 2026
- Source-backed records
- 5
- Newest source retrieved
- Jul 28, 2026
Warranty tiers
Warranty: 10 years parts and no separate compressor term published as standard.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- Buyable equipment - a stocked, priced Infinity condenser you can purchase, professionally installed.
- Deep-cold heat that recovers to its 47F rating (25000 BTU at both 47F and 5F).
- Four zones, ENERGY STAR certified with HSPF2 10.
- AHRI cold-climate designated on current low-GWP R-454B.
Weaknesses
- Professional installation still required - equipment you buy, not a DIY kit.
- Cooling efficiency (SEER2 24) is solid rather than class-leading.
- Multi-zone part-load penalty when few heads are running.
Climate suitability
- Minimum heating ambient
- -22 F[4]
- Rated heating at 5F
- 25,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 17F
- 23,600 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 47F
- 25,000 BTU/hNon-Ducted Indoor Units[2]
Specifications
ShowHide
- Manufacturer
- Carrier
- Brand
- Carrier
- Product line
- Infinity 25
- Model number
- 37MGHAQ24DA3
- Indoor unit model
- Indoor heads are selected separately on a multi-zone system
- Outdoor unit model
- 37MGHAQ24DA3
- Number of zones
- 4
- Max indoor units
- 4 units[1]
- Rated cooling capacity
- 24,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating capacity
- 25,000 BTU/hNon-Ducted Indoor Units[2]
- Voltage
- 230 V[1]
- MCA
- 30 A[1]
- Maximum fuse or breaker size
- 35 A[1]
- Breaker needed
- not published
- SEER2
- 24 SEER2Non-Ducted Indoor Units[2]
- EER2
- 13 EER2Non-Ducted Indoor Units[2]
- HSPF2 (Region 4)
- 10 HSPF2Non-Ducted Indoor Units[2]
- HSPF2 (Region 5)
- Certified per indoor-unit combination, not per outdoor unit
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2 COPNon-Ducted Indoor Units[2]
- Minimum outdoor heating temperature
- -22 F[4]
- Minimum outdoor cooling temperature
- -22 F[4]
- Maximum outdoor temperature
- 122 F[4]
- Indoor noise range
- Indoor heads are selected separately on a multi-zone system
- Outdoor noise rating
- 61 dBA[1]
- Indoor weight
- Indoor heads are selected separately on a multi-zone system
- Outdoor weight
- 168.43 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 120.64 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in x 4 liquid / 3/8 in x 3 + 1/2 in x 1 suction
- Included line-set length
- Indoor heads are selected separately on a multi-zone system
- Maximum line-set length
- 262.5 ft[1]
- Max line set per indoor
- 114.8 ft[1]
- Maximum elevation difference
- 49.21 ft[1]
- Max height between indoor units
- 33 ft[1]
- Wi-Fi support
- Indoor heads are selected separately on a multi-zone system
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215357438Non-Ducted Indoor Units[2]
- Warranty
- Standard: 10 yr parts / no separate compressor term (Consumer Choice 10-year parts-only option). Consumer Choice Warranty: 10-year parts-only option or 5-year parts plus 3-year labor option
- Install path
- Professional install
- Retail price
- online listing with warranty risk: $3,599.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public detail 215357438, ENERGY STAR exact row 215357438, Infinity 25 Carrier ductless current brochure, Carrier Ductless Systems compatibility charts, Carrier Infinity 25 Multi-Zone High-Heat Mini Split Heat Pump with Basepan Heater, HVACDirect exact Carrier affiliate offer carrier-infinity-25-4-zone-24k-r454b-230v, Carrier R-454B ductless Consumer Choice Warranty
- Specification sheet
- not published
- Last sourced date
- Jul 28, 2026
Retail purchase context
Warranty consequence
Warranty coverage does not apply to any product purchased over the Internet.
Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.
Authorized channel: Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
Warranty-risk online listing
Listed at HVACDirect: $3,600. Checked Jul 28, 2026; price source HVACDirect.
Installation considerations
ShowHide
- Liquid line
- 1/4 in x 4[1]
- Suction line
- 3/8 in x 3 + 1/2 in x 1[1]
- Line connection type
- Flared line connections[1]
- Precharged length
- 24.6 ft[1]
- Included line-set length
- Indoor heads are selected separately on a multi-zone system
- Maximum line-set length
- 262.5 ft[1]
- Max line set per indoor
- 114.8 ft[1]
- Max height between indoor units
- 33 ft[1]
- Indoor dimensions
- Indoor heads are selected separately on a multi-zone system
- Outdoor dimensions
- 37.24 x 16.14 x 31.89 in[1]
- Indoor weight
- Indoor heads are selected separately on a multi-zone system
- Outdoor weight
- 168.43 lb[1]
- Drain size
- not published
