Carrier / Infinity 27

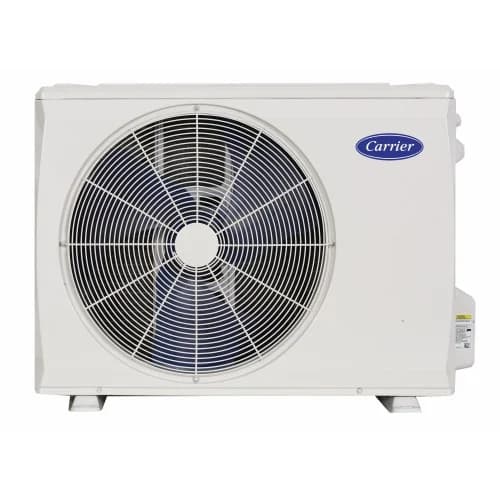

Carrier Infinity 27 9k R-454B 208/230V Mini-Split
This 9,000 BTU Infinity 27 on 230V and R-454B leads the series on cooling efficiency at 27.5 SEER2, with 15.5 EER2 and 12.5 HSPF2. Heating holds dead flat at 12,000 BTU at 47F, 12,000 BTU at 17F, and 11,500 BTU at 5F. It is ENERGY STAR certified and cold-climate designated.
Refrigerant generation
R-454B - current-generation refrigerant
This brand doesn't honor its warranty on systems bought online. Buy it through a local contractor who installs it: get quotes from installers in your area, and ask whether they're an authorized dealer for this brand.
Get installation quotes
Image: Carrier
- Last sourced
- Jul 27, 2026
SplitAtlas score
9.0 / 10
(27.5 SEER2) among <=9k systems
(12.5 HSPF2) among <=9k systems
(5F certified capacity: 95.8% of the 47F rating; -22 F heating floor) among <=9k systems
(10 yr parts, no separate compressor term) across the catalogue
(6 verified features) across the catalogue
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- Top efficiency shortlists; SEER2 is 27.5.
Install difficulty
- Electrical: 230V.
Availability and price context
- Carrier doesn't honor its warranty on systems bought online. Buy it through an authorized dealer or contractor.
Purchase channel policy
Carrier's ductless warranty excludes products purchased over the Internet; buyers should treat public online carts as outside the warranty-covered purchase channel.
- Warranty consequence
- Warranty coverage does not apply to any product purchased over the Internet.
- Authorized channel
- Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.
Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.
Compare online-purchase warranty rules by brand
Source: Carrier Corporation: CAC/BDP Limited Warranty Certificate - Limited Warranty for Ductless Split Units; retrieved Aug 15, 2026.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 5
- Newest source retrieved
- Sep 12, 2026
Warranty tiers
- Registered
- 10 yr parts / no separate compressor term - eligible timely registered residential installation
- Dealer alternative
- 5 yr parts / no separate compressor term - Consumer Choice dealer alternative: 5-year parts plus 3-year labor through a participating dealer
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B.
Strengths
- High 27.5 SEER2 and a strong 15.5 EER2 in a compact premium head.
- Heat stays flat at 12,000 BTU from 47F through 17F and barely dips at 5F, a genuine cold-climate advantage.
- Cold-climate and ENERGY STAR certified with Carrier's premium warranty and dealer backing.
Weaknesses
- Premium pricing that only pays off where efficiency and deep-cold heat are priorities.
- 230V only, requiring the appropriate dedicated circuit.
Climate suitability
- Minimum heating ambient
- -22 F[4]
- Certified heating at 5F
- 11,500 BTU/h[2]
- Rated heating at 17F
- 12,000 BTU/h[2]
- Rated heating at 47F
- 12,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- Carrier
- Brand
- Carrier
- Product line
- Infinity 27
- Model number
- 45MAHAQ09XA3 indoor / 37MAHAQ09AA3 outdoor
- Indoor unit model
- 45MAHAQ09XA3
- Outdoor unit model
- 37MAHAQ09AA3
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[2]
- Rated heating capacity
- 12,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- Not published for this model
- Maximum fuse or breaker size
- Not published for this model
- Breaker needed
- not published
- SEER2
- 27.5 SEER2[2]
- EER2
- 15.5 EER2[2]
- HSPF2 (Region 4)
- 12.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[2]
- Minimum outdoor heating temperature
- -22 F[4]
- Minimum outdoor cooling temperature
- -22 F[4]
- Maximum outdoor temperature
- 122 F[4]
- Indoor noise range
- Not published for this model
- Outdoor noise rating
- Not published for this model
- Indoor weight
- Not published for this model
- Outdoor weight
- Not published for this model
- Refrigerant
- R-454B[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- Not published for this model liquid / Not published for this model suction
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- Not published for this model
- Max line set per indoor
- not published
- Maximum elevation difference
- Not published for this model
- Max height between indoor units
- not published
- Wi-Fi support
- Not published for this model
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215323743[2]
- Warranty
- Registered: 10 yr parts / no separate compressor term (eligible timely registered residential installation); Dealer alternative: 5 yr parts / no separate compressor term (Consumer Choice dealer alternative: 5-year parts plus 3-year labor through a participating dealer). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Consumer Choice Warranty: 10-year parts-only or 5-year parts plus 3-year labor for eligible timely registered residential installations; terms and participating dealer requirements apply.
- Install path
- Professional install
- Retail price
- online listing with warranty risk: $2,559.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 215323743, ENERGY STAR exact check 215323743, Infinity 27 installation documentation locator, Carrier Infinity 27 Mini Split Heat Pump, AHRI Appendix M1 public detail 215323743
- Specification sheet
- AHRI Appendix M1 public detail 215323743
- Last sourced date
- Jul 27, 2026
Retail purchase context
Warranty consequence
Warranty coverage does not apply to any product purchased over the Internet.
Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.
Authorized channel: Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
Warranty-risk online listing
Last seen at HVACDirect on Jul 27, 2026: $2,560
Electrical requirements
ShowHide
- Voltage
- 230 V[1]
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- Not published for this model
- Breaker needed
- not published
- Maximum breaker size
- Not published for this model
- Maximum fuse size
- Not published for this model
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- not published
Installation considerations
ShowHide
- Liquid line
- Not published for this model
- Suction line
- Not published for this model
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- Not published for this model
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- Not published for this model
- Outdoor dimensions
- Not published for this model
- Indoor weight
- Not published for this model
- Outdoor weight
- Not published for this model
- Drain size
- not published
