Carrier / Infinity 35
Carrier Infinity 35 9k R-454B 208/230V Mini-Split
A 9,000 BTU Infinity 35 hyper-heat head on 230V and R-454B, rated 33.5 SEER2, 17 EER2, and 14.6 HSPF2. Heating rises into the cold: 12,000 BTU at 47F, 11,000 BTU at 17F, and a peak 13,500 BTU at 5F. It is ENERGY STAR certified and cold-climate designated.
1 zoneProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant

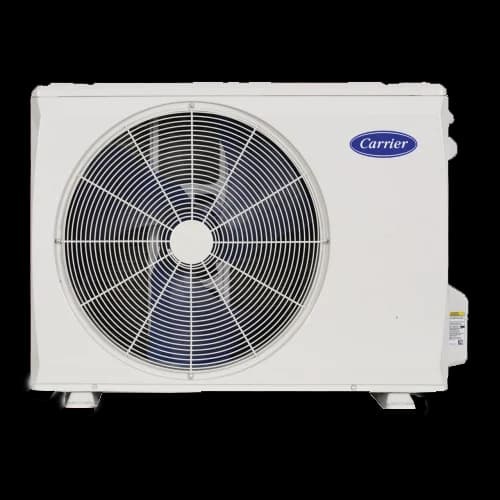

Image: Carrier
Data completeness: 100%
- Last sourced
- Jul 27, 2026
SplitAtlas score
9.3 / 10
Cooling efficiencyTop 10%
(33.5 SEER2) among <=9k systems
Heating efficiencyTop 10%
(14.6 HSPF2) among <=9k systems
Cold-weather performanceTop quartile
(100% heat retained at 5F; -22 F heating floor) among <=9k systems
WarrantyAbove average
(10 yr parts / 10 yr compressor) across the catalogue
Feature setAbove average
(6 verified features) across the catalogue
Documentation & partsBelow average
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
quote-only - no retail price to evaluate
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- Top efficiency shortlists; SEER2 is 33.5.
Install difficulty
Professional install
- Electrical: 230V.
Availability and price context
- Warranty warning: Warranty coverage does not apply to any product purchased over the Internet. Online listing: $3,599.99 at HVACDirect; checked Jul 27, 2026; price source is HVACDirect.
Purchase channel policy
Carrier's ductless warranty excludes products purchased over the Internet; buyers should treat public online carts as outside the warranty-covered purchase channel.
- Warranty consequence
- Warranty coverage does not apply to any product purchased over the Internet.
- Authorized channel
- Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.
Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.
Compare online-purchase warranty rules by brand
Source: Carrier Corporation: CAC/BDP Limited Warranty Certificate - Limited Warranty for Ductless Split Units; retrieved Aug 15, 2026.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 27, 2026
Warranty tiers
Warranty: 10 years parts and no separate compressor term published as standard.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- Flagship-level 33.5 SEER2 and 17 EER2 for elite year-round efficiency.
- Hyper-heat curve that peaks at 13,500 BTU at 5F, ideal for the coldest conditions.
- Cold-climate and ENERGY STAR certified, backed by Carrier's premium warranty network.
Weaknesses
- Top-tier pricing that is hard to justify outside genuinely cold climates.
- 230V only, requiring the correct dedicated circuit.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Rated heating at 5F
- 13,500 BTU/h[2]
- Rated heating at 17F
- 11,000 BTU/h[2]
- Rated heating at 47F
- 12,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- Carrier
- Brand
- Carrier
- Product line
- Infinity 35
- Model number
- 45MPHAQ09XA3 indoor / 37MPRAQ09AA3 outdoor
- Indoor unit model
- 45MPHAQ09XA3
- Outdoor unit model
- 37MPRAQ09AA3
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[2]
- Rated heating capacity
- 12,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- No model-specific value is published on the current Carrier consumer listing
- Maximum fuse or breaker size
- No model-specific value is published on the current Carrier consumer listing
- Breaker needed
- not published
- SEER2
- 33.5 SEER2[2]
- EER2
- 17 EER2[2]
- HSPF2 (Region 4)
- 14.6 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2 COP[2]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- No model-specific value is published on the current Carrier consumer listing
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- No model-specific value is published on the current Carrier consumer listing
- Outdoor noise rating
- No model-specific value is published on the current Carrier consumer listing
- Indoor weight
- No model-specific value is published on the current Carrier consumer listing
- Outdoor weight
- No model-specific value is published on the current Carrier consumer listing
- Refrigerant
- R-454B[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- No model-specific value is published on the current Carrier consumer listing liquid / No model-specific value is published on the current Carrier consumer listing suction
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- No model-specific value is published on the current Carrier consumer listing
- Max line set per indoor
- not published
- Maximum elevation difference
- No model-specific value is published on the current Carrier consumer listing
- Max height between indoor units
- not published
- Wi-Fi support
- No model-specific value is published on the current Carrier consumer listing
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215413142[2]
- Warranty
- Standard: 10 yr parts / no separate compressor term (eligible timely registered residential installation). Consumer Choice Warranty: 10-year parts-only or 5-year parts plus 3-year labor for eligible timely registered residential installations; terms and participating dealer requirements apply.
- Install path
- Professional install
- Retail price
- online listing with warranty risk: $3,599.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 215413142, ENERGY STAR exact check 215413142, Infinity 35 installation documentation locator, Carrier Infinity 35 Mini Split Heat Pump with Basepan Heater, HVACDirect exact Carrier affiliate offer carrier-infinity-35-9k-r454b-230v, AHRI Appendix M1 public detail 215413142
- Specification sheet
- AHRI Appendix M1 public detail 215413142
- Last sourced date
- Jul 27, 2026
Retail purchase context
Warranty consequence
Warranty coverage does not apply to any product purchased over the Internet.
Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.
Authorized channel: Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
Warranty-risk online listing
Listed at HVACDirect: $3,600. Checked Jul 27, 2026; price source HVACDirect.
Electrical requirements
ShowHide
- Voltage
- 230 V[1]
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- No model-specific value is published on the current Carrier consumer listing
- Breaker needed
- not published
- Maximum breaker size
- No model-specific value is published on the current Carrier consumer listing
- Maximum fuse size
- No model-specific value is published on the current Carrier consumer listing
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- not published
Installation considerations
ShowHide
- Liquid line
- No model-specific value is published on the current Carrier consumer listing
- Suction line
- No model-specific value is published on the current Carrier consumer listing
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- No model-specific value is published on the current Carrier consumer listing
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- No model-specific value is published on the current Carrier consumer listing
- Outdoor dimensions
- No model-specific value is published on the current Carrier consumer listing
- Indoor weight
- No model-specific value is published on the current Carrier consumer listing
- Outdoor weight
- No model-specific value is published on the current Carrier consumer listing
- Drain size
- not published
Related systems and guides
- More Carrier systems
- Infinity 27 9k
- Carrier sibling model
Previous generation
- Carrier 9k model
- Carrier 230 V option
Previous generation
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- Carrier mini split review: is Carrier any good?
- The best 9,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split outdoor unit not running
- Mini split not cooling
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Carrier Infinity 35 9,000 BTU R-454B 208/230V (45MPHAQ09XA3 / 37MPRAQ09AA3) myself, or do I need a pro?
- Carrier Infinity 35 9,000 BTU R-454B 208/230V (45MPHAQ09XA3 / 37MPRAQ09AA3) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Carrier Infinity 35 9,000 BTU R-454B 208/230V (45MPHAQ09XA3 / 37MPRAQ09AA3) keep heating in a cold winter?
- The manufacturer publishes 13,500 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 14.6 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Carrier Infinity 35 9,000 BTU R-454B 208/230V (45MPHAQ09XA3 / 37MPRAQ09AA3) need?
- Published electrical requirements: 230 V voltage, No model-specific value is published on the current Carrier consumer listing minimum circuit ampacity, and No model-specific value is published on the current Carrier consumer listing maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is No model-specific value is published on the current Carrier consumer listing. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
- What warranty does the Carrier Infinity 35 9,000 BTU R-454B 208/230V (45MPHAQ09XA3 / 37MPRAQ09AA3) carry?
- The manufacturer publishes these warranty tiers: Standard: 10 yr parts / no separate compressor term (eligible timely registered residential installation). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
