Carrier / Infinity 38MPRA/40MPHA legacy

Carrier Infinity Legacy 9k A/A R-410A 208/230V Mini-Split

Certified capacity
9,000 BTU/h[2]
SEER2
26 SEER2[2]
Heating floor
-22 F[4]
Voltage
230 V[1]
Install path
Professional install

A legacy 9,000 BTU Infinity pairing (38MPRA / 40MPHA) on 230V using the older R-410A refrigerant, rated 26 SEER2, 15 EER2, and 12.5 HSPF2. Its certified heating points are 10,000 BTU at 47F, 7,200 BTU at 17F and 12,000 BTU at 5F. It is not ENERGY STAR certified and not cold-climate designated.

1 zoneProfessional installLegacy

This brand doesn't honor its warranty on systems bought online. Buy it through a local contractor who installs it: get quotes from installers in your area, and ask whether they're an authorized dealer for this brand.

Get installation quotes
Error Codes

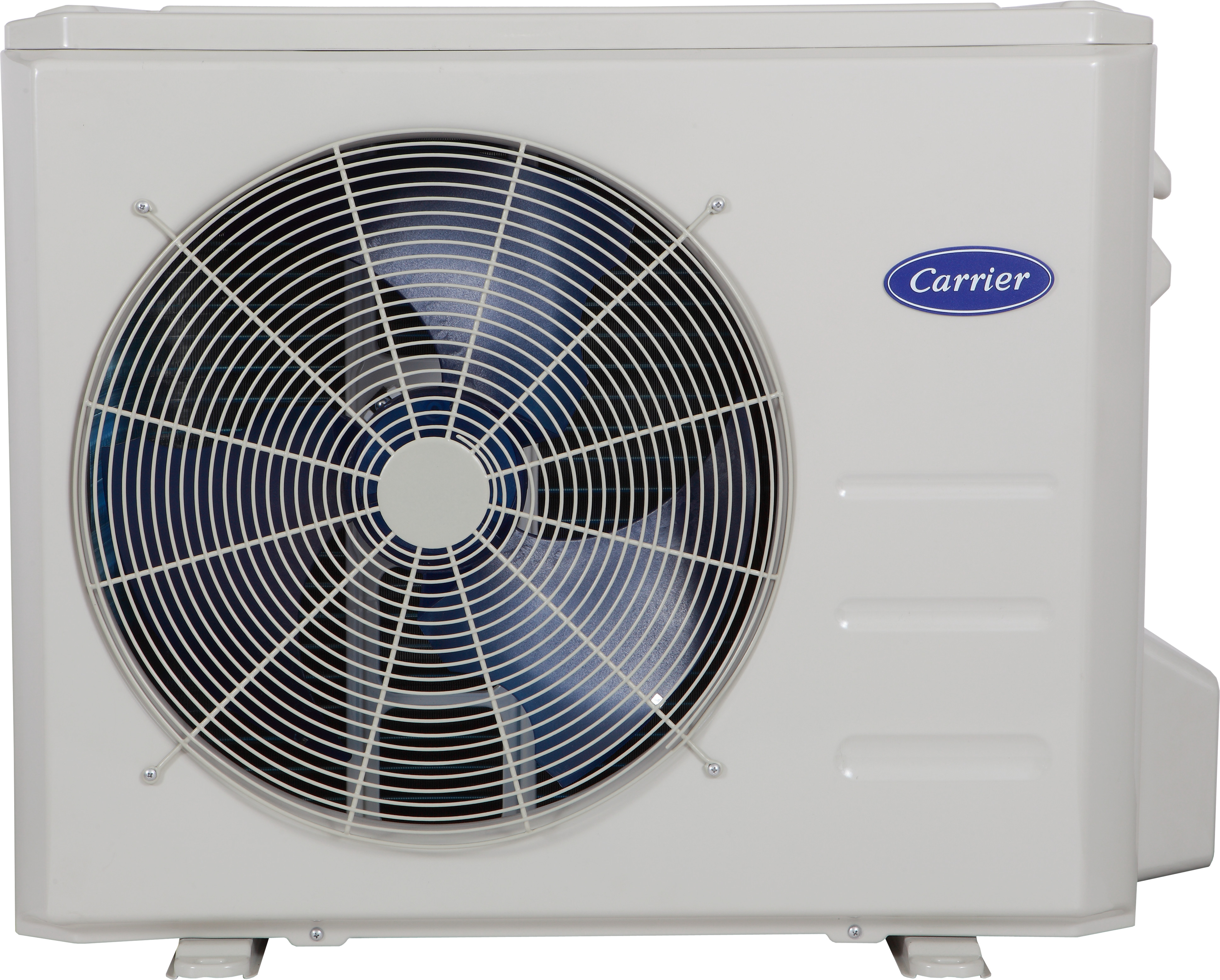

Carrier Infinity 38MPRA/40MPHA legacy 9,000 BTU R-410A 208/230V (40MPHAQ09XA3 / 38MPRAQ09AA3)

Image: Carrier

Data completeness: 100%
Last sourced
Jul 27, 2026

SplitAtlas score

8.7 / 10

Methodology
Cooling efficiencyTop quartile

(26.0 SEER2) among <=9k systems

Heating efficiencyTop quartile

(12.5 HSPF2) among <=9k systems

Cold-weather performanceTop quartile

(5F certified capacity: 100% of the 47F rating; -22 F heating floor) among <=9k systems

WarrantyAbove average

(10 yr parts, no separate compressor term) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Documentation & partsBelow average

(6 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

9,000BTU/h[2]

Rated heating

10,000BTU/h[2]

Buyer review snapshot

Best for / skip if

Best for

  • Top efficiency shortlists; SEER2 is 26.

Skip if

  • You are shopping for a current-generation recommendation; catalog lifecycle is LEGACY.

Install difficulty

Professional install
  • Electrical: 230V.

Alternatives

Availability and price context

Carrier sells this system through authorized dealers and contractors, not online, and doesn't honor its warranty on systems bought online. Get installation quotes and ask whether the installer is an authorized Carrier dealer.

Purchase channel policy

Carrier's ductless warranty excludes products purchased over the Internet; buyers should treat public online carts as outside the warranty-covered purchase channel.

Warranty consequence
Warranty coverage does not apply to any product purchased over the Internet.
Authorized channel
Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.

Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.

Compare online-purchase warranty rules by brand

Source: Carrier Corporation: CAC/BDP Limited Warranty Certificate - Limited Warranty for Ductless Split Units; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 27, 2026
Page reviewed
Jul 27, 2026
Source-backed records
4
Newest source retrieved
Sep 11, 2026

Warranty tiers

Registered
10 yr parts / no separate compressor term - eligible timely registered residential installation
Dealer alternative
5 yr parts / no separate compressor term - Consumer Choice dealer alternative: 5-year parts plus 3-year labor through a participating dealer

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Strengths

  • Efficiency figures remain competitive on paper at 26 SEER2 and 15 EER2 for a legacy head.
  • Certified at 12,000 BTU at 5F, above its 47F rating, per the older-generation data.

Weaknesses

  • Built on R-410A, a refrigerant now being phased down; the current R-454B Infinity 27 9k is the replacement to consider.
  • Not ENERGY STAR or cold-climate certified, and its 17F figure sits below its 5F figure, an older-generation test pattern to read cautiously.

Climate suitability

Minimum heating ambient
-22 F[4]
Certified heating at 5F
12,000 BTU/h[2]
Rated heating at 17F
7,200 BTU/h[2]
Rated heating at 47F
10,000 BTU/h[2]

Specifications

Show
Manufacturer
Carrier
Brand
Carrier
Product line
Infinity 38MPRA/40MPHA legacy
Model number
40MPHAQ09XA3 indoor / 38MPRAQ09AA3 outdoor
Indoor unit model
40MPHAQ09XA3
Outdoor unit model
38MPRAQ09AA3
Number of zones
1
Max indoor units
not published
Rated cooling capacity
9,000 BTU/h[2]
Rated heating capacity
10,000 BTU/h[2]
Voltage
230 V[1]
MCA
Not published for this model
Maximum fuse or breaker size
Not published for this model
Breaker needed
not published
SEER2
26 SEER2[2]
EER2
15 EER2[2]
HSPF2 (Region 4)
12.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.75 COP[2]
Minimum outdoor heating temperature
-22 F[4]
Minimum outdoor cooling temperature
-22 F[4]
Maximum outdoor temperature
122 F[4]
Indoor noise range
Not published for this model
Outdoor noise rating
Not published for this model
Indoor weight
Not published for this model
Outdoor weight
Not published for this model
Refrigerant
R-410A[2]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
Not published for this model liquid / Not published for this model suction
Included line-set length
Professional installations use separately selected line sets
Maximum line-set length
Not published for this model
Max line set per indoor
not published
Maximum elevation difference
Not published for this model
Max height between indoor units
not published
Wi-Fi support
Not published for this model
Energy Star status
Not ENERGY STAR certified[3]
AHRI certification number
201753408[2]
Warranty
Registered: 10 yr parts / no separate compressor term (eligible timely registered residential installation); Dealer alternative: 5 yr parts / no separate compressor term (Consumer Choice dealer alternative: 5-year parts plus 3-year labor through a participating dealer). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Consumer Choice Warranty: 10-year parts-only or 5-year parts plus 3-year labor for eligible timely registered residential installations; terms and participating dealer requirements apply.
Install path
Professional install
Retail price
Authorized dealers only
Available retailers
not published
Manual links
AHRI public directory record 201753408, ENERGY STAR exact check 201753408, Infinity 38MPRA/40MPHA legacy installation documentation locator, Carrier Infinity 38MPR legacy R-410A heat pump, AHRI Appendix M1 public detail 201753408
Specification sheet
AHRI Appendix M1 public detail 201753408
Last sourced date
Jul 27, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
Not published for this model
Breaker needed
not published
Maximum breaker size
Not published for this model
Maximum fuse size
Not published for this model
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
Not published for this model
Suction line
Not published for this model
Line connection type
not published
Precharged length
not published
Included line-set length
Professional installations use separately selected line sets
Maximum line-set length
Not published for this model
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
Not published for this model
Outdoor dimensions
Not published for this model
Indoor weight
Not published for this model
Outdoor weight
Not published for this model
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Carrier Infinity 38MPRA/40MPHA legacy 9,000 BTU R-410A 208/230V (40MPHAQ09XA3 / 38MPRAQ09AA3) myself, or do I need a pro?
Carrier Infinity 38MPRA/40MPHA legacy 9,000 BTU R-410A 208/230V (40MPHAQ09XA3 / 38MPRAQ09AA3) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Carrier Infinity 38MPRA/40MPHA legacy 9,000 BTU R-410A 208/230V (40MPHAQ09XA3 / 38MPRAQ09AA3) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 12,000 BTU/h of heating capacity at 5F. Certified heating efficiency is 12.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Carrier Infinity 38MPRA/40MPHA legacy 9,000 BTU R-410A 208/230V (40MPHAQ09XA3 / 38MPRAQ09AA3) need?
Published electrical requirements: 230 V voltage. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
What warranty does the Carrier Infinity 38MPRA/40MPHA legacy 9,000 BTU R-410A 208/230V (40MPHAQ09XA3 / 38MPRAQ09AA3) carry?
The manufacturer publishes these warranty tiers: Registered: 10 yr parts / no separate compressor term (eligible timely registered residential installation); Dealer alternative: 5 yr parts / no separate compressor term (Consumer Choice dealer alternative: 5-year parts plus 3-year labor through a participating dealer). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Carrier Corporation: Carrier Infinity 38MPRB legacy R-410A heat pumpSourced - manufacturer product page

    Covers Frequency, Phase, Voltage, Voltage range, Additional compressor warranty status, Additional published warranty conditions and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for 38MPRAQ09AA3 / 40MPHAQ09XA3Sourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more

  3. ENERGY STAR: ENERGY STAR exact row check for AHRI 201753408Sourced - Energy Star listing

    Covers Energy Star status

  4. Carrier Corporation: 38MPRA Product Data (38MPRA-03PD)Sourced - manufacturer technical document

    Covers Minimum outdoor cooling temperature, Minimum outdoor heating temperature, Maximum outdoor temperature
