Carrier / Performance 25

Carrier Performance 25 36k R-454B 208/230V 5-Zone Mini-Split

Certified capacity
36,000 BTU/h[2]
SEER2
24 SEER2[2]
Heating floor
-13 F[4]
Voltage
230 V[1]
Install path
Professional install

The Carrier Performance 25 5-Zone 36k (37MGRAQ36EA3) is the largest standard-tier condenser, feeding five indoor heads from one 208/230V outdoor unit, dealer-quoted through Carrier's installer network rather than sold as buyable equipment. It carries a certified nominal SEER2 of 24, EER2 12, and HSPF2 9.5, is ENERGY STAR certified and AHRI cold-climate designated, on current low-GWP R-454B refrigerant.

Cooling is rated at 36000 BTU, with heating of 37000 BTU at 47F, 31000 at 17F, and 26000 at 5F. The extra capacity suits larger five-room layouts.

Professional installation required.

5 zonesProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

This brand doesn't honor its warranty on systems bought online. Buy it through a local contractor who installs it: get quotes from installers in your area, and ask whether they're an authorized dealer for this brand.

Get installation quotes
Error Codes

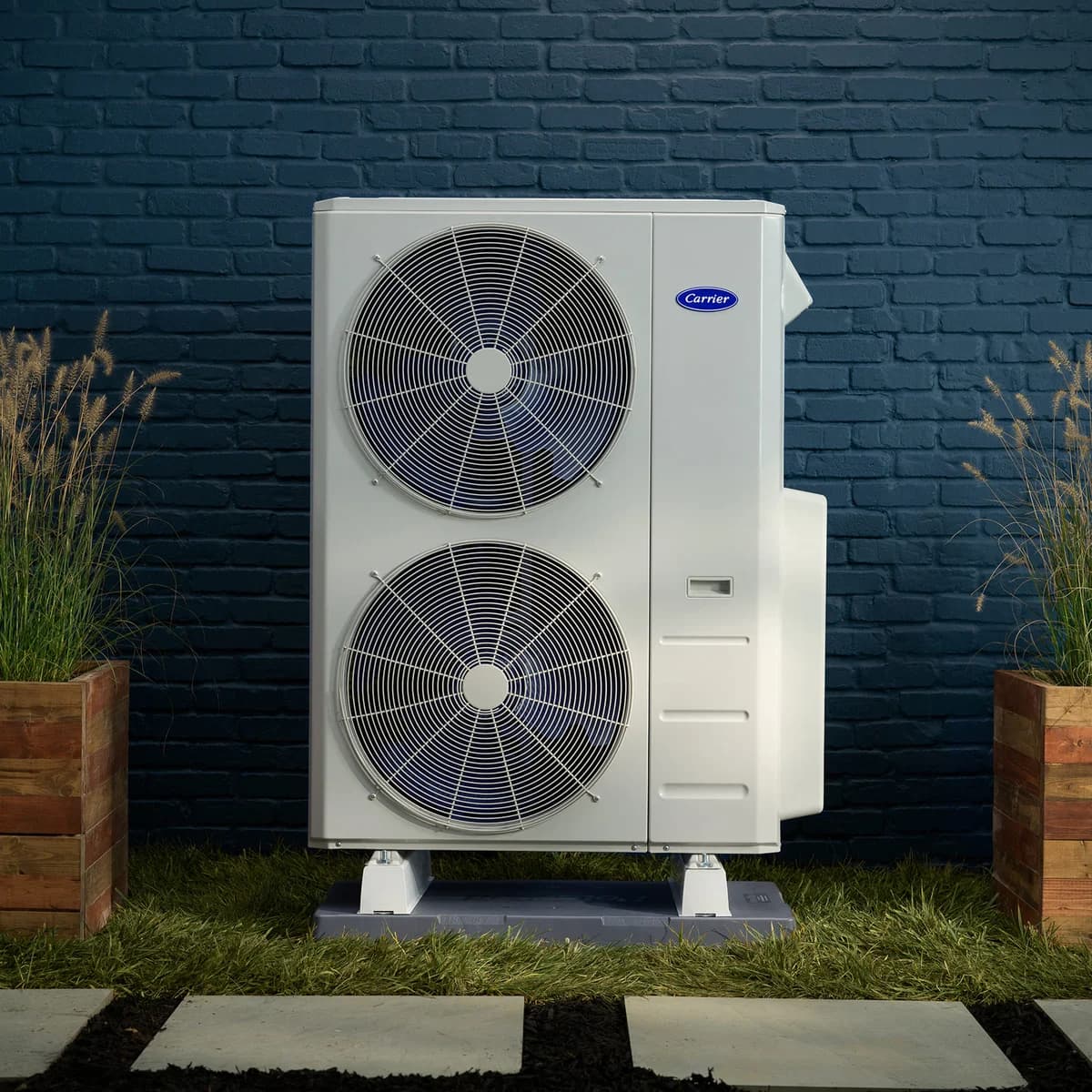

Carrier Performance 25 5-Zone 36,000 BTU R-454B 208/230V (37MGRAQ36EA3)

Image: Carrier

Data completeness: 95%
Last sourced
Jul 28, 2026

SplitAtlas score

8.6 / 10

Methodology
Cooling efficiencyTop 10%

(24.0 SEER2) among 36k systems

Heating efficiencyBelow average

(9.5 HSPF2) among 36k systems

Cold-weather performanceBelow average

(5F certified capacity: 70.3% of the 47F rating; -13 F heating floor) among 36k systems

WarrantyAbove average

(10 yr parts, no separate compressor term) across the catalogue

Feature setTop quartile

(6 verified features) across the catalogue

Documentation & partsBottom quartile

(7 manuals) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

36,000BTU/hNon-Ducted Indoor Units[2]

Rated heating

37,000BTU/hNon-Ducted Indoor Units[2]

Best-fit use cases

A larger five-room home needing maximum standard-tier capacity through a dealer; buyers who want buyable equipment and full rated heating certified at 5F should look at the matching Infinity 25 5-Zone.

Buyer review snapshot

Best for / skip if

Best for

  • 5-zone projects in the 36k outdoor capacity class.
  • High-efficiency shortlists; SEER2 is 24.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 30.5 A; breaker/fuse 35 A.
  • Line set: Flared line connections; precharged 24.6 ft; max 262.5 ft.
  • 5-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

Carrier sells this system through authorized dealers and contractors, not online, and doesn't honor its warranty on systems bought online. Get installation quotes and ask whether the installer is an authorized Carrier dealer.

Purchase channel policy

Carrier's ductless warranty excludes products purchased over the Internet; buyers should treat public online carts as outside the warranty-covered purchase channel.

Warranty consequence
Warranty coverage does not apply to any product purchased over the Internet.
Authorized channel
Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.

Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.

Compare online-purchase warranty rules by brand

Source: Carrier Corporation: CAC/BDP Limited Warranty Certificate - Limited Warranty for Ductless Split Units; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 28, 2026
Page reviewed
Jul 28, 2026
Source-backed records
4
Newest source retrieved
Jul 28, 2026

Warranty tiers

Registered
10 yr parts / no separate compressor term - eligible timely registered residential installation
Dealer alternative
5 yr parts / no separate compressor term - Consumer Choice dealer alternative: 5-year parts plus 3-year labor through a participating dealer

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Structured ratings
Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.

Strengths

  • Largest standard-tier capacity: 36000 BTU cooling across five zones.
  • Solid deep-cold heating (26000 BTU at 5F).
  • ENERGY STAR certified and AHRI cold-climate designated on R-454B.
  • Backed by Carrier, a major, trusted US HVAC brand and dealer network.

Weaknesses

  • Dealer-quoted, not buyable equipment - you get an installer quote, not a priced condenser.
  • Lowest efficiency of the Performance line here (SEER2 24 / EER2 12).
  • Multi-zone part-load penalty when few heads are running.

Climate suitability

Minimum heating ambient
-13 F[4]
Certified heating at 5F
26,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
31,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
37,000 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
Carrier
Brand
Carrier
Product line
Performance 25
Model number
37MGRAQ36EA3
Indoor unit model
Depends on the indoor units you choose
Outdoor unit model
37MGRAQ36EA3
Number of zones
5
Max indoor units
5 units[1]
Rated cooling capacity
36,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
37,000 BTU/hNon-Ducted Indoor Units[2]
Voltage
230 V[1]
MCA
30.5 A[1]
Maximum fuse or breaker size
35 A[1]
Breaker needed
not published
SEER2
24 SEER2Non-Ducted Indoor Units[2]
EER2
12 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
9.5 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Varies by indoor-unit combination
COP
not published
COP at 47F
not published
COP at 5F
2 COPNon-Ducted Indoor Units[2]
Minimum outdoor heating temperature
-13 F[4]
Minimum outdoor cooling temperature
-13 F[4]
Maximum outdoor temperature
122 F[4]
Indoor noise range
Depends on the indoor units you choose
Outdoor noise rating
64.5 dBA[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
168.87 lb[1]
Refrigerant
R-454B[2]
Refrigerant charge
120.64 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in x 5 liquid / 3/8 in x 4 + 1/2 in x 1 suction
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
262.5 ft[1]
Max line set per indoor
114.8 ft[1]
Maximum elevation difference
49.21 ft[1]
Max height between indoor units
33 ft[1]
Wi-Fi support
Depends on the indoor units you choose
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
215357496Non-Ducted Indoor Units[2]
Warranty
Registered: 10 yr parts / no separate compressor term (eligible timely registered residential installation); Dealer alternative: 5 yr parts / no separate compressor term (Consumer Choice dealer alternative: 5-year parts plus 3-year labor through a participating dealer). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Consumer Choice Warranty: 10-year parts-only option or 5-year parts plus 3-year labor option
Install path
Professional install
Retail price
Authorized dealers only
Available retailers
not published
Manual links
AHRI public detail 215357496, ENERGY STAR exact row 215357496, Performance 25 Carrier ductless current brochure, Carrier Ductless Systems compatibility charts, Carrier Performance 25 Multi-Zone Mini Split Heat Pump, Carrier R-454B ductless Consumer Choice Warranty
Specification sheet
not published
Last sourced date
Jul 28, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
30.5 A[1]
Breaker needed
not published
Maximum breaker size
35 A[1]
Maximum fuse size
35 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in x 5[1]
Suction line
3/8 in x 4 + 1/2 in x 1[1]
Line connection type
Flared line connections[1]
Precharged length
24.6 ft[1]
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
262.5 ft[1]
Max line set per indoor
114.8 ft[1]
Max height between indoor units
33 ft[1]
Indoor dimensions
Depends on the indoor units you choose
Outdoor dimensions
37.24 x 16.14 x 31.89 in[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
168.87 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Carrier Performance 25 5-Zone 36,000 BTU R-454B 208/230V (37MGRAQ36EA3) myself, or do I need a pro?
Carrier Performance 25 5-Zone 36,000 BTU R-454B 208/230V (37MGRAQ36EA3) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Carrier Performance 25 5-Zone 36,000 BTU R-454B 208/230V (37MGRAQ36EA3) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 26,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Carrier Performance 25 5-Zone 36,000 BTU R-454B 208/230V (37MGRAQ36EA3) need?
Published electrical requirements: 230 V voltage, 30.5 A minimum circuit ampacity, and 35 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length from the outdoor unit to one indoor head is 114.8 ft. The combined piping limit across all heads is 262.5 ft. The outdoor unit's factory charge covers up to 24.6 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the Carrier Performance 25 5-Zone 36,000 BTU R-454B 208/230V (37MGRAQ36EA3) carry?
The manufacturer publishes these warranty tiers: Registered: 10 yr parts / no separate compressor term (eligible timely registered residential installation); Dealer alternative: 5 yr parts / no separate compressor term (Consumer Choice dealer alternative: 5-year parts plus 3-year labor through a participating dealer). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Carrier Corporation: Carrier Performance 25 37MG multi-zone compatibility and technical evidenceSourced - manufacturer technical document

    Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail 215357496Sourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more

  3. U.S. Environmental Protection Agency ENERGY STAR: ENERGY STAR exact row check for AHRI 215357496Sourced - Energy Star listing

    Covers Energy Star status

  4. Carrier Corporation: Carrier Performance 25 Multi-Zone Mini Split Heat PumpSourced - manufacturer product page

    Covers Minimum outdoor cooling temperature, Minimum outdoor heating temperature, Maximum outdoor temperature, Additional compressor warranty status, Additional published warranty conditions, Additional published parts warranty and more

Last updated

Jul 28, 2026
