Carrier / Performance 26

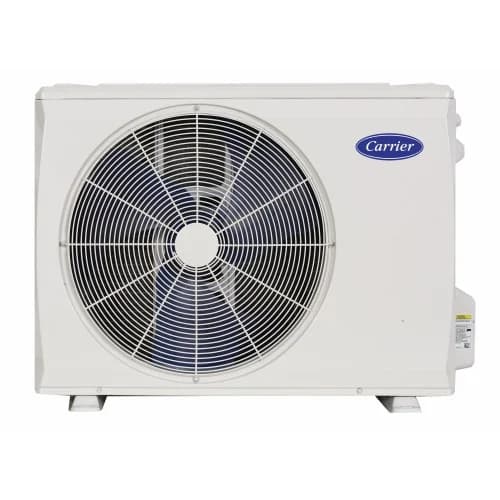

Carrier Performance 26 9k R-454B 208/230V Mini-Split
The 9,000 BTU Performance 26 is Carrier's mid-tier 230V head on R-454B, and it comes strong: 26 SEER2, 14.9 EER2, and a heating-focused 12.5 HSPF2. It heats to 10,000 BTU at 47F, 8,100 BTU at 17F, and 8,000 BTU at 5F, holding nearly flat in the cold. It is both ENERGY STAR certified and cold-climate designated.
Refrigerant generation
R-454B - current-generation refrigerant
Image: Carrier
- Last sourced
- Jul 27, 2026
SplitAtlas score
8.9 / 10
(26.0 SEER2) among <=9k systems
(12.5 HSPF2) among <=9k systems
(80% heat retained at 5F; -13 F heating floor) among <=9k systems
(-38 dBA indoor min / 52.5 dBA outdoor) among <=9k systems
(10 yr parts / 10 yr compressor) across the catalogue
(7 verified features) across the catalogue
(8 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
quote-only - no retail price to evaluate
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- Top efficiency shortlists; SEER2 is 26.
Install difficulty
- Electrical: 230V; MCA 12 A; breaker/fuse 15 A.
- Line set: connection type not sourced; precharged 24.6 ft; max 82.02 ft.
Availability and price context
We could not verify a current retail price for this model. We could not find a published consumer price for this model when we last checked on 2026-07-27.
Purchase channel policy
Carrier's ductless warranty excludes products purchased over the Internet; buyers should treat public online carts as outside the warranty-covered purchase channel.
- Warranty consequence
- Warranty coverage does not apply to any product purchased over the Internet.
- Authorized channel
- Licensed HVAC technician installation with defective parts returned to the distributor through a registered servicing dealer; not an internet purchase.
Any online offer for this brand should be treated as a warranty-risk warning, not a recommendation.
Compare online-purchase warranty rules by brand
Source: Carrier Corporation: CAC/BDP Limited Warranty Certificate - Limited Warranty for Ductless Split Units; retrieved Aug 15, 2026.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 22, 2026
- Source-backed records
- 5
- Newest source retrieved
- Jul 27, 2026
Warranty tiers
Warranty: 10 years parts and no separate compressor term published as standard.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.
Strengths
- Excellent 26 SEER2 and 12.5 HSPF2 for a small head, a clear step up from the Comfort tier.
- Cold-climate certified with a near-flat curve, giving up almost nothing between 17F and 5F.
- ENERGY STAR listed, so it qualifies for efficiency incentives where offered.
Weaknesses
- Heating tops out around 8,000 BTU at 5F, so it warms only a small space in deep cold.
- 230V only, requiring a dedicated circuit that a 115V room may lack.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Rated heating at 5F
- 8,000 BTU/h[2]
- Rated heating at 17F
- 8,100 BTU/h[2]
- Rated heating at 47F
- 10,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- Carrier
- Brand
- Carrier
- Product line
- Performance 26
- Model number
- 45MAHAQ09XA3 indoor / 37MARAQ09AA3 outdoor
- Indoor unit model
- 45MAHAQ09XA3
- Outdoor unit model
- 37MARAQ09AA3
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 9,000 BTU/h[2]
- Rated heating capacity
- 10,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 12 A[1]
- Maximum fuse or breaker size
- 15 A[1]
- Breaker needed
- not published
- SEER2
- 26 SEER2[2]
- EER2
- 14.9 EER2[2]
- HSPF2 (Region 4)
- 12.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- 3.9 COP[1]
- COP at 5F
- 2.36 COP[2]
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- -13 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- 19.5-38 dB(A)[1]
- Outdoor noise rating
- 52.5 dBA[1]
- Indoor weight
- 23.37 lb[1]
- Outdoor weight
- 62.17 lb[1]
- Refrigerant
- R-454B[1]
- Refrigerant charge
- 32.48 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- 82.02 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 49.21 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215323749[2]
- Warranty
- Standard: 10 yr parts / no separate compressor term (eligible timely registered residential installation). Consumer Choice Warranty: 10-year parts-only or 5-year parts plus 3-year labor for eligible timely registered residential installations; terms and participating dealer requirements apply.
- Install path
- Professional install
- Retail price
- We could not find a published consumer price for this model when we last checked on 2026-07-27.
- Available retailers
- not published
- Manual links
- AHRI public directory record 215323749, ENERGY STAR exact check 215323749, Carrier Performance 26 R-454B heat-pump installation manual, Performance 26 installation documentation locator, Carrier Performance 26 Mini Split Heat Pump, 45MAHAQ09XA3 & 37MARAQ09AA3 Carrier Performance 26 product data, HVACDirect exact Carrier offer check carrier-performance-26-9k-r454b-230v, AHRI Appendix M1 public detail 215323749
- Specification sheet
- AHRI Appendix M1 public detail 215323749
- Last sourced date
- Jul 27, 2026
Electrical requirements
ShowHide
- Voltage
- 230 V[1]
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- 12 A[1]
- Breaker needed
- not published
- Maximum breaker size
- 15 A[1]
- Maximum fuse size
- 15 A[1]
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- 14/3 stranded copper indoor-outdoor power/communication wiring[1]
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 24.6 ft[1]
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- 82.02 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 31.30 x 8.86 x 11.61 in[1]
- Outdoor dimensions
- 30.12 x 11.93 x 21.85 in[1]
- Indoor weight
- 23.37 lb[1]
- Outdoor weight
- 62.17 lb[1]
- Drain size
- not published
