Friedrich / Floating Air Pro X

Friedrich Floating Air Pro X 42k R-454B 208/230V 5-Zone Mini-Split

Certified capacity
42,000 BTU/h[2]
SEER2
22 SEER2[2]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

The Floating Air Pro X 5-zone covers five rooms from one 208/230V outdoor unit. It carries current R-454B refrigerant and a certified nominal SEER2 of 22 (EER2 12, HSPF2 9.5), and it is ENERGY STAR certified and AHRI cold-climate designated.

As with any multi-zone, that certified figure is the all-non-ducted nominal; your real efficiency depends on the heads you attach. Heating is rated at 48000 BTU at 47F, 28200 at 17F, and 36000 at 5F - output is lower in deep cold than at 47F, so plan capacity for your coldest design day.

Friedrich is an established American brand installed by professional dealers and priced by quote.

5 zonesProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

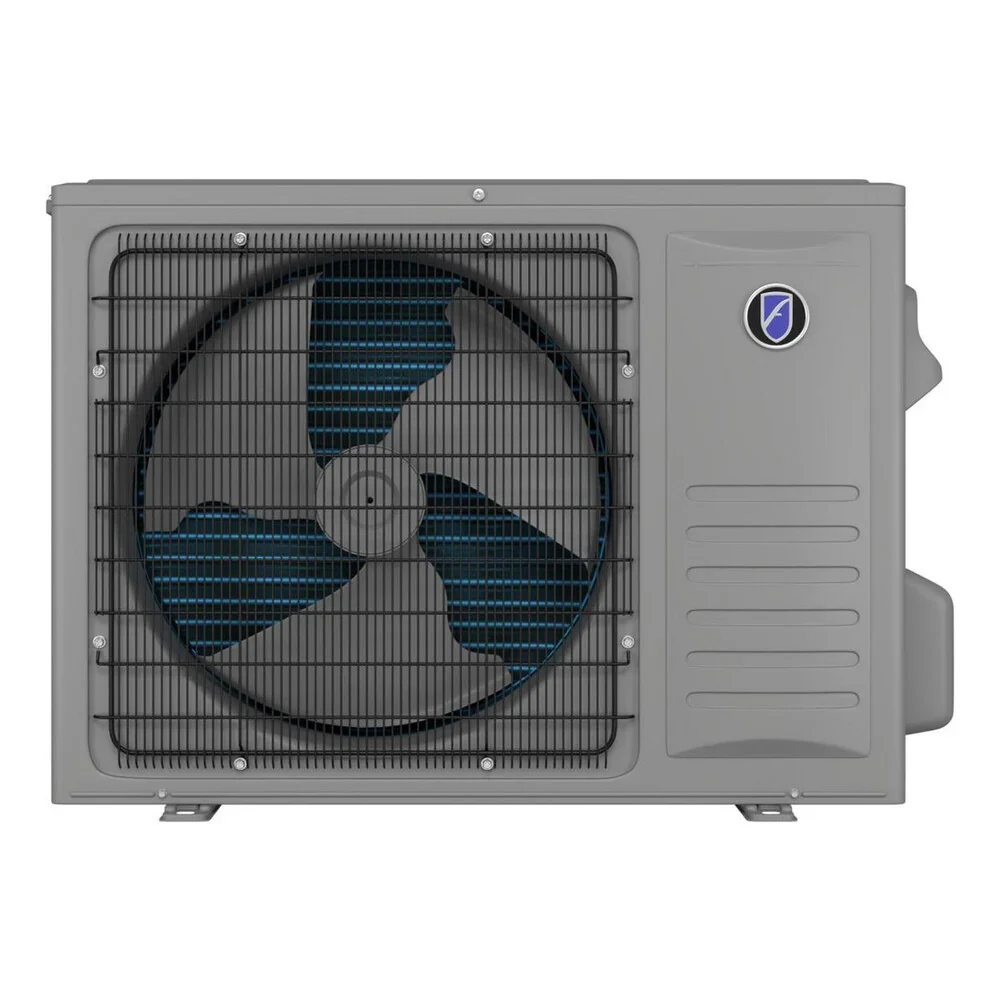

Friedrich Floating Air Pro X 5-Zone 42,000 BTU R-454B 208/230V (FPHMR42A3D) mini-split heat pump outdoor condenser

Image: Shop Appliances

Data completeness: 95%
Last sourced
Jul 29, 2026

SplitAtlas score

8.4 / 10

Methodology
Cooling efficiencyTop quartile

(22.0 SEER2) among >36k systems

Heating efficiencyAbove average

(9.5 HSPF2) among >36k systems

Cold-weather performanceBelow average

(75% heat retained at 5F; -13 F heating floor) among >36k systems

WarrantyAbove average

(7 yr parts / 10 yr compressor) across the catalogue

Feature setBelow average

(4 verified features) across the catalogue

Documentation & partsBelow average

(8 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

42,000BTU/hNon-Ducted Indoor Units[2]

Rated heating

48,000BTU/hNon-Ducted Indoor Units[2]

Buyer review snapshot

Best for / skip if

Best for

  • 5-zone projects in the 42k outdoor capacity class.
  • High-efficiency shortlists; SEER2 is 22.

Install difficulty

Complex professional install
  • Electrical: 230V; MCA 36 A; breaker/fuse 40 A.
  • Line set: connection type not sourced; precharged 125 ft; max 262 ft.
  • 5-zone condenser; indoor-head matching and branch layout are part of the job.

Availability and price context

We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-29.

Source date

Model data sourced
Jul 29, 2026
Page reviewed
Jul 29, 2026
Source-backed records
3
Newest source retrieved
Jul 29, 2026

Warranty tiers

Warranty: 7 years parts and 10 years compressor if the system is registered.

Review methodology

Model context

Install path
This is professional-install equipment; no verified current retail offer is attached.
Structured ratings
Certification: ENERGY STAR certified and ENERGY STAR cold-climate certified. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.

Strengths

  • Five zones from one outdoor unit and one 208/230V circuit.
  • Certified nominal SEER2 22 / EER2 12 / HSPF2 9.5, ENERGY STAR certified.
  • Strong heating output of 48000 BTU at 47F and 36000 at 5F, AHRI cold-climate designated.
  • Current R-454B refrigerant from an established, quality-focused American brand.

Weaknesses

  • Five-zone total capacity is shared; size to the condenser, not five full rooms.
  • Heating output is lower in deep cold (28200 at 17F and 36000 at 5F versus 48000 at 47F), and pricing is dealer-quoted only.

Climate suitability

Minimum heating ambient
-13 F[1]
Rated heating at 5F
36,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
28,200 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
48,000 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
Friedrich
Brand
Friedrich
Product line
Floating Air Pro X
Model number
FPHMR42A3D
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
FPHMR42A3D
Number of zones
5
Max indoor units
5 units[1]
Rated cooling capacity
42,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
48,000 BTU/hNon-Ducted Indoor Units[2]
Voltage
230 V[1]
MCA
36 A[1]
Maximum fuse or breaker size
40 A[1]
Breaker needed
not published
SEER2
22 SEER2Non-Ducted Indoor Units[2]
EER2
12 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
9.5 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
3.6 COP[1]
COP at 5F
1.92 COPNon-Ducted Indoor Units[2]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
5 F[1]
Maximum outdoor temperature
125 F[1]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
64 dBA[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
172 lb[1]
Refrigerant
R-454BNon-Ducted Indoor Units[2]
Refrigerant charge
105.8 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
262 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
49 ft[1]
Max height between indoor units
not published
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
215792843Non-Ducted Indoor Units[2]
Warranty
Best case: 7 yr parts / 10 yr compressor (registration). 7-year limited parts / 10-year compressor warranty with registration
Install path
Professional install
Retail price
We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-29.
Available retailers
not published
Manual links
Friedrich 2026 Floating Air ductless brochure, AHRI public detail for FPHMR42A3D, ENERGY STAR exact AHRI rows for FPHMR42A3D, Friedrich R-454B multi-zone outdoor installation manual, Friedrich Floating Air official page, HVACDirect exact-offer audit for FPHMR42A3D, Friedrich Floating Air Pro multi-zone R-454B service manual, Friedrich Floating Air Pro X Multi-Zone submittal
Specification sheet
Friedrich Floating Air Pro X Multi-Zone submittal
Last sourced date
Jul 29, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
36 A[1]
Breaker needed
not published
Maximum breaker size
40 A[1]
Maximum fuse size
40 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
4 x 14 AWG stranded THHN[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
3/8 in[1]
Line connection type
not published
Precharged length
125 ft[1]
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
262 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
not published
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
38-3/8 x 32-7/8 x 14-1/8 in[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
172 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Friedrich Floating Air Pro X 5-Zone 42,000 BTU R-454B 208/230V (FPHMR42A3D) myself, or do I need a pro?
Friedrich Floating Air Pro X 5-Zone 42,000 BTU R-454B 208/230V (FPHMR42A3D) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Friedrich Floating Air Pro X 5-Zone 42,000 BTU R-454B 208/230V (FPHMR42A3D) keep heating in a cold winter?
The manufacturer publishes 36,000 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Friedrich Floating Air Pro X 5-Zone 42,000 BTU R-454B 208/230V (FPHMR42A3D) need?
Published electrical requirements: 230 V voltage, 36 A minimum circuit ampacity, and 40 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 262 ft, and the included line set comes pre-charged for 125 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Friedrich Floating Air Pro X 5-Zone 42,000 BTU R-454B 208/230V (FPHMR42A3D) carry?
The manufacturer publishes these warranty tiers: Best case: 7 yr parts / 10 yr compressor (registration). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Friedrich Air Conditioning Co.: Friedrich Floating Air Pro X Multi-Zone submittalSourced - manufacturer technical document

    Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Manufacturer wire notes and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for FPHMR42A3DSourced - AHRI directory

    Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more

  3. ENERGY STAR: ENERGY STAR product database exact AHRI rows for FPHMR42A3DSourced - secondary source

    Covers performance_spec.energy_star_cold_climate, Energy Star status
