GE Appliances GE Caliber 11.5k R-454B 115V Mini-Split
The Caliber 12k in 115V is the larger plug-friendly retrofit head, a single-zone 11,500 BTU cooling heat pump on a standard 115V circuit using low-GWP R-454B. It rates 20 SEER2, 12 EER2, and 9.5 HSPF2, and it is ENERGY STAR certified. Note that this 115V variant is NOT cold-climate designated; it heats to 13,000 BTU at 47F and 9,100 BTU at 5F.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes

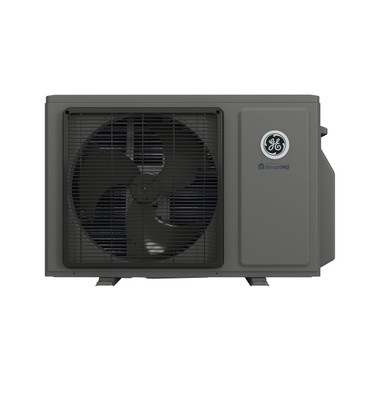

Image: GE Appliances
- Last sourced
- Jul 27, 2026
SplitAtlas score
7.7 / 10
(20.0 SEER2) among 12k systems
(9.5 HSPF2) among 12k systems
(70% heat retained at 5F; -4 F heating floor) among 12k systems
(32 dBA indoor min / 55 dBA outdoor) among 12k systems
(10 yr parts / 10 yr compressor) across the catalogue
(6 verified features) across the catalogue
(8 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Best-fit use cases
Best for a mid-size room, addition, or converted space in a moderate climate where 230V is not an option and cold-climate certification is not essential.
Buyer review snapshot
Install difficulty
- Electrical: 115V; MCA 18 A; breaker/fuse 25 A.
- Line set: connection type not sourced; max 66 ft.
Alternatives
- Daikin ATMOSPHERA 12,000 BTU R-32 208/230V (FTXM12WVJU9 / RXM12WVJU9)
9.0 score / 12k / SEER2 25.2 / -13 F heating floor / 208/230V
Exact destination at HVACDirect: $2,848.00, checked Jul 23, 2026
- Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
- Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
Availability and price context
We could not verify a current retail price for this model. We could not find a published consumer price for this model when we last checked on 2026-07-27.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 27, 2026
Warranty tiers
Warranty: 5 years parts and no separate compressor term published as standard; 10 years parts and no separate compressor term published if the system is registered.
Strengths
- Bigger plug-in capacity on a common 115V circuit, great for retrofits
- ENERGY STAR certified with a full 12 EER2
- Still musters 9,100 BTU of heat at 5F
Weaknesses
- Not cold-climate designated, unlike the 230V Caliber 12k
- 115V ceiling caps SEER2 at 20 and the head floor sits at 32 dB(A)
Climate suitability
- Minimum heating ambient
- -4 F[1]
- Rated heating at 5F
- 9,100 BTU/h[2]
- Rated heating at 17F
- 7,800 BTU/h[2]
- Rated heating at 47F
- 13,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- GE Appliances
- Brand
- GE Appliances
- Product line
- GE Caliber
- Model number
- GS12WB1BEA indoor / 1G12CB1BEA outdoor
- Indoor unit model
- GS12WB1BEA
- Outdoor unit model
- 1G12CB1BEA
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 11,500 BTU/h[2]
- Rated heating capacity
- 13,000 BTU/h[2]
- Voltage
- 115 V[1]
- MCA
- 18 A[1]
- Maximum fuse or breaker size
- 25 A[1]
- Breaker needed
- not published
- SEER2
- 20 SEER2[2]
- EER2
- 12 EER2[2]
- HSPF2 (Region 4)
- 9.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[2]
- Minimum outdoor heating temperature
- -4 F[1]
- Minimum outdoor cooling temperature
- not published
- Maximum outdoor temperature
- not published
- Indoor noise range
- 46/44/43/39/32 dB(A)[1]
- Outdoor noise rating
- 55 dBA[1]
- Indoor weight
- 21.844 lb[1]
- Outdoor weight
- 70.167 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 36.5 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- not published
- Maximum line-set length
- 66 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 33 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- not published
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215565289[2]
- Warranty
- Standard: 5 yr parts / no separate compressor term (limited parts warranty); Best case: 10 yr parts / no separate compressor term (registered limited parts warranty). 5-year limited parts warranty; 10-year registered limited parts warranty with registration.
- Install path
- Professional install
- Retail price
- We could not find a published consumer price for this model when we last checked on 2026-07-27.
- Available retailers
- not published
- Manual links
- AHRI public directory record 215565289, ENERGY STAR exact check 215565289, 1G12CB1BEA / GS12WB1BEA GE installation instructions, 1G12CB1BEA GE Appliances Air & Water product page, GS12WB1BEA GE Appliances Air & Water product page, HVACDirect exact search 1G12CB1BEA / GS12WB1BEA, 1G12CB1BEA / GS12WB1BEA GE specification guide or submittal, 1G12CB1BEA / GS12WB1BEA GE warranty
- Specification sheet
- 1G12CB1BEA / GS12WB1BEA GE specification guide or submittal
- Last sourced date
- Jul 27, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- not published
- Maximum line-set length
- 66 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 34.25 in W x 11.875 in H x 7.75 in D[1]
- Outdoor dimensions
- 34 in W x 21.75 in H x 11 in D[1]
- Indoor weight
- 21.844 lb[1]
- Outdoor weight
- 70.167 lb[1]
- Drain size
- not published
