Klimaire / Klimaire KIWE-KOIE

Klimaire 11.5k R-32 115V Mini-Split

Certified capacity
11,500 BTU/h[2]
SEER2
17 SEER2[2]
Heating floor
5 F[1]
Voltage
115 V[1]
Install path
Professional install

This 12,000 BTU wall-mount sits in Klimaire's budget KIWE/KOIE tier, a Midea-built value line sold through HVAC distributors rather than a single retailer. It posts SEER2 17, EER2 9.5, and a respectable HSPF2 9.5 on R-32, a current low-GWP refrigerant, and runs off a standard 115V circuit.

Heating comes in at 11,500 BTU at 47F, easing to 8,000 BTU at 5F. It suits a homeowner who wants professional installation and plug-simple wiring in a moderate climate.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

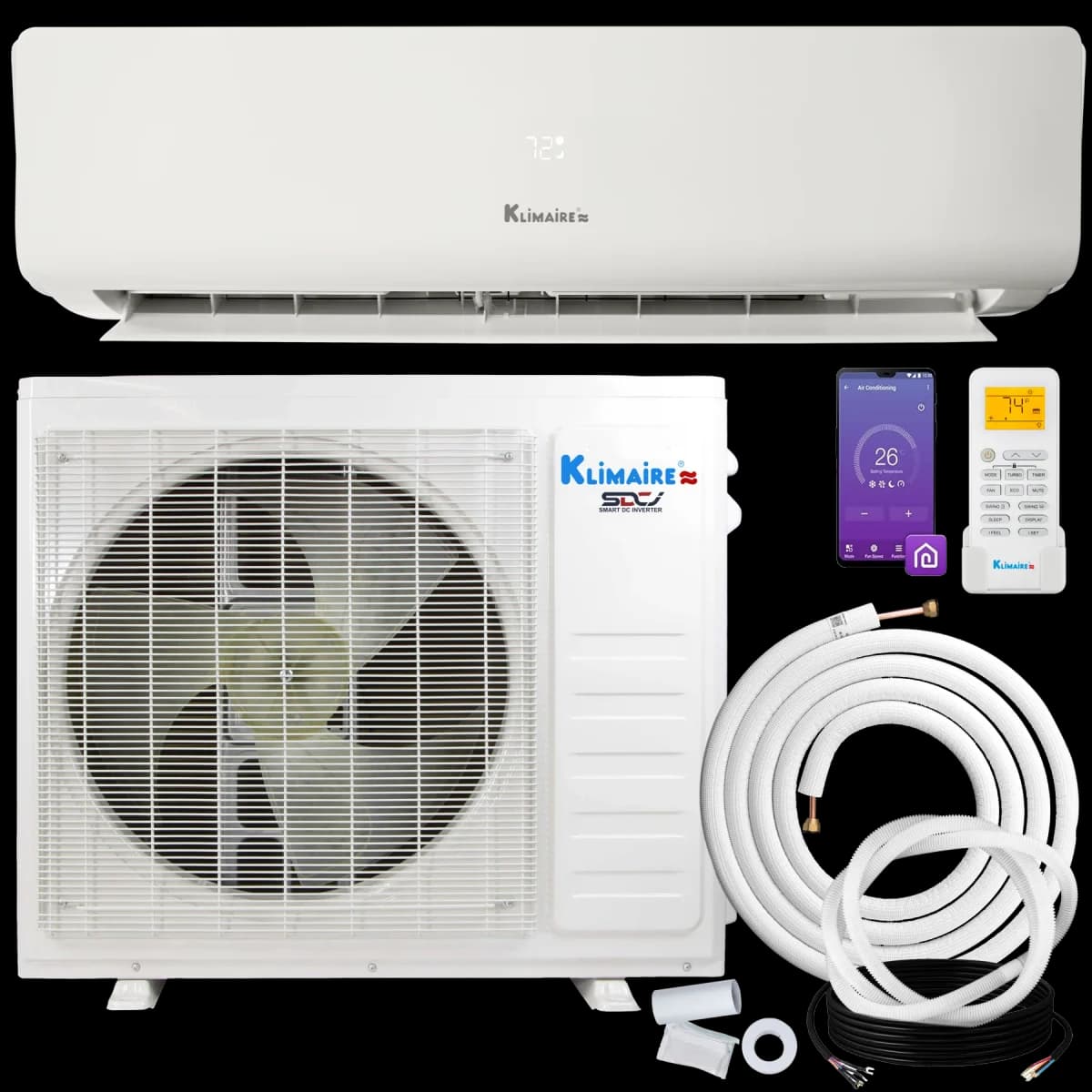

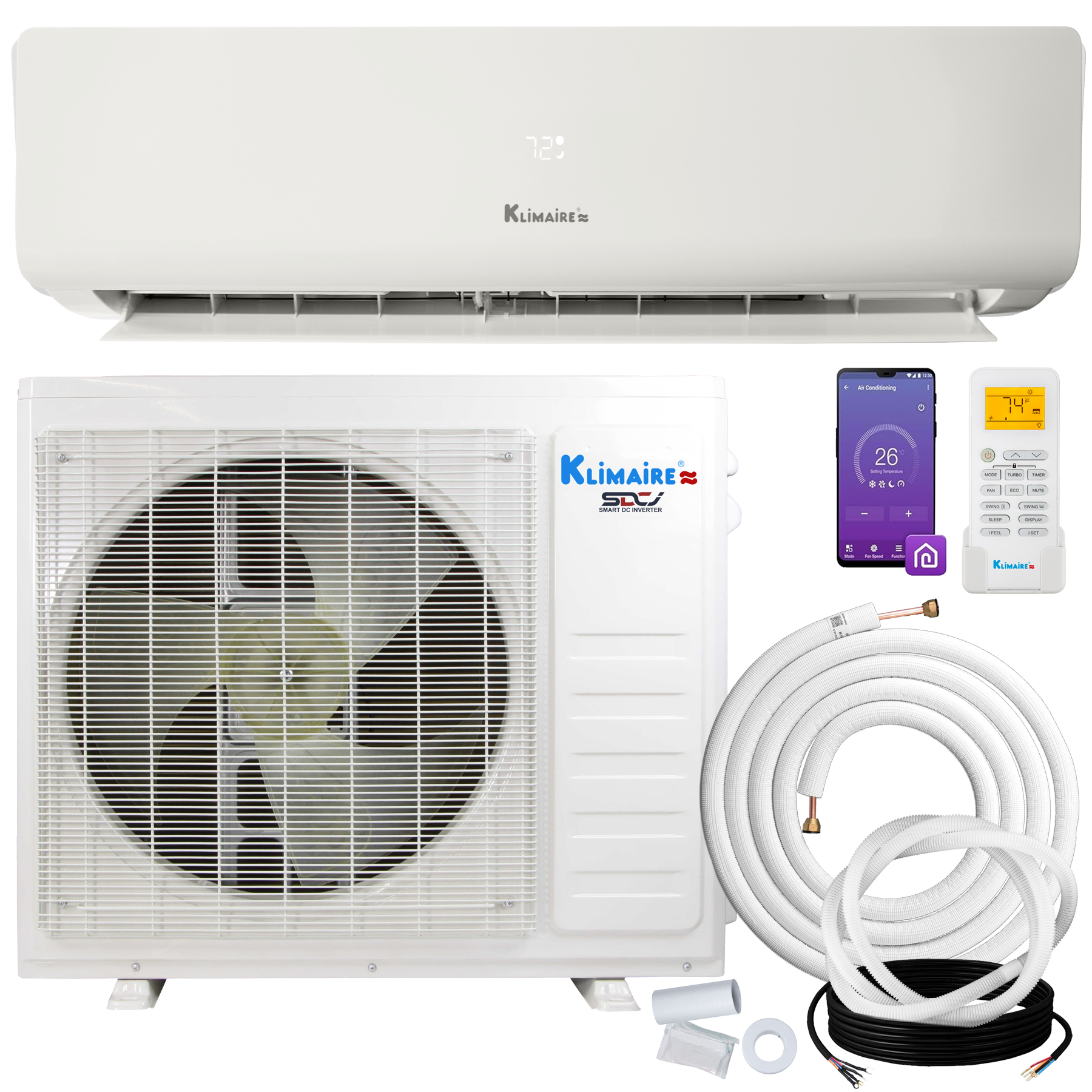

Klimaire KIWE-KOIE 11,500 BTU R-32 110-115V (KIWE12H1-31X / KOIE12H1-31X) mini-split heat pump indoor wall unit and outdoor condenser kit

Image: Klimaire

Data completeness: 95%
Last sourced
Jul 26, 2026

SplitAtlas score

7.2 / 10

Methodology
Cooling efficiencyBottom quartile

(17.0 SEER2) among 12k systems

Heating efficiencyBelow average

(9.5 HSPF2) among 12k systems

Cold-weather performanceBottom quartile

(5F certified capacity: 69.6% of the 47F rating; 5 F heating floor) among 12k systems

NoiseBottom quartile

(29 dBA indoor min / 53 dBA outdoor) among 12k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBelow average

(3 verified features) across the catalogue

Documentation & partsBottom quartile

(6 manuals) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

11,500BTU/h[2]

Rated heating

11,500BTU/h[2]

Best-fit use cases

Best for a bedroom, office, or small living space in a mild-to-moderate climate where a 115V circuit is handy and a pro will handle the line set and vacuum.

Buyer review snapshot

Best for / skip if

Skip if

  • Top-efficiency cooling is the priority; SEER2 is 17.

Install difficulty

Professional install
  • Electrical: 115V; MCA 17 A; breaker/fuse 25 A.
  • Line set: connection type not sourced; precharged 25 ft; included 16 ft; max 49 ft.

Alternatives

Availability and price context

This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.

Source date

Model data sourced
Jul 26, 2026
Page reviewed
Jul 26, 2026
Source-backed records
4
Newest source retrieved
Jul 26, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - published warranty terms

The score uses Base. Additional published terms are shown for reference and not counted in the score.

Review methodology

Strengths

  • Runs on 115V, so it can share a common household circuit and keeps the electrical side of a professional install straightforward.
  • HSPF2 9.5 is genuinely strong for a value-tier unit, so heating-season efficiency holds up better than the price suggests.
  • R-32 refrigerant is a current, low-GWP choice, and the distributor sales model keeps the sticker aggressive.

Weaknesses

  • Not cold-climate designated; output tapers to 8,000 BTU at 5F, so a hard-winter zone will lean hard on backup heat.
  • Not ENERGY STAR certified, and Klimaire's dealer and support network is thinner than premium names like Mitsubishi or Daikin.

Climate suitability

Minimum heating ambient
5 F[1]
Certified heating at 5F
8,000 BTU/h[2]
Rated heating at 17F
not published
Rated heating at 47F
11,500 BTU/h[2]

Specifications

Show
Manufacturer
Klimaire
Brand
Klimaire
Product line
Klimaire KIWE-KOIE
Model number
KIWE12H1-31X indoor / KOIE12H1-31X outdoor
Indoor unit model
KIWE12H1-31X
Outdoor unit model
KOIE12H1-31X
Number of zones
1
Max indoor units
not published
Rated cooling capacity
11,500 BTU/h[2]
Rated heating capacity
11,500 BTU/h[2]
Voltage
115 V[1]
MCA
17 A[1]
Maximum fuse or breaker size
25 A[1]
Breaker needed
not published
SEER2
17 SEER2[2]
EER2
9.5 EER2[2]
HSPF2 (Region 4)
9.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.9 COP[2]
Minimum outdoor heating temperature
5 F[1]
Minimum outdoor cooling temperature
54 F[1]
Maximum outdoor temperature
122 F[1]
Indoor noise range
29-43 dB(A)[1]
Outdoor noise rating
53 dBA[1]
Indoor weight
16.5 lb[1]
Outdoor weight
46.3 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
not published
Manufacturer coverage
550 sq ft[1]
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
16 ft[1]
Maximum line-set length
49 ft[1]
Max line set per indoor
not published
Maximum elevation difference
33 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[3]
AHRI certification number
218067076[2]
Warranty
Base: 5 yr parts / 7 yr compressor (published warranty terms). Score uses Base.. 7-year compressor / 5-year parts warranty
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI public directory record 218067076, ENERGY STAR exact check 218067076, Klimaire mini-split wall-mount collection, 12,000 BTU KIWE-KOIE Series 17 SEER2 High Wall-Mounted Heat Pump Mini Split Air Conditioner - R-32 / 110-115V, Klimaire warranty information
Specification sheet
not published
Last sourced date
Jul 26, 2026

Electrical requirements

Show
Voltage
115 V[1]
Voltage range
110-115V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
17 A[1]
Breaker needed
not published
Maximum breaker size
25 A[1]
Maximum fuse size
25 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
16 AWG, 4-conductor connection wiring[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
3/8 in[1]
Line connection type
not published
Precharged length
25 ft[1]
Included line-set length
16 ft[1]
Maximum line-set length
49 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
30.59 x 9.84 x 7.91 in[1]
Outdoor dimensions
30.98 x 11.42 x 19.61 in[1]
Indoor weight
16.5 lb[1]
Outdoor weight
46.3 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Klimaire KIWE-KOIE 11,500 BTU R-32 110-115V (KIWE12H1-31X / KOIE12H1-31X) myself, or do I need a pro?
Klimaire KIWE-KOIE 11,500 BTU R-32 110-115V (KIWE12H1-31X / KOIE12H1-31X) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Klimaire KIWE-KOIE 11,500 BTU R-32 110-115V (KIWE12H1-31X / KOIE12H1-31X) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 8,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to 5 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Klimaire KIWE-KOIE 11,500 BTU R-32 110-115V (KIWE12H1-31X / KOIE12H1-31X) need?
Published electrical requirements: 115 V voltage, 17 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 49 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. A 16 ft line set is included. Longer runs than the included set allows require a different line set, so measure the planned routing before ordering.
What warranty does the Klimaire KIWE-KOIE 11,500 BTU R-32 110-115V (KIWE12H1-31X / KOIE12H1-31X) carry?
The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (published warranty terms). Score uses Base.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
