GE Appliances / GE Caliber
GE Appliances GE Caliber 11.8k R-454B 208/230V Mini-Split
This Caliber 12k is the 230V version, a single-zone 11,800 BTU cooling heat pump on low-GWP R-454B. It posts a stronger 21 SEER2 with 12 EER2 and 9.5 HSPF2, and unlike its 115V sibling it is both ENERGY STAR certified and cold-climate designated. Heating runs 13,000 BTU at 47F with 10,400 BTU still available at 5F.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes

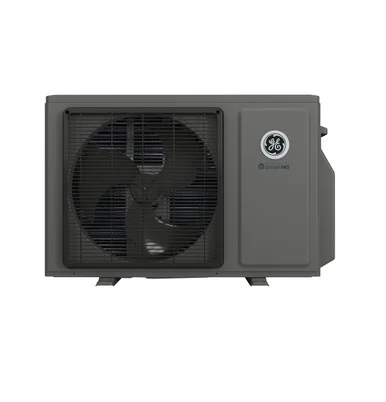

Image: GE Appliances
- Last sourced
- Jul 27, 2026
SplitAtlas score
8.1 / 10
(21.0 SEER2) among 12k systems
(9.5 HSPF2) among 12k systems
(5F certified capacity: 80% of the 47F rating; -4 F heating floor) among 12k systems
(27 dBA indoor min / 55 dBA outdoor) among 12k systems
(10 yr parts, no separate compressor term) across the catalogue
(6 verified features) across the catalogue
(8 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Best-fit use cases
Ideal for a mid-size bedroom or living space in a cold climate where 230V is available and you want the efficiency and quiet edge over the plug-in version.
Buyer review snapshot
Install difficulty
- Electrical: 230V; MCA 9 A; breaker/fuse 10 A.
- Line set: connection type not sourced; max 66 ft.
Alternatives
- Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
9.0 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
- Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
- ACiQ Extreme 12,000 BTU R-454B 208/230V (ACIQ-12W-HH-MD / ACIQ-12ZPL-HP230C)
8.9 score / 12k / SEER2 25.4 / -22 F heating floor / 230V
Exact destination at HVACDirect: $1,649.99, checked Jul 26, 2026
Availability and price context
This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 27, 2026
Warranty tiers
- Base
- 5 yr parts / no separate compressor term - limited parts warranty
- Registered
- 10 yr parts / no separate compressor term - registered limited parts warranty
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -4 F.
Strengths
- Higher 21 SEER2 and cold-climate designation over the 115V Caliber 12k
- Strong 10,400 BTU of heat at 5F
- Quiet indoor head, down to 27 dB(A)
Weaknesses
- Needs a 230V circuit, giving up the 115V plug-in convenience
- 9.5 HSPF2 is good but not at the Endure tier's level
Climate suitability
- Minimum heating ambient
- -4 F[1]
- Certified heating at 5F
- 10,400 BTU/h[2]
- Rated heating at 17F
- 7,800 BTU/h[2]
- Rated heating at 47F
- 13,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- GE Appliances
- Brand
- GE Appliances
- Product line
- GE Caliber
- Model number
- GS12WB2BEA indoor / 1G12CB2BEA outdoor
- Indoor unit model
- GS12WB2BEA
- Outdoor unit model
- 1G12CB2BEA
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 11,800 BTU/h[2]
- Rated heating capacity
- 13,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 9 A[1]
- Maximum fuse or breaker size
- 10 A[1]
- Breaker needed
- not published
- SEER2
- 21 SEER2[2]
- EER2
- 12 EER2[2]
- HSPF2 (Region 4)
- 9.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[2]
- Minimum outdoor heating temperature
- -4 F[1]
- Minimum outdoor cooling temperature
- not published
- Maximum outdoor temperature
- not published
- Indoor noise range
- 44/39/36/33/27 dB(A)[1]
- Outdoor noise rating
- 55 dBA[1]
- Indoor weight
- 21.844 lb[1]
- Outdoor weight
- 70.167 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 36.5 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- not published
- Maximum line-set length
- 66 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 33 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- not published
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 217124726[2]
- Warranty
- Base: 5 yr parts / no separate compressor term (limited parts warranty); Registered: 10 yr parts / no separate compressor term (registered limited parts warranty). Score uses Registered.. 5-year limited parts warranty; 10-year registered limited parts warranty with registration.
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- AHRI public directory record 217124726, ENERGY STAR exact check 217124726, 1G12CB2BEA / GS12WB2BEA GE installation instructions, 1G12CB2BEA GE Appliances Air & Water product page, GS12WB2BEA GE Appliances Air & Water product page, 1G12CB2BEA / GS12WB2BEA GE specification guide or submittal, 1G12CB2BEA / GS12WB2BEA GE warranty
- Specification sheet
- 1G12CB2BEA / GS12WB2BEA GE specification guide or submittal
- Last sourced date
- Jul 27, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- not published
- Maximum line-set length
- 66 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 34.25 in W x 11.875 in H x 7.75 in D[1]
- Outdoor dimensions
- 34 in W x 21.75 in H x 11 in D[1]
- Indoor weight
- 21.844 lb[1]
- Outdoor weight
- 70.167 lb[1]
- Drain size
- 5/8 in[1]
