GREE Envo 24k Four-Way Cassette R-32 208/230V Mini-Split

Certified capacity
22,000 BTU/h[2]
SEER2
22.5 SEER2[2]
Heating floor
-22 F[1]
Voltage
230 V[1]
Install path
Professional install

The largest Envo cassette certifies at 22.5 SEER2 and 9 HSPF2, with 22,000 BTU cooling and 24,000 heating, rated to -22F. It is half a point behind the Sapphire version and identical to the Vireo.

As with every 24k in this range, the badge describes the heating figure. Size on the 22,000 BTU cooling number if you are in a cooling-dominated climate, and budget for the install as seriously as the equipment - ceiling structure and return path drive the cost at this size.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

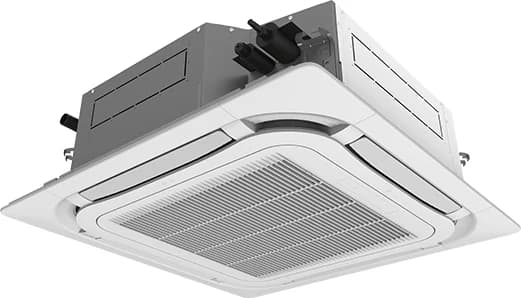

GREE four-way ceiling cassette indoor unit for R32 mini-split systems.

Image: GREE Comfort official All-Match 360 Cassette R32 product page

Data completeness: 100%
Last sourced
Aug 2, 2026

SplitAtlas score

7.9 / 10

Methodology
Cooling efficiencyAbove average

(22.5 SEER2) among 24k systems

Heating efficiencyBottom quartile

(9.0 HSPF2) among 24k systems

Cold-weather performanceBelow average

(70% heat retained at 5F; -22 F heating floor) among 24k systems

NoiseAbove average

(-44 dBA indoor min / 61 dBA outdoor) among 24k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBelow average

(4 verified features) across the catalogue

Documentation & partsBelow average

(6 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

22,000BTU/h[2]

Rated heating

24,000BTU/h[2]

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 22.5.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 22 A; breaker/fuse 30 A.
  • Line set: Flared line connections; precharged 25 ft; max 131 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. This model is sold through dealers, so we link to contractor quotes rather than a retail price.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE Select dealer installation and registration for the 10-year extended warranty.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Aug 2, 2026
Page reviewed
Aug 2, 2026
Source-backed records
4
Newest source retrieved
Aug 2, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard.

Review methodology

Model context

Structured ratings
Certification: ENERGY STAR certified. Refrigerant: current low-GWP R-32. Minimum heating ambient: -22 F.

Strengths

  • 22.5 SEER2 at 24,000 BTU of heating capacity - better than the 18k Envo cassette.
  • One head covers a large open area.

Weaknesses

  • Cooling is 22,000 BTU, not 24,000.
  • Half a point behind the Sapphire version of the same head.
  • Heavy head; structure, cavity depth and condensate lift all need checking.

Climate suitability

Minimum heating ambient
-22 F[1]
Rated heating at 5F
16,800 BTU/h[2]
Rated heating at 17F
19,400 BTU/h[2]
Rated heating at 47F
24,000 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Envo R32
Model number
CAS24HP230V1R32AH indoor / ENV24HP230V1R32AO outdoor
Indoor unit model
CAS24HP230V1R32AH
Outdoor unit model
ENV24HP230V1R32AO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
22,000 BTU/h[2]
Rated heating capacity
24,000 BTU/h[2]
Voltage
230 V[1]
MCA
22 A[1]
Maximum fuse or breaker size
30 A[1]
Breaker needed
not published
SEER2
22.5 SEER2[2]
EER2
11.6 EER2[2]
HSPF2 (Region 4)
9 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-22 F[1]
Minimum outdoor cooling temperature
-20 F[1]
Maximum outdoor temperature
122 F[1]
Indoor noise range
38-44 dB(A)[1]
Outdoor noise rating
61 dBA[1]
Indoor weight
63.9 lb[1]
Outdoor weight
103.6 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
49.4 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 5/8 in suction
Included line-set length
GREE professional single-zone cassette and ducted systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Maximum elevation difference
82 ft[1]
Max height between indoor units
not published
Wi-Fi support
not supported[1]
Energy Star status
Not ENERGY STAR certified[2]
AHRI certification number
215415519[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (eligible residential system). Standard residential GREE mini-split coverage is 5 years parts and 7 years compressor for eligible post-2021 systems.
Install path
Professional install
Retail price
This model is sold through dealers, so we link to contractor quotes rather than a retail price.
Available retailers
not published
Manual links
AHRI Active row 215415519, All Match 360 Cassette R32 service/installation manual, GREE All Match 360 Cassette R32 official product page, All Match 360 Cassette R32 owner manual, CAS24HP230V1R32AH / ENV24HP230V1R32AO All Match 360 Cassette R32 submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
CAS24HP230V1R32AH / ENV24HP230V1R32AO All Match 360 Cassette R32 submittal
Last sourced date
Aug 2, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
22 A[1]
Breaker needed
not published
Maximum breaker size
30 A[1]
Maximum fuse size
30 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
Interconnecting wire size AWG 14 / 4; main power wire per local code.[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
5/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone cassette and ducted systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
33-5/64 x 33-5/64 x 9-29/64 in[1]
Outdoor dimensions
39-3/8 x 16-13/16 x 29-3/8 in[1]
Indoor weight
63.9 lb[1]
Outdoor weight
103.6 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Envo R32 24,000 BTU Four-Way Ceiling Cassette R-32 208/230V (CAS24HP230V1R32AH / ENV24HP230V1R32AO) myself, or do I need a pro?
GREE Envo R32 24,000 BTU Four-Way Ceiling Cassette R-32 208/230V (CAS24HP230V1R32AH / ENV24HP230V1R32AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Envo R32 24,000 BTU Four-Way Ceiling Cassette R-32 208/230V (CAS24HP230V1R32AH / ENV24HP230V1R32AO) keep heating in a cold winter?
The manufacturer publishes 16,800 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 9 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Envo R32 24,000 BTU Four-Way Ceiling Cassette R-32 208/230V (CAS24HP230V1R32AH / ENV24HP230V1R32AO) need?
Published electrical requirements: 230 V voltage, 22 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 131 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the GREE Envo R32 24,000 BTU Four-Way Ceiling Cassette R-32 208/230V (CAS24HP230V1R32AH / ENV24HP230V1R32AO) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (eligible residential system). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. GREE Comfort: CAS24HP230V1R32AH and SAP24HP230V1R32AO GREE All Match 360 Cassette R32 submittalSourced - manufacturer technical document

    Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Manufacturer wire notes and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI Active form-factor row 215415559Sourced - AHRI directory

    Covers AHRI certification number, Rated cooling capacity, EER2, Energy Star status, Rated heating capacity, HSPF2 (Region 4) and more

  3. GREE Comfort: GREE All Match 360 Cassette R32 official product pageSourced - manufacturer technical document

    Covers Form factor

  4. GREE Comfort: GREE DFS warranty statement for units installed after 2021-12-31Sourced - manufacturer technical document

    Covers Legacy compressor warranty value, Legacy warranty value, Standard compressor warranty, Standard warranty conditions, Standard parts warranty, Warranty notes
