GREE / Envo R32

GREE Envo 24k R-32 208/230V Mini-Split

Certified capacity
22,000 BTU/h[2]
SEER2
24 SEER2[2]
Heating floor
-22 F[4]
Voltage
230 V[1]
Install path
Professional install

The Envo 24k certifies 22,000 BTU - size from that, not the model name - at SEER2 24 with a -22F heating floor. Holding both at 2 tons is genuinely uncommon in a value-tier system; most competitors give up the cold rating at this capacity. The honest limit is that GREE's efficient lines stop near here, so if you need more capacity you drop to Livo at SEER2 22 and -13F.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

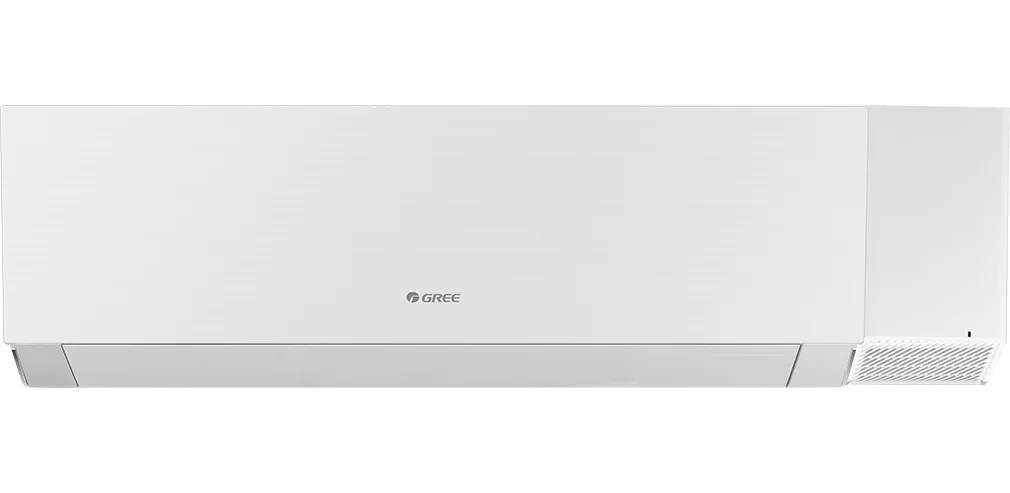

GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO)

Image: GREE

Data completeness: 100%
Last sourced
Jul 24, 2026

SplitAtlas score

8.5 / 10

Methodology
Cooling efficiencyTop 10%

(24.0 SEER2) among 24k systems

Heating efficiencyBottom quartile

(9.0 HSPF2) among 24k systems

Cold-weather performanceTop quartile

(91.7% heat retained at 5F; -22 F heating floor) among 24k systems

NoiseTop quartile

(-48 dBA indoor min / 61 dBA outdoor) among 24k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setAbove average

(5 verified features) across the catalogue

Documentation & partsTop quartile

(10 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

22,000BTU/h[2]

Rated heating

24,000BTU/h[2]

Best-fit use cases

A large room in a cold climate wanting efficiency and deep cold together.

Where this system ranks

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 24.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 22 A; breaker/fuse 30 A.
  • Line set: Flared line connections; precharged 25 ft; max 131 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-24.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE Select dealer installation and registration for the 10-year extended warranty.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 24, 2026
Page reviewed
Jul 23, 2026
Source-backed records
5
Newest source retrieved
Jul 24, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard.

Review methodology

Model context

Structured ratings
Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-32. Minimum heating ambient: -22 F.

Strengths

  • SEER2 24 with -22F rated heating at 2 tons.

Weaknesses

  • Certifies 22,000 BTU, not 24,000.
  • Above this capacity GREE's efficient, cold-capable lines run out.

Climate suitability

Minimum heating ambient
-22 F[4]
Rated heating at 5F
22,000 BTU/h[2]
Rated heating at 17F
20,000 BTU/h[2]
Rated heating at 47F
24,000 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Envo R32
Model number
ENV24HP230V1R32AH indoor / ENV24HP230V1R32AO outdoor
Indoor unit model
ENV24HP230V1R32AH
Outdoor unit model
ENV24HP230V1R32AO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
22,000 BTU/h[2]
Rated heating capacity
24,000 BTU/h[2]
Voltage
230 V[1]
MCA
22 A[1]
Maximum fuse or breaker size
30 A[1]
Breaker needed
not published
SEER2
24 SEER2[2]
EER2
13.1 EER2[2]
HSPF2 (Region 4)
9 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.75 COP[2]
Minimum outdoor heating temperature
-22 F[4]
Minimum outdoor cooling temperature
-20 F[4]
Maximum outdoor temperature
122 F[4]
Indoor noise range
30-48 dB(A)[1]
Outdoor noise rating
61 dBA[1]
Indoor weight
29.8 lb[1]
Outdoor weight
103.6 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
49.4 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 5/8 in suction
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Maximum elevation difference
82 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
214779345[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (eligible residential system). Standard residential GREE single-zone mini-split warranty is 5 years parts and 7 years compressor for eligible units.
Install path
Professional install
Retail price
We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-24.
Available retailers
not published
Manual links
AHRI public detail ENV24HP230V1R32AO / ENV24HP230V1R32AH, ENERGY STAR exact row lookup for ENV24HP230V1R32AO / ENV24HP230V1R32AH, GREE Envo R32 extended ratings, GREE Envo R32 installation/owner manual, GREE current Envo R32 product/catalog page, GREE Envo R32 sales brochure, HVACDirect exact search for ENV24HP230V1R32AO / ENV24HP230V1R32AH, GREE Envo R32 service manual, GREE Envo R32 24k submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
GREE Envo R32 24k submittal
Last sourced date
Jul 24, 2026

Parts and filters

Fits GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-washable

Indoor washable filter assembly

Fits
GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO)
OEM part number
111001060314
Fit note
Fits ENV24HP230V1R32AH / ENV24HP230V1R32AO. GREE publishes this filter assembly as Part No. 111001060314 in the official model-specific parts manual; confirm the indoor model before ordering.
Source
GREE Envo R32 Parts Manual, ENV24HP230V1R32AH parts list, page p. 21 (27 Filter Sub-Assy 1 111001060314)

remote-control

Wireless remote controller - YBE1FBF

Fits
GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO)
OEM part number
YBE1FBF
Fit note
Fits ENV24HP230V1R32AH / ENV24HP230V1R32AO. GREE publishes YBE1FBF in the model submittal; no HVACDirect exact replacement remote page was verified, so order through GREE/distributor parts support by indoor model and remote code.
Source
GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO) Submittal, Controller options, page p. 1 (YBE1FBF)

wired-controller

XE71 wired wall controller

Fits
GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO)
OEM part number
XE71
Fit note
Fits ENV24HP230V1R32AH / ENV24HP230V1R32AO where the GREE submittal lists the XE71 wired controller option. HVACDirect was verified as a live exact GREE XE71 product page on 2026-08-01; its retailer model/SKU is MC20700970.
Source
GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO) Submittal, Controller options, page p. 1 (XE71)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

fresh-air-kit

Fresh air kit

Fits
GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO)
OEM part number
TL204000100
Fit note
Fits ENV24HP230V1R32AH / ENV24HP230V1R32AO. GREE lists TL204000100 as an Envo accessory that must be ordered separately; no HVACDirect exact TL204000100 page was verified.
Source
GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO) Submittal, Accessories, page p. 1 (Fresh Air Kit - TL204000100 is offered as an accessory, needs to be ordered separately.)

line-set-installation-kit

25 ft flared line-set installation kit - 1/4 x 5/8

Fits
GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO)
Fit note
Fits ENV24HP230V1R32AH / ENV24HP230V1R32AO by the 1/4 x 5/8 flared line-set dimensions in the GREE submittal. The HVACDirect page was verified live on 2026-08-01 as an exact-dimension 25 ft install-kit page, not a GREE OEM exact-part listing.
Source
GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO) Submittal, Refrigerant pipe connections, page p. 1 (Connections in 1/4 - 5/8)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect
Replacement Parts & Filters

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
22 A[1]
Breaker needed
not published
Maximum breaker size
30 A[1]
Maximum fuse size
30 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
5/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
39 3/32 x 12 1/4 x 8 47/64 in[1]
Outdoor dimensions
39 3/8 x 29 3/8 x 16 13/16 in[1]
Indoor weight
29.8 lb[1]
Outdoor weight
103.6 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO) myself, or do I need a pro?
GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO) keep heating in a cold winter?
The manufacturer publishes 22,000 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 9 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO) need?
Published electrical requirements: 230 V voltage, 22 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 131 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the GREE Envo R32 24,000 BTU R-32 208/230V (ENV24HP230V1R32AH / ENV24HP230V1R32AO) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (eligible residential system). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. GREE Comfort: GREE Envo R32 24k submittalSourced - manufacturer technical document

    Covers Frequency, electrical_spec.indoor_mca_amps, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail for ENV24HP230V1R32AO / ENV24HP230V1R32AHSourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more

  3. ENERGY STAR: ENERGY STAR exact row lookup for ENV24HP230V1R32AO / ENV24HP230V1R32AHSourced - Energy Star listing

    Covers Energy Star status

  4. GREE Comfort: GREE current Zeno R32 product/catalog pageSourced - manufacturer product page

    Covers Minimum outdoor cooling temperature, Minimum outdoor heating temperature, performance_spec.max_ambient_heating_temp_f, Maximum outdoor temperature

  5. GREE Comfort: GREE DFS warranty statement for units installed after 2021-12-31Sourced - manufacturer technical document

    Covers Legacy compressor warranty value, Legacy warranty value, Standard compressor warranty, Standard warranty conditions, Standard parts warranty, Warranty notes
