SplitAtlas

GREE / Free Match

GREE Free Match 60k R-32 208/230V 6-Zone Mini-Split

Certified capacity
55,000 BTU/h[2]
SEER2
21 SEER2[2]
Heating floor
-22 F[1]
Voltage
230 V[1]
Install path
Professional install

The GREE Free Match 6-Zone (MUL60) is the widest condenser in GREE's Multi R32 line - one 208/230V outdoor unit driving up to six indoor heads. It certifies at 21 SEER2, 13 EER2 and 10 HSPF2 and is rated to -22F, matching the rest of the Free Match range on efficiency while adding a sixth zone. The -22F figure is an operating floor, not a cold-climate designation - this system does not hold one.

Read the capacity carefully. It is badged 60k but certifies at 55,000 BTU of cooling and heating, and that figure is the total the condenser can deliver - not per zone. Spread across six heads that is roughly 9,000 BTU each if everything calls at once, so this is a whole-house unit for six modest rooms, not six large ones. GREE's compatible-head list covers wall, cassette and concealed ducted options, so the zones do not all have to be the same shape.

6 zonesProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

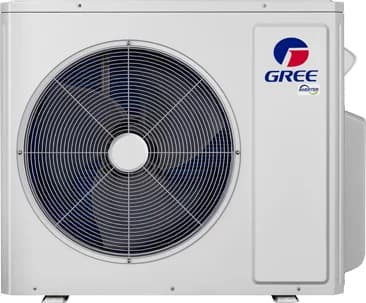

GREE Multi R32 outdoor unit for a Free Match multi-zone system.

Image: GREE Comfort official Multi R32 product page

Data completeness: 100%
Last sourced
Aug 2, 2026

SplitAtlas score

7.8 / 10

Methodology
Cooling efficiencyAbove average

(21.0 SEER2) among >36k systems

Heating efficiencyBelow average

(10.0 HSPF2) among >36k systems

Cold-weather performanceBottom quartile

(66.2% heat retained at 5F; -22 F heating floor) among >36k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setAbove average

(5 verified features) across the catalogue

Documentation & partsBelow average

(9 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

55,000BTU/hNon-Ducted Indoor Units[2]

Rated heating

55,000BTU/hNon-Ducted Indoor Units[2]

Best-fit use cases

A six-room home or addition where the rooms are modest and rarely all call at once - and where mixing head types across rooms matters more than raw capacity.

Buyer review snapshot

Best for / skip if

Best for

  • 6-zone projects in the 54k outdoor capacity class.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 37.5 A; breaker/fuse 40 A.
  • Line set: Flared line connections; precharged 164 ft; max 328 ft.
  • 6-zone condenser; indoor-head matching and branch layout are part of the job.

Availability and price context

We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-08-02.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE Select dealer installation and registration for the 10-year extended warranty.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Aug 2, 2026
Page reviewed
Aug 2, 2026
Source-backed records
3
Newest source retrieved
Aug 2, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard.

Review methodology

Strengths

  • Six zones from a single condenser, the widest count in GREE's Multi R32 line.
  • 21 SEER2 / 13 EER2 / 10 HSPF2, rated to a -22F operating floor.
  • Mixes wall, cassette and concealed ducted heads on one system, so each room can take the right form factor.

Weaknesses

  • Certified capacity is 55,000 BTU, not the 60,000 the badge implies - and that is the shared total across all six zones.
  • Six heads on one condenser means heavy part-load operation; if most zones idle most of the time, efficiency in the house will trail the certificate.
  • No verified stocked listing for this condenser on its own, so pricing is quote-only and it is a professional install.

Climate suitability

Minimum heating ambient
-22 F[1]
Rated heating at 5F
36,400 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
41,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
55,000 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Free Match
Model number
MUL60HP230V1R32AO
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
MUL60HP230V1R32AO
Number of zones
6
Max indoor units
6 units[1]
Rated cooling capacity
55,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
55,000 BTU/hNon-Ducted Indoor Units[2]
Voltage
230 V[1]
MCA
37.5 A[1]
Maximum fuse or breaker size
40 A[1]
Breaker needed
not published
SEER2
21 SEER2Non-Ducted Indoor Units[2]
EER2
11.65 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
10 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
not published
COP at 5F
1.9 COPNon-Ducted Indoor Units[2]
Minimum outdoor heating temperature
-22 F[1]
Minimum outdoor cooling temperature
-22 F[1]
Maximum outdoor temperature
118 F[1]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
59 dBA[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
224.9 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
112.88 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in x 6 liquid / 3/8 in x 6 suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
328 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
82 ft[1]
Max height between indoor units
82.02 ft[1]
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
ENERGY STAR certified[2]
AHRI certification number
217962862Non-Ducted Indoor Units[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (eligible residential system). Standard residential GREE mini-split coverage is 5 years parts and 7 years compressor for eligible post-2021 systems.
Install path
Professional install
Retail price
We could not find this exact model in stock at a retailer we work with when we last checked on 2026-08-02.
Available retailers
not published
Manual links
AHRI public detail 217962862, GREE Multi R32 sales brochure, GREE Multi R32 extended ratings, GREE Multi R32 installation/service manual, GREE Multi R32 current official product page, GREE Multi R32 owner manual, GREE Multi R32 parts manual, MUL60HP230V1R32AO GREE Free Match submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
MUL60HP230V1R32AO GREE Free Match submittal
Last sourced date
Aug 2, 2026

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Concealed ducteds

    9k, 12k, 18k, 24k, 30k, 36k

    Model numbers
    • 9k: DUC09HP230V1R32AH
    • 12k: DUC12HP230V1R32AH
    • 18k: DUC18HP230V1R32AH
    • 24k: DUC24HP230V1R32AH
    • 30k: DUC30HP230V1R32AH
    • 36k: DUC36HP230V1R32AH

  • Four-way ceiling cassettes

    9k, 12k, 18k, 24k, 30k, 36k

    Model numbers
    • 9k: CAS09HP230V1R32AH
    • 12k: CAS12HP230V1R32AH
    • 18k: CAS18HP230V1R32AH
    • 24k: CAS24HP230V1R32AH
    • 30k: CAS30HP230V1R32AH
    • 36k: CAS36HP230V1R32AH

  • One-way ceiling cassettes

    9k, 12k, 18k, 20k

    Model numbers
    • 9k: OWC09HP230V1R32AH
    • 12k: OWC12HP230V1R32AH
    • 18k: OWC18HP230V1R32AH
    • 20k: OWC20HP230V1R32AH

  • Wall-mounteds

    9k, 12k, 18k, 24k, 30k

    Model numbers
    • 9k: ENV09HP230V1R32AH
    • 9k: SAP09HP230V1R32AH
    • 12k: ENV12HP230V1R32AH
    • 12k: SAP12HP230V1R32AH
    • 18k: ENV18HP230V1R32AH
    • 18k: LIV18HP230V1R32AH
    • 18k: SAP18HP230V1R32AH
    • 24k: ENV24HP230V1R32AH
    • 24k: SAP24HP230V1R32AH
    • 30k: LIV30HP230V1R32AH

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
37.5 A[1]
Breaker needed
not published
Maximum breaker size
40 A[1]
Maximum fuse size
40 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in x 6[1]
Suction line
3/8 in x 6[1]
Line connection type
Flared line connections[1]
Precharged length
164 ft[1]
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
328 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
82.02 ft[1]
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
38-55/64 x 49-49/64 x 16-7/32 in[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
224.9 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Free Match 6-Zone 60,000 BTU R-32 208/230V (MUL60HP230V1R32AO) myself, or do I need a pro?
GREE Free Match 6-Zone 60,000 BTU R-32 208/230V (MUL60HP230V1R32AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Free Match 6-Zone 60,000 BTU R-32 208/230V (MUL60HP230V1R32AO) keep heating in a cold winter?
The manufacturer publishes 36,400 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Free Match 6-Zone 60,000 BTU R-32 208/230V (MUL60HP230V1R32AO) need?
Published electrical requirements: 230 V voltage, 37.5 A minimum circuit ampacity, and 40 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 328 ft, and the included line set comes pre-charged for 164 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the GREE Free Match 6-Zone 60,000 BTU R-32 208/230V (MUL60HP230V1R32AO) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (eligible residential system). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. GREE Comfort: MUL60HP230V1R32AO GREE Free Match official technical documentsSourced - manufacturer technical document

    Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail 217962862Sourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Energy Star status and more

  3. GREE Comfort: GREE DFS warranty statement for units installed after 2021-12-31Sourced - manufacturer technical document

    Covers Legacy compressor warranty value, Legacy warranty value, Standard compressor warranty, Standard warranty conditions, Standard parts warranty, Warranty notes

Last updated

Aug 2, 2026
