GREE Livo 12k R-32 115V Mini-Split

Certified capacity
12,000 BTU/h[2]
SEER2
19 SEER2[2]
Heating floor
-13 F[3]
Voltage
115 V[1]
Install path
Professional install

The Livo 12k on 115V is GREE's volume system, and the 115V circuit is the reason to pick it - no new 230V run means a materially cheaper install. SEER2 19 and a -13F heating floor are respectable rather than remarkable. If the room is one you heat hard, the Vireo 12k is also 115V and certifies SEER2 24.5 with -22F, which is a large step for a modest price difference.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Dealer-installation warranty note

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Installation condition: Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.

Dealer path: GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE offers a 10-year extended warranty through GREE Select dealers, with registration.

Paid link

$1,511 / Checked Jul 24, 2026

$1,511 at HVACDirect

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

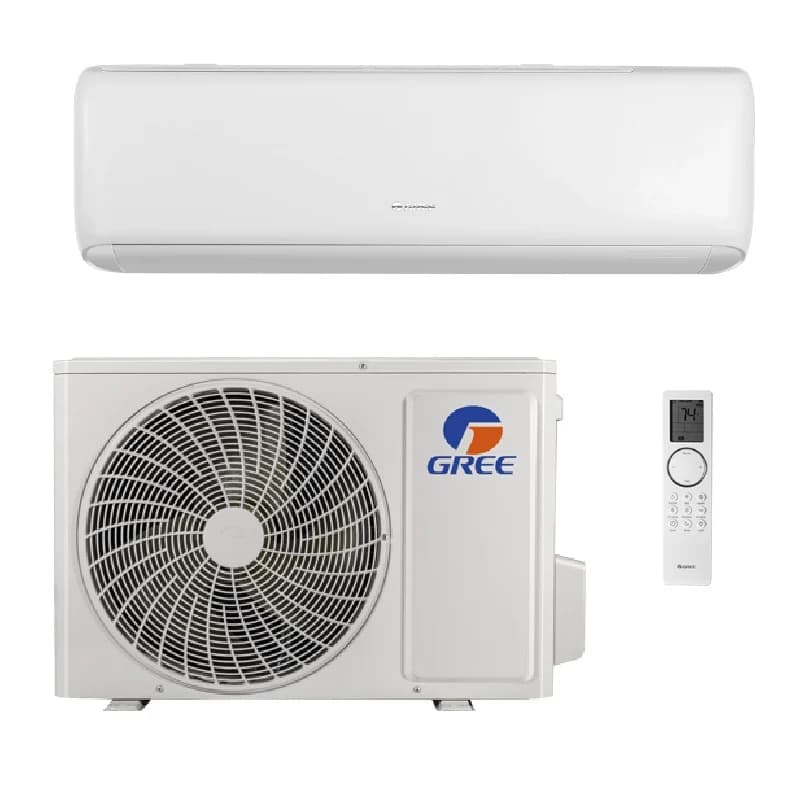

GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO) mini-split heat pump indoor wall unit and outdoor condenser

Image: HVACDirect

Data completeness: 100%
Last sourced
Jul 24, 2026

SplitAtlas score

7.4 / 10

Methodology
Cooling efficiencyBottom quartile

(19.0 SEER2) among 12k systems

Heating efficiencyBottom quartile

(8.5 HSPF2) among 12k systems

Cold-weather performanceBelow average

(5F certified capacity: 70.8% of the 47F rating; -13 F heating floor) among 12k systems

NoiseBelow average

(27 dBA indoor min / 52 dBA outdoor) among 12k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBottom quartile

(3 verified features) across the catalogue

Price-to-performanceBottom quartile

($1,511 median retail) among 12k systems

Documentation & partsTop 10%

(12 manuals; spec sheet; 57 error-code rows; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

Key ratings

Rated cooling

12,000BTU/h[2]

Rated heating

12,000BTU/h[2]

Buyer review snapshot

Install difficulty

Professional flared-line install
  • Electrical: 115V; MCA 19 A; breaker/fuse 20 A.
  • Line set: Flared line connections; precharged 25 ft; max 66 ft.

Alternatives

Availability and price context

  • Last seen at HVACDirect on Jul 24, 2026: $1,511.00. Open the listing for today's price. Warranty condition: Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE offers a 10-year extended warranty through GREE Select dealers, with registration.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 24, 2026
Page reviewed
Jul 23, 2026
Source-backed records
5
Newest source retrieved
Jul 24, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - eligible residential system

The score uses Base. Additional published terms are shown for reference and not counted in the score.

Review methodology

Strengths

  • Runs on a standard 115V circuit, cutting install cost.
  • -13F rated heating, well ahead of a budget line.

Weaknesses

  • SEER2 19 is mid-pack; Vireo 12k is also 115V and far more efficient.
  • 115V inrush can disturb other loads on a shared circuit.

Climate suitability

Minimum heating ambient
-13 F[3]
Certified heating at 5F
8,500 BTU/h[2]
Rated heating at 17F
9,700 BTU/h[2]
Rated heating at 47F
12,000 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Livo R32
Model number
LIV12HP115V1R32AH indoor / LIV12HP115V1R32AO outdoor
Indoor unit model
LIV12HP115V1R32AH
Outdoor unit model
LIV12HP115V1R32AO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
12,000 BTU/h[2]
Rated heating capacity
12,000 BTU/h[2]
Voltage
115 V[1]
MCA
19 A[1]
Maximum fuse or breaker size
20 A[1]
Breaker needed
not published
SEER2
19 SEER2[2]
EER2
9.3 EER2[2]
HSPF2 (Region 4)
8.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.75 COP[2]
Minimum outdoor heating temperature
-13 F[3]
Minimum outdoor cooling temperature
0 F[3]
Maximum outdoor temperature
118 F[3]
Indoor noise range
27-47 dB(A)[1]
Outdoor noise rating
52 dBA[1]
Indoor weight
19.8 lb[1]
Outdoor weight
58.4 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
17.6 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
66 ft[1]
Max line set per indoor
not published
Maximum elevation difference
40 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[2]
AHRI certification number
214779351[2]
Warranty
Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Standard residential GREE single-zone mini-split warranty is 5 years parts and 7 years compressor for eligible units.
Install path
Professional install
Retail price
$1,511.00
Available retailers
HVACDirect
Manual links
AHRI public detail LIV12HP115V1R32AO / LIV12HP115V1R32AH, ENERGY STAR exact row lookup for LIV12HP115V1R32AO / LIV12HP115V1R32AH, GREE Livo R32 extended ratings, GREE Livo R32 indoor installation/owner manual, GREE Livo R32 outdoor installation/owner manual, GREE current Livo R32 product/catalog page, GREE Livo R32 sales brochure, HVACDirect exact product page for LIV12HP115V1R32AO / LIV12HP115V1R32AH, GREE Livo R32 service manual, GREE R32 residential mini-split service manuals, GREE Livo R32 12k submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
GREE Livo R32 12k submittal
Last sourced date
Jul 24, 2026

Retail purchase context

Dealer-installation warranty note

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Installation condition: Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.

Dealer path: GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE offers a 10-year extended warranty through GREE Select dealers, with registration.

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Dealer-installation warranty note

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

$1,511 at HVACDirect

$1,511 / Checked Jul 24, 2026

Parts and filters

Fits GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-washable

Indoor washable filter assembly

Fits
GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO)
OEM part number
111001060341
Filter care
Washable. Wash with clean water or use a duster, then shade-dry every 3 months. No replacement interval or condition is published for this reusable filter.
Fit note
Fits LIV12HP115V1R32AH / LIV12HP115V1R32AO. GREE publishes this filter assembly as Part No. 111001060341 in the official model-specific parts manual; confirm the indoor model before ordering.
Source
GREE Livo R32 Parts Manual, LIV12HP115V1R32AH parts list, page p. 13 (17-4 Filter Sub-Assy 1 111001060341)

remote-control

Wireless remote controller - YBE1FB1F

Fits
GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO)
OEM part number
YBE1FB1F
Fit note
Fits LIV12HP115V1R32AH / LIV12HP115V1R32AO. GREE publishes YBE1FB1F in the model submittal; no HVACDirect exact replacement remote page was verified, so order through GREE/distributor parts support by indoor model and remote code.
Source
GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO) Submittal, Controller options, page p. 1 (YBE1FB1F)

wired-controller

XE71 wired wall controller

Fits
GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO)
OEM part number
XE71
Fit note
Fits LIV12HP115V1R32AH / LIV12HP115V1R32AO where the GREE submittal lists the XE71 wired controller option. HVACDirect was verified as a live exact GREE XE71 product page on 2026-08-01; its retailer model/SKU is MC20700970.
Source
GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO) Submittal, Controller options, page p. 1 (XE71)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

line-set-installation-kit

25 ft flared line-set installation kit - 1/4 x 3/8

Fits
GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO)
Fit note
Fits LIV12HP115V1R32AH / LIV12HP115V1R32AO by the 1/4 x 3/8 flared line-set dimensions in the GREE submittal. The HVACDirect page was verified live on 2026-08-01 as an exact-dimension 25 ft install-kit page, not a GREE OEM exact-part listing.
Source
GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO) Submittal, Refrigerant pipe connections, page p. 1 (Connections in 1/4 - 3/8)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect
Find this model's filterReplacement Parts & Filters

Electrical requirements

Show
Voltage
115 V[1]
Voltage range
115V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
19 A[1]
Breaker needed
not published
Maximum breaker size
20 A[1]
Maximum fuse size
20 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
3/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
66 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
32-7/8 x 10-53/64 x 7-7/8 in[1]
Outdoor dimensions
28-13/16 x 21-7/8 x 12-63/64 in[1]
Indoor weight
19.8 lb[1]
Outdoor weight
58.4 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO) myself, or do I need a pro?
GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 8,500 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 8.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO) need?
Published electrical requirements: 115 V voltage, 19 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 66 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the GREE Livo R32 12,000 BTU R-32 115V (LIV12HP115V1R32AH / LIV12HP115V1R32AO) carry?
The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
