GREE / Livo R32

GREE Livo 30k Four-Way Cassette R-32 208/230V Mini-Split

Certified capacity
30,000 BTU/h[2]
SEER2
22.5 SEER2[2]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

Livo is GREE's large-capacity R-32 line, and this 30,000 BTU four-way cassette certifies at 22.5 SEER2 with 8.5 HSPF2. The important difference from the rest of this range is the cold-weather rating: -13F, not the -22F of the Vireo, Envo and Sapphire lines.

That nine-degree gap is the thing to weigh. In a mild or cooling-dominated climate it is irrelevant and this is an efficient way to cover a big open space from one head. In a genuinely cold one, a unit rated to -13F needs a backup heat plan in a way the -22F units do not.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

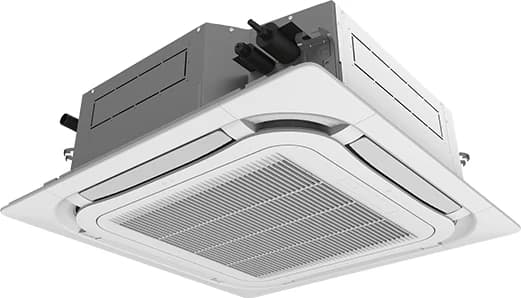

GREE four-way ceiling cassette indoor unit for R32 mini-split systems.

Image: GREE Comfort official All-Match 360 Cassette R32 product page

Data completeness: 100%
Last sourced
Aug 2, 2026

SplitAtlas score

7.8 / 10

Methodology
Cooling efficiencyAbove average

(22.5 SEER2) among 36k systems

Heating efficiencyBottom quartile

(8.5 HSPF2) among 36k systems

Cold-weather performanceBelow average

(5F certified capacity: 70% of the 47F rating; -13 F heating floor) among 36k systems

NoiseBelow average

(38 dBA indoor min / 62 dBA outdoor) among 36k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBelow average

(4 verified features) across the catalogue

Documentation & partsTop quartile

(6 manuals; spec sheet; 57 error-code rows) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

30,000BTU/h[2]

Rated heating

30,000BTU/h[2]

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 22.5.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 27 A; breaker/fuse 30 A.
  • Line set: Flared line connections; precharged 25 ft; max 131 ft.

Alternatives

Availability and price context

This system needs a professional install, and its warranty depends on who installs it. Its real price is an installed quote that depends on your home, so get installation quotes to price it.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE offers a 10-year extended warranty through GREE Select dealers, with registration.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Aug 2, 2026
Page reviewed
Aug 2, 2026
Source-backed records
4
Newest source retrieved
Aug 2, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - eligible residential system

The score uses Base. Additional published terms are shown for reference and not counted in the score.

Review methodology

Strengths

  • 22.5 SEER2 at a full 30,000 BTU of heating and cooling.
  • A single ceiling head covering a space that would otherwise need three wall units.
  • Current low-GWP R-32 refrigerant.

Weaknesses

  • Rated to -13F, not the -22F of the smaller GREE R-32 lines - plan backup heat in a cold climate.
  • 8.5 HSPF2 is modest for the capacity.
  • Large, heavy head with serious ceiling structure and cavity requirements.

Climate suitability

Minimum heating ambient
-13 F[1]
Certified heating at 5F
21,000 BTU/h[2]
Rated heating at 17F
24,000 BTU/h[2]
Rated heating at 47F
30,000 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Livo R32
Model number
CAS30HP230V1R32AH indoor / LIV30HP230V1R32AO outdoor
Indoor unit model
CAS30HP230V1R32AH
Outdoor unit model
LIV30HP230V1R32AO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
30,000 BTU/h[2]
Rated heating capacity
30,000 BTU/h[2]
Voltage
230 V[1]
MCA
27 A[1]
Maximum fuse or breaker size
30 A[1]
Breaker needed
not published
SEER2
22.5 SEER2[2]
EER2
11.25 EER2[2]
HSPF2 (Region 4)
8.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
-4 F[1]
Maximum outdoor temperature
122 F[1]
Indoor noise range
38-51 dB(A)[1]
Outdoor noise rating
62 dBA[1]
Indoor weight
49.6 lb[1]
Outdoor weight
116.8 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
56.4 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 5/8 in suction
Included line-set length
GREE professional single-zone cassette and ducted systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Maximum elevation difference
82 ft[1]
Max height between indoor units
not published
Wi-Fi support
not supported[1]
Energy Star status
Not ENERGY STAR certified[2]
AHRI certification number
215413820[2]
Warranty
Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Standard residential GREE mini-split coverage is 5 years parts and 7 years compressor for eligible post-2021 systems.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
All Match 360 Cassette R32 service/installation manual, GREE All Match 360 Cassette R32 official product page, All Match 360 Cassette R32 owner manual, CAS30HP230V1R32AH / LIV30HP230V1R32AO All Match 360 Cassette R32 submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
CAS30HP230V1R32AH / LIV30HP230V1R32AO All Match 360 Cassette R32 submittal
Last sourced date
Aug 2, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
27 A[1]
Breaker needed
not published
Maximum breaker size
30 A[1]
Maximum fuse size
30 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
Interconnecting wire size AWG 14 / 4; main power wire per local code.[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
5/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone cassette and ducted systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
33-5/64 x 33-5/64 x 9-29/64 in[1]
Outdoor dimensions
39-3/8 x 15-13/16 x 29-3/8 in[1]
Indoor weight
49.6 lb[1]
Outdoor weight
116.8 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Livo R32 30,000 BTU Four-Way Ceiling Cassette R-32 208/230V (CAS30HP230V1R32AH / LIV30HP230V1R32AO) myself, or do I need a pro?
GREE Livo R32 30,000 BTU Four-Way Ceiling Cassette R-32 208/230V (CAS30HP230V1R32AH / LIV30HP230V1R32AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Livo R32 30,000 BTU Four-Way Ceiling Cassette R-32 208/230V (CAS30HP230V1R32AH / LIV30HP230V1R32AO) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 21,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 8.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Livo R32 30,000 BTU Four-Way Ceiling Cassette R-32 208/230V (CAS30HP230V1R32AH / LIV30HP230V1R32AO) need?
Published electrical requirements: 230 V voltage, 27 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 131 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the GREE Livo R32 30,000 BTU Four-Way Ceiling Cassette R-32 208/230V (CAS30HP230V1R32AH / LIV30HP230V1R32AO) carry?
The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. GREE Comfort: CAS30HP230V1R32AH and LIV30HP230V1R32AO GREE All Match 360 Cassette R32 submittalSourced - manufacturer technical document

    Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Manufacturer wire notes and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI Active form-factor row 215415559Sourced - AHRI directory

    Covers AHRI certification number, Rated cooling capacity, EER2, Energy Star status, Rated heating capacity, HSPF2 (Region 4) and more

  3. GREE Comfort: GREE All Match 360 Cassette R32 official product pageSourced - manufacturer technical document

    Covers Form factor

  4. GREE Comfort: GREE DFS warranty statement for units installed after 2021-12-31Sourced - manufacturer technical document

    Covers Legacy compressor warranty value, Legacy warranty value, Base compressor warranty, Base warranty conditions, Base parts warranty, Warranty notes
