GREE Vireo GEN3 24k AH R-410A 208/230V Mini-Split

Certified capacity
22,000 BTU/h[2]
SEER2
24.5 SEER2[2]
Heating floor
-22 F[3]
Voltage
208/230V[1]
Install path
Professional install

A legacy R-410A Vireo certifying 22,000 BTU at SEER2 24.5 with -22F rated heating. The performance is genuinely good - this was a strong system - but the refrigerant is phasing down under the AIM Act, so any future repair gets progressively more expensive. GREE's R-32 Vireo is the direct successor at the same capacities and is the better long-term buy.

1 zoneProfessional installLegacy

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

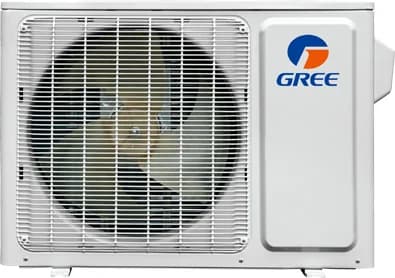

GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO)

Image: GREE

Data completeness: 95%
Last sourced
Jul 24, 2026

SplitAtlas score

8.1 / 10

Methodology
Cooling efficiencyTop 10%

(24.5 SEER2) among 24k systems

Heating efficiencyBelow average

(9.5 HSPF2) among 24k systems

Cold-weather performanceBelow average

(5F certified capacity: 67.1% of the 47F rating; -22 F heating floor) among 24k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Documentation & partsTop quartile

(9 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

22,000BTU/h[2]

Rated heating

24,000BTU/h[2]

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 24.5.

Skip if

  • You are shopping for a current-generation recommendation; catalog lifecycle is LEGACY.

Install difficulty

Professional flared-line install
  • Electrical: 208/230V; MCA 16 A; breaker/fuse 25 A.
  • Line set: Flared line connections; precharged 25 ft; max 131 ft.

Alternatives

Availability and price context

This system needs a professional install, and its warranty depends on who installs it. Its real price is an installed quote that depends on your home, so get installation quotes to price it.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE offers a 10-year extended warranty through GREE Select dealers, with registration.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 24, 2026
Page reviewed
Jul 23, 2026
Source-backed records
4
Newest source retrieved
Jul 24, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - eligible residential system

The score uses Base. Additional published terms are shown for reference and not counted in the score.

Review methodology

Strengths

  • SEER2 24.5 with -22F rated heating - strong performance for its generation.

Weaknesses

  • R-410A phase-down raises future service cost.
  • Certifies 22,000 BTU, not 24,000.
  • The R-32 Vireo is the current-generation successor.

Climate suitability

Minimum heating ambient
-22 F[3]
Certified heating at 5F
16,100 BTU/h[2]
Rated heating at 17F
19,400 BTU/h[2]
Rated heating at 47F
24,000 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Vireo GEN3
Model number
3VIR24HP230V1AH indoor / 3VIR24HP230V1BO outdoor
Indoor unit model
3VIR24HP230V1AH
Outdoor unit model
3VIR24HP230V1BO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
22,000 BTU/h[2]
Rated heating capacity
24,000 BTU/h[2]
Voltage
208/230V[1]
MCA
16 A[1]
Maximum fuse or breaker size
25 A[1]
Breaker needed
not published
SEER2
24.5 SEER2[2]
EER2
13.1 EER2[2]
HSPF2 (Region 4)
9.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.75 COP[2]
Minimum outdoor heating temperature
-22 F[3]
Minimum outdoor cooling temperature
-20 F[3]
Maximum outdoor temperature
122 F[3]
Indoor noise range
34-52 dB(A)[1]
Outdoor noise rating
not published
Indoor weight
35.3 lb[1]
Outdoor weight
125.7 lb[1]
Refrigerant
R-410A[2]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 5/8 in suction
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Maximum elevation difference
82 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[2]
AHRI certification number
210278968[2]
Warranty
Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Standard residential GREE single-zone mini-split warranty is 5 years parts and 7 years compressor for eligible units.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI public detail 3VIR24HP230V1BO / 3VIR24HP230V1AH, ENERGY STAR exact row lookup for 3VIR24HP230V1BO / 3VIR24HP230V1AH, GREE Vireo GEN3 extended ratings, GREE current Vireo GEN3 product/catalog page, GREE Vireo GEN3 owner manual, GREE Vireo GEN3 sales brochure, GREE Vireo GEN3 24k submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
GREE Vireo GEN3 24k submittal
Last sourced date
Jul 24, 2026

Parts and filters

Fits GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

remote-control

Wireless remote controller - YAP1F7F

Fits
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO)
OEM part number
YAP1F7F
Fit note
Fits 3VIR24HP230V1AH / 3VIR24HP230V1BO. GREE publishes YAP1F7F in the model submittal; no HVACDirect exact replacement remote page was verified, so order through GREE/distributor parts support by indoor model and remote code.
Source
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO) Submittal, Controller options, page p. 1 (YAP1F7F)

wired-controller

XE71 wired wall controller

Fits
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO)
OEM part number
XE71
Fit note
Fits 3VIR24HP230V1AH / 3VIR24HP230V1BO where the GREE submittal lists the XE71 wired controller option. HVACDirect was verified as a live exact GREE XE71 product page on 2026-08-01; its retailer model/SKU is MC20700970.
Source
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO) Submittal, Controller options, page p. 1 (XE71)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

wired-controller

XK76 wired wall controller

Fits
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO)
OEM part number
XK76
Fit note
Fits 3VIR24HP230V1AH / 3VIR24HP230V1BO where the GREE submittal lists XK76 as an optional wired-controller interface. The closest HVACDirect XE-76 page was not attached because the page title and model text did not cleanly verify the same XK76 part number.
Source
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO) Submittal, Wired controller interface, page p. 1 (Wired Controller Interface (XE71 or XK76 optional) Yes)

line-set-installation-kit

25 ft flared line-set installation kit - 1/4 x 5/8

Fits
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO)
Fit note
Fits 3VIR24HP230V1AH / 3VIR24HP230V1BO by the 1/4 x 5/8 flared line-set dimensions in the GREE submittal. The HVACDirect page was verified live on 2026-08-01 as an exact-dimension 25 ft install-kit page, not a GREE OEM exact-part listing.
Source
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO) Submittal, Refrigerant pipe connections, page p. 1 (Connections in 1/4 - 5/8)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect
Replacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
16 A[1]
Breaker needed
not published
Maximum breaker size
25 A[1]
Maximum fuse size
25 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
5/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
42-3/8 x 13-1/8 x 9-11/16 in[1]
Outdoor dimensions
39-3/8 x 29-3/8 x 16-13/16 in[1]
Indoor weight
35.3 lb[1]
Outdoor weight
125.7 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO) myself, or do I need a pro?
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 16,100 BTU/h of heating capacity at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO) need?
Published electrical requirements: 208/230V voltage, 16 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 131 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1AH / 3VIR24HP230V1BO) carry?
The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
