GREE / Vireo GEN3

GREE Vireo GEN3 24k BH R-410A 208/230V Mini-Split

Certified capacity
22,000 BTU/h[2]
SEER2
24.5 SEER2[2]
Heating floor
-22 F[3]
Voltage
208/230V[1]
Install path
Professional install

The BH variant of the legacy R-410A Vireo 24k, certifying 22,000 BTU at SEER2 24.5 and -22F. Specifications match the AH variant closely; the difference is in the indoor head configuration rather than performance, so choose between them on fit and availability rather than expecting a capability gap. As with all our R-410A stock, the R-32 Vireo is the current-generation replacement.

1 zoneProfessional installLegacy

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

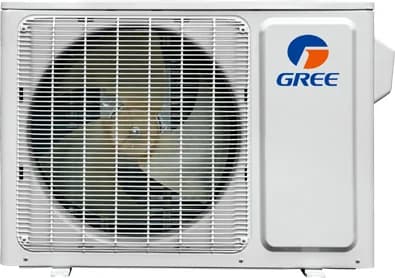

GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO)

Image: GREE

Data completeness: 95%
Last sourced
Jul 24, 2026

SplitAtlas score

8.3 / 10

Methodology
Cooling efficiencyTop 10%

(24.5 SEER2) among 24k systems

Heating efficiencyBelow average

(9.5 HSPF2) among 24k systems

Cold-weather performanceAbove average

(83.3% heat retained at 5F; -22 F heating floor) among 24k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Documentation & partsTop quartile

(9 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

22,000BTU/h[2]

Rated heating

24,000BTU/h[2]

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 24.5.

Skip if

  • You are shopping for a current-generation recommendation; catalog lifecycle is LEGACY.

Install difficulty

Professional flared-line install
  • Electrical: 208/230V; MCA 16 A; breaker/fuse 25 A.
  • Line set: Flared line connections; precharged 25 ft; max 131 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-24.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE Select dealer installation and registration for the 10-year extended warranty.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 24, 2026
Page reviewed
Jul 23, 2026
Source-backed records
4
Newest source retrieved
Jul 24, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard.

Review methodology

Strengths

  • Strong SEER2 24.5 and -22F rated heating for its generation.

Weaknesses

  • R-410A phase-down raises future service cost.
  • Performance is effectively identical to the AH variant - do not pay a premium for the letter.
  • Certifies 22,000 BTU, not 24,000.

Climate suitability

Minimum heating ambient
-22 F[3]
Rated heating at 5F
20,000 BTU/h[2]
Rated heating at 17F
19,400 BTU/h[2]
Rated heating at 47F
24,000 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Vireo GEN3
Model number
3VIR24HP230V1BH indoor / 3VIR24HP230V1BO outdoor
Indoor unit model
3VIR24HP230V1BH
Outdoor unit model
3VIR24HP230V1BO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
22,000 BTU/h[2]
Rated heating capacity
24,000 BTU/h[2]
Voltage
208/230V[1]
MCA
16 A[1]
Maximum fuse or breaker size
25 A[1]
Breaker needed
not published
SEER2
24.5 SEER2[2]
EER2
13.1 EER2[2]
HSPF2 (Region 4)
9.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.8 COP[2]
Minimum outdoor heating temperature
-22 F[3]
Minimum outdoor cooling temperature
-20 F[3]
Maximum outdoor temperature
122 F[3]
Indoor noise range
34-52 dB(A)[1]
Outdoor noise rating
not published
Indoor weight
35.3 lb[1]
Outdoor weight
125.7 lb[1]
Refrigerant
R-410A[2]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 5/8 in suction
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Maximum elevation difference
82 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[2]
AHRI certification number
211755708[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (eligible residential system). Standard residential GREE single-zone mini-split warranty is 5 years parts and 7 years compressor for eligible units.
Install path
Professional install
Retail price
We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-24.
Available retailers
not published
Manual links
AHRI public detail 3VIR24HP230V1BO / 3VIR24HP230V1BH, ENERGY STAR exact row lookup for 3VIR24HP230V1BO / 3VIR24HP230V1BH, GREE Vireo GEN3 extended ratings, GREE current Vireo GEN3 product/catalog page, GREE Vireo GEN3 owner manual, GREE Vireo GEN3 sales brochure, HVACDirect exact search for 3VIR24HP230V1BO / 3VIR24HP230V1BH, GREE Vireo GEN3 24k submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
GREE Vireo GEN3 24k submittal
Last sourced date
Jul 24, 2026

Parts and filters

Fits GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

remote-control

Wireless remote controller - YAP1F7F

Fits
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO)
OEM part number
YAP1F7F
Fit note
Fits 3VIR24HP230V1BH / 3VIR24HP230V1BO. GREE publishes YAP1F7F in the model submittal; no HVACDirect exact replacement remote page was verified, so order through GREE/distributor parts support by indoor model and remote code.
Source
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO) Submittal, Controller options, page p. 1 (YAP1F7F)

wired-controller

XE71 wired wall controller

Fits
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO)
OEM part number
XE71
Fit note
Fits 3VIR24HP230V1BH / 3VIR24HP230V1BO where the GREE submittal lists the XE71 wired controller option. HVACDirect was verified as a live exact GREE XE71 product page on 2026-08-01; its retailer model/SKU is MC20700970.
Source
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO) Submittal, Controller options, page p. 1 (XE71)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

wired-controller

XK76 wired wall controller

Fits
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO)
OEM part number
XK76
Fit note
Fits 3VIR24HP230V1BH / 3VIR24HP230V1BO where the GREE submittal lists XK76 as an optional wired-controller interface. The closest HVACDirect XE-76 page was not attached because the page title and model text did not cleanly verify the same XK76 part number.
Source
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO) Submittal, Wired controller interface, page p. 1 (Wired Controller Interface (XE71 or XK76 optional) Yes)

line-set-installation-kit

25 ft flared line-set installation kit - 1/4 x 5/8

Fits
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO)
Fit note
Fits 3VIR24HP230V1BH / 3VIR24HP230V1BO by the 1/4 x 5/8 flared line-set dimensions in the GREE submittal. The HVACDirect page was verified live on 2026-08-01 as an exact-dimension 25 ft install-kit page, not a GREE OEM exact-part listing.
Source
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO) Submittal, Refrigerant pipe connections, page p. 1 (Connections in 1/4 - 5/8)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect
Replacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
16 A[1]
Breaker needed
not published
Maximum breaker size
25 A[1]
Maximum fuse size
25 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
5/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
131 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
42-3/8 x 13-1/8 x 9-11/16 in[1]
Outdoor dimensions
39-3/8 x 29-3/8 x 16-13/16 in[1]
Indoor weight
35.3 lb[1]
Outdoor weight
125.7 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO) myself, or do I need a pro?
GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO) keep heating in a cold winter?
The manufacturer publishes 20,000 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO) need?
Published electrical requirements: 208/230V voltage, 16 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 131 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the GREE Vireo GEN3 24,000 BTU R-410A 208/230V (3VIR24HP230V1BH / 3VIR24HP230V1BO) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (eligible residential system). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
