Klimaire / KMIP-KIWP DIY Series

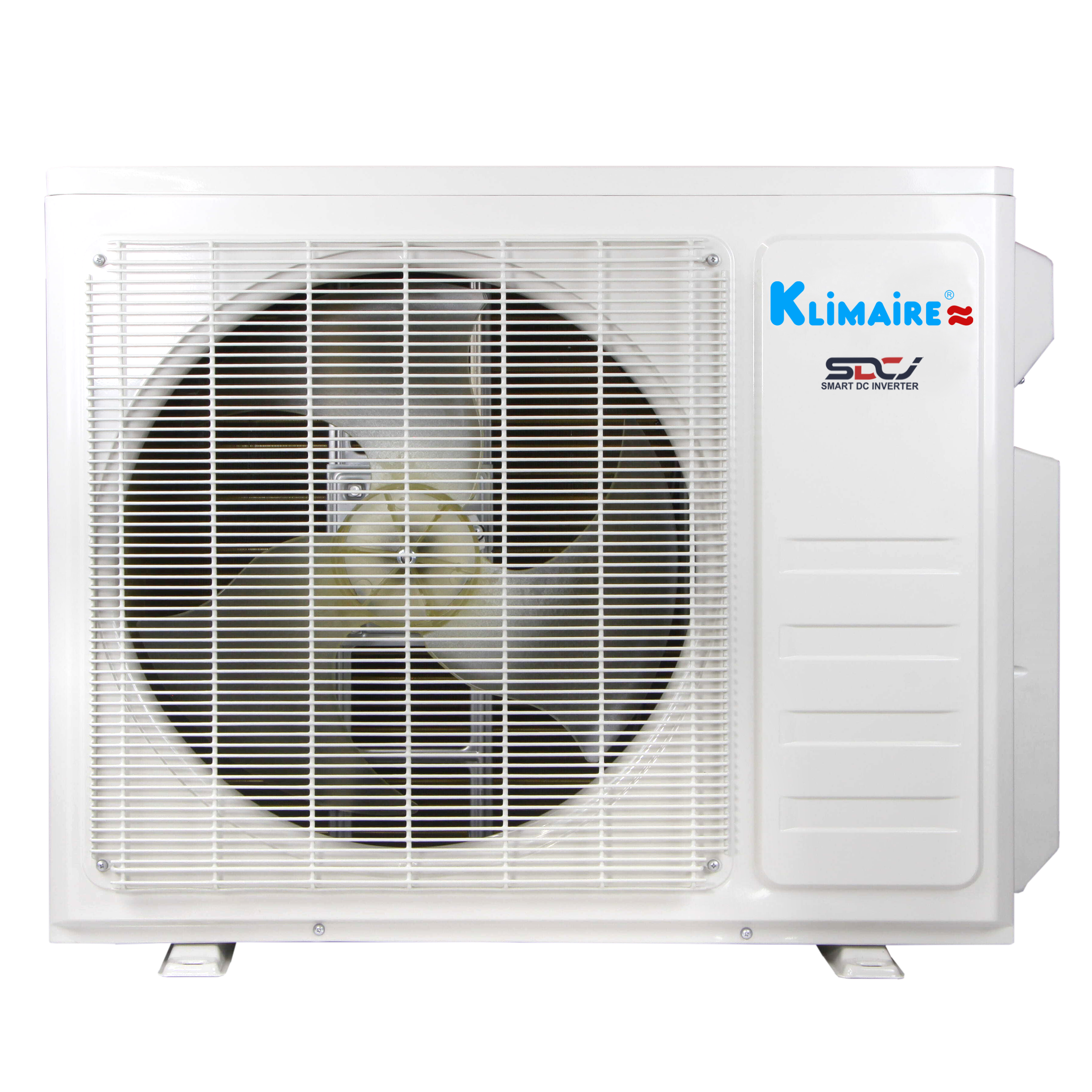

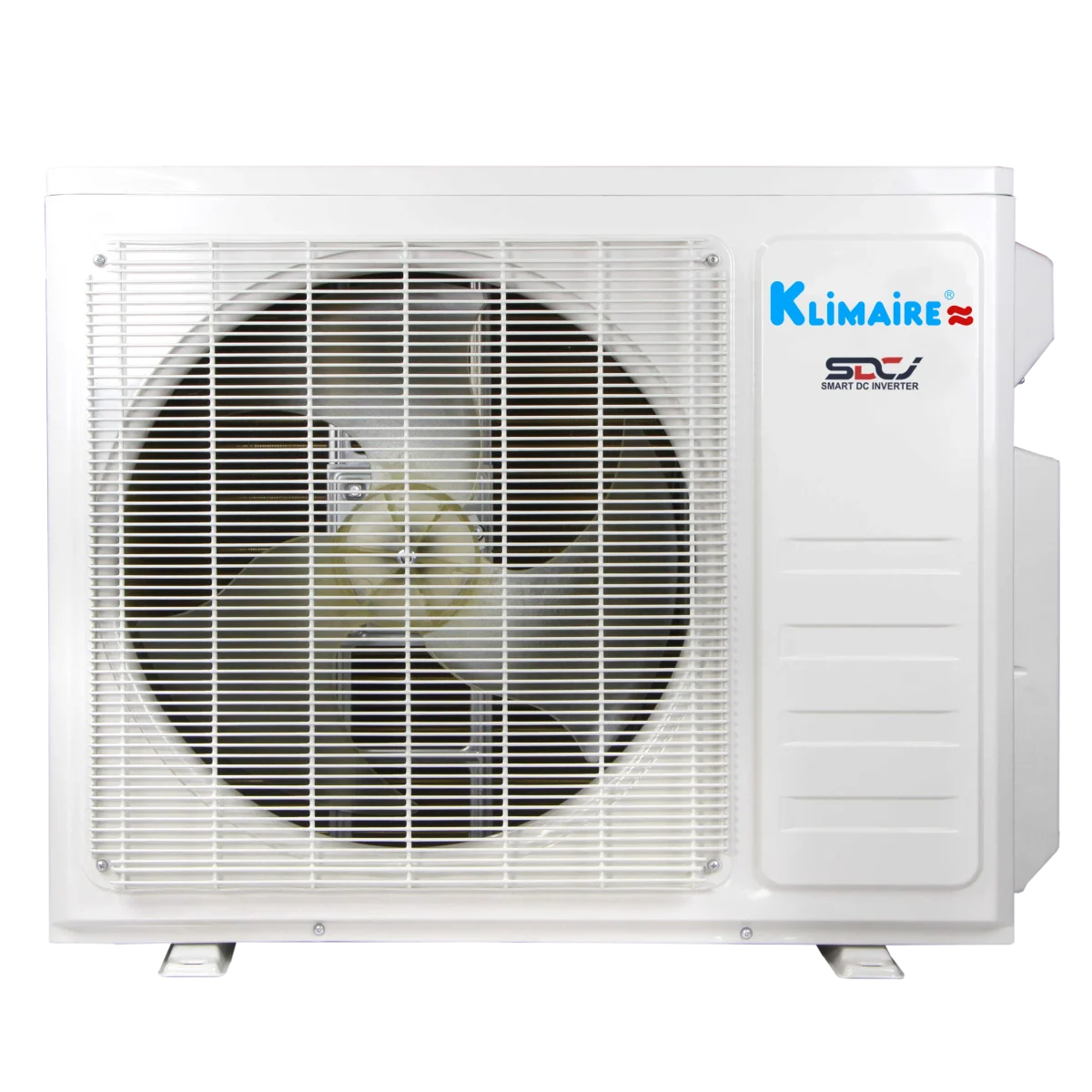

Klimaire DIY 18k R-454B 208/230V 2-Zone Mini-Split
The Klimaire KMIP-KIWP DIY Series 2-Zone 18k pairs two heads with one 208/230V outdoor unit at a certified nominal SEER2 24, EER2 13, HSPF2 10.5 on current R-454B refrigerant. From the DIY-oriented line, its rated heating holds the full 20,000 BTU from 47F down to 17F before easing to 16,000 BTU at 5F.
The SEER2 of 24 is high for a value brand, and though the line is DIY-oriented, professional installation is still recommended. It is not ENERGY STAR certified and sits below the top premium brands on brand and dealer support.
Dealer-quoted.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes
Image: Klimaire
- Last sourced
- Jul 29, 2026
SplitAtlas score
8.3 / 10
(24.0 SEER2) among 18k systems
(10.5 HSPF2) among 18k systems
(80% heat retained at 5F; -13 F heating floor) among 18k systems
(5 yr parts / 7 yr compressor) across the catalogue
(4 verified features) across the catalogue
(7 manuals; spec sheet) across the catalogue
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- 2-zone projects in the 18k outdoor capacity class.
- High-efficiency shortlists; SEER2 is 24.
Install difficulty
- Electrical: 230V; MCA 16 A; breaker/fuse 25 A.
- Line set: Quick-connect line connections; precharged 49 ft; max 131 ft.
- 2-zone condenser; indoor-head matching and branch layout are part of the job.
Alternatives
- ACiQ Multi-Zone Extreme Series 2-Zone 18,000 BTU R-454B 208/230V (ACIQ-18Z-HH-M3C)
8.9 score / 19k / SEER2 25 / -22 F heating floor / 230V
Exact destination at HVACDirect: $2,549.99, checked Jul 29, 2026
- ACiQ Multi-Zone Standard Series 2-Zone 18,000 BTU R-454B 208/230V (ES-18Z-M3C)
8.5 score / 18k / SEER2 25.1 / -13 F heating floor / 230V
Exact destination at HVACDirect: $1,499.99, checked Jul 29, 2026
- Daikin AURORA Multi 2-Zone 18,000 BTU R-32 208/230V (2MXT18AVJU9)
8.4 score / 17.2k / SEER2 21 / -13 F heating floor / 230V
Exact destination at HVACDirect: $3,409.00, checked Jul 28, 2026
Availability and price context
We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-29.
Source date
- Model data sourced
- Jul 29, 2026
- Page reviewed
- Jul 29, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 29, 2026
Warranty tiers
Warranty: 5 years parts and 7 years compressor if registration/installation terms.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.
Strengths
- Certified nominal SEER2 24 / EER2 13 / HSPF2 10.5 on current R-454B refrigerant.
- High SEER2 24 for a value brand.
- Rated heating holds the full 20,000 BTU from 47F to 17F, with 16,000 BTU at 5F.
- Two zones from one condenser at a value price below the premium brands.
Weaknesses
- Professional installation still recommended despite the DIY-oriented line; dealer-quoted.
- Not ENERGY STAR certified and below the top premium brands on brand/dealer support.
- 18,000 BTU across two zones is modest per room; size each head.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Rated heating at 5F
- 16,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 17F
- 20,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 47F
- 20,000 BTU/hNon-Ducted Indoor Units[2]
Specifications
ShowHide
- Manufacturer
- Klimaire
- Brand
- Klimaire
- Product line
- KMIP-KIWP DIY Series
- Model number
- KMIP218-H225-4
- Indoor unit model
- Indoor heads are selected separately on a multi-zone system
- Outdoor unit model
- KMIP218-H225-4
- Number of zones
- 2
- Max indoor units
- 2 units[1]
- Rated cooling capacity
- 18,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating capacity
- 20,000 BTU/hNon-Ducted Indoor Units[2]
- Voltage
- 230 V[1]
- MCA
- 16 A[1]
- Maximum fuse or breaker size
- 25 A[1]
- Breaker needed
- not published
- SEER2
- 24 SEER2Non-Ducted Indoor Units[2]
- EER2
- 13 EER2Non-Ducted Indoor Units[2]
- HSPF2 (Region 4)
- 10.5 HSPF2Non-Ducted Indoor Units[2]
- HSPF2 (Region 5)
- Certified per indoor-unit combination, not per outdoor unit
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- not published
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- 5 F[1]
- Maximum outdoor temperature
- 131 F[1]
- Indoor noise range
- Indoor heads are selected separately on a multi-zone system
- Outdoor noise rating
- 58 dBA[1]
- Indoor weight
- Indoor heads are selected separately on a multi-zone system
- Outdoor weight
- 92.6 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 60 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 2 x 1/4 in liquid / 2 x 3/8 in suction
- Included line-set length
- Indoor heads are selected separately on a multi-zone system
- Maximum line-set length
- 131 ft[1]
- Max line set per indoor
- 82 ft[1]
- Maximum elevation difference
- 49 ft[1]
- Max height between indoor units
- 33 ft[1]
- Wi-Fi support
- Indoor heads are selected separately on a multi-zone system
- Energy Star status
- Not ENERGY STAR certified[3]
- AHRI certification number
- 218067072Non-Ducted Indoor Units[2]
- Warranty
- Best case: 5 yr parts / 7 yr compressor (registration/installation terms). 7-year compressor, 5-year parts warranty with Klimaire registration/installation terms.
- Install path
- DIY install
- Retail price
- We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-29.
- Available retailers
- not published
- Manual links
- AHRI public detail 218067072, Klimaire KIWP-KMIP Technical Specifications, ENERGY STAR exact lookup 218067072, Klimaire KIWP-KMIP DIY user and installation manual, Klimaire KMIP-KIWP DIY Series official product page for KMIP218-H225-4, HVACDirect exact-offer audit for KMIP218-H225-4, Klimaire KIWP-KMIP DIY technical specifications
- Specification sheet
- Klimaire KIWP-KMIP DIY technical specifications
- Last sourced date
- Jul 29, 2026
Compatible indoor units
This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.
Wall-mounted air handlers
9k, 12k
Model numbers
- 9k: KIWP09H2-41T
- 12k: KIWP12H2-41T
Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.
Installation considerations
ShowHide
- Liquid line
- 2 x 1/4 in[1]
- Suction line
- 2 x 3/8 in[1]
- Line connection type
- Quick-connect line connections[1]
- Precharged length
- 49 ft[1]
- Included line-set length
- Indoor heads are selected separately on a multi-zone system
- Maximum line-set length
- 131 ft[1]
- Max line set per indoor
- 82 ft[1]
- Max height between indoor units
- 33 ft[1]
- Indoor dimensions
- Indoor heads are selected separately on a multi-zone system
- Outdoor dimensions
- 36-1/2 x 14-7/8 x 27-1/2 in[1]
- Indoor weight
- Indoor heads are selected separately on a multi-zone system
- Outdoor weight
- 92.6 lb[1]
- Drain size
- not published
Related systems and guides
- More Klimaire systems
- Klimaire 230 V option
- KMIR Series 18k
- GREE 18k model
- LG comparison model
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- DIY vs professional mini split installation
- Klimaire mini split review: is Klimaire any good?
- The best 18,000 BTU mini splits of 2026
- The best multi-zone mini splits of 2026
- The best 2-zone (dual-zone) mini splits of 2026
- How to size a multi-zone mini split
- Not every multi-zone condenser lets you mix head types
- How much does a multi-zone mini split cost?
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- One room won't heat or cool on a multi-zone mini split
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split outdoor unit not running
- Mini split Wi-Fi not connecting
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Klimaire KMIP-KIWP DIY Series 2-Zone 18,000 BTU R-454B 208/230V (KMIP218-H225-4) myself, or do I need a pro?
- Klimaire KMIP-KIWP DIY Series 2-Zone 18,000 BTU R-454B 208/230V (KMIP218-H225-4) is sold as a DIY-installable system with a pre-charged 49 ft line set, so no refrigerant handling or vacuum pump is required for a standard install. The electrical circuit is the part that is not DIY: plan on a licensed electrician for the dedicated circuit, and check whether your local permit office requires a permit for the install.
- Will the Klimaire KMIP-KIWP DIY Series 2-Zone 18,000 BTU R-454B 208/230V (KMIP218-H225-4) keep heating in a cold winter?
- The manufacturer publishes 16,000 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Klimaire KMIP-KIWP DIY Series 2-Zone 18,000 BTU R-454B 208/230V (KMIP218-H225-4) need?
- Published electrical requirements: 230 V voltage, 16 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 131 ft, and the included line set comes pre-charged for 49 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
- What warranty does the Klimaire KMIP-KIWP DIY Series 2-Zone 18,000 BTU R-454B 208/230V (KMIP218-H225-4) carry?
- The manufacturer publishes these warranty tiers: Best case: 5 yr parts / 7 yr compressor (registration/installation terms). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
