Midea / Advantage Series Multi-Zone High-Heat
Midea Advantage High-Heat 36k R-454B 208/230V 5-Zone Mini-Split
The Midea Advantage Multi-Zone High-Heat 5-Zone 36k (D5CMHAH36EAK) is the largest cold-climate Advantage multi-zone, feeding five heads from one R-454B outdoor unit with strong certified deep-cold heating. It is certified at a nominal SEER2 of 23.1 with EER2 13.1 and a high HSPF2 of 10.7, ENERGY STAR certified and AHRI cold-climate designated.
Cooling is rated at 36,000 BTU, with certified 47F/17F/5F heating of 36,000/38,000/36,000 BTU - full rated heat at 5F. That is genuine deep-cold performance.
Dealer-quoted; professional installation required.
5 zonesProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes

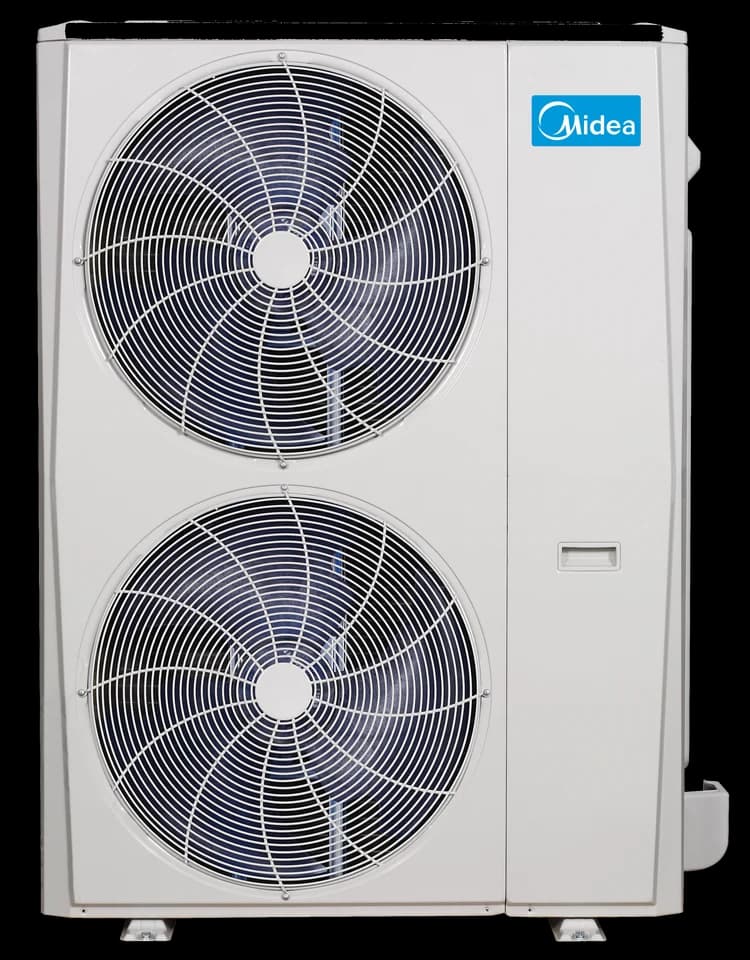

Image: Midea Ductless
Data completeness: 100%
- Last sourced
- Jul 28, 2026
SplitAtlas score
9.2 / 10
Cooling efficiencyTop quartile
(23.1 SEER2) among 36k systems
Heating efficiencyTop quartile
(10.7 HSPF2) among 36k systems
Cold-weather performanceTop quartile
(5F certified capacity: 100% of the 47F rating; -22 F heating floor) among 36k systems
WarrantyBelow average
(5 yr parts / 7 yr compressor) across the catalogue
Feature setTop 10%
(7 verified features) across the catalogue
Documentation & partsBelow average
(7 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- 5-zone projects in the 36k outdoor capacity class.
- High-efficiency shortlists; SEER2 is 23.1.
Install difficulty
Professional flared-line install
- Electrical: 230V; breaker/fuse 40 A.
- Line set: Flared line connections; max 262.5 ft.
- 5-zone condenser; indoor-head matching and branch layout are part of the job.
Availability and price context
This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.
Source date
- Model data sourced
- Jul 28, 2026
- Page reviewed
- Jul 28, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 28, 2026
Warranty tiers
- Base
- 5 yr parts / 7 yr compressor - published limited warranty terms
The score uses Base. Additional published terms are shown for reference and not counted in the score.
Model context
- Install path
- This is professional-install equipment; price it with an installed quote.
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- Certified at 38,000 BTU at 17F, above the 36,000 BTU 47F rating.
- Full-rated heat at 5F - still 36,000 BTU, matching the 47F rating.
- Largest cold-climate Advantage multi-zone - 36,000 BTU across five zones; HSPF2 10.7.
- ENERGY STAR certified and AHRI cold-climate designated on R-454B.
Weaknesses
- Costs a bit more than the standard Advantage 5-zone for the cold-climate tuning.
- Slightly lower SEER2 (23.1) than the smaller High-Heat units.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Certified heating at 5F
- 36,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 17F
- 38,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating at 47F
- 36,000 BTU/hNon-Ducted Indoor Units[2]
Specifications
ShowHide
- Manufacturer
- Midea
- Brand
- Midea
- Product line
- Advantage Series Multi-Zone High-Heat
- Model number
- D5CMHAH36EAK
- Indoor unit model
- Depends on the indoor units you choose
- Outdoor unit model
- D5CMHAH36EAK
- Number of zones
- 5
- Max indoor units
- 5 units[1]
- Rated cooling capacity
- 36,000 BTU/hNon-Ducted Indoor Units[2]
- Rated heating capacity
- 36,000 BTU/hNon-Ducted Indoor Units[2]
- Voltage
- 230 V[1]
- MCA
- not published - manufacturer specifies 40 A breaker
- Maximum fuse or breaker size
- 40 A[1]
- Breaker needed
- 40 A[1]
- SEER2
- 23.1 SEER2Non-Ducted Indoor Units[2]
- EER2
- 13.1 EER2Non-Ducted Indoor Units[2]
- HSPF2 (Region 4)
- 10.7 HSPF2Non-Ducted Indoor Units[2]
- HSPF2 (Region 5)
- Varies by indoor-unit combination
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2 COPNon-Ducted Indoor Units[2]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- -22 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- Depends on the indoor units you choose
- Outdoor noise rating
- 65 dBA[1]
- Indoor weight
- Depends on the indoor units you choose
- Outdoor weight
- 211.86 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 134.08 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in x 5 liquid / 3/8 in x 3 + 1/2 in x 2 suction
- Included line-set length
- Depends on the indoor units you choose
- Maximum line-set length
- 262.5 ft[1]
- Max line set per indoor
- 114.8 ft[1]
- Maximum elevation difference
- 49.21 ft[1]
- Max height between indoor units
- 33 ft[1]
- Wi-Fi support
- Depends on the indoor units you choose
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 215357412Non-Ducted Indoor Units[2]
- Warranty
- Base: 5 yr parts / 7 yr compressor (published limited warranty terms). Score uses Base.. 7-year compressor / 5-year parts limited warranty
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- AHRI public detail 215357412, ENERGY STAR exact row 215357412, Midea D5C model-family installation instructions, Midea Advantage Series Multi-Zone High-Heat Heat Pump current official product page, D5CMHAH36EAK Midea Advantage Series Multi-Zone High-Heat product data, Midea Advantage Series Multi-Zone High-Heat Heat Pump warranty summary
- Specification sheet
- D5CMHAH36EAK Midea Advantage Series Multi-Zone High-Heat product data
- Last sourced date
- Jul 28, 2026
Electrical requirements
ShowHide
Installation considerations
ShowHide
- Liquid line
- 1/4 in x 5[1]
- Suction line
- 3/8 in x 3 + 1/2 in x 2[1]
- Line connection type
- Flared line connections[1]
- Precharged length
- not published
- Included line-set length
- Depends on the indoor units you choose
- Maximum line-set length
- 262.5 ft[1]
- Max line set per indoor
- 114.8 ft[1]
- Max height between indoor units
- 33 ft[1]
- Indoor dimensions
- Depends on the indoor units you choose
- Outdoor dimensions
- 38.625 x 17.38 x 38.39 in[1]
- Indoor weight
- Depends on the indoor units you choose
- Outdoor weight
- 211.86 lb[1]
- Drain size
- not published
Related systems and guides
- More Midea systems
- Midea Advantage 36k R-454B 208/230V 5-Zone Mini-Split
- Midea Elevate 36k R-454B 208/230V Mini-Split
- LG Multi F MAX LGRED 36k R-32 208/230V 5-Zone Mini-Split
- Midea Essence 36k R-454B 208/230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- Midea mini split review: is Midea any good?
- The best multi-zone mini splits of 2026
- The best 4-zone mini splits of 2026
- How to size a multi-zone mini split
- Not every multi-zone condenser lets you mix head types
- How much does a multi-zone mini split cost?
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- One room won't heat or cool on a multi-zone mini split
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split outdoor unit not running
- Mini split remote not working
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Midea Advantage Series Multi-Zone High-Heat 5-Zone 36,000 BTU R-454B 208/230V (D5CMHAH36EAK) myself, or do I need a pro?
- Midea Advantage Series Multi-Zone High-Heat 5-Zone 36,000 BTU R-454B 208/230V (D5CMHAH36EAK) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Midea Advantage Series Multi-Zone High-Heat 5-Zone 36,000 BTU R-454B 208/230V (D5CMHAH36EAK) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 36,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 10.7 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Midea Advantage Series Multi-Zone High-Heat 5-Zone 36,000 BTU R-454B 208/230V (D5CMHAH36EAK) need?
- Published electrical requirements: 230 V voltage and 40 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length from the outdoor unit to one indoor head is 114.8 ft. The combined piping limit across all heads is 262.5 ft. Measure the planned routing before ordering.
- What warranty does the Midea Advantage Series Multi-Zone High-Heat 5-Zone 36,000 BTU R-454B 208/230V (D5CMHAH36EAK) carry?
- The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (published limited warranty terms). Score uses Base.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
Data sources
ShowHide
- Midea America Corp. / Viessmann US D5CMHA technical data: D5CMHAH36EAK Midea Advantage Series Multi-Zone High-Heat D5C technical dataSourced - manufacturer technical document
Covers Breaker needed, Frequency, electrical_spec.guaranteed_voltage_range, Maximum breaker size, Maximum fuse size, Phase and more
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail 215357412Sourced - AHRI directory
Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more
- U.S. Environmental Protection Agency ENERGY STAR: ENERGY STAR exact row check for AHRI 215357412Sourced - Energy Star listing
Covers Energy Star status
- Midea America Corp.: Midea Advantage Series Multi-Zone High-Heat Heat Pump current official product pageSourced - manufacturer product page
Covers Legacy compressor warranty value, Legacy warranty value, Base compressor warranty, Base warranty conditions, Base parts warranty, Warranty notes
