Midea Elevate 36k R-454B 208/230V Mini-Split

Certified capacity
36,000 BTU/h[2]
SEER2
19 SEER2[2]
Heating floor
-22 F[1]
Voltage
230 V[1]
Install path
Professional install

The 36k is the largest Elevate at a full 3 tons, cooling 36,000 BTU with heating of 36,000 BTU at 47F, 24,200 BTU at 17F, and 22,000 BTU at 5F on R-454B. Its efficiency is the weak point: 19.0 SEER2, a low 8.7 EER2, and 8.5 HSPF2, and it is neither ENERGY STAR certified nor cold-climate designated. This is capacity-first, efficiency-last.

1 zoneProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

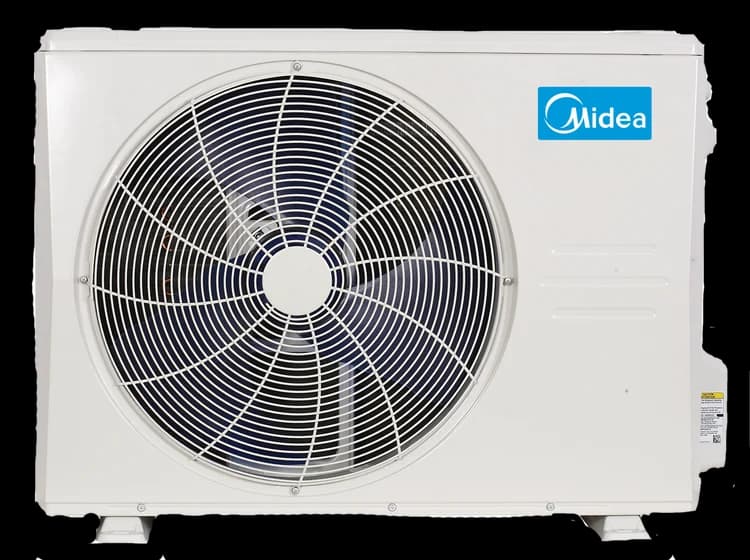

Midea Elevate 36,000 BTU R-454B 208/230V (D5FSHAH36XAK / D5CSRAH36AAK) mini-split heat pump outdoor condenser

Image: Midea Ductless

Data completeness: 100%
Last sourced
Jul 27, 2026

SplitAtlas score

7.3 / 10

Methodology
Cooling efficiencyBottom quartile

(19.0 SEER2) among 36k systems

Heating efficiencyBottom quartile

(8.5 HSPF2) among 36k systems

Cold-weather performanceBelow average

(61.1% heat retained at 5F; -22 F heating floor) among 36k systems

WarrantyAbove average

(10 yr parts / 10 yr compressor) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Documentation & partsBelow average

(6 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

36,000BTU/h[2]

Rated heating

36,000BTU/h[2]

Buyer review snapshot

Install difficulty

Professional install
  • Electrical: 230V.
  • Line set: connection type not sourced; max 213 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find a published consumer price for this model when we last checked on 2026-07-27.

Source date

Model data sourced
Jul 27, 2026
Page reviewed
Jul 27, 2026
Source-backed records
3
Newest source retrieved
Jul 27, 2026

Warranty tiers

Warranty: 10 years parts and no separate compressor term published if timely registration.

Review methodology

Strengths

  • Big 36,000 BTU output covers large spaces from a single head.
  • Still delivers 22,000 BTU of heat at 5F despite lacking a cold-climate rating.
  • Uses the current low-GWP R-454B refrigerant.

Weaknesses

  • Low 8.7 EER2 means poor efficiency under peak cooling load, and it is not ENERGY STAR certified.
  • Not cold-climate designated, with a clear heating drop below 47F and a soft 8.5 HSPF2.

Climate suitability

Minimum heating ambient
-22 F[1]
Rated heating at 5F
22,000 BTU/h[2]
Rated heating at 17F
24,200 BTU/h[2]
Rated heating at 47F
36,000 BTU/h[2]

Specifications

Show
Manufacturer
Midea
Brand
Midea
Product line
Midea Elevate
Model number
D5FSHAH36XAK indoor / D5CSRAH36AAK outdoor
Indoor unit model
D5FSHAH36XAK
Outdoor unit model
D5CSRAH36AAK
Number of zones
1
Max indoor units
not published
Rated cooling capacity
36,000 BTU/h[2]
Rated heating capacity
36,000 BTU/h[2]
Voltage
230 V[1]
MCA
No model-specific value is published on the current consumer product listing
Maximum fuse or breaker size
No model-specific value is published on the current consumer product listing
Breaker needed
not published
SEER2
19 SEER2[2]
EER2
8.7 EER2[2]
HSPF2 (Region 4)
8.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.9 COP[2]
Minimum outdoor heating temperature
-22 F[1]
Minimum outdoor cooling temperature
-23 F[1]
Maximum outdoor temperature
122 F[1]
Indoor noise range
No model-specific value is published on the current consumer product listing
Outdoor noise rating
52.5 dBA[1]
Indoor weight
No model-specific value is published on the current consumer product listing
Outdoor weight
No model-specific value is published on the current consumer product listing
Refrigerant
R-454B[2]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
No model-specific value is published on the current consumer product listing liquid / No model-specific value is published on the current consumer product listing suction
Included line-set length
Professional installations use separately selected line sets
Maximum line-set length
213 ft[1]
Max line set per indoor
not published
Maximum elevation difference
No model-specific value is published on the current consumer product listing
Max height between indoor units
not published
Wi-Fi support
Wi-Fi support is not published for this exact pair
Energy Star status
Not ENERGY STAR certified[3]
AHRI certification number
215413300[2]
Warranty
Best case: 10 yr parts / no separate compressor term (timely registration). 10-year parts limited warranty upon timely registration
Install path
Professional install
Retail price
We could not find a published consumer price for this model when we last checked on 2026-07-27.
Available retailers
not published
Manual links
ENERGY STAR exact check 215413300, Elevate installation documentation listing, Elevate high-wall indoor product page, Midea Elevate Series Single-Zone Heat Pump with Basepan Heater, HVACDirect exact Midea offer check midea-elevate-36k-r454b-230v, AHRI Appendix M1 public detail 215413300
Specification sheet
AHRI Appendix M1 public detail 215413300
Last sourced date
Jul 27, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
No model-specific value is published on the current consumer product listing
Breaker needed
not published
Maximum breaker size
No model-specific value is published on the current consumer product listing
Maximum fuse size
No model-specific value is published on the current consumer product listing
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
No model-specific value is published on the current consumer product listing
Suction line
No model-specific value is published on the current consumer product listing
Line connection type
not published
Precharged length
not published
Included line-set length
Professional installations use separately selected line sets
Maximum line-set length
213 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
No model-specific value is published on the current consumer product listing
Outdoor dimensions
No model-specific value is published on the current consumer product listing
Indoor weight
No model-specific value is published on the current consumer product listing
Outdoor weight
No model-specific value is published on the current consumer product listing
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Midea Elevate 36,000 BTU R-454B 208/230V (D5FSHAH36XAK / D5CSRAH36AAK) myself, or do I need a pro?
Midea Elevate 36,000 BTU R-454B 208/230V (D5FSHAH36XAK / D5CSRAH36AAK) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Midea Elevate 36,000 BTU R-454B 208/230V (D5FSHAH36XAK / D5CSRAH36AAK) keep heating in a cold winter?
The manufacturer publishes 22,000 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 8.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Midea Elevate 36,000 BTU R-454B 208/230V (D5FSHAH36XAK / D5CSRAH36AAK) need?
Published electrical requirements: 230 V voltage, No model-specific value is published on the current consumer product listing minimum circuit ampacity, and No model-specific value is published on the current consumer product listing maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 213 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Midea Elevate 36,000 BTU R-454B 208/230V (D5FSHAH36XAK / D5CSRAH36AAK) carry?
The manufacturer publishes these warranty tiers: Best case: 10 yr parts / no separate compressor term (timely registration). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
