Midea / Midea Easy Pro

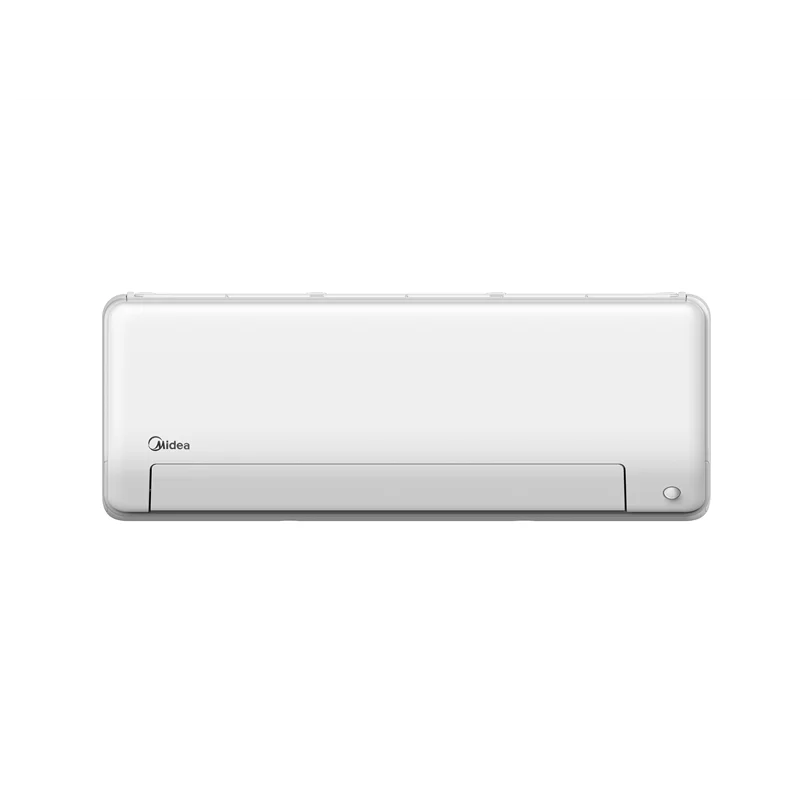

Midea Easy Pro 12k R-454B 208/230V Mini-Split
Step up to the 12k and you get a one-ton cold-climate head rated 25.5 SEER2 with a 10.6 HSPF2 on R-454B. Cooling is a solid 12,000 BTU; heating starts at 12,000 BTU at 47F and tapers gently to 10,100 BTU at 17F and 8,400 BTU at 5F, still holding useful output deep into the cold. The 13.0 EER2 is only average, so its peak-summer efficiency trails its shoulder-season numbers.
1 zoneProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes
Image: Famous Supply
Data completeness: 100%
- Last sourced
- Jul 27, 2026
SplitAtlas score
9.1 / 10
Cooling efficiencyTop quartile
(25.5 SEER2) among 12k systems
Heating efficiencyTop quartile
(10.6 HSPF2) among 12k systems
Cold-weather performanceBelow average
(5F certified capacity: 70% of the 47F rating; -13 F heating floor) among 12k systems
NoiseAbove average
(18 dBA indoor min / 56 dBA outdoor) among 12k systems
WarrantyTop 10%
(12 yr parts / 12 yr compressor) across the catalogue
Feature setTop 10%
(8 verified features) across the catalogue
Documentation & partsBelow average
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- Top efficiency shortlists; SEER2 is 25.5.
Install difficulty
Professional install
- Electrical: 230V.
- Line set: connection type not sourced; precharged 25 ft; max 82 ft.
Availability and price context
This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 22, 2026
- Source-backed records
- 5
- Newest source retrieved
- Sep 14, 2026
Warranty tiers
- Base
- 5 yr parts / 7 yr compressor - base coverage
- Registered
- 12 yr parts / 12 yr compressor - online registration at mideacomfort.us within 60 days of installation
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.
Strengths
- AHRI cold-climate designated with 8,400 BTU still on tap at 5F - real winter capability, not a spec-sheet footnote.
- ENERGY STAR certified and running the low-GWP R-454B refrigerant.
- Manufactured by Midea.
Weaknesses
- 13.0 EER2 is middle-of-the-road, so it is less impressive under heavy cooling load than its SEER2 suggests.
- Requires a licensed installer and a 230V circuit.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Certified heating at 5F
- 8,400 BTU/h[3]
- Maximum heating at 5F (manufacturer)
- 8,400 BTU/h[1]
- Rated heating at 17F
- 10,100 BTU/h[3]
- Rated heating at 47F
- 12,000 BTU/h[3]
Specifications
ShowHide
- Manufacturer
- Midea
- Brand
- Midea
- Product line
- Midea Easy Pro
- Model number
- MSEHU-H12B-2A indoor / MO1ES-H12B-2A outdoor
- Indoor unit model
- MSEHU-H12B-2A
- Outdoor unit model
- MO1ES-H12B-2A
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 12,000 BTU/h[3]
- Rated heating capacity
- 12,000 BTU/h[3]
- Voltage
- 230 V[2]
- MCA
- Not published for this model
- Maximum fuse or breaker size
- Not published for this model
- Breaker needed
- not published
- SEER2
- 25.5 SEER2[3]
- EER2
- 13 EER2[3]
- HSPF2 (Region 4)
- 10.6 HSPF2[3]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- 3.9 COP[1]
- COP at 5F
- 2.3 COP[3]
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- -13 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- Not published for this model
- Outdoor noise rating
- 56 dBA[1]
- Indoor weight
- Not published for this model
- Outdoor weight
- Not published for this model
- Refrigerant
- R-454B[3]
- Refrigerant charge
- 32 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- Not published for this model liquid / Not published for this model suction
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- 82 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- Not published for this model
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[4]
- AHRI certification number
- 215471376[3]
- Warranty
- Base: 5 yr parts / 7 yr compressor (base coverage); Registered: 12 yr parts / 12 yr compressor (online registration at mideacomfort.us within 60 days of installation). Score uses Registered.. 12-year extended warranty listed for Midea single-zone systems; terms apply
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- ENERGY STAR exact check 215471376, Easy Pro installation documentation listing, Easy Pro high-wall indoor product page, Midea Single-Zone Advance Heat Pump, AHRI Appendix M1 public detail 215471376
- Specification sheet
- AHRI Appendix M1 public detail 215471376
- Last sourced date
- Jul 27, 2026
Electrical requirements
ShowHide
- Voltage
- 230 V[2]
- Voltage range
- 208/230V[1]
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- Not published for this model
- Breaker needed
- not published
- Maximum breaker size
- Not published for this model
- Maximum fuse size
- Not published for this model
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- 14 AWG, 4-conductor connection wiring[1]
Installation considerations
ShowHide
- Liquid line
- Not published for this model
- Suction line
- Not published for this model
- Line connection type
- not published
- Precharged length
- 25 ft[1]
- Included line-set length
- Professional installations use separately selected line sets
- Maximum line-set length
- 82 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- Not published for this model
- Outdoor dimensions
- Not published for this model
- Indoor weight
- Not published for this model
- Outdoor weight
- Not published for this model
- Drain size
- not published
Related systems and guides
- More Midea systems
- LG Mid Static Ducted 12k R-32 208/230V Mini-Split
- Midea Easy Pro Extreme Heat 12k R-454B 208/230V Mini-Split
- Midea Essence 9k R-454B 208/230V Mini-Split
- LG High Efficiency 12k R-32 230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- Midea mini split review: is Midea any good?
- The best 12,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split weak airflow
- Mini split short cycling
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Midea Easy Pro 12,000 BTU R-454B 208/230V (MSEHU-H12B-2A / MO1ES-H12B-2A) myself, or do I need a pro?
- Midea Easy Pro 12,000 BTU R-454B 208/230V (MSEHU-H12B-2A / MO1ES-H12B-2A) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Midea Easy Pro 12,000 BTU R-454B 208/230V (MSEHU-H12B-2A / MO1ES-H12B-2A) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 8,400 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10.6 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Midea Easy Pro 12,000 BTU R-454B 208/230V (MSEHU-H12B-2A / MO1ES-H12B-2A) need?
- Published electrical requirements: 230 V voltage. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 82 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
- What warranty does the Midea Easy Pro 12,000 BTU R-454B 208/230V (MSEHU-H12B-2A / MO1ES-H12B-2A) carry?
- The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (base coverage); Registered: 12 yr parts / 12 yr compressor (online registration at mideacomfort.us within 60 days of installation). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
