Will the Mitsubishi Electric M-Series FS 18k 230V (MSZ-FS18NA / MUZ-FS18NAH) keep heating in a cold winter?

Rated heating operation extends down to -13 F. Match that published heating floor against your climate's design temperature - below the low-ambient rating, output can fall off or the system can pause to protect itself.

What electrical circuit does the Mitsubishi Electric M-Series FS 18k 230V (MSZ-FS18NA / MUZ-FS18NAH) need?

Published electrical requirements: 208/230V voltage, 18 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.

How far can the outdoor unit be from the indoor head?

The published maximum line-set length is 100 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.

What warranty does the Mitsubishi Electric M-Series FS 18k 230V (MSZ-FS18NA / MUZ-FS18NAH) carry?

The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Registered: 10 yr parts / 10 yr compressor (owner-occupied residence registered within 90 days of installation); Program: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Mitsubishi Electric / M-Series FS

Mitsubishi M-Series FS 18k 230V Mini-Split

Certified capacity: 17,200 BTU/h[1]
SEER2: 21 SEER2[2]
Heating floor: -13 F[1]
Voltage: 208/230V[1]
Install path: Professional install

The M-Series FS 18k scales Mitsubishi's premium single-zone line to 1.5 tons: SEER2 21, EER2 12.5, HSPF2 10.7, with 19,000 BTU of heat at 47F and rated operation to -13F. Efficiency comes down from the standout 9k and 12k figures - typical as capacity rises - but the brand's support and cold-weather rating remain.

1 zoneProfessional installCurrent

Need this installed?

Get installation quotes

Error Codes

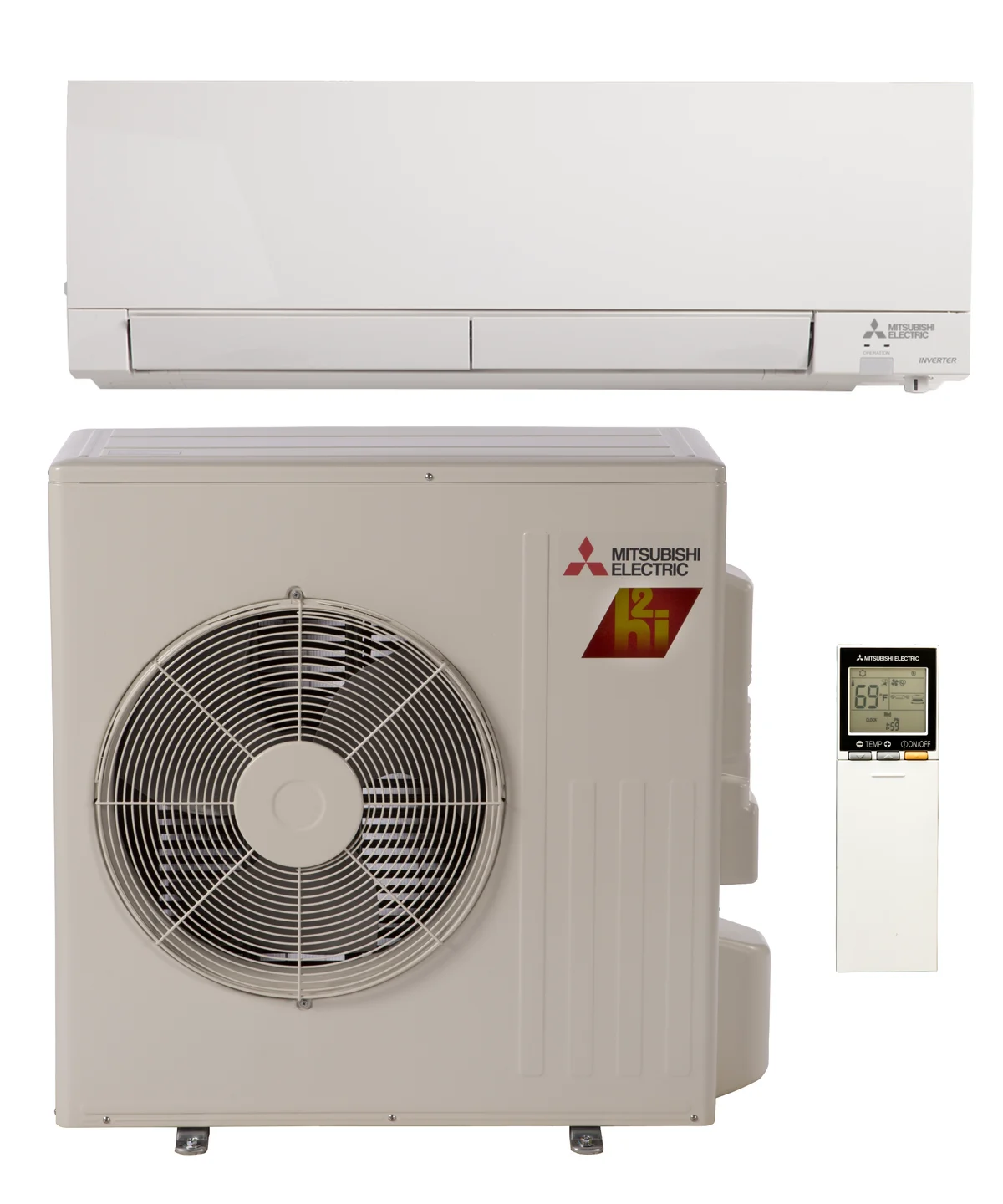

Mitsubishi Electric M-Series FS 18k mini-split heat pump indoor wall unit, outdoor condenser, and remote

Image: HVACDirect

Data completeness: 100%

Last sourced: Jul 20, 2026

SplitAtlas score

8.2 / 10

Methodology

Cooling efficiencyBelow average

(21.0 SEER2) among 18k systems

Heating efficiencyAbove average

(10.3 HSPF2) among 18k systems

Cold-weather performanceBottom quartile

(17F rated capacity: 61.5% of the 47F rating; -13 F heating floor) among 18k systems

NoiseTop quartile

(25 dBA indoor min / 55 dBA outdoor) among 18k systems

WarrantyTop quartile

(10 yr parts / 10 yr compressor) across the catalogue

Feature setBottom quartile

(1 verified feature) across the catalogue

Documentation & partsTop quartile

(6 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote

Key ratings

Rated cooling

17,200BTU/h[1]

Rated heating

19,000BTU/h[1]

Best-fit use cases

A large living room or open area where the buyer wants Mitsubishi's support and cold-weather capability at 1.5 tons and does not need the class-topping SEER2 of the smaller FS models.

Buyer review snapshot

Install difficulty

Professional install

Electrical: 208/230V; MCA 18 A; breaker/fuse 20 A.
Line set: connection type not sourced; precharged 25 ft; max 100 ft.

Alternatives

Blueridge XS6 Max Efficiency 18,000 BTU R-454B 208/230V (BXS6A18WM0 / BXS6A18UC0)
9.2 score / 18k / SEER2 25.6 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $2,359.00, checked Jul 24, 2026
Senville ELITE 18,000 BTU R-454B 208/230V (SENE-18EL-IHH / SENE-18EL-OH)
9.0 score / 18k / SEER2 25.6 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,899.99, checked Jul 24, 2026
ACiQ Standard 18,000 BTU R-454B 208/230V (ACIQ-18WS-HP230C / ACIQ-18ZS-HP230C)
9.0 score / 18k / SEER2 24 / -13 F heating floor / 230V
Exact destination at HVACDirect: $1,299.99, checked Jul 26, 2026

Availability and price context

This system is sold through dealers, so its price comes as an installed quote that depends on your home. Get installation quotes to price it.

Source date

Model data sourced: Jul 20, 2026
Page reviewed: Jul 20, 2026
Source-backed records: 4
Newest source retrieved: Sep 12, 2026

Warranty tiers

Base: 5 yr parts / 7 yr compressor - licensed HVAC contractor installation
Registered: 10 yr parts / 10 yr compressor - owner-occupied residence registered within 90 days of installation
Program: 12 yr parts / 12 yr compressor - owner-occupied residence installed and registered by a Diamond Contractor within 90 days

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Install path: This is professional-install equipment; price it with an installed quote.
Structured ratings: Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: R-410A. Minimum heating ambient: -13 F.

Strengths

1.5 tons with rated heating operation to -13F and 19,000 BTU of heat at 47F.
Mitsubishi dealer network, documentation, and reliability reputation.
HSPF2 10.7 - still efficient for its size.

Weaknesses

SEER2 21 is well below the FS 9k/12k - the efficiency premium is strongest at the smaller sizes.

Climate suitability

Minimum heating ambient: -13 F[1]
Heating capacity at −13°F: 17,100 BTU/h[3]
Certified heating at 5F: not published
Maximum heating at 5F (manufacturer): 23,000 BTU/h[1]
Rated heating at 17F: 11,690 BTU/h[1]
Rated heating at 47F: 19,000 BTU/h[1]

Specifications

Show

Manufacturer: Mitsubishi Electric
Brand: Mitsubishi Electric
Product line: M-Series FS
Model number: MSZ-FS18NA-U1 indoor / MUZ-FS18NAH-U1 outdoor
Indoor unit model: MSZ-FS18NA-U1
Outdoor unit model: MUZ-FS18NAH-U1
Number of zones: 1
Max indoor units: not published
Rated cooling capacity: 17,200 BTU/h[1]
Rated heating capacity: 19,000 BTU/h[1]
Voltage: 208/230V[1]
MCA: 18 A[1]
Maximum fuse or breaker size: 20 A[1]
Breaker needed: not published
SEER2: 21 SEER2[2]
EER2: 12.5 EER2[2]
HSPF2 (Region 4): 10.3 HSPF2[2]manufacturer published: 10.7 HSPF2
HSPF2 (Region 5): not published
COP: not published
COP at 47F: 3.46 COP[1]
COP at 5F: 2.15 COP[1]
Minimum outdoor heating temperature: -13 F[1]
Minimum outdoor cooling temperature: 14 F[1]
Maximum outdoor temperature: 115 F[1]
Indoor noise range: cooling 27-31-35-39-44; heating 25-31-37-40-46[1]
Outdoor noise rating: 55 dBA[1]
Indoor weight: 29 lb[1]
Outdoor weight: 118 lb[1]
Refrigerant: R-410A[1]
Refrigerant charge: 55 oz[1]
Manufacturer coverage: not published
Line-set size: 1/4 in liquid / 1/2 in suction
Included line-set length: Line set supplied by the installer
Maximum line-set length: 100 ft[1]
Max line set per indoor: not published
Maximum elevation difference: 50 ft[1]
Max height between indoor units: not published
Wi-Fi support: supported[1]
Energy Star status: ENERGY STAR certified[1]
AHRI certification number: 209832208[2]
Warranty: Base: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Registered: 10 yr parts / 10 yr compressor (owner-occupied residence registered within 90 days of installation); Program: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Standard residential M-Series warranty is 5 years parts and 7 years compressor from installation by a licensed HVAC contractor. Enhanced residential terms are 10 years parts and compressor for an owner-occupied residence registered within 90 days of installation, and 12 years parts and compressor when installed in an owner-occupied residence by a Diamond Contractor and registered by that Diamond Contractor within 90 days. The limited warranty statement itself requires licensed-contractor installation and does not state an Internet/resale purchase-channel condition.
Install path: Professional install
Retail price: Installed quote only
Available retailers: not published
Manual links: MUZ-FS NA/NAH engineering data, MSZ-FS06-18NA installation manual, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement, MSZ-FS06-18NA indoor service manual, MUZ-FS NA/NAH outdoor service manual, MSZ-FS18NA & MUZ-FS18NAH submittal
Specification sheet: MSZ-FS18NA & MUZ-FS18NAH submittal
Last sourced date: Jul 20, 2026

Parts and filters

Fits Mitsubishi Electric M-Series FS 18k 230V (MSZ-FS18NA / MUZ-FS18NAH). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-anti-allergy

Mitsubishi electro static anti-allergy enzyme filter

Fits: Mitsubishi Electric M-Series FS 18k 230V (MSZ-FS18NA / MUZ-FS18NAH)
OEM part number: MAC-2330FT-E
Filter care: Replace every year; vacuum every 3 months in between; if dirt remains, soak and rinse in lukewarm water, then shade-dry.
Fit note: Fits MSZ-FS18NA / MUZ-FS18NAH. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source: Mitsubishi Electric MSZ-FS06NA / MUZ-FS06NAH Submittal, INDOOR UNIT ACCESSORIES: MSZ-FS06NA, page p. 4 (Electro Static Anti-allergy Enzyme Filter MAC-2330FT-E)

filter-deodorizing
