Mitsubishi M-Series JX 9k R-454B 115V Mini-Split

Certified capacity
9,000 BTU/h[3]
SEER2
20 SEER2[3]
Heating floor
-5 F[1]
Voltage
115V[1]
Install path
Professional install

The M-Series JX 9k is Mitsubishi's 115-volt value single-zone - SEER2 20, EER2 12.5, HSPF2 10 on current R-454B refrigerant, with 10,900 BTU of heat at 47F and 7,700 BTU held at 5F. The 115V outdoor unit is the draw: it can share a standard household circuit, simplifying installs where a dedicated 230V line would be costly, all with Mitsubishi's support behind it.

1 zoneProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes
Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL)

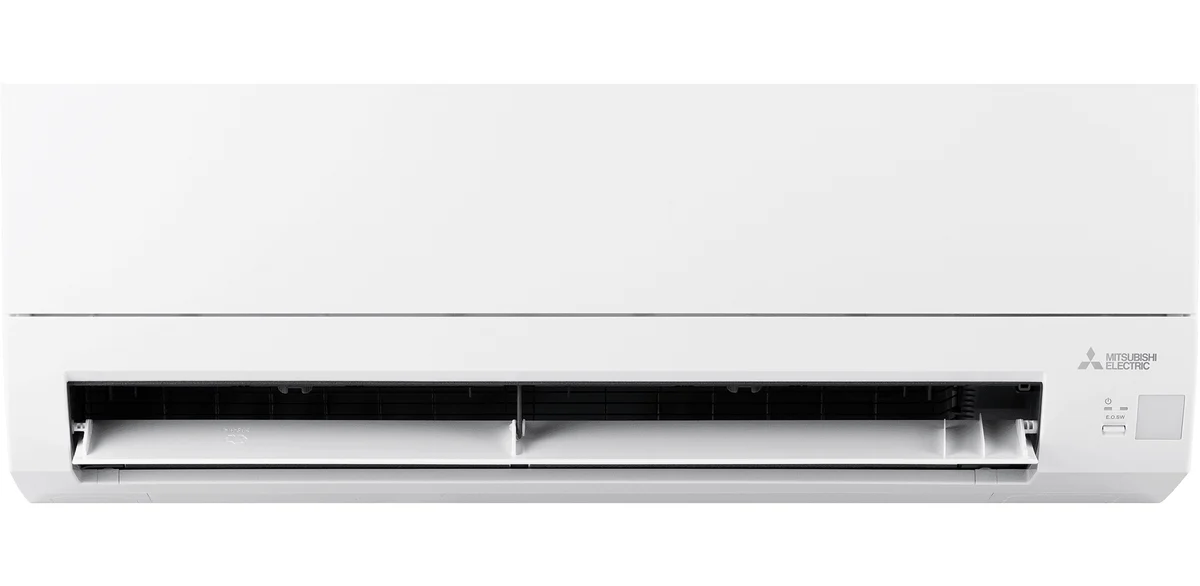

Image: Mitsubishi Electric

Data completeness: 92%
Last sourced
Jul 23, 2026

SplitAtlas score

7.9 / 10

Methodology
Cooling efficiencyBottom quartile

(20.0 SEER2) among <=9k systems

Heating efficiencyAbove average

(10.0 HSPF2) among <=9k systems

Cold-weather performanceBottom quartile

(5F certified capacity: 70.6% of the 47F rating; -5 F heating floor) among <=9k systems

NoiseAbove average

(22 dBA indoor min / 50 dBA outdoor) among <=9k systems

WarrantyTop quartile

(10 yr parts / 10 yr compressor) across the catalogue

Feature setBottom quartile

(1 verified feature) across the catalogue

Documentation & partsTop quartile

(10 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

9,000BTU/h[3]

Rated heating

10,900BTU/h[3]

Buyer review snapshot

Install difficulty

Professional install
  • Electrical: 115V; MCA 15 A; breaker/fuse 15 A.
  • Line set: connection type not sourced; precharged 25 ft; max 65 ft.

Alternatives

Availability and price context

This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.

Source date

Model data sourced
Jul 23, 2026
Page reviewed
Jul 23, 2026
Source-backed records
4
Newest source retrieved
Jul 23, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - licensed HVAC contractor installation
Registered
10 yr parts / 10 yr compressor - owner-occupied residence registered within 90 days of installation
Program
12 yr parts / 12 yr compressor - owner-occupied residence installed and registered by a Diamond Contractor within 90 days

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Mitsubishi dealer channel
Mitsubishi Electric equipment is sold through its dealer network; installed price depends on the local contractor.
Structured ratings
Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -5 F.

Strengths

  • 115V operation - fits homes and rooms without a spare 230V circuit.
  • SEER2 20 / HSPF2 10 with a genuine 5F rating (7,700 BTU); R-454B refrigerant.

Weaknesses

  • Efficiency well below the 230V GX 9k.
  • Professional dealer installation still required despite the friendlier voltage; not a DIY plug-in unit.

Climate suitability

Minimum heating ambient
-5 F[1]
Certified heating at 5F
7,700 BTU/h[3]
Maximum heating at 5F (manufacturer)
7,700 BTU/h[2]
Rated heating at 17F
6,800 BTU/h[3]
Rated heating at 47F
10,900 BTU/h[3]

Specifications

Show
Manufacturer
Mitsubishi Electric
Brand
Mitsubishi Electric
Product line
M-Series JX
Model number
MSZ-JX09WL-U1 indoor / MUZ-JX09WL-U1 outdoor
Indoor unit model
MSZ-JX09WL-U1
Outdoor unit model
MUZ-JX09WL-U1
Number of zones
1
Max indoor units
not published
Rated cooling capacity
9,000 BTU/h[3]
Rated heating capacity
10,900 BTU/h[3]
Voltage
115V[1]
MCA
15 A[2]
Maximum fuse or breaker size
15 A[2]
Breaker needed
15 A[1]
SEER2
20 SEER2[3]
EER2
12.5 EER2[3]
HSPF2 (Region 4)
10 HSPF2[3]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
3.55 COP[2]
COP at 5F
1.8 COP[3]
Minimum outdoor heating temperature
-5 F[1]
Minimum outdoor cooling temperature
not published
Maximum outdoor temperature
115 F[1]
Indoor noise range
cooling 22 , 30 , 37 , 43; heating 22 , 30 , 37 , 43[2]
Outdoor noise rating
50 dBA[2]
Indoor weight
20 lb[2]
Outdoor weight
68 lb[2]
Refrigerant
R-454B[3]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
Mitsubishi submittals publish line-size and maximum/precharged piping data; the installer supplies the line set.
Maximum line-set length
65 ft[2]
Max line set per indoor
not published
Maximum elevation difference
40 ft[2]
Max height between indoor units
not published
Wi-Fi support
not published
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
216626292[3]
Warranty
Base: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Registered: 10 yr parts / 10 yr compressor (owner-occupied residence registered within 90 days of installation); Program: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Standard residential M-Series warranty is 5 years parts and 7 years compressor from installation by a licensed HVAC contractor. Enhanced residential terms are 10 years parts and compressor for an owner-occupied residence registered within 90 days of installation, and 12 years parts and compressor when installed in an owner-occupied residence by a Diamond Contractor and registered by that Diamond Contractor within 90 days.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI certificate 216626292, AHRI public detail 216626292, ENERGY STAR exact row for AHRI 216626292, M-Series JX Mitsubishi Comfort product page, M-Series JX Mitsubishi Comfort product page, MitsubishiPro product record MSZ-JX09WL-U1, MitsubishiPro product record MUZ-JX09WL-U1, MSZ-JX09WL & MUZ-JX09WL Mitsubishi Electric submittal, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement
Specification sheet
MSZ-JX09WL & MUZ-JX09WL Mitsubishi Electric submittal
Last sourced date
Jul 23, 2026

Parts and filters

Fits Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-anti-allergy

Mitsubishi electro static anti-allergy enzyme filter

Fits
Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL)
OEM part number
MAC-2320FT-E
Filter care
Replace every year; vacuum every 3 months in between; if dirt remains, soak and rinse in lukewarm water, then shade-dry.
Fit note
Fits MSZ-JX09WL / MUZ-JX09WL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MSZ-JX09WL / MUZ-JX09WL Submittal, INDOOR UNIT ACCESSORIES: MSZ-JX09WL, page p. 4 (Electro Static Anti-allergy Enzyme Filter MAC-2320FT-E)

filter-microparticle

Mitsubishi microparticle filter

Fits
Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL)
OEM part number
MAC-EMF515FT-E
Filter care
Replace every 3 years; vacuum only every 3 months in between; do not wash with water.
Fit note
Fits MSZ-JX09WL / MUZ-JX09WL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MSZ-JX09WL / MUZ-JX09WL Submittal, INDOOR UNIT ACCESSORIES: MSZ-JX09WL, page p. 4 (Microparticle Filter MAC-EMF515FT-E)

smart-controller-module

Mitsubishi Wireless Interface 2

Fits
Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL)
OEM part number
PAC-USWHS002-WF-2
Fit note
Fits MSZ-JX09WL / MUZ-JX09WL. Manufacturer documentation publishes this OEM part number for this model family. HVACDirect was verified as a live exact-part page on 2026-08-01.
Source
Mitsubishi Electric MSZ-JX09WL / MUZ-JX09WL Submittal, INDOOR UNIT ACCESSORIES: MSZ-JX09WL, page p. 4 (Wireless Interface 2 for Comfrot app PAC-USWHS002-WF-2)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

control-interface

Mitsubishi M-Net I/O Control Interface for M-Series

Fits
Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL)
OEM part number
MAC-334IF-E
Fit note
Fits MSZ-JX09WL / MUZ-JX09WL. Manufacturer documentation publishes this OEM part number for this model family. HVACDirect was verified as a live exact-part page on 2026-08-01.
Source
Mitsubishi Electric MSZ-JX09WL / MUZ-JX09WL Submittal, INDOOR UNIT ACCESSORIES: MSZ-JX09WL, page p. 4 (M-Net I/O Control Interface for M-Series <sup>2</sup> MAC-334IF-E)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

thermostat-interface

Mitsubishi thermostat interface for third-party thermostats

Fits
Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL)
OEM part number
PAC-US445CN-1
Fit note
Fits MSZ-JX09WL / MUZ-JX09WL. Manufacturer documentation publishes this OEM part number for this model family. HVACDirect was verified as a live exact-part page on 2026-08-01.
Source
Mitsubishi Electric MSZ-JX09WL / MUZ-JX09WL Submittal, INDOOR UNIT ACCESSORIES: MSZ-JX09WL, page p. 4 (Thermostat Interface for 3rd Party Thermostats PAC-US445CN-1)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

wireless-remote-controller

Mitsubishi RedLINK wireless remote controller

Fits
Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL)
OEM part number
MHK2
Fit note
Fits MSZ-JX09WL / MUZ-JX09WL. Manufacturer documentation publishes this OEM part number for this model family. HVACDirect was verified as a live exact-part page on 2026-08-01.
Source
Mitsubishi Electric MSZ-JX09WL / MUZ-JX09WL Submittal, INDOOR UNIT ACCESSORIES: MSZ-JX09WL, page p. 4 (Wireless RedLINK™ Remote Controller MHK2)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect
Find this model's filterReplacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
115V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
15 A[2]
Breaker needed
15 A[1]
Maximum breaker size
not published
Maximum fuse size
15 A[2]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
14 AWG indoor-outdoor[2]

Installation considerations

Show
Liquid line
1/4 in[2]
Suction line
3/8 in[2]
Line connection type
not published
Precharged length
25 ft[2]
Included line-set length
Mitsubishi submittals publish line-size and maximum/precharged piping data; the installer supplies the line set.
Maximum line-set length
65 ft[2]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
33 x 9-1/4 x 11-1/32 in[2]
Outdoor dimensions
31-1/2 x 11-1/4 x 21-5/8 in[2]
Indoor weight
20 lb[2]
Outdoor weight
68 lb[2]
Drain size
5/8 in[2]

Related systems and guides

Frequently asked questions

Can I install the Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL) myself, or do I need a pro?
Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 7,700 BTU/h of heating capacity at 5F. Rated heating operation extends down to -5 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL) need?
Published electrical requirements: 115V voltage, 15 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 65 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the Mitsubishi Electric M-Series JX 9,000 BTU R-454B 115V (MSZ-JX09WL / MUZ-JX09WL) carry?
The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Registered: 10 yr parts / 10 yr compressor (owner-occupied residence registered within 90 days of installation); Program: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Score uses Registered. Additional published terms are shown for reference and not counted in the score.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Mitsubishi Electric Trane HVAC US LLC: MitsubishiPro product record MUZ-JX09WL-U1Sourced - manufacturer product page

    Covers Breaker needed, Frequency, Phase, Voltage range, Minimum outdoor heating temperature, Maximum outdoor temperature and more

  2. Mitsubishi Electric Trane HVAC US LLC: MSZ-JX09WL & MUZ-JX09WL Mitsubishi Electric M-Series JX submittalSourced - manufacturer technical document

    Covers electrical_spec.guaranteed_voltage_range, electrical_spec.indoor_mca_amps, Maximum fuse size, Minimum circuit ampacity, Manufacturer wire notes, Drain size and more

  3. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail 216626292 for MSZ-JX09WL / MUZ-JX09WLSourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Energy Star status and more

  4. Mitsubishi Electric Trane HVAC US LLC: METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty StatementSourced - secondary source

    Covers Additional published compressor warranty, Additional published warranty conditions, Additional published parts warranty, Legacy compressor warranty value, Legacy warranty value, Registered compressor warranty and more

Last updated

Jul 23, 2026
