Mitsubishi Electric / M-Series MFZ Floor-Mounted Console H2i

Mitsubishi M-Series MFZ Floor-Mounted Console H2i 18k Floor Console Mini-Split

Certified capacity
18,000 BTU/h[2]
SEER2
17.2 SEER2[2]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

The M-Series MFZ Floor-Mounted Console H2i 18k is Mitsubishi's low-wall alternative to a wall head: a 18,000 BTU floor console for rooms where air should wash across the lower part of the space instead of dropping from high on a wall. The H2i outdoor unit is the reason to choose this version: it keeps 20,000 BTU at 5F, compared with 13,400 BTU at 17F, so winter output is the point more than peak SEER2.

The catch is placement. A floor console is easier to live with in rooms with low windows or sloped ceilings, but it still claims floor/wall space and needs furniture kept clear of the discharge. MitsubishiPro currently marks part of the pairing as Quality Hold, so confirm availability with the dealer quote.

1 zoneProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

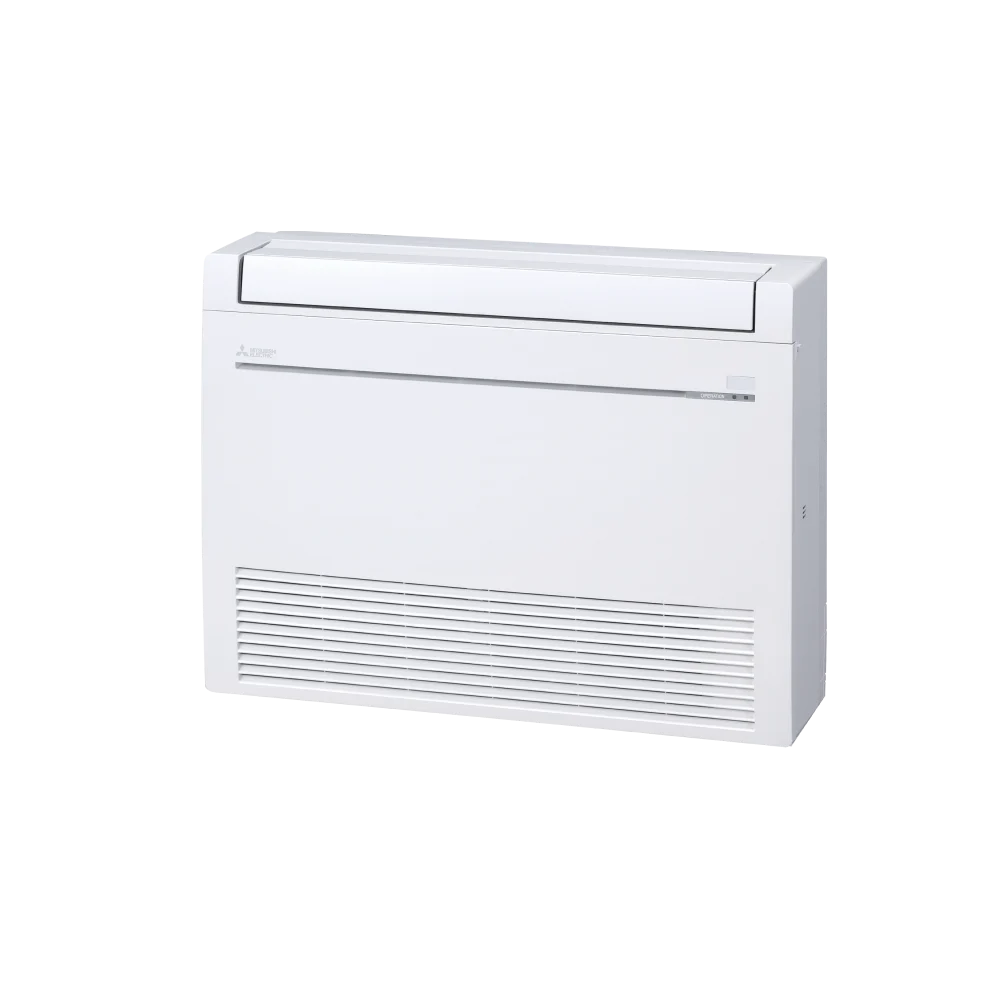

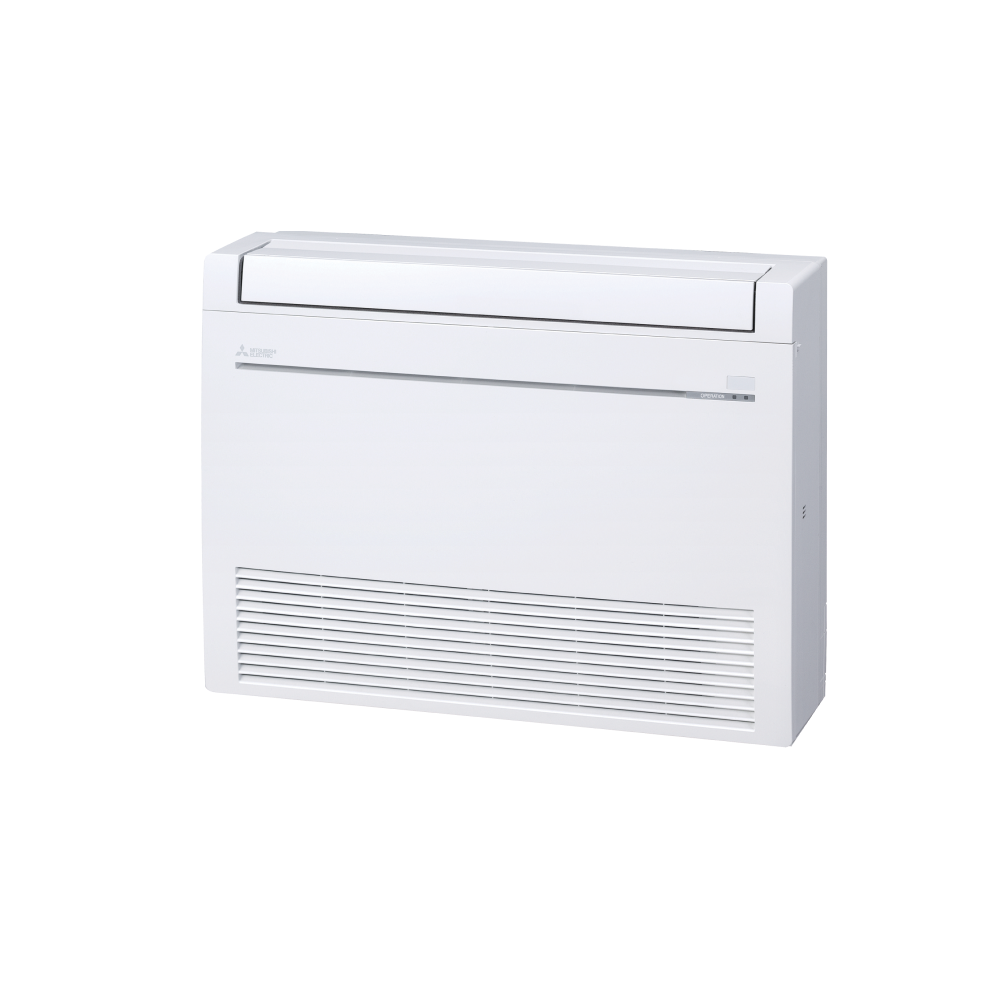

Mitsubishi Electric floor-mounted indoor console for an M-Series MFZ system.

Image: Mitsubishi Pro official product API

Data completeness: 100%
Last sourced
Aug 5, 2026

SplitAtlas score

8.0 / 10

Methodology
Cooling efficiencyBottom quartile

(17.2 SEER2) among 18k systems

Heating efficiencyAbove average

(9.9 HSPF2) among 18k systems

Cold-weather performanceTop quartile

(100% heat retained at 5F; -13 F heating floor) among 18k systems

NoiseBelow average

(28 dBA indoor min / 55 dBA outdoor) among 18k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setAbove average

(5 verified features) across the catalogue

Documentation & partsBelow average

(6 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

18,000BTU/h[2]

Rated heating

20,000BTU/h[2]

Buyer review snapshot

Best for / skip if

Skip if

  • Top-efficiency cooling is the priority; SEER2 is 17.2.

Install difficulty

Professional install
  • Electrical: 230V; MCA 25 A; breaker/fuse 42 A.
  • Line set: connection type not sourced; precharged 25 ft; max 100 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. Mitsubishi Electric sells through dealers, so we link to contractor quotes rather than a retail price.

Source date

Model data sourced
Aug 5, 2026
Page reviewed
Aug 2, 2026
Source-backed records
3
Newest source retrieved
Aug 5, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard.

Review methodology

Model context

Mitsubishi dealer channel
Mitsubishi Electric is dealer-quoted in this catalog; installed price depends on the local contractor, and the brand context is dealer support and reliability reputation.
Install path
This is professional-install equipment; no verified current retail offer is attached.
Structured ratings
Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.

Strengths

  • 20,000 BTU at 5F; this H2i pairing is built around cold-weather output.
  • 18,000 BTU low-wall comfort where a high wall head is awkward.
  • 13,400 BTU at 17F and 20,000 BTU at 5F give real heating numbers to size against.

Weaknesses

  • H2i cold-weather output costs efficiency: SEER2 is 17.2, usually below the standard outdoor pairing at the same head and size.
  • Takes low-wall floor space and can be blocked by furniture more easily than a ceiling cassette.

Climate suitability

Minimum heating ambient
-13 F[1]
Rated heating at 5F
20,000 BTU/h[2]
Rated heating at 17F
13,400 BTU/h[2]
Rated heating at 47F
20,000 BTU/h[2]

Specifications

Show
Manufacturer
Mitsubishi Electric
Brand
Mitsubishi Electric
Product line
M-Series MFZ Floor-Mounted Console H2i
Model number
MFZ-KX18NL-U1 indoor / SUZ-AA18NLHZ-U1 outdoor
Indoor unit model
MFZ-KX18NL-U1
Outdoor unit model
SUZ-AA18NLHZ-U1
Number of zones
1
Max indoor units
not published
Rated cooling capacity
18,000 BTU/h[2]
Rated heating capacity
20,000 BTU/h[2]
Voltage
230 V[1]
MCA
25 A[1]
Maximum fuse or breaker size
42 A[1]
Breaker needed
not published
SEER2
17.2 SEER2[2]
EER2
12.4 EER2[2]
HSPF2 (Region 4)
9.9 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
3.4 COP[1]
COP at 5F
2 COP[2]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
14 F[1]
Maximum outdoor temperature
115 F[1]
Indoor noise range
cooling 28 , 33 , 39 , 45 , 50; heating 29 , 35 , 40 , 45 , 49[1]
Outdoor noise rating
55 dBA[1]
Indoor weight
33 lb[1]
Outdoor weight
115 lb[1]
Refrigerant
R-454B[1]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 1/2 in suction
Included line-set length
Mitsubishi submittals publish line-size and maximum/precharged piping data; the installing contractor supplies the line set.
Maximum line-set length
100 ft[1]
Max line set per indoor
not published
Maximum elevation difference
50 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
ENERGY STAR certified[2]
AHRI certification number
215734921[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation). METUS residential warranty terms list a standard 5-year parts and 7-year compressor term when installed by a licensed HVAC contractor, with enhanced registered coverage available under program conditions.
Install path
Professional install
Retail price
Mitsubishi Electric sells through dealers, so we link to contractor quotes rather than a retail price.
Available retailers
not published
Manual links
AHRI public detail 215734921, OBH944B.pdf, MitsubishiPro product record MFZ-KX18NL, MitsubishiPro product record SUZ-AA18NLHZ, MFZ-KX18NL / SUZ-AA18NLHZ Mitsubishi Electric submittal, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement
Specification sheet
MFZ-KX18NL / SUZ-AA18NLHZ Mitsubishi Electric submittal
Last sourced date
Aug 5, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
not published
Phase
1[1]
Frequency
60 Hz[1]
MCA
25 A[1]
Breaker needed
not published
Maximum breaker size
42 A[1]
Maximum fuse size
42 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
14 AWG indoor-outdoor[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
1/2 in[1]
Line connection type
not published
Precharged length
25 ft[1]
Included line-set length
Mitsubishi submittals publish line-size and maximum/precharged piping data; the installing contractor supplies the line set.
Maximum line-set length
100 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
29-1/2 x 8-7/16 x 23-5/8 in[1]
Outdoor dimensions
33-1/16 x 13 x 34-5/8 in[1]
Indoor weight
33 lb[1]
Outdoor weight
115 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Mitsubishi Electric M-Series MFZ Floor-Mounted Console H2i 18,000 BTU R-454B 208/230V (MFZ-KX18NL / SUZ-AA18NLHZ) myself, or do I need a pro?
Mitsubishi Electric M-Series MFZ Floor-Mounted Console H2i 18,000 BTU R-454B 208/230V (MFZ-KX18NL / SUZ-AA18NLHZ) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Mitsubishi Electric M-Series MFZ Floor-Mounted Console H2i 18,000 BTU R-454B 208/230V (MFZ-KX18NL / SUZ-AA18NLHZ) keep heating in a cold winter?
The manufacturer publishes 20,000 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 9.9 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Mitsubishi Electric M-Series MFZ Floor-Mounted Console H2i 18,000 BTU R-454B 208/230V (MFZ-KX18NL / SUZ-AA18NLHZ) need?
Published electrical requirements: 230 V voltage, 25 A minimum circuit ampacity, and 42 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 100 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Mitsubishi Electric M-Series MFZ Floor-Mounted Console H2i 18,000 BTU R-454B 208/230V (MFZ-KX18NL / SUZ-AA18NLHZ) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
