MRCOOL / DIY 5th Gen Hyper Heat

MRCOOL DIY 5th Gen Hyper Heat 12k Hyper 230V Mini-Split

Certified capacity
12,000 BTU/h[4]
SEER2
23.5 SEER2[4]
Heating floor
-22 F[5]
Voltage
208/230V[1]
Install path
DIY install

The MRCOOL DIY Hyper Heat 12k is the cold-climate answer to the standard DIY line: it operates down to -22F and still publishes 11,000 BTU/h of heating at 5F, while installing the same DIY way - pre-charged Quick Connect line set with no vacuum pump or gauges. The trade versus the 115V standard DIY 12k is voltage: this is a 230V unit, so you gain deep-cold capability but give up the standard model's single-circuit 115V convenience.

1 zoneDIY installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Paid link

$2,532 / Fresh price - checked Jul 27, 2026

$2,532 at HVACDirect

Need this installed?

Get installation quotes
Error Codes
MRCOOL DIY 5th Gen Hyper Heat 12k mini-split indoor wall unit
MRCOOL DIY 5th Gen Hyper Heat 12k mini-split indoor wall unit

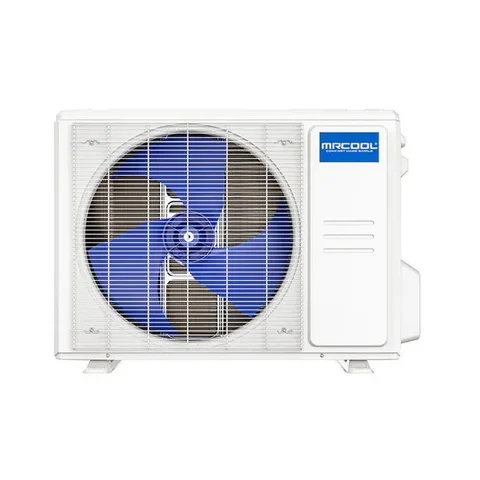

MRCOOL DIY 5th Gen Hyper Heat 12k mini-split outdoor condenser

Image: HVACDirect

Data completeness: 98%
Last sourced
Aug 17, 2026

SplitAtlas score

8.4 / 10

Methodology
Cooling efficiencyAbove average

(23.5 SEER2) among 12k systems

Heating efficiencyBelow average

(10.0 HSPF2) among 12k systems

Cold-weather performanceAbove average

(5F certified capacity: 91.7% of the 47F rating; -22 F heating floor) among 12k systems

NoiseAbove average

(18 dBA indoor min / 56.5 dBA outdoor) among 12k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Installation accessibilityAbove average

(DIY-marketed; 25 ft precharged; 25 ft included line set) across the catalogue

Price-to-performanceBottom quartile

($2,532 median retail) among 12k systems

Documentation & partsTop quartile

(8 manuals; spec sheet; parts channel) across the catalogue

Key ratings

Rated cooling

12,000BTU/h[4]

Rated heating

12,000BTU/h[4]

Best-fit use cases

Cold-climate DIYers who need real heating below 0F in a room-sized space and can run a 230V circuit - the case where the standard DIY line's -13F floor isn't enough and hiring a pro for a Mitsubishi-class Hyper-Heating unit is the alternative you're avoiding.

Where this system ranks

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 23.5.

Install difficulty

DIY install path, electrical work likely
  • Electrical: 208/230V; MCA 15 A; breaker/fuse 15 A.
  • Line set: Quick-connect line connections; precharged 25 ft; included 25 ft; max 75 ft.

Alternatives

Availability and price context

  • Listed price: $2,532.00 at HVACDirect, checked Jul 27, 2026. Open the listing for today's price and stock.

Source date

Model data sourced
Aug 17, 2026
Page reviewed
Jul 21, 2026
Source-backed records
8
Newest source retrieved
Aug 17, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - standard coverage

The score uses Base. Additional published terms are shown for reference and not counted in the score.

Review methodology

Strengths

  • Rated to operate at -22F and publishes 11,000 BTU/h heating at 5F - genuine cold-climate output from a self-install unit.
  • DIY-installable: pre-charged Quick Connect line set; the 5-year parts / 7-year compressor warranty does not disclaim self-installation.
  • SEER2 23.5 cooling efficiency, on par with the standard DIY 12k.
  • R-454B refrigerant (current lower-GWP generation).
  • Low 15 A minimum circuit ampacity for a 230V heat pump.

Weaknesses

  • Requires a 230V circuit - you lose the standard DIY 12k's 115V retrofit advantage, so budget for the electrical if you don't have 230V near the install.
  • HSPF2 10 is on par with, not better than, the standard model - you are paying for cold-temperature capability, not seasonal efficiency.
  • Street price runs above the standard DIY 12k; the Hyper-Heat hardware is the premium.
  • Quick Connect line sets trade serviceability for simplicity (fixed lengths).

Climate suitability

Minimum heating ambient
-22 F[5]
Certified heating at 5F
11,000 BTU/h[4]
Rated heating at 17F
8,900 BTU/h[4]
Rated heating at 47F
12,000 BTU/h[4]

Specifications

Show
Manufacturer
MRCOOL
Brand
MRCOOL
Product line
DIY 5th Gen Hyper Heat
Model number
DIY-12-HP-WMAH-230D25-O indoor / DIYHH-12-HP-C-230D25-O outdoor
Indoor unit model
DIY-12-HP-WMAH-230D25-O
Outdoor unit model
DIYHH-12-HP-C-230D25-O
Number of zones
1
Max indoor units
not published
Rated cooling capacity
12,000 BTU/h[4]
Rated heating capacity
12,000 BTU/h[4]
Voltage
208/230V[1]
MCA
15 A[1]
Maximum fuse or breaker size
15 A[1]
Breaker needed
not published
SEER2
23.5 SEER2[4]
EER2
12.8 EER2[4]
HSPF2 (Region 4)
10 HSPF2[4]
HSPF2 (Region 5)
8 HSPF2[1]
COP
not published
COP at 47F
not published
COP at 5F
1.8 COP[4]
Minimum outdoor heating temperature
-22 F[5]
Minimum outdoor cooling temperature
-22 F[5]
Maximum outdoor temperature
122 F[5]
Indoor noise range
45.5 / 40 / 34 / 22.5 / 18 dB(A)[1]
Outdoor noise rating
56.5 dBA[1]
Indoor weight
24.47 lb[1]
Outdoor weight
72.31 lb[1]
Refrigerant
R-454B[1]
Refrigerant charge
32.1 oz[1]
Manufacturer coverage
550 sq ft[1]
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
25 ft[1]
Maximum line-set length
75 ft[3]
Max line set per indoor
not published
Maximum elevation difference
not published
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
ENERGY STAR certified[4]
AHRI certification number
216032549[4]
Warranty
Base: 5 yr parts / 7 yr compressor (standard coverage). Score uses Base.. Standard 5-year parts plus 7-year compressor warranty.
Install path
DIY install
Retail price
$2,532.00
Available retailers
HVACDirect
Manual links
AHRI certificate 216032549 for DIYHH-12-HP-C-230D25-O / DIY-12-HP-WMAH-230D25-O, AHRI public directory details for MRCOOL DIY Hyper Heat wall-mount pairings, MRCOOL DIY Hyper Heat Series Single Zone Installation and Owner's Manual, DIY 5th Gen - R454B - 12K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit, MRCOOL DIY Hyper Heat 5th Gen performance specs, HVACDirect product page DIYHH-12-HP-WM-230D25-O, MRCOOL DIY Hyper Heat 5th Gen brochure/specifications, MRCOOL 5th Generation DIY Series Limited Warranty
Specification sheet
MRCOOL DIY Hyper Heat 5th Gen brochure/specifications
Last sourced date
Aug 17, 2026

Retail purchase context

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

$2,532 at HVACDirect

$2,532 / Fresh price - checked Jul 27, 2026

Parts and filters

Fits MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-washable

Washable air filter

Fits
MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V)
Filter care
Washable. Clean and reuse. MRCOOL does not publish a calendar cleaning interval for the primary filter. Replace if damaged or no longer cleanable.
Fit note
Fits DIY-12-HP-WMAH-230D25-O / DIYHH-12-HP-C-230D25-O. The indoor filter is a cleanable service item. MRCOOL does not publish an orderable model-specific filter SKU in the service manual; source replacements through the installer, place of purchase, or MRCOOL authorized parts support at https://support.mrcool.com/hc/en-us/articles/28733842948884-Where-Can-I-Purchase-Parts-for-MRCOOL-Systems.
Source
MRCOOL DIY 5th Gen Service Manual, 4.5 Error Diagnosis Without Error Code - Remote Maintenance, page p. 46 (Dirty air filter ... Clean or replace)

remote-control

Remote control

Fits
MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V)
Fit note
Fits DIY-12-HP-WMAH-230D25-O / DIYHH-12-HP-C-230D25-O. MRCOOL does not publish an OEM part number for the remote; its authorized Mass HVAC store sells a 4th/5th Gen replacement.
Source
MRCOOL DIY 5th Gen Service Manual, 4.5 Remote Maintenance, page p. 46 (Replace the remote control)

smart-thermostat

MRCOOL Smart Wi-Fi Mini Stat

Fits
MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V)
OEM part number
MST05
Fit note
Fits DIY-12-HP-WMAH-230D25-O / DIYHH-12-HP-C-230D25-O. MRCOOL publishes MST05 for its mini-splits. HVACDirect lists MST04, a different part, so no HVACDirect link is shown. MRCOOL's authorized store also offers the MTSK02 Mini-Stat.
Source
MRCOOL Mini-Stats, MRCOOL Mini Stats, page article (MST05)

quick-connect-line-set

25 ft Quick Connect precharged line set - 1/4 x 3/8

Fits
MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V)
OEM part number
DIY25-1438-O
Fit note
Fits DIY-12-HP-WMAH-230D25-O / DIYHH-12-HP-C-230D25-O. Use this 1/4 x 3/8 R-454B Quick Connect line set for compatible 6k, 9k, and 12k MRCOOL DIY indoor heads. HVACDirect was verified as a live exact-part page on 2026-08-01.
Source
MRCOOL 5th Gen R-454B DIY Line Set 1/4 - 3/8, DIY 5th Gen 6k, 9k & 12k, page article (DIY25-1438-O)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

display-board

Display board (service part)

Fits
MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V)
Fit note
Fits DIY-12-HP-WMAH-230D25-O / DIYHH-12-HP-C-230D25-O. The service manual identifies the display board as a replaceable diagnostic item, but does not publish a model-specific orderable SKU. Use model and serial through MRCOOL support or an authorized parts distributor.
Source
MRCOOL DIY 5th Gen Service Manual, 4.2 Error Display (Indoor Unit), page p. 36 (If the unit responds, the display board requires replacement.)

indoor-pcb

Indoor control board / PCB (service part)

Fits
MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V)
Fit note
Fits DIY-12-HP-WMAH-230D25-O / DIYHH-12-HP-C-230D25-O. The service manual identifies the indoor PCB as the replacement path when the unit does not respond to the remote, but does not publish a model-specific orderable SKU. Use model and serial through MRCOOL support or an authorized parts distributor.
Source
MRCOOL DIY 5th Gen Service Manual, 4.2 Error Display (Indoor Unit), page p. 36 (If the unit does not respond to the remote, the indoor PCB requires replacement.)

louver-motor

Louver stepping motor (service part)

Fits
MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V)
Fit note
Fits DIY-12-HP-WMAH-230D25-O / DIYHH-12-HP-C-230D25-O. The service manual calls for replacing the stepping motor when the horizontal louver will not move, but does not publish a model-specific orderable SKU. Use model and serial through MRCOOL support or an authorized parts distributor.
Source
MRCOOL DIY 5th Gen Service Manual, 4.5 Field Maintenance, page p. 50 (Replace the stepping motor)

air-cleaning-accessory

MRCOOL Cool Care kit (MMCK01)

Fits
MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V)
OEM part number
MMCK01
Fit note
Fits DIY-12-HP-WMAH-230D25-O / DIYHH-12-HP-C-230D25-O. MRCOOL lists the Cool Care kit (MMCK01) for this model; each six-month kit includes a replacement air-freshening filter. This accessory is separate from the washable primary filter.
Source
MMCK01 COOL Care Program Kit, Compatibility, page article (Each shipment includes ... a fresh air filter. Compatibility: MRCOOL DIY Mini Split System.)
Find this model's filterReplacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
15 A[1]
Breaker needed
not published
Maximum breaker size
not published
Maximum fuse size
15 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
3/8 in[1]
Line connection type
Quick-connect line connections[2]
Precharged length
25 ft[1]
Included line-set length
25 ft[1]
Maximum line-set length
75 ft[3]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
31.57 in W x 11.69 in H x 7.44 in D[1]
Outdoor dimensions
31.69 in W x 21.81 in H x 12.99 in D[1]
Indoor weight
24.47 lb[1]
Outdoor weight
72.31 lb[1]
Drain size
not published

Comparable models

MRCOOL DIY Hyper-Heat vs Mitsubishi Hyper-Heat (12,000 BTU)

Side-by-side comparison

Related systems and guides

Frequently asked questions

Can I install the MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V) myself, or do I need a pro?
MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V) is sold as a DIY-installable system with an included 25 ft line set, so a standard install needs no vacuum pump or gauges. EPA's Section 608 guidance says connecting pre-charged lines still requires technician certification. The electrical circuit is the part that is not DIY: plan on a licensed electrician for the dedicated circuit, and check whether your local permit office requires a permit for the install.
Will the MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 11,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V) need?
Published electrical requirements: 208/230V voltage, 15 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 75 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. A 25 ft line set is included. Longer runs than the included set allows require a different line set, so measure the planned routing before ordering.
What warranty does the MRCOOL DIY Hyper Heat 5th Gen 12,000 BTU (230V) carry?
The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (standard coverage). Score uses Base.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. MRCOOL: MRCOOL DIY Hyper Heat 5th Gen brochure/specificationsSourced - manufacturer technical document

    Covers Frequency, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage range, Manufacturer coverage and more

  2. MRCOOL: MRCOOL DIY Hyper Heat Series Single Zone Installation and Owner's ManualSourced - manufacturer technical document

    Covers Line connection type

  3. MRCOOL-hosted Dasen HVAC storefront: DIY 5th Gen - R454B - 12K Hyper Heat BTU 230V Condenser w/ 25ft Install KitSourced - manufacturer product page

    Covers Maximum line-set length

  4. AHRI certificate #216032549 - search the AHRI DirectorySourced - AHRI directory

    Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Energy Star status, Rated heating capacity and more

  5. MRCOOL: MRCOOL DIY Hyper Heat Series Single Zone Installation and Owner's ManualSourced - manufacturer technical document

    Covers Minimum outdoor cooling temperature, Minimum outdoor heating temperature, Maximum outdoor temperature

  6. HVACDirect: HVACDirect product page DIYHH-12-HP-WM-230D25-OSourced - authorized distributor

    Covers Retail price

  7. MRCOOL: MRCOOL 5th Generation DIY Series Limited WarrantySourced - manufacturer technical document

    Covers Legacy compressor warranty value, Legacy warranty value, Warranty notes

  8. MRCOOL: MRCOOL 5th Generation DIY Series Limited WarrantySourced - manufacturer technical document

    Covers Base compressor warranty, Base warranty conditions, Base parts warranty
