Samsung Free Joint Multi Premium 36k R-32 208/230V 4-Zone Mini-Split

Certified capacity
34,000 BTU/h[2]
SEER2
21.5 SEER2[2]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

The Samsung Free Joint Multi Premium 4-Zone 36k (AJ036DXS4CG) connects four heads to one R-32 outdoor unit at a certified nominal SEER2 of 21.5 (EER2 12.5, HSPF2 9.5). It is AHRI cold-climate designated: heating recovers to 36,600 BTU at 5F, matching its full 47F output, alongside 34,000 BTU of cooling.

It is ENERGY STAR certified and the largest Premium four-zone we list. Installation is professional and pricing is dealer-quoted.

This is the deep-cold choice for larger four-room loads.

4 zonesProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

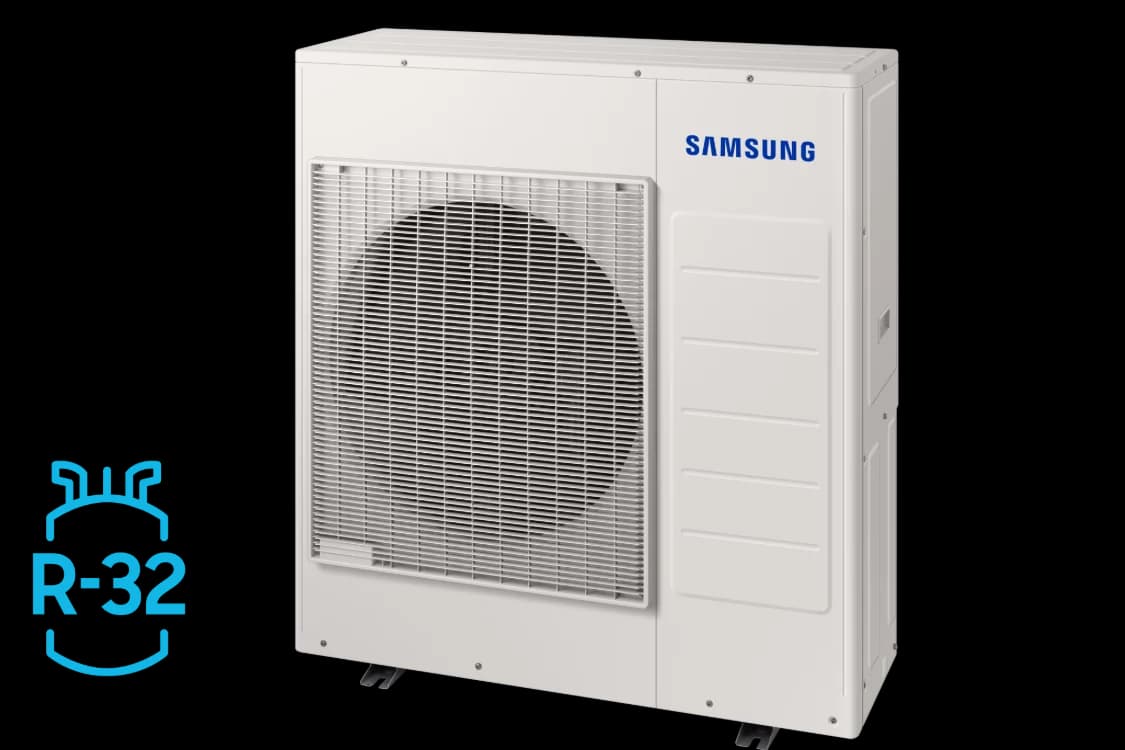

Samsung Free Joint Multi Premium 4-Zone 36,000 BTU R-32 208/230V (AJ036DXS4CG)

Image: Samsung

Data completeness: 95%
Last sourced
Jul 28, 2026

SplitAtlas score

8.8 / 10

Methodology
Cooling efficiencyAbove average

(21.5 SEER2) among 36k systems

Heating efficiencyBelow average

(9.5 HSPF2) among 36k systems

Cold-weather performanceTop quartile

(100% heat retained at 5F; -13 F heating floor) among 36k systems

WarrantyAbove average

(10 yr parts / 10 yr compressor) across the catalogue

Feature setTop quartile

(6 verified features) across the catalogue

Documentation & partsBottom quartile

(8 manuals) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

34,000BTU/hNon-Ducted Indoor Units[2]

Rated heating

36,600BTU/hNon-Ducted Indoor Units[2]

Buyer review snapshot

Best for / skip if

Best for

  • 4-zone projects in the 36k outdoor capacity class.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 35.9 A; breaker/fuse 40 A.
  • Line set: Flared line connections; precharged 230 ft; max 230 ft.
  • 4-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-28.

Source date

Model data sourced
Jul 28, 2026
Page reviewed
Jul 28, 2026
Source-backed records
5
Newest source retrieved
Jul 28, 2026

Warranty tiers

Warranty: 10 years parts and compressor under published 10-year warranty terms.

Review methodology

Model context

Install path
This is professional-install equipment; no verified current retail offer is attached.
Structured ratings
Certification: ENERGY STAR certified, ENERGY STAR cold-climate certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-32. Minimum heating ambient: -13 F.

Strengths

  • Genuine cold-climate heating: recovers to full 36,600 BTU at 5F, equal to its 47F output; AHRI cold-climate designated.
  • Highest heating capacity of the Premium four-zone line at 36,600 BTU at 47F.
  • Certified nominal SEER2 21.5 / EER2 12.5 / HSPF2 9.5, ENERGY STAR certified.
  • Four zones on one R-32 condenser with 34,000 BTU cooling.

Weaknesses

  • Efficiency is the lowest of the Premium line as capacity rises.
  • 34,000 BTU cooling across four zones still needs careful per-room sizing.

Climate suitability

Minimum heating ambient
-13 F[1]
Rated heating at 5F
36,600 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
23,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
36,600 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
Samsung
Brand
Samsung
Product line
Free Joint Multi Premium
Model number
AJ036DXS4CG
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
AJ036DXS4CG
Number of zones
4
Max indoor units
4 units[1]
Rated cooling capacity
34,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
36,600 BTU/hNon-Ducted Indoor Units[2]
Voltage
230 V[1]
MCA
35.9 A[1]
Maximum fuse or breaker size
40 A[1]
Breaker needed
not published
SEER2
21.5 SEER2Non-Ducted Indoor Units[2]
EER2
12.5 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
9.5 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
not published
COP at 5F
2.04 COPNon-Ducted Indoor Units[2]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
14 F[1]
Maximum outdoor temperature
115 F[1]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
52 dBA[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
194 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
109.3 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in x 4 liquid / 3/8 in x 2 + 1/2 in x 2 suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
49 ft[1]
Max height between indoor units
25 ft[1]
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
216372792Non-Ducted Indoor Units[2]
Warranty
Best case: 10 yr parts / 10 yr compressor (published 10-year warranty terms). 10-year compressor / 10-year parts / 1-year labor enhanced warranty for eligible registered systems
Install path
Professional install
Retail price
We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-28.
Available retailers
not published
Manual links
AHRI public detail 216372792, Samsung Free Joint Multi Premium Indoor Unit Combination Guide, ENERGY STAR exact row 216372792, Samsung FJM outdoor unit document page for Free Joint Multi Premium, Samsung Free Joint Multi Premium current official product page, AJ036DXS4CG/AA (JXG36S4D) Samsung FJM submittal, HVACDirect exact-offer audit for AJ036DXS4CG/AA, Samsung HVAC registration and warranty FAQ evidence
Specification sheet
not published
Last sourced date
Jul 28, 2026

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Ceiling cassette air handlers

    9k, 12k, 18k

    Model numbers
    • 9k: AC009DN1DCG/AA
    • 9k: AC009DNNDCG/AA
    • 12k: AC012DN1DCG/AA
    • 12k: AC012DNNDCG/AA
    • 18k: AC018DNNDCG/AA

  • Ducted concealed air handlers

    9k, 12k, 15k, 18k

    Model numbers
    • 9k: AC009DNLDCG/AA
    • 9k: AJ009DNHDCG/AA
    • 12k: AC012DNLDCG/AA
    • 12k: AJ012DNHDCG/AA
    • 15k: AJ015DNHDCG/AA
    • 18k: AC018DNLDCG/AA
    • 18k: AJ018DNHDCG/AA

  • Ducted multi-position air handlers

    12k, 18k, 24k

    Model numbers
    • 12k: AJ012DNZDCG/AA
    • 18k: AJ018DNZDCG/AA
    • 24k: AJ024DNZDCG/AA

  • Floor console air handlers

    9k, 12k, 15k, 18k

    Model numbers
    • 9k: AC009DNJDCG/AA
    • 12k: AC012DNJDCG/AA
    • 15k: AC015DNJDCG/AA
    • 18k: AC018DNJDCG/AA

  • Wall-mounted air handlers

    7k, 9k, 12k, 15k, 18k, 24k

    Model numbers
    • 7k: AJ007DNADCG/AA
    • 7k: AR07DXDAFWKNCV
    • 7k: AR07DXFAMWKNCV
    • 7k: AR07DXKAPWKNCV
    • 9k: AJ009DNADCG/AA
    • 9k: AR09DXDABWKNCV
    • 9k: AR09DXFAMWKNCV
    • 9k: AR09DXKAPWKNCV
    • 12k: AJ012DNADCG/AA
    • 12k: AR12DXDABWKNCV
    • 12k: AR12DXFAMWKNCV
    • 12k: AR12DXKAPWKNCV
    • 15k: AJ015DNADCG/AA
    • 15k: AR15DXDAFWKNCV
    • 15k: AR15DXFAMWKNCV
    • 15k: AR15DXKAPWKNCV
    • 18k: AJ018DNADCG/AA
    • 18k: AR18DXDABWKNCV
    • 18k: AR18DXFAMWKNCV
    • 18k: AR18DXKAPWKNCV
    • 24k: AJ024DNADCG/AA
    • 24k: AR24DXDABWKNCV
    • 24k: AR24DXFAMWKNCV
    • 24k: AR24DXKAPWKNCV

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
35.9 A[1]
Breaker needed
not published
Maximum breaker size
40 A[1]
Maximum fuse size
40 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
14 AWG x 3 indoor-unit power wiring; 16 AWG x 2 interconnect control wiring[1]

Installation considerations

Show
Liquid line
1/4 in x 4[1]
Suction line
3/8 in x 2 + 1/2 in x 2[1]
Line connection type
Flared line connections[1]
Precharged length
230 ft[1]
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
25 ft[1]
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
37 x 47 5/8 x 13 in[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
194 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Samsung Free Joint Multi Premium 4-Zone 36,000 BTU R-32 208/230V (AJ036DXS4CG) myself, or do I need a pro?
Samsung Free Joint Multi Premium 4-Zone 36,000 BTU R-32 208/230V (AJ036DXS4CG) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Samsung Free Joint Multi Premium 4-Zone 36,000 BTU R-32 208/230V (AJ036DXS4CG) keep heating in a cold winter?
The manufacturer publishes 36,600 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Samsung Free Joint Multi Premium 4-Zone 36,000 BTU R-32 208/230V (AJ036DXS4CG) need?
Published electrical requirements: 230 V voltage, 35.9 A minimum circuit ampacity, and 40 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 230 ft, and the included line set comes pre-charged for 230 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Samsung Free Joint Multi Premium 4-Zone 36,000 BTU R-32 208/230V (AJ036DXS4CG) carry?
The manufacturer publishes these warranty tiers: Best case: 10 yr parts / 10 yr compressor (published 10-year warranty terms). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
