Samsung Free Joint Multi Standard 48k R-32 208/230V 5-Zone Mini-Split

Certified capacity
46,000 BTU/h[2]
SEER2
21 SEER2[2]
Heating floor
5 F[1]
Voltage
230 V[1]
Install path
Professional install

The Samsung Free Joint Multi Standard 5-Zone 48k (AJ048DXJ5CG) connects five heads to one R-32 outdoor unit at a certified nominal SEER2 of 21 (EER2 11.7, HSPF2 9). It delivers 46,000 BTU of cooling and 48,500 BTU of heating at 47F, and it is ENERGY STAR certified.

As a Standard-tier system it is not AHRI cold-climate designated, so heating output falls off in deep cold. Installation is professional and pricing is dealer-quoted.

Buyers in hard-freeze climates should look at the Premium line instead.

5 zonesProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

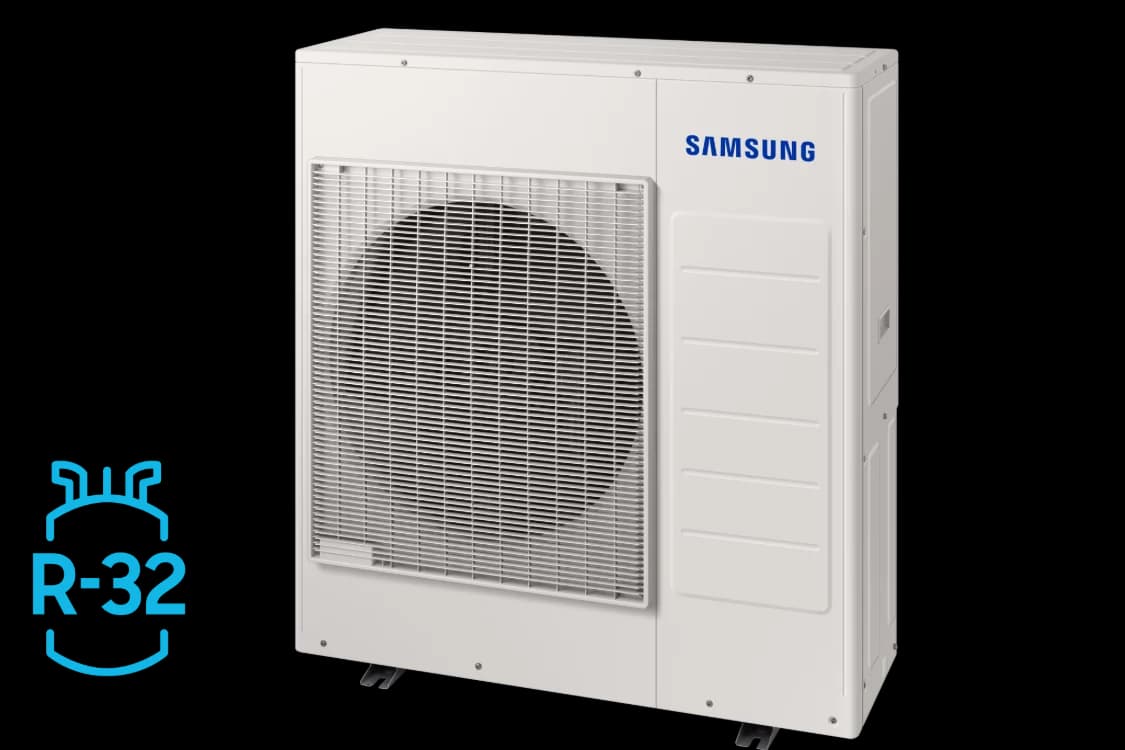

Samsung Free Joint Multi Standard 5-Zone 48,000 BTU R-32 208/230V (AJ048DXJ5CG)

Image: Samsung

Data completeness: 95%
Last sourced
Jul 28, 2026

SplitAtlas score

7.6 / 10

Methodology
Cooling efficiencyAbove average

(21.0 SEER2) among >36k systems

Heating efficiencyBottom quartile

(9.0 HSPF2) among >36k systems

Cold-weather performanceBottom quartile

(5F certified capacity: 64.7% of the 47F rating; 5 F heating floor) among >36k systems

WarrantyTop quartile

(10 yr parts / 10 yr compressor) across the catalogue

Feature setAbove average

(5 verified features) across the catalogue

Documentation & partsBottom quartile

(8 manuals) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

46,000BTU/hNon-Ducted Indoor Units[2]

Rated heating

48,500BTU/hNon-Ducted Indoor Units[2]

Buyer review snapshot

Best for / skip if

Best for

  • 5-zone projects in the 48k outdoor capacity class.

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 37 A; breaker/fuse 40 A.
  • Line set: Flared line connections; precharged 230 ft; max 230 ft.
  • 5-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.

Source date

Model data sourced
Jul 28, 2026
Page reviewed
Jul 28, 2026
Source-backed records
5
Newest source retrieved
Jul 28, 2026

Warranty tiers

Registered
10 yr parts / 10 yr compressor - published 10-year warranty terms

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Install path
This is professional-install equipment; price it with an installed quote.

Strengths

  • Five zones on one R-32 condenser - whole-home multi-zone coverage.
  • Certified nominal SEER2 21 / EER2 11.7 / HSPF2 9, ENERGY STAR certified.
  • 46,000 BTU cooling / 48,500 BTU heating at 47F for a five-room load.
  • Samsung inverter platform with dealer service.

Weaknesses

  • Standard tier is not cold-climate designated - heating tapers in the cold.
  • Efficiency is the lowest of the Standard line as zone count rises.
  • Five zones share the load; size each head carefully to avoid short-cycling.

Climate suitability

Minimum heating ambient
5 F[1]
Certified heating at 5F
31,400 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
28,400 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
48,500 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
Samsung
Brand
Samsung
Product line
Free Joint Multi Standard
Model number
AJ048DXJ5CG
Indoor unit model
Depends on the indoor units you choose
Outdoor unit model
AJ048DXJ5CG
Number of zones
5
Max indoor units
5 units[1]
Rated cooling capacity
46,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
48,500 BTU/hNon-Ducted Indoor Units[2]
Voltage
230 V[1]
MCA
37 A[1]
Maximum fuse or breaker size
40 A[1]
Breaker needed
not published
SEER2
21 SEER2Non-Ducted Indoor Units[2]
EER2
11.7 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
9 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Varies by indoor-unit combination
COP
not published
COP at 47F
not published
COP at 5F
1.81 COPNon-Ducted Indoor Units[2]
Minimum outdoor heating temperature
5 F[1]
Minimum outdoor cooling temperature
14 F[1]
Maximum outdoor temperature
115 F[1]
Indoor noise range
Depends on the indoor units you choose
Outdoor noise rating
52 dBA[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
194 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
109.4 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in x 5 liquid / 3/8 in x 2 + 1/2 in x 3 suction
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
49 ft[1]
Max height between indoor units
25 ft[1]
Wi-Fi support
Depends on the indoor units you choose
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
216372788Non-Ducted Indoor Units[2]
Warranty
Registered: 10 yr parts / 10 yr compressor (published 10-year warranty terms). Score uses Registered.. 10-year compressor / 10-year parts / 1-year labor enhanced warranty for eligible registered systems
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI public detail 216372788, Samsung Free Joint Multi Standard R-32 Technical Data Book, ENERGY STAR exact row 216372788, Samsung FJM outdoor unit document page for Free Joint Multi Standard, Samsung Free Joint Multi Standard current official product page, AJ048DXJ5CG/AA (JXG48J5D) Samsung FJM submittal, Samsung HVAC registration and warranty FAQ evidence
Specification sheet
not published
Last sourced date
Jul 28, 2026

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Ceiling cassette air handlers

    9k, 12k, 18k

    Model numbers
    • 9k: AC009DN1DCG/AA
    • 9k: AC009DNNDCG/AA
    • 12k: AC012DN1DCG/AA
    • 12k: AC012DNNDCG/AA
    • 18k: AC018DNNDCG/AA

  • Ducted concealed air handlers

    9k, 12k, 15k, 18k

    Model numbers
    • 9k: AC009DNLDCG/AA
    • 9k: AJ009DNHDCG/AA
    • 12k: AC012DNLDCG/AA
    • 12k: AJ012DNHDCG/AA
    • 15k: AJ015DNHDCG/AA
    • 18k: AC018DNLDCG/AA
    • 18k: AJ018DNHDCG/AA

  • Ducted multi-position air handlers

    12k, 18k, 24k

    Model numbers
    • 12k: AJ012DNZDCG/AA
    • 18k: AJ018DNZDCG/AA
    • 24k: AJ024DNZDCG/AA

  • Floor console air handlers

    9k, 12k, 15k, 18k

    Model numbers
    • 9k: AC009DNJDCG/AA
    • 12k: AC012DNJDCG/AA
    • 15k: AC015DNJDCG/AA
    • 18k: AC018DNJDCG/AA

  • Wall-mounted air handlers

    7k, 9k, 12k, 15k, 18k, 24k

    Model numbers
    • 7k: AJ007DNADCG/AA
    • 7k: AR07DXDAFWKNCV
    • 7k: AR07DXFAMWKNCV
    • 7k: AR07DXKAPWKNCV
    • 9k: AJ009DNADCG/AA
    • 9k: AR09DXDABWKNCV
    • 9k: AR09DXFAMWKNCV
    • 9k: AR09DXKAPWKNCV
    • 12k: AJ012DNADCG/AA
    • 12k: AR12DXDABWKNCV
    • 12k: AR12DXFAMWKNCV
    • 12k: AR12DXKAPWKNCV
    • 15k: AJ015DNADCG/AA
    • 15k: AR15DXDAFWKNCV
    • 15k: AR15DXFAMWKNCV
    • 15k: AR15DXKAPWKNCV
    • 18k: AJ018DNADCG/AA
    • 18k: AR18DXDABWKNCV
    • 18k: AR18DXFAMWKNCV
    • 18k: AR18DXKAPWKNCV
    • 24k: AJ024DNADCG/AA
    • 24k: AR24DXDABWKNCV
    • 24k: AR24DXFAMWKNCV
    • 24k: AR24DXKAPWKNCV

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
37 A[1]
Breaker needed
not published
Maximum breaker size
40 A[1]
Maximum fuse size
40 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
14 AWG x 3 indoor-unit power wiring; 16 AWG x 2 interconnect control wiring[1]

Installation considerations

Show
Liquid line
1/4 in x 5[1]
Suction line
3/8 in x 2 + 1/2 in x 3[1]
Line connection type
Flared line connections[1]
Precharged length
230 ft[1]
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
25 ft[1]
Indoor dimensions
Depends on the indoor units you choose
Outdoor dimensions
37 x 47 5/8 x 13 in[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
194 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Samsung Free Joint Multi Standard 5-Zone 48,000 BTU R-32 208/230V (AJ048DXJ5CG) myself, or do I need a pro?
Samsung Free Joint Multi Standard 5-Zone 48,000 BTU R-32 208/230V (AJ048DXJ5CG) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Samsung Free Joint Multi Standard 5-Zone 48,000 BTU R-32 208/230V (AJ048DXJ5CG) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 31,400 BTU/h of heating capacity at 5F. Rated heating operation extends down to 5 F. Certified heating efficiency is 9 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Samsung Free Joint Multi Standard 5-Zone 48,000 BTU R-32 208/230V (AJ048DXJ5CG) need?
Published electrical requirements: 230 V voltage, 37 A minimum circuit ampacity, and 40 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length from the outdoor unit to one indoor head is 82 ft. The combined piping limit across all heads is 230 ft. The outdoor unit's factory charge covers up to 230 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the Samsung Free Joint Multi Standard 5-Zone 48,000 BTU R-32 208/230V (AJ048DXJ5CG) carry?
The manufacturer publishes these warranty tiers: Registered: 10 yr parts / 10 yr compressor (published 10-year warranty terms). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Samsung HVAC, LLC: AJ048DXJ5CG/AA (JXG48J5D) Samsung FJM submittalSourced - manufacturer technical document

    Covers brand.dealer_installation_policy, electrical_spec.cooling_current_amps, Frequency, electrical_spec.guaranteed_voltage_range, electrical_spec.heating_current_amps, Maximum breaker size and more

  2. AHRI certificate #216372788 - search the AHRI DirectorySourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more

  3. ENERGY STAR: ENERGY STAR exact row check for AHRI 215735288Sourced - Energy Star listing

    Covers performance_spec.energy_star_cold_climate, Energy Star status

  4. Samsung HVAC, LLC: Samsung HVAC registration and warranty FAQSourced - manufacturer product page

    Covers product_line.name, Legacy compressor warranty value, Legacy warranty value, Warranty notes

  5. Samsung HVAC, LLC: Samsung HVAC registration and warranty FAQSourced - manufacturer product page

    Covers Registered compressor warranty, Registered warranty conditions, Registered parts warranty

  6. Samsung Free Joint Multi Standard R-32 Technical Data BookSourced - manual

    Covers Manual links
