Can I install the Senville AURA 9k 230V (SENA-09HF) myself, or do I need a pro?

Senville AURA 9k 230V (SENA-09HF) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.

Will the Senville AURA 9k 230V (SENA-09HF) keep heating in a cold winter?

Rated heating operation extends down to -22 F. Certified heating efficiency is 12.5 HSPF2. Match that published heating floor against your climate's design temperature - below the low-ambient rating, output can fall off or the system can pause to protect itself.

What electrical circuit does the Senville AURA 9k 230V (SENA-09HF) need?

Published electrical requirements: 208/230V voltage, 10 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.

What warranty does the Senville AURA 9k 230V (SENA-09HF) carry?

The manufacturer publishes 5 years parts coverage and 10 years compressor coverage. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Senville / AURA

Senville AURA 9k 230V (SENA-09HF)

Model data is drawn from manufacturer, retailer, and certification sources. Missing specifications remain marked as not published.

1 zoneProfessional installProfessional installCurrent

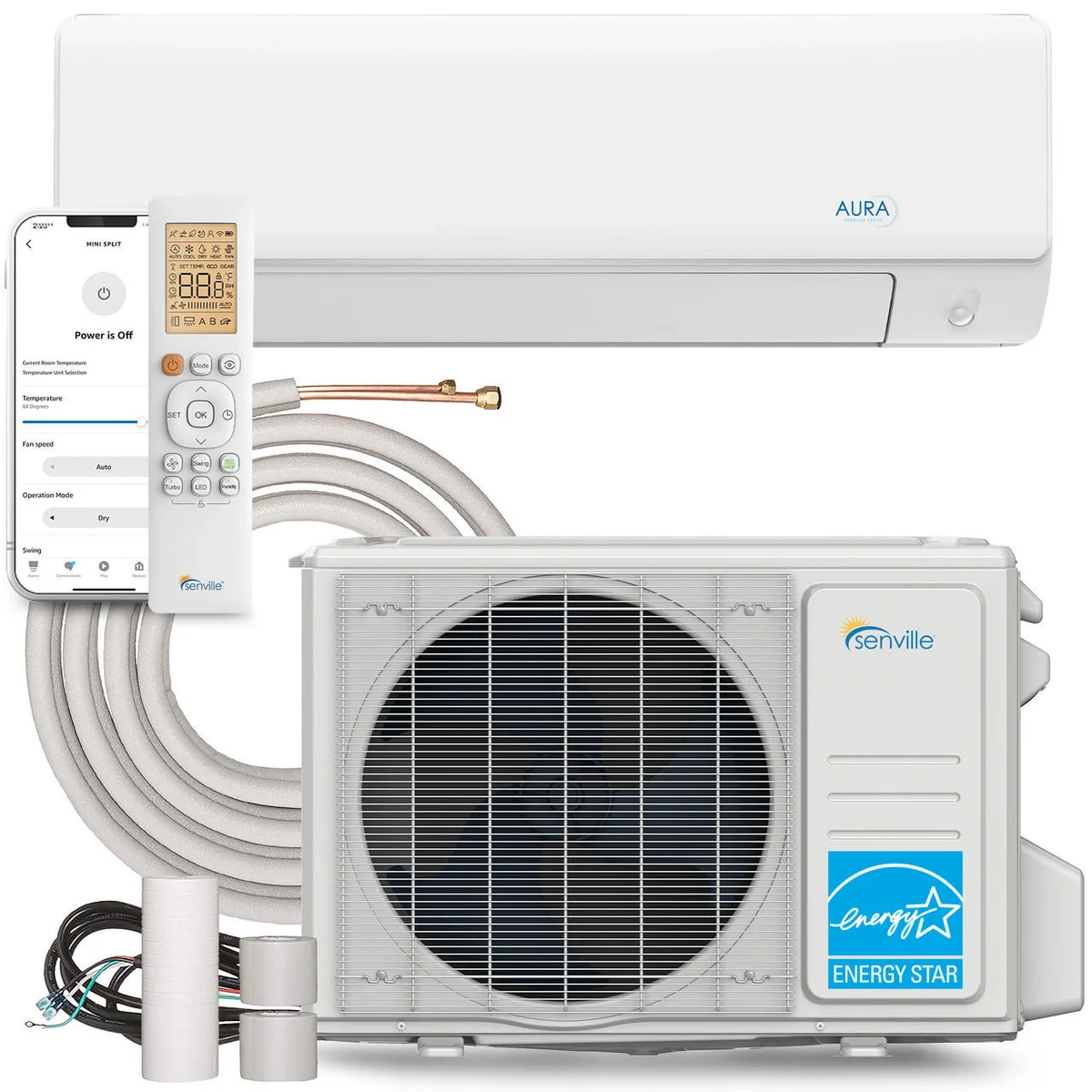

Senville AURA 9k mini-split heat pump indoor wall unit and outdoor condenser

Image: Senville

Data completeness: 85%

Last verified: Jul 18, 2026

SplitAtlas score

not yet rated - we score against comparable systems, and this class needs more verified models first.

Methodology

we score against comparable systems, and this class needs more verified models first (1/4 rated systems)

1. Summary

The smallest AURA carries the same cold-climate DNA as its siblings - published rated heating to -22F and the best certified efficiency numbers in our 9k class - at a price that routinely undercuts DIY-marketed alternatives. The trade: it requires professional installation and a 230V dedicated circuit.

Rated cooling

9,000BTU/hVerified - AHRI certificate

Rated heating

12,000BTU/hVerified - AHRI certificate

2. Best-fit use cases

Bedrooms and offices in cold climates where the unit carries real winter heating duty, and efficiency-focused buyers with an installer already lined up.

3. Key specifications

Manufacturer: Senville
Brand: Senville
Product line: AURA
Model number: SENA-09HF-IGG indoor / SENA-09HF-OG outdoor
Indoor unit model: SENA-09HF-IGG
Outdoor unit model: SENA-09HF-OG
Number of zones: 1
Max indoor units: not published
Rated cooling capacity: 9,000 BTU/hVerified - AHRI certificate
Rated heating capacity: 12,000 BTU/hVerified - AHRI certificate
Voltage: 208/230VVerified - manufacturer product page
MCA: 10 AVerified - manufacturer product page
Maximum fuse or breaker size: 15 AVerified - manufacturer product page
Breaker needed: not published
SEER2: 27.4 SEER2Verified - AHRI certificate
EER2: 15.4 EER2Verified - AHRI certificate
HSPF2 (Region 4): 12.5 HSPF2Verified - AHRI certificate
HSPF2 (Region 5): 9.8 HSPF2Verified - manufacturer product page
COP: not published
COP at 47F: not published
COP at 5F: not published
Minimum outdoor heating temperature: -22 FVerified - manufacturer product page
Minimum outdoor cooling temperature: not published
Maximum outdoor temperature: not published
Indoor noise range: 45/37/31/23 dB(A)Verified - manufacturer product page
Outdoor noise rating: 56 dBAVerified - manufacturer product page
Indoor weight: 22.05 lbVerified - manufacturer product page
Outdoor weight: 66.14 lbVerified - manufacturer product page
Refrigerant: R454BVerified - manufacturer product page
Refrigerant charge: 37.15 ozVerified - manufacturer product page
Manufacturer coverage: not published
Line-set size: 1/4 in liquid / 3/8 in suction
Included line-set length: not published
Maximum line-set length: not published
Max line set per indoor: not published
Maximum elevation difference: not published
Max height between indoor units: not published
Wi-Fi support: supportedVerified - manufacturer product page
Energy Star status: certifiedVerified - manufacturer product page
AHRI certification number: 215735295Verified - AHRI certificate
Warranty: 5 years parts / 10 years compressor. 10-year compressor and 5-year parts warranty; professional installation required.
DIY installation status: Professional install
Retail price: $1,299.99
Installation type: Professional install
Available retailers: Senville
Manual links: Senville AURA R454B Installation Manual (IGG/OG), Senville AURA R454B Owner Manual (IGG/OG), Senville AURA R454B Service Manual (IAA/OG)
Specification sheet: not published
Last verified date: Jul 18, 2026

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at Senville

$1,300 / Fresh price - checked Jul 18, 2026

Parts & filters

Fits Senville AURA 9k 230V (SENA-09HF). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-optional

High density filter (optional accessory)

Fits: Senville AURA 9k 230V (SENA-09HF)
Fit note: Fits SENA-09HF. Senville lists a high-density filtration element as an optional accessory for the AURA line, on top of the standard washable screen. Order through Senville support with your model number - no part number is published in the catalog.
Source: Senville Product Catalog, Features AURA - Optional Features, page p. 3 (HIGH DENSITY FILTER)

air-cleaning-accessory

Plasma ionizer (optional accessory)

Fits: Senville AURA 9k 230V (SENA-09HF)
Fit note: Fits SENA-09HF. An optional air-cleaning module for the AURA indoor unit, listed in Senville's catalog; availability is confirmed at order time through Senville support.
Source: Senville Product Catalog, Features AURA - Optional Features, page p. 3 (PLASMA IONIZER)

wired-control

Wired wall controller (optional accessory)

Fits: Senville AURA 9k 230V (SENA-09HF)
Fit note: Fits SENA-09HF. A wired wall thermostat-style controller is available as an AURA option - useful where the handheld remote is impractical (rentals, commercial spaces).
Source: Senville Product Catalog, Features AURA - Optional Features, page p. 3 (WIRED CONTROL)

remote-control

Remote control (Follow Me)

Fits: Senville AURA 9k 230V (SENA-09HF)
Fit note: Fits SENA-09HF. The standard AURA remote includes the Follow Me ambient sensor; replacements are ordered through Senville support with your model number.
Source: Senville Product Catalog, Features AURA - Standard Features, page p. 3 (FOLLOW ME)

Replacement Parts & Filters

4. Strengths

Best certified efficiency in our published 9k class (SEER2 27.4 / HSPF2 12.5).
Published -22F heating floor - full cold-climate capability in a bedroom-sized unit.
23 dB(A) low fan level plus Wi-Fi control - strong bedroom manners.
Aggressive direct pricing.

5. Weaknesses

Professional install required; warranty expects qualified installation.
230V dedicated circuit for a small room is a real cost adder where the panel is far away.
Senville marketing figures have exceeded the unit's own AHRI certificate in our checks - we publish the certified numbers.

6. Climate suitability

Minimum heating ambient: -22 FVerified - manufacturer product page
Rated heating at 5F: not published
Rated heating at 17F: not published
Rated heating at 47F: not published

7. Electrical requirements

Voltage: not published
Voltage range: 208/230VVerified - manufacturer product page
Phase: 1Verified - manufacturer product page
Frequency: 60 HzVerified - manufacturer product page
MCA: 10 AVerified - manufacturer product page
Breaker needed: not published
Maximum breaker size: not published
Maximum fuse size: 15 AVerified - manufacturer product page
Maximum cooling current: not published
Maximum heating current: not published
Manufacturer wire notes: not published

8. Installation considerations

Liquid line: 1/4 inVerified - manufacturer product page
Suction line: 3/8 inVerified - manufacturer product page
Precharged length: not published
Included line-set length: not published
Maximum line-set length: not published
Max line set per indoor: not published
Max height between indoor units: not published
Indoor dimensions: 33.40 x 9.18 x 11.76 inVerified - manufacturer product page
Outdoor dimensions: 28.74 x 11.02 x 19.49 inVerified - manufacturer product page
Indoor weight: 22.05 lbVerified - manufacturer product page
Outdoor weight: 66.14 lbVerified - manufacturer product page
Drain size: not published

9. Operating-cost estimate

not published

10. Comparable models

MRCOOL DIY vs Senville AURA (9,000 BTU) - The Bedroom Decision

Side-by-side comparison

Frequently asked questions

Can I install the Senville AURA 9k 230V (SENA-09HF) myself, or do I need a pro?: Senville AURA 9k 230V (SENA-09HF) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Senville AURA 9k 230V (SENA-09HF) keep heating in a cold winter?: Rated heating operation extends down to -22 F. Certified heating efficiency is 12.5 HSPF2. Match that published heating floor against your climate's design temperature - below the low-ambient rating, output can fall off or the system can pause to protect itself.
What electrical circuit does the Senville AURA 9k 230V (SENA-09HF) need?: Published electrical requirements: 208/230V voltage, 10 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
What warranty does the Senville AURA 9k 230V (SENA-09HF) carry?: The manufacturer publishes 5 years parts coverage and 10 years compressor coverage. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

11. Data sources

Senville: Senville SENA-09HF product pageVerified - manufacturer product page
Covers Frequency, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage range, Indoor dimensions and more
AHRI: AHRI Certificate of Product Ratings ref 215735295 (2025-02-17)Verified - AHRI certificate
Covers AHRI certification number, Rated cooling capacity, EER2, Rated heating capacity, HSPF2 (Region 4), SEER2

12. Last updated date

Jul 18, 2026
