Toshiba Carrier / Toshiba Carrier 26 High Wall

Toshiba Carrier 26 High Wall 24k R-454B 208/230V Mini-Split

Certified capacity
24,000 BTU/h[2]
SEER2
22.7 SEER2[2]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

The RAV high-wall 24k is the 2-ton premium single-zone Toshiba Carrier head, on 230V and R-454B. It posts 22.7 SEER2, 11.8 EER2, and 10.4 HSPF2, and it is ENERGY STAR Most Efficient and cold-climate designated, with strong low-temperature output: 24,000 BTU at 47F and 20,200 BTU at 5F.

1 zoneProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

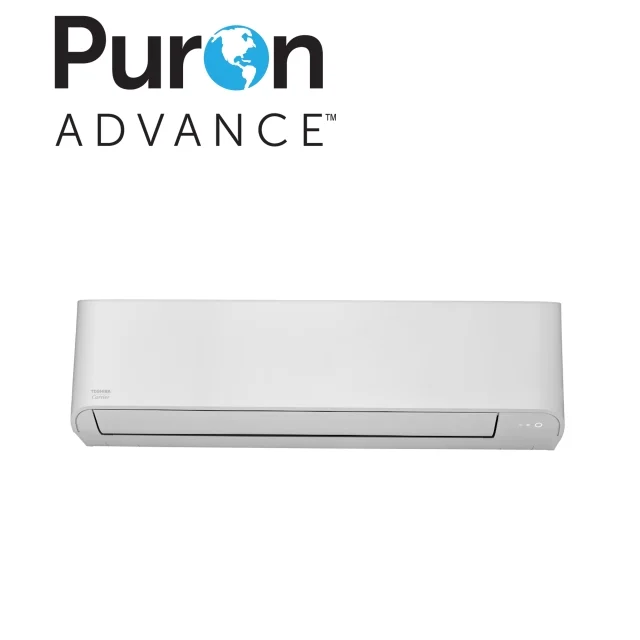

Toshiba Carrier 26 High Wall 24,000 BTU R-454B 208/230V (RAV-HB241KRTP-UL / RAV-BP241AT2P-UL)

Image: DCNE

Data completeness: 100%
Last sourced
Jul 27, 2026

SplitAtlas score

8.7 / 10

Methodology
Cooling efficiencyAbove average

(22.7 SEER2) among 24k systems

Heating efficiencyAbove average

(10.4 HSPF2) among 24k systems

Cold-weather performanceAbove average

(5F certified capacity: 84.2% of the 47F rating; -13 F heating floor) among 24k systems

NoiseBelow average

(35 dBA indoor min / 54 dBA outdoor) among 24k systems

WarrantyAbove average

(10 yr parts, no separate compressor term) across the catalogue

Feature setTop quartile

(6 verified features) across the catalogue

Documentation & partsTop quartile

(6 manuals; spec sheet; 49 error-code rows) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

24,000BTU/h[2]

Rated heating

24,000BTU/h[2]

Buyer review snapshot

Best for / skip if

Best for

  • High-efficiency shortlists; SEER2 is 22.7.

Install difficulty

Professional install
  • Electrical: 230V; MCA 17 A; breaker/fuse 25 A.
  • Line set: connection type not sourced; precharged 98.42 ft; max 164.08 ft.

Alternatives

Availability and price context

This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.

Source date

Model data sourced
Jul 27, 2026
Page reviewed
Jul 27, 2026
Source-backed records
4
Newest source retrieved
Jul 27, 2026

Warranty tiers

Registered
10 yr parts / no separate compressor term - registration; complete Toshiba Carrier warranty terms apply

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Structured ratings
Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.

Strengths

  • Excellent cold-weather retention, 20,200 BTU at 5F from a 24,000 BTU rating
  • ENERGY STAR Most Efficient and cold-climate designated at 2 tons
  • Premium Toshiba-Carrier engineering on current low-GWP R-454B

Weaknesses

  • Premium pricing; 230V professional install
  • A single 2-ton head suits open areas; multi-room layouts may prefer zoning

Climate suitability

Minimum heating ambient
-13 F[1]
Certified heating at 5F
20,200 BTU/h[2]
Rated heating at 17F
17,100 BTU/h[2]
Rated heating at 47F
24,000 BTU/h[2]

Specifications

Show
Manufacturer
Toshiba Carrier
Brand
Toshiba Carrier
Product line
Toshiba Carrier 26 High Wall
Model number
RAV-HB241KRTP-UL indoor / RAV-BP241AT2P-UL outdoor
Indoor unit model
RAV-HB241KRTP-UL
Outdoor unit model
RAV-BP241AT2P-UL
Number of zones
1
Max indoor units
not published
Rated cooling capacity
24,000 BTU/h[2]
Rated heating capacity
24,000 BTU/h[2]
Voltage
230 V[1]
MCA
17 A[1]
Maximum fuse or breaker size
25 A[1]
Breaker needed
not published
SEER2
22.7 SEER2[2]
EER2
11.8 EER2[2]
HSPF2 (Region 4)
10.4 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
2.1 COP[2]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
5 F[1]
Maximum outdoor temperature
115 F[1]
Indoor noise range
46 / 42 / 41 / 36 / 35 dB(A)[1]
Outdoor noise rating
54 dBA[1]
Indoor weight
33.1 lb[1]
Outdoor weight
133 lb[1]
Refrigerant
R-454B[2]
Refrigerant charge
74.08 oz[1]
Manufacturer coverage
not published
Line-set size
3/8 in liquid / 5/8 in suction
Included line-set length
Professional installations use separately selected line sets
Maximum line-set length
164.08 ft[1]
Max line set per indoor
not published
Maximum elevation difference
98.42 ft[1]
Max height between indoor units
not published
Wi-Fi support
No published built-in Wi-Fi specification
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
216415459[2]
Warranty
Registered: 10 yr parts / no separate compressor term (registration; complete Toshiba Carrier warranty terms apply). Score uses Registered.. 10-year parts limited warranty with registration; complete Toshiba Carrier warranty terms apply.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI public directory record 216415459, ENERGY STAR exact check 216415459, Toshiba Carrier RAVBKR2 high-wall installation manual, Toshiba Carrier RAV high-wall owner manual, Toshiba Carrier RAVBAT2/RAVBKR2 engineering data book
Specification sheet
Toshiba Carrier RAVBAT2/RAVBKR2 engineering data book
Last sourced date
Jul 27, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
17 A[1]
Breaker needed
not published
Maximum breaker size
25 A[1]
Maximum fuse size
25 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
3/8 in[1]
Suction line
5/8 in[1]
Line connection type
not published
Precharged length
98.42 ft[1]
Included line-set length
Professional installations use separately selected line sets
Maximum line-set length
164.08 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
41.3 x 9.8 x 12.6 in[1]
Outdoor dimensions
35.4 x 12.6 x 35.0 in[1]
Indoor weight
33.1 lb[1]
Outdoor weight
133 lb[1]
Drain size
0.9[1]

Related systems and guides

Frequently asked questions

Can I install the Toshiba Carrier 26 High Wall 24,000 BTU R-454B 208/230V (RAV-HB241KRTP-UL / RAV-BP241AT2P-UL) myself, or do I need a pro?
Toshiba Carrier 26 High Wall 24,000 BTU R-454B 208/230V (RAV-HB241KRTP-UL / RAV-BP241AT2P-UL) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Toshiba Carrier 26 High Wall 24,000 BTU R-454B 208/230V (RAV-HB241KRTP-UL / RAV-BP241AT2P-UL) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 20,200 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10.4 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Toshiba Carrier 26 High Wall 24,000 BTU R-454B 208/230V (RAV-HB241KRTP-UL / RAV-BP241AT2P-UL) need?
Published electrical requirements: 230 V voltage, 17 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 164.08 ft. The outdoor unit's factory charge covers up to 98.42 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the Toshiba Carrier 26 High Wall 24,000 BTU R-454B 208/230V (RAV-HB241KRTP-UL / RAV-BP241AT2P-UL) carry?
The manufacturer publishes these warranty tiers: Registered: 10 yr parts / no separate compressor term (registration; complete Toshiba Carrier warranty terms apply). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
