TOSOT / Multi Ultra Heat

TOSOT Multi Ultra Heat 24k R-32 208/230V 3-Zone Mini-Split

Certified capacity
24,000 BTU/h[2]
SEER2
21 SEER2[2]
Heating floor
-22 F[1]
Voltage
230 V[1]
Install path
Professional install

The TOSOT Multi Ultra Heat 3-zone covers three rooms from one 208/230V outdoor unit on R-32, ENERGY STAR certified and AHRI cold-climate designated, at a certified nominal SEER2 of 21 (EER2 13.3, HSPF2 10). That nominal is the all-non-ducted certified figure and depends on the heads you attach.

Heating holds up well in the cold: rated 24000 BTU at 47F, 23600 at 17F, and 21600 at 5F - about 90 percent of its 47F output at 5F. TOSOT is a value brand (TOSOT/Gree family) sold on tosot.com, professionally installed and priced by quote.

3 zonesProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

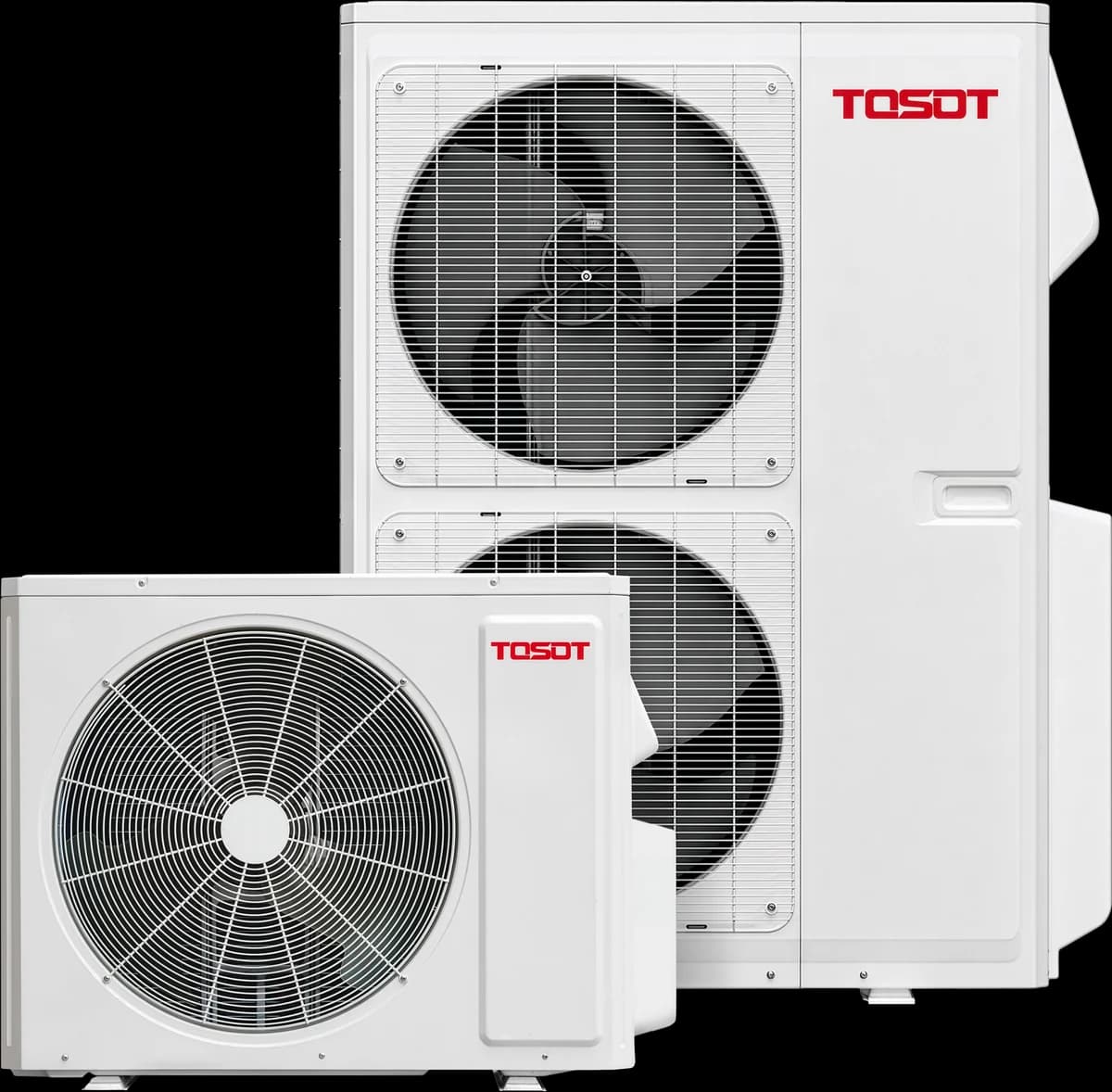

TOSOT Multi Ultra Heat 3-Zone 24,000 BTU R-32 208/230V (TMH24D32MO)

Image: TOSOT

Data completeness: 97%
Last sourced
Jul 29, 2026

SplitAtlas score

8.8 / 10

Methodology
Cooling efficiencyBelow average

(21.0 SEER2) among 24k systems

Heating efficiencyTop quartile

(10.0 HSPF2) among 24k systems

Cold-weather performanceAbove average

(5F certified capacity: 90% of the 47F rating; -22 F heating floor) among 24k systems

WarrantyTop quartile

(10 yr parts / 10 yr compressor) across the catalogue

Feature setBelow average

(4 verified features) across the catalogue

Documentation & partsTop quartile

(7 manuals; spec sheet; 14 error-code rows) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

24,000BTU/hNon-Ducted Indoor Units[2]

Rated heating

24,000BTU/hNon-Ducted Indoor Units[2]

Buyer review snapshot

Best for / skip if

Best for

  • 3-zone projects in the 24k outdoor capacity class.

Install difficulty

Complex professional install
  • Electrical: 230V; MCA 19.5 A; breaker/fuse 25 A.
  • Line set: connection type not sourced; precharged 99 ft; max 197 ft.
  • 3-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

This TOSOT/Cosmo multi-zone system is sold through dealers, so its price comes as an installed quote that depends on your home. Get installation quotes to price it.

Source date

Model data sourced
Jul 29, 2026
Page reviewed
Jul 29, 2026
Source-backed records
5
Newest source retrieved
Jul 29, 2026

Warranty tiers

Base
10 yr parts / 10 yr compressor - equipment sold and installed by licensed professionals in residential applications

The score uses Base. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Install path
This is professional-install equipment; price it with an installed quote.
Structured ratings
Certification: ENERGY STAR certified, ENERGY STAR cold-climate certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-32. Minimum heating ambient: -22 F.

Strengths

  • Strong cold-weather heat: 21600 of its 24000 BTU 47F output retained at 5F.
  • Three zones from one outdoor unit and one 208/230V circuit, EER2 13.3 on R-32.
  • ENERGY STAR certified and AHRI cold-climate designated at a value price.

Weaknesses

  • Three-zone total capacity is shared; size to the condenser, not three full rooms.
  • Value-brand dealer/service network is thinner than the majors'.

Climate suitability

Minimum heating ambient
-22 F[1]
Certified heating at 5F
21,600 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
23,600 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
24,000 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
TOSOT
Brand
TOSOT
Product line
Multi Ultra Heat
Model number
TMH24D32MO
Indoor unit model
Depends on the indoor units you choose
Outdoor unit model
TMH24D32MO
Number of zones
3
Max indoor units
3 units[1]
Rated cooling capacity
24,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
24,000 BTU/hNon-Ducted Indoor Units[2]
Voltage
230 V[1]
MCA
19.5 A[1]
Maximum fuse or breaker size
25 A[1]
Breaker needed
not published
SEER2
21 SEER2Non-Ducted Indoor Units[2]
EER2
13.3 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
10 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Varies by indoor-unit combination
COP
not published
COP at 47F
3.9 COP[1]
COP at 5F
2 COPNon-Ducted Indoor Units[2]
Minimum outdoor heating temperature
-22 F[1]
Minimum outdoor cooling temperature
-22 F[1]
Maximum outdoor temperature
118 F[1]
Indoor noise range
Depends on the indoor units you choose
Outdoor noise rating
52 dBA[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
113 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
60 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in x 3 liquid / 3/8 in x 3 suction
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
197 ft[1]
Max line set per indoor
66 ft[1]
Maximum elevation difference
49 ft[1]
Max height between indoor units
49 ft[1]
Wi-Fi support
Depends on the indoor units you choose
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
217994527Non-Ducted Indoor Units[2]
Warranty
Base: 10 yr parts / 10 yr compressor (equipment sold and installed by licensed professionals in residential applications). Score uses Base.. TOSOT warranty information lists a standard 10-year compressor warranty and 10-year parts warranty for equipment sold and installed by licensed professionals in residential applications.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI public detail 217994527, ENERGY STAR exact AHRI rows 217994527, TMH24D32MO TOSOT Multi Ultra Heat submittal and official indoor submittals, TOSOT Multi Ultra Heat / TMH24D32MO current product page, TMH24D32MO TOSOT Multi Ultra Heat submittal, TOSOT warranty information
Specification sheet
TMH24D32MO TOSOT Multi Ultra Heat submittal
Last sourced date
Jul 29, 2026

Compatible indoor units

This is an outdoor unit. You choose its indoor heads separately - up to the maximum this condenser supports - and you can mix room sizes and styles across the zones. The models below are the heads this unit is documented to pair with.

  • Ceiling cassette air handlers

    9k, 12k, 18k, 24k

    Model numbers
    • 9k: TKH09D32AI
    • 9k: TLH09D32AI
    • 12k: TKH12D32AI
    • 12k: TLH12D32AI
    • 18k: TKH18D32AI
    • 18k: TLH18D32AI
    • 24k: TKH24D32AI

  • Ducted concealed air handlers

    9k, 12k, 18k, 24k

    Model numbers
    • 9k: TFH09D32AI
    • 12k: TFH12D32AI
    • 18k: TFH18D32AI
    • 24k: TFH24D32AI

  • Ducted multi-position air handlers

    12k, 18k, 24k

    Model numbers
    • 12k: TAH12D32AI
    • 18k: TAH18D32AI
    • 24k: TAH24D32AI

  • Floor console air handlers

    9k, 12k, 18k

    Model numbers
    • 9k: TEH09D32AI
    • 12k: TEH12D32AI
    • 18k: TEH18D32AI

  • Wall-mounted air handlers

    7k, 9k, 12k, 18k, 24k

    Model numbers
    • 7k: TWH07CD32AI
    • 9k: TWH09CD32AI
    • 9k: TWH09KD32AI
    • 9k: TWH09PD32AI
    • 12k: TWH12CD32AI
    • 12k: TWH12KD32AI
    • 12k: TWH12PD32AI
    • 18k: TWH18CD32AI
    • 18k: TWH18KD32AI
    • 18k: TWH18PD32AI
    • 24k: TWH24CD32AI
    • 24k: TWH24KD32AI
    • 24k: TWH24PD32AI

Sizing note: do not just add up the rooms. Multi-zone condensers have a maximum total connected capacity, and connecting more head capacity than the unit is rated for is a common installer mistake that hurts efficiency and comfort. Match total head capacity to the condenser's rating.

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
19.5 A[1]
Breaker needed
not published
Maximum breaker size
25 A[1]
Maximum fuse size
25 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in x 3[1]
Suction line
3/8 in x 3[1]
Line connection type
not published
Precharged length
99 ft[1]
Included line-set length
Depends on the indoor units you choose
Maximum line-set length
197 ft[1]
Max line set per indoor
66 ft[1]
Max height between indoor units
49 ft[1]
Indoor dimensions
Depends on the indoor units you choose
Outdoor dimensions
37-61/64 x 15-53/64 x 25-63/64 in[1]
Indoor weight
Depends on the indoor units you choose
Outdoor weight
113 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the TOSOT Multi Ultra Heat 3-Zone 24,000 BTU R-32 208/230V (TMH24D32MO) myself, or do I need a pro?
TOSOT Multi Ultra Heat 3-Zone 24,000 BTU R-32 208/230V (TMH24D32MO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the TOSOT Multi Ultra Heat 3-Zone 24,000 BTU R-32 208/230V (TMH24D32MO) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 21,600 BTU/h of heating capacity at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the TOSOT Multi Ultra Heat 3-Zone 24,000 BTU R-32 208/230V (TMH24D32MO) need?
Published electrical requirements: 230 V voltage, 19.5 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length from the outdoor unit to one indoor head is 66 ft. The combined piping limit across all heads is 197 ft. The outdoor unit's factory charge covers up to 99 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the TOSOT Multi Ultra Heat 3-Zone 24,000 BTU R-32 208/230V (TMH24D32MO) carry?
The manufacturer publishes these warranty tiers: Base: 10 yr parts / 10 yr compressor (equipment sold and installed by licensed professionals in residential applications). Score uses Base.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
