ACiQ / ACiQ Standard

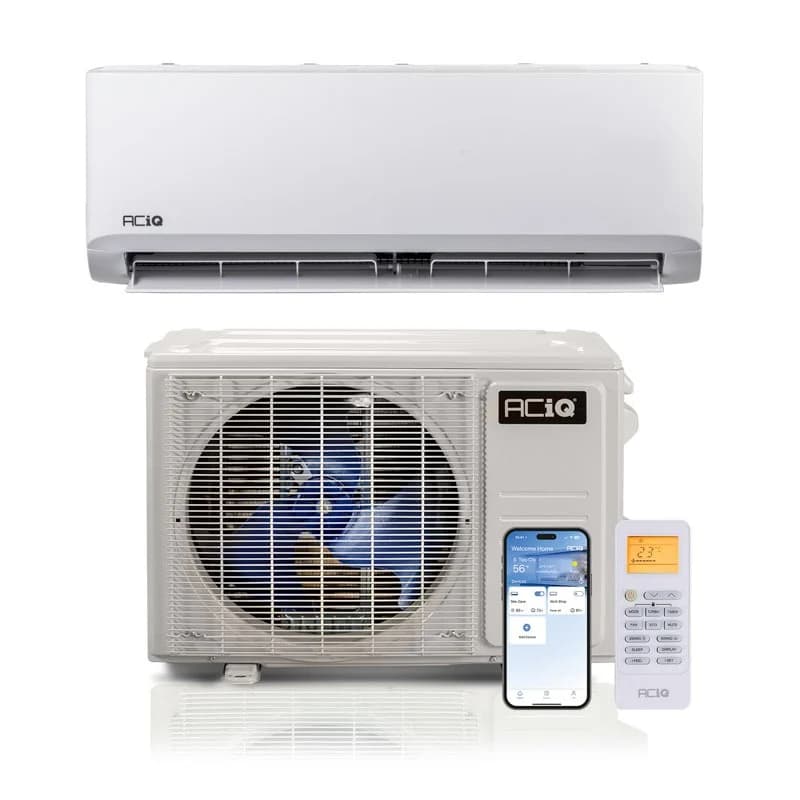

ACiQ Standard 12k R-454B 115V Mini-Split
A one-ton Standard unit on 115V, this R-454B zone rates 23.2 SEER2, 12.5 EER2, and 10.4 HSPF2, and it is ENERGY STAR certified. Heating runs 12,000 BTU at 47F, 10,000 BTU at 17F, and 7,300 BTU at 5F. It's not cold-climate designated, so treat the 5F figure as the honest limit, but through moderate winters it performs well on a standard circuit.
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$1,010 / Fresh price - checked Jul 26, 2026
Need this installed?
Get installation quotes
Image: HVACDirect
- Last sourced
- Jul 26, 2026
SplitAtlas score
8.3 / 10
(23.2 SEER2) among 12k systems
(10.4 HSPF2) among 12k systems
(60.8% heat retained at 5F; -13 F heating floor) among 12k systems
(17.5 dBA indoor min / 53 dBA outdoor) among 12k systems
(7 yr parts / 12 yr compressor) across the catalogue
(4 verified features) across the catalogue
($1,010 median retail) among 12k systems
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Install difficulty
- Electrical: 115V; MCA 18 A; breaker/fuse 20 A.
- Line set: connection type not sourced; precharged 25 ft.
Alternatives
- Daikin ATMOSPHERA 12,000 BTU R-32 208/230V (FTXM12WVJU9 / RXM12WVJU9)
9.0 score / 12k / SEER2 25.2 / -13 F heating floor / 208/230V
Exact destination at HVACDirect: $2,848.00, checked Jul 23, 2026
- Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
- Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
Availability and price context
- Verified current price: $1,009.99 at HVACDirect; availability in_stock; checked Jul 26, 2026.
Source date
- Model data sourced
- Jul 26, 2026
- Page reviewed
- Jul 26, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 26, 2026
Warranty tiers
Warranty: 7 years parts and 12 years compressor as standard.
Strengths
- ENERGY STAR certified with a strong 23.2 SEER2, so it cools efficiently and may qualify for rebates.
- A full ton of capacity on a convenient 115V circuit, holding 10,000 BTU at 17F.
Weaknesses
- Not cold-climate rated, and heat drops to 7,300 BTU at 5F, so it's not the pick for severe winters.
- Value house brand carries a lighter dealer and parts network than premium names.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Rated heating at 5F
- 7,300 BTU/h[2]
- Rated heating at 17F
- 10,000 BTU/h[2]
- Rated heating at 47F
- 12,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- ACiQ
- Brand
- ACiQ
- Product line
- ACiQ Standard
- Model number
- ACIQ-12WS-HP115C indoor / ACIQ-12ZS-HP115C outdoor
- Indoor unit model
- ACIQ-12WS-HP115C
- Outdoor unit model
- ACIQ-12ZS-HP115C
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 12,000 BTU/h[2]
- Rated heating capacity
- 12,000 BTU/h[2]
- Voltage
- 115 V[1]
- MCA
- 18 A[1]
- Maximum fuse or breaker size
- 20 A[1]
- Breaker needed
- not published
- SEER2
- 23.2 SEER2[2]
- EER2
- 12.5 EER2[2]
- HSPF2 (Region 4)
- 10.4 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.2 COP[2]
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- -13 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- 17.5 / 44 dB(A)[1]
- Outdoor noise rating
- 53 dBA[1]
- Indoor weight
- 19.84 lb[1]
- Outdoor weight
- 70.11 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Maximum elevation difference
- not published
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 216980866[2]
- Warranty
- Standard: 7 yr parts / 12 yr compressor (published per-line terms with online registration). 12-year compressor / 7-year parts with online registration
- Install path
- Professional install
- Retail price
- $1,009.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 216980866, ENERGY STAR exact check 216980866, 12,000 BTU ACiQ Standard 23.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V HVACDirect installation resources listing, 12,000 BTU ACiQ Standard 23.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V, HVACDirect exact affiliate offer aciq-standard-12k-r454b-115v, 12,000 BTU ACiQ Standard 23.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V HVACDirect product specification grid
- Specification sheet
- 12,000 BTU ACiQ Standard 23.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V HVACDirect product specification grid
- Last sourced date
- Jul 26, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$1,010 / Fresh price - checked Jul 26, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 25 ft[1]
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 31.57 x 11.61 x 7.87 in[1]
- Outdoor dimensions
- 30.12 x 21.85 x 11.93 in[1]
- Indoor weight
- 19.84 lb[1]
- Outdoor weight
- 70.11 lb[1]
- Drain size
- not published
Related systems and guides
- More ACiQ systems
- ACiQ sibling model
- ACiQ Standard 12k 230V
- ACiQ Essentials 12k 230V
- Blueridge 12k model
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- ACiQ mini split review: is ACiQ any good?
- The best 12,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split not cooling
- Mini split Wi-Fi not connecting
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the ACiQ Standard 12,000 BTU R-454B 115V (ACIQ-12WS-HP115C / ACIQ-12ZS-HP115C) myself, or do I need a pro?
- ACiQ Standard 12,000 BTU R-454B 115V (ACIQ-12WS-HP115C / ACIQ-12ZS-HP115C) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the ACiQ Standard 12,000 BTU R-454B 115V (ACIQ-12WS-HP115C / ACIQ-12ZS-HP115C) keep heating in a cold winter?
- The manufacturer publishes 7,300 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10.4 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the ACiQ Standard 12,000 BTU R-454B 115V (ACIQ-12WS-HP115C / ACIQ-12ZS-HP115C) need?
- Published electrical requirements: 115 V voltage, 18 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- What warranty does the ACiQ Standard 12,000 BTU R-454B 115V (ACIQ-12WS-HP115C / ACIQ-12ZS-HP115C) carry?
- The manufacturer publishes these warranty tiers: Standard: 7 yr parts / 12 yr compressor (published per-line terms with online registration). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
Data sources
ShowHide
- HVACDirect / ACiQ: 12,000 BTU ACiQ Standard 23.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115VSourced - manufacturer product page
Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage and more
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for ACIQ-12ZS-HP115C / ACIQ-12WS-HP115CSourced - AHRI directory
Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more
- ENERGY STAR: ENERGY STAR exact row check for AHRI 216980866Sourced - Energy Star listing
Covers Energy Star status
Last updated
Jul 26, 2026
