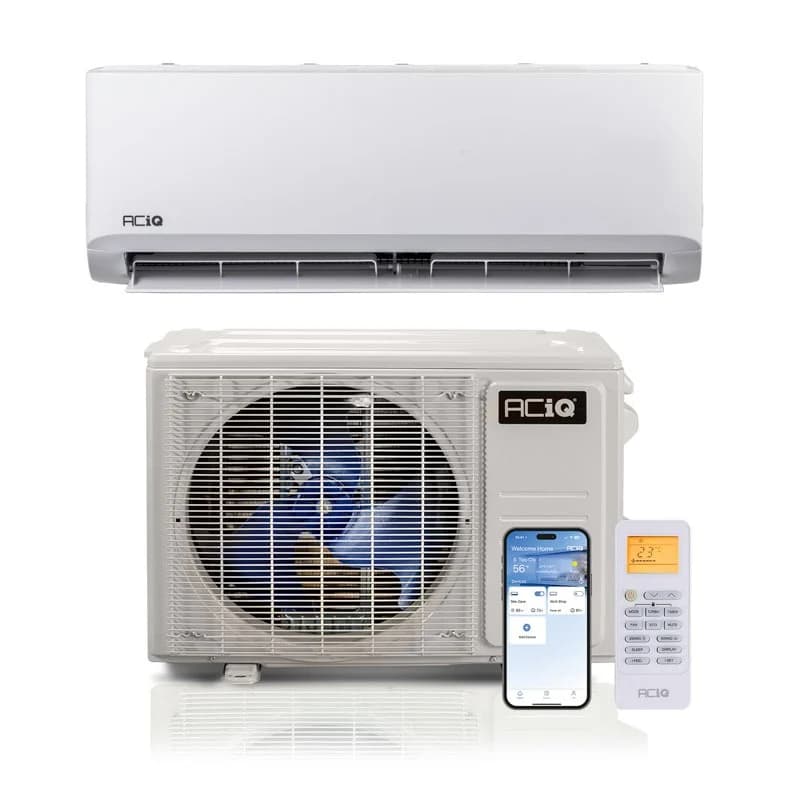

ACiQ Standard 12k R-454B 208/230V Mini-Split
The 230V Standard 12k adds cold-climate capability to the one-ton class, pairing an AHRI cold-climate designation with 23.1 SEER2, 12.2 EER2, and 11.5 HSPF2 on R-454B. It is ENERGY STAR certified. Heating measures 12,000 BTU at 47F, 10,400 BTU at 17F, and 8,600 BTU at 5F, holding a solid share of capacity as it gets cold.
1 zoneProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Paid link
$1,030 / Checked Jul 26, 2026
Need this installed?
Get installation quotes
Image: HVACDirect
Data completeness: 93%
- Last sourced
- Jul 26, 2026
SplitAtlas score
8.8 / 10
Cooling efficiencyAbove average
(23.1 SEER2) among 12k systems
Heating efficiencyTop quartile
(11.5 HSPF2) among 12k systems
Cold-weather performanceBelow average
(5F certified capacity: 71.7% of the 47F rating; -13 F heating floor) among 12k systems
NoiseAbove average
(19 dBA indoor min / 54 dBA outdoor) among 12k systems
WarrantyTop 10%
(7 yr parts / 12 yr compressor) across the catalogue
Feature setAbove average
(5 verified features) across the catalogue
Price-to-performanceBelow average
($1,030 median retail) among 12k systems
Documentation & partsBelow average
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- High-efficiency shortlists; SEER2 is 23.1.
Install difficulty
Professional install
- Electrical: 230V; MCA 12 A; breaker/fuse 15 A.
- Line set: connection type not sourced; precharged 25 ft.
Alternatives
- Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
9.0 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
- Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
- Daikin ATMOSPHERA 12,000 BTU R-32 208/230V (FTXM12WVJU9 / RXM12WVJU9)
8.9 score / 12k / SEER2 25.2 / -13 F heating floor / 208/230V
Exact destination at HVACDirect: $2,848.00, checked Jul 23, 2026
Availability and price context
- Last seen at HVACDirect on Jul 26, 2026: $1,029.99. Open the listing for today's price.
Source date
- Model data sourced
- Jul 26, 2026
- Page reviewed
- Jul 26, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 26, 2026
Warranty tiers
- Registered
- 7 yr parts / 12 yr compressor - published per-line terms with online registration
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Strengths
- Cold-climate designated and ENERGY STAR certified, keeping 10,400 BTU at 17F and 8,600 BTU at 5F.
- Strong 11.5 HSPF2 means efficient season-long heating for a one-ton head.
Weaknesses
- EER2 of 12.2 is good but not class-leading, so peak-cooling efficiency trails the Standard 9k units.
- As a value brand, local support and installer familiarity are thinner than premium competitors.
Climate suitability
- Minimum heating ambient
- -13 F[1]
- Certified heating at 5F
- 8,600 BTU/h[2]
- Rated heating at 17F
- 10,400 BTU/h[2]
- Rated heating at 47F
- 12,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- ACiQ
- Brand
- ACiQ
- Product line
- ACiQ Standard
- Model number
- ACIQ-12WS-HP230C indoor / ACIQ-12ZS-HP230C outdoor
- Indoor unit model
- ACIQ-12WS-HP230C
- Outdoor unit model
- ACIQ-12ZS-HP230C
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 12,000 BTU/h[2]
- Rated heating capacity
- 12,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 12 A[1]
- Maximum fuse or breaker size
- 15 A[1]
- Breaker needed
- not published
- SEER2
- 23.1 SEER2[2]
- EER2
- 12.2 EER2[2]
- HSPF2 (Region 4)
- 11.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.35 COP[2]
- Minimum outdoor heating temperature
- -13 F[1]
- Minimum outdoor cooling temperature
- -13 F[1]
- Maximum outdoor temperature
- 122 F[1]
- Indoor noise range
- 19 / 46 dB(A)[1]
- Outdoor noise rating
- 54 dBA[1]
- Indoor weight
- 24.25 lb[1]
- Outdoor weight
- 67.68 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Maximum elevation difference
- not published
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 216980868[2]
- Warranty
- Registered: 7 yr parts / 12 yr compressor (published per-line terms with online registration). Score uses Registered.. 12-year compressor / 7-year parts with online registration
- Install path
- Professional install
- Retail price
- $1,029.99
- Available retailers
- HVACDirect
- Manual links
- AHRI public directory record 216980868, ENERGY STAR exact check 216980868, 12,000 BTU ACiQ Standard 23.1 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect installation resources listing, 12,000 BTU ACiQ Standard 23.1 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V, 12,000 BTU ACiQ Standard 23.1 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect product specification grid
- Specification sheet
- 12,000 BTU ACiQ Standard 23.1 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V HVACDirect product specification grid
- Last sourced date
- Jul 26, 2026
Retail purchase context
Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure
Paid link
$1,030 at HVACDirect
$1,030 / Checked Jul 26, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 25 ft[1]
- Included line-set length
- Line set length is selected as an accessory on this HVACDirect system page.
- Maximum line-set length
- not published
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 31.57 x 11.61 x 7.87 in[1]
- Outdoor dimensions
- 30.12 x 21.85 x 11.93 in[1]
- Indoor weight
- 24.25 lb[1]
- Outdoor weight
- 67.68 lb[1]
- Drain size
- not published
Related systems and guides
- More ACiQ systems
- ACiQ Standard 12k R-454B 115V Mini-Split
- Blueridge DS1 DIY Core 12k R-454B 115V Mini-Split
- ACiQ Essentials Economy 17k R-32 208/230V Mini-Split
- ACiQ Extreme 12k R-454B 208/230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- ACiQ mini split review: is ACiQ any good?
- The best 12,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split outdoor unit not running
- Mini split lights blinking
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the ACiQ Standard 12,000 BTU R-454B 208/230V (ACIQ-12WS-HP230C / ACIQ-12ZS-HP230C) myself, or do I need a pro?
- ACiQ Standard 12,000 BTU R-454B 208/230V (ACIQ-12WS-HP230C / ACIQ-12ZS-HP230C) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the ACiQ Standard 12,000 BTU R-454B 208/230V (ACIQ-12WS-HP230C / ACIQ-12ZS-HP230C) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 8,600 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 11.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the ACiQ Standard 12,000 BTU R-454B 208/230V (ACIQ-12WS-HP230C / ACIQ-12ZS-HP230C) need?
- Published electrical requirements: 230 V voltage, 12 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- What warranty does the ACiQ Standard 12,000 BTU R-454B 208/230V (ACIQ-12WS-HP230C / ACIQ-12ZS-HP230C) carry?
- The manufacturer publishes these warranty tiers: Registered: 7 yr parts / 12 yr compressor (published per-line terms with online registration). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
