Cooper & Hunter / Slim Duct

Cooper Hunter Slim Duct 36k Concealed Ducted R-454B 208/230V Mini-Split

Certified capacity
36,000 BTU/h[2]
SEER2
18.7 SEER2[2]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

The standard-outdoor 36k slim-duct head certifies at 18.7 SEER2 and 10.2 HSPF2, with 36,000 BTU cooling and 40,000 heating, rated to -13F.

It is a point of SEER2 better in cooling than the hyper version, giving up 2,000 BTU of heat, nearly a point of HSPF2, and the cold range. For a cooling-led building in a moderate climate, this is the right one.

1 zoneProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

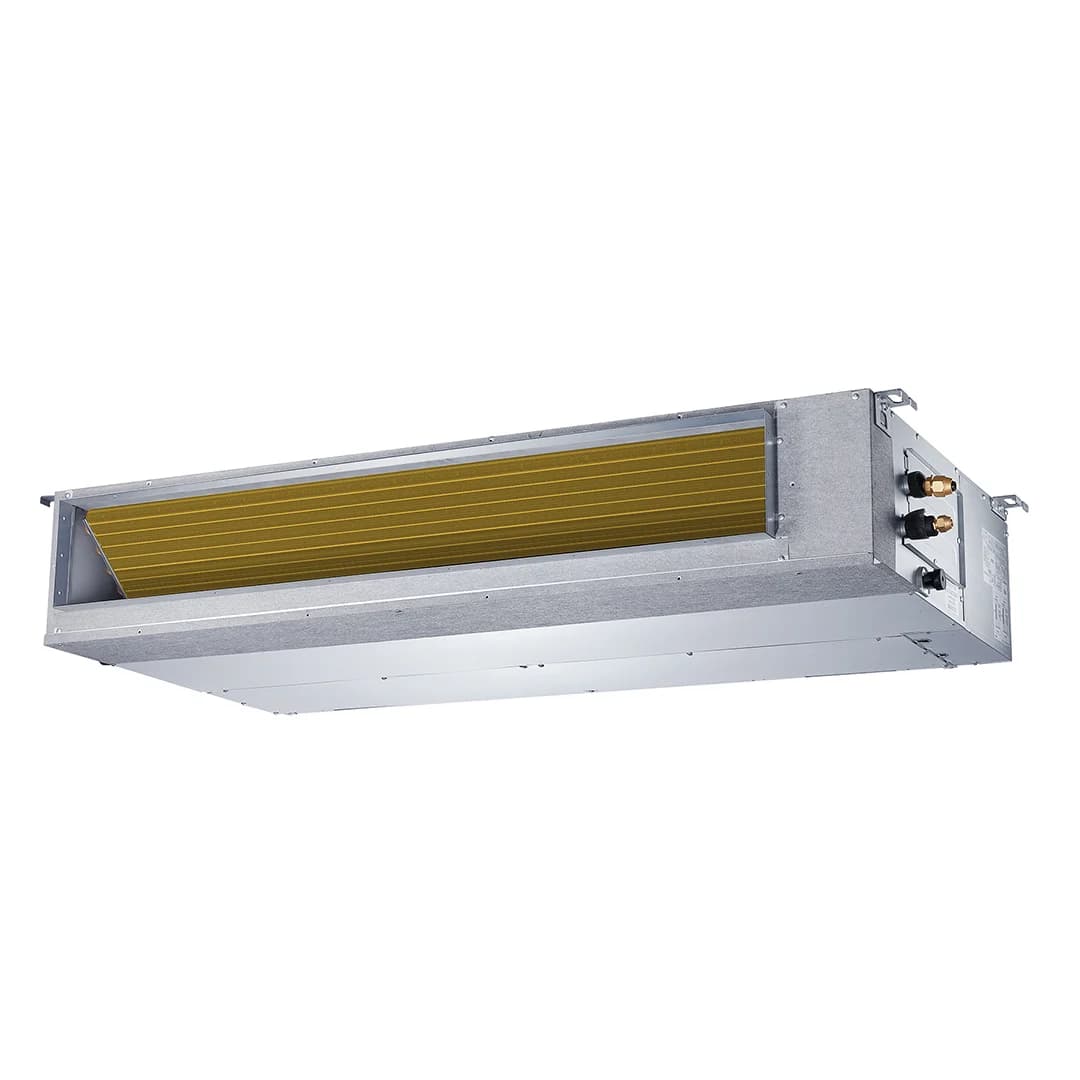

Cooper & Hunter 36000 BTU high-static slim duct indoor unit for an R-454B mini-split system.

Image: Cooper & Hunter official CH-RS36LCDT-HS product page

Data completeness: 92%
Last sourced
Aug 2, 2026

SplitAtlas score

7.7 / 10

Methodology
Cooling efficiencyBottom quartile

(18.7 SEER2) among 36k systems

Heating efficiencyAbove average

(10.2 HSPF2) among 36k systems

Cold-weather performanceBelow average

(5F certified capacity: 64% of the 47F rating; -13 F heating floor) among 36k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBelow average

(5 verified features) across the catalogue

Documentation & partsBelow average

(6 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

36,000BTU/h[2]

Rated heating

40,000BTU/h[2]

Buyer review snapshot

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 33 A; breaker/fuse 35 A.
  • Line set: Flared line connections; precharged 25 ft; max 246 ft.

Alternatives

Availability and price context

This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.

Source date

Model data sourced
Aug 2, 2026
Page reviewed
Aug 2, 2026
Source-backed records
3
Newest source retrieved
Aug 2, 2026

Warranty tiers

Registered
5 yr parts / 7 yr compressor - licensed-technician installation and registration terms

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Strengths

  • 18.7 SEER2 - better cooling efficiency than the hyper version.
  • 40,000 BTU of heating, fully concealed.
  • Standard-outdoor pairing; compare its quote with the hyper version's.

Weaknesses

  • -13F rating; a cold-climate building will need supplementary heat.
  • 10.2 HSPF2 trails the hyper version meaningfully.
  • Three tons through a low-static head requires designed ductwork.

Climate suitability

Minimum heating ambient
-13 F[1]
Certified heating at 5F
25,600 BTU/h[2]
Rated heating at 17F
27,400 BTU/h[2]
Rated heating at 47F
40,000 BTU/h[2]

Specifications

Show
Manufacturer
Cooper & Hunter
Brand
Cooper & Hunter
Product line
Slim Duct
Model number
CH-RS36LCDT-HS indoor / CH-R36LCU-230VO outdoor
Indoor unit model
CH-RS36LCDT-HS
Outdoor unit model
CH-R36LCU-230VO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
36,000 BTU/h[2]
Rated heating capacity
40,000 BTU/h[2]
Voltage
230 V[1]
MCA
33 A[1]
Maximum fuse or breaker size
35 A[1]
Breaker needed
not published
SEER2
18.7 SEER2[2]
EER2
10.1 EER2[2]
HSPF2 (Region 4)
10.2 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
2.1 COP[2]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
-13 F[1]
Maximum outdoor temperature
122 F[1]
Indoor noise range
not published
Outdoor noise rating
62.5 dBA[1]
Indoor weight
not published
Outdoor weight
152.34 lb[1]
Refrigerant
R-454B[2]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
3/8 in liquid / 3/4 in suction
Included line-set length
C&H cassette and slim-duct systems are professional-install equipment; the installer supplies the refrigerant line set within published piping limits.
Maximum line-set length
246 ft[1]
Max line set per indoor
not published
Maximum elevation difference
98.4 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[2]
AHRI certification number
215864229[2]
Warranty
Registered: 5 yr parts / 7 yr compressor (licensed-technician installation and registration terms). Score uses Registered.. 7-year compressor and 5-year parts limited warranty with licensed-technician installation and registration terms.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI Active public directory row 215864229, Installation Manual - Medium/High Static Duct, Cooper & Hunter Multi R installation manual, Cooper & Hunter Slim Duct official product pages for CH-RS36LCDT-HS, Owner's Manual - Medium/High Static Duct, Cooper & Hunter support-material submittal for CH-R36LCU-230VO + CH-RS36LCDT-HS
Specification sheet
Cooper & Hunter support-material submittal for CH-R36LCU-230VO + CH-RS36LCDT-HS
Last sourced date
Aug 2, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
33 A[1]
Breaker needed
not published
Maximum breaker size
35 A[1]
Maximum fuse size
35 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
Field wiring per C&H support-material submittal and local electrical code.[1]

Installation considerations

Show
Liquid line
3/8 in[1]
Suction line
3/4 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
C&H cassette and slim-duct systems are professional-install equipment; the installer supplies the refrigerant line set within published piping limits.
Maximum line-set length
246 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
not published
Outdoor dimensions
37.24 x 16.14 x 31.89 in[1]
Indoor weight
not published
Outdoor weight
152.34 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Cooper & Hunter Slim Duct 36,000 BTU R-454B 208/230V (CH-RS36LCDT-HS / CH-R36LCU-230VO) myself, or do I need a pro?
Cooper & Hunter Slim Duct 36,000 BTU R-454B 208/230V (CH-RS36LCDT-HS / CH-R36LCU-230VO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Cooper & Hunter Slim Duct 36,000 BTU R-454B 208/230V (CH-RS36LCDT-HS / CH-R36LCU-230VO) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 25,600 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10.2 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Cooper & Hunter Slim Duct 36,000 BTU R-454B 208/230V (CH-RS36LCDT-HS / CH-R36LCU-230VO) need?
Published electrical requirements: 230 V voltage, 33 A minimum circuit ampacity, and 35 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 246 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the Cooper & Hunter Slim Duct 36,000 BTU R-454B 208/230V (CH-RS36LCDT-HS / CH-R36LCU-230VO) carry?
The manufacturer publishes these warranty tiers: Registered: 5 yr parts / 7 yr compressor (licensed-technician installation and registration terms). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
