Cooper & Hunter / Slim Duct

Cooper Hunter Slim Duct 24k Regular Concealed Ducted R-454B 208/230V Mini-Split

Certified capacity
24,000 BTU/h[2]
SEER2
19 SEER2[2]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

The standard-outdoor 24k slim-duct head matches the hyper version's 19 SEER2 exactly, with 24,000 BTU cooling and 25,000 heating at 11 HSPF2, rated to -13F.

Since the cooling efficiency is identical, the entire decision is about winter: the hyper version offers 0.7 more HSPF2, 1,000 BTU more heat, and nine more degrees of range. In a mild climate this one gives up nothing on cooling; in a cold one it gives up real capability.

1 zoneProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

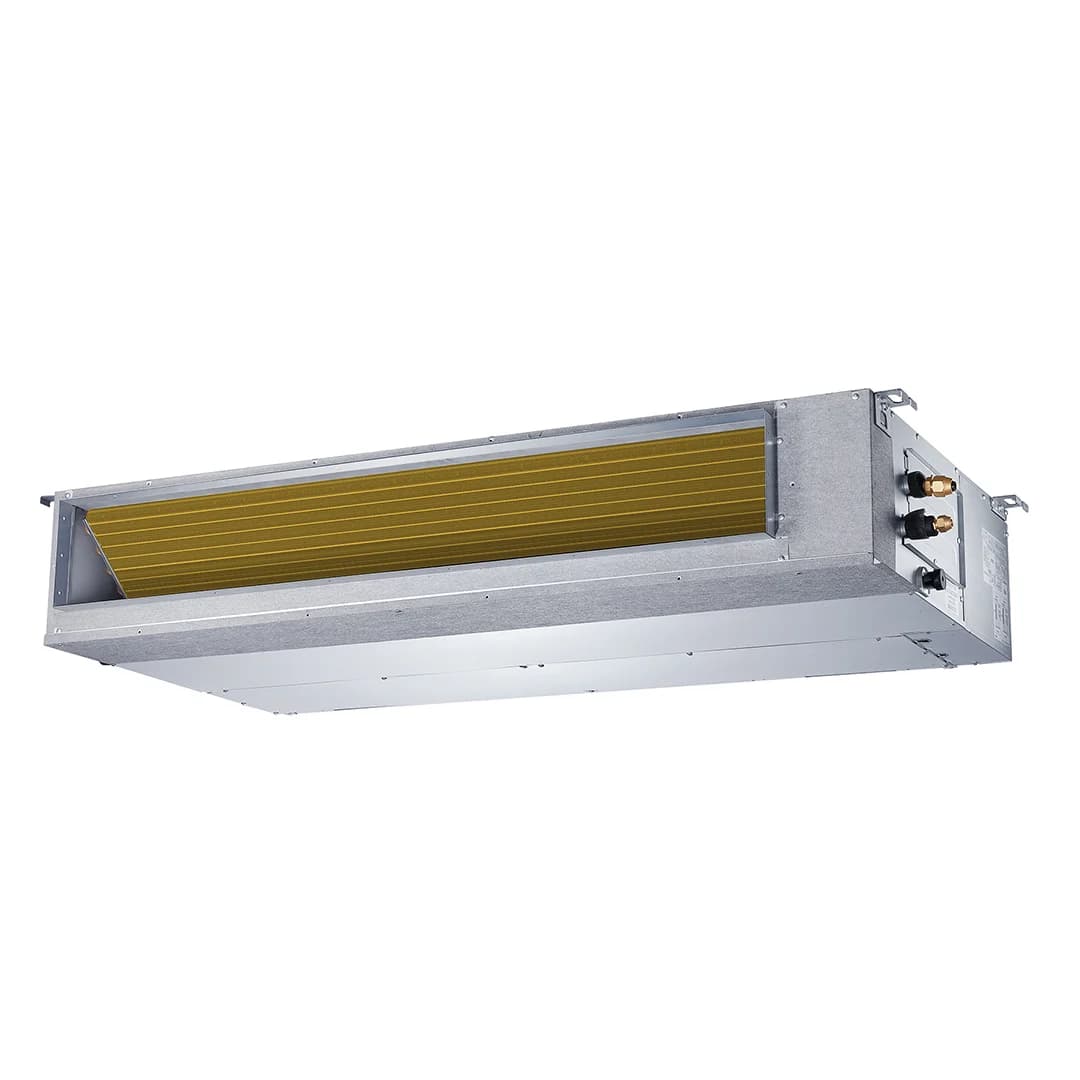

Cooper & Hunter 24000 BTU high-static slim duct indoor unit for an R-454B mini-split system.

Image: Cooper & Hunter official CH-RS24MDT-HS product page

Data completeness: 92%
Last sourced
Aug 2, 2026

SplitAtlas score

8.1 / 10

Methodology
Cooling efficiencyBottom quartile

(19.0 SEER2) among 24k systems

Heating efficiencyTop quartile

(11.0 HSPF2) among 24k systems

Cold-weather performanceBelow average

(5F certified capacity: 76% of the 47F rating; -13 F heating floor) among 24k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setAbove average

(6 verified features) across the catalogue

Documentation & partsBelow average

(6 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

24,000BTU/h[2]

Rated heating

25,000BTU/h[2]

Buyer review snapshot

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 24.9 A; breaker/fuse 25 A.
  • Line set: Flared line connections; precharged 25 ft; max 164 ft.

Alternatives

Availability and price context

This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.

Source date

Model data sourced
Aug 2, 2026
Page reviewed
Aug 2, 2026
Source-backed records
3
Newest source retrieved
Aug 2, 2026

Warranty tiers

Registered
5 yr parts / 7 yr compressor - licensed-technician installation and registration terms

The score uses Registered. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Structured ratings
Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.

Strengths

  • Matches the hyper version's cooling efficiency exactly.
  • 24,000 BTU cooling / 25,000 heating, fully concealed.

Weaknesses

  • -13F rating and 11 HSPF2, both behind the hyper version.
  • 19 SEER2 is modest, as ducting at this capacity always is.
  • Low-static head with little tolerance for long runs.

Climate suitability

Minimum heating ambient
-13 F[1]
Certified heating at 5F
19,000 BTU/h[2]
Rated heating at 17F
21,200 BTU/h[2]
Rated heating at 47F
25,000 BTU/h[2]

Specifications

Show
Manufacturer
Cooper & Hunter
Brand
Cooper & Hunter
Product line
Slim Duct
Model number
CH-RS24MDT-HS indoor / CH-RES24-230VO outdoor
Indoor unit model
CH-RS24MDT-HS
Outdoor unit model
CH-RES24-230VO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
24,000 BTU/h[2]
Rated heating capacity
25,000 BTU/h[2]
Voltage
230 V[1]
MCA
24.9 A[1]
Maximum fuse or breaker size
25 A[1]
Breaker needed
not published
SEER2
19 SEER2[2]
EER2
12.5 EER2[2]
HSPF2 (Region 4)
11 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
2.3 COP[2]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
-13 F[1]
Maximum outdoor temperature
122 F[1]
Indoor noise range
not published
Outdoor noise rating
61.5 dBA[1]
Indoor weight
not published
Outdoor weight
130.29 lb[1]
Refrigerant
R-454B[2]
Refrigerant charge
not published
Manufacturer coverage
not published
Line-set size
3/8 in liquid / 5/8 in suction
Included line-set length
C&H cassette and slim-duct systems are professional-install equipment; the installer supplies the refrigerant line set within published piping limits.
Maximum line-set length
164 ft[1]
Max line set per indoor
not published
Maximum elevation difference
82 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
ENERGY STAR certified[2]
AHRI certification number
215864228[2]
Warranty
Registered: 5 yr parts / 7 yr compressor (licensed-technician installation and registration terms). Score uses Registered.. 7-year compressor and 5-year parts limited warranty with licensed-technician installation and registration terms.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI Active public directory row 215864228, Installation Manual - Medium/High Static Duct, Cooper & Hunter Multi R installation manual, Cooper & Hunter Slim Duct official product pages for CH-RS24MDT-HS, Owner's Manual - Medium/High Static Duct, Cooper & Hunter support-material submittal for CH-RES24-230VO + CH-RS24MDT-HS
Specification sheet
Cooper & Hunter support-material submittal for CH-RES24-230VO + CH-RS24MDT-HS
Last sourced date
Aug 2, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
24.9 A[1]
Breaker needed
not published
Maximum breaker size
25 A[1]
Maximum fuse size
25 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
Field wiring per C&H support-material submittal and local electrical code.[1]

Installation considerations

Show
Liquid line
3/8 in[1]
Suction line
5/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
C&H cassette and slim-duct systems are professional-install equipment; the installer supplies the refrigerant line set within published piping limits.
Maximum line-set length
164 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
not published
Outdoor dimensions
37.24 x 16.14 x 31.89 in[1]
Indoor weight
not published
Outdoor weight
130.29 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Cooper & Hunter Slim Duct 24,000 BTU R-454B 208/230V (CH-RS24MDT-HS / CH-RES24-230VO) myself, or do I need a pro?
Cooper & Hunter Slim Duct 24,000 BTU R-454B 208/230V (CH-RS24MDT-HS / CH-RES24-230VO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Cooper & Hunter Slim Duct 24,000 BTU R-454B 208/230V (CH-RS24MDT-HS / CH-RES24-230VO) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 19,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 11 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Cooper & Hunter Slim Duct 24,000 BTU R-454B 208/230V (CH-RS24MDT-HS / CH-RES24-230VO) need?
Published electrical requirements: 230 V voltage, 24.9 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 164 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the Cooper & Hunter Slim Duct 24,000 BTU R-454B 208/230V (CH-RS24MDT-HS / CH-RES24-230VO) carry?
The manufacturer publishes these warranty tiers: Registered: 5 yr parts / 7 yr compressor (licensed-technician installation and registration terms). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
