Friedrich / Floating Air Pro X

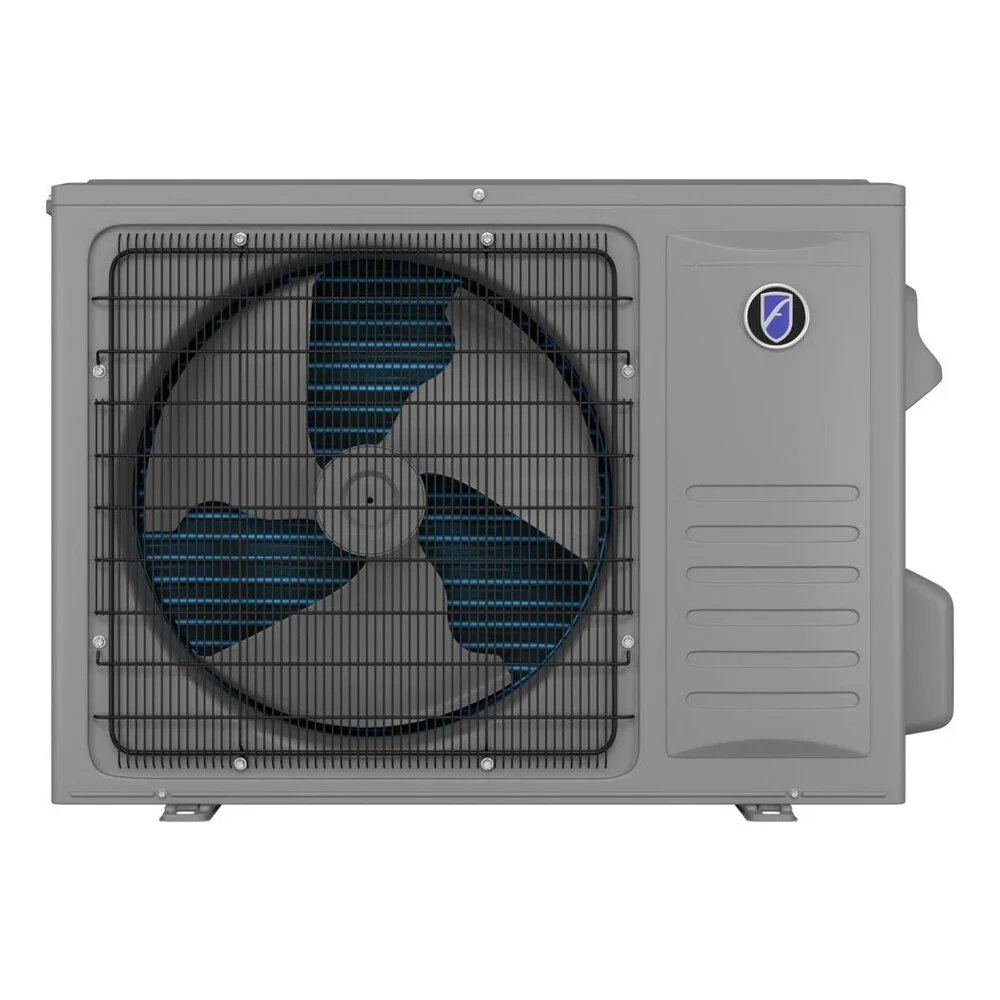

Friedrich Floating Air Pro X 12k R-454B 208/230V Mini-Split
Step up to the 12,000 BTU Pro X and you get the same flagship deep-cold trick on a 230V circuit: 21 SEER2, 11.2 EER2, 10 HSPF2, R-454B. Heating rates 12,000 BTU at 47F, dips to 8,900 BTU at 17F, and climbs all the way back to 12,000 BTU at 5F. For a one-ton cold-climate zone, full-rated 5F heat is hard to beat.
1 zoneProfessional installCurrent
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes
Image: Shop Appliances
Data completeness: 92%
- Last sourced
- Jul 27, 2026
SplitAtlas score
8.7 / 10
Cooling efficiencyBelow average
(21.0 SEER2) among 12k systems
Heating efficiencyBelow average
(10.0 HSPF2) among 12k systems
Cold-weather performanceTop 10%
(100% heat retained at 5F; -22 F heating floor) among 12k systems
NoiseAbove average
(-42 dBA indoor min / 64 dBA outdoor) among 12k systems
Feature setTop 10%
(7 verified features) across the catalogue
Documentation & partsBelow average
(7 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Install difficulty
Professional install
- Electrical: 230V; MCA 12 A; breaker/fuse 20 A.
- Line set: connection type not sourced; precharged 25 ft; max 130 ft.
Alternatives
- Daikin ATMOSPHERA 12,000 BTU R-32 208/230V (FTXM12WVJU9 / RXM12WVJU9)
9.0 score / 12k / SEER2 25.2 / -13 F heating floor / 208/230V
Exact destination at HVACDirect: $2,848.00, checked Jul 23, 2026
- Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
- Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
Availability and price context
We could not verify a current retail price for this model. We could not find a published consumer price for this model when we last checked on 2026-07-27.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 3
- Newest source retrieved
- Jul 27, 2026
Strengths
- Full recovery to 12,000 BTU at 5F, delivering complete rated capacity in the deepest cold.
- Cold-climate and ENERGY STAR certified on R-454B, with 10 HSPF2 for solid seasonal heating efficiency.
- Friedrich's dealer and warranty support gives this professionally installed unit long-term backing.
Weaknesses
- The intermediate 17F dip to 8,900 BTU is the deepest point in the curve, so mid-cold output lags the endpoints.
- 11.2 EER2 is respectable but not class-leading, and pricing comes only through a dealer quote.
Climate suitability
- Minimum heating ambient
- -22 F[1]
- Rated heating at 5F
- 12,000 BTU/h[2]
- Rated heating at 17F
- 8,900 BTU/h[2]
- Rated heating at 47F
- 12,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- Friedrich
- Brand
- Friedrich
- Product line
- Floating Air Pro X
- Model number
- FAHFW12A3D indoor / FPHFR12A3D outdoor
- Indoor unit model
- FAHFW12A3D
- Outdoor unit model
- FPHFR12A3D
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 12,000 BTU/h[2]
- Rated heating capacity
- 12,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 12 A[1]
- Maximum fuse or breaker size
- 20 A[1]
- Breaker needed
- not published
- SEER2
- 21 SEER2[2]
- EER2
- 11.2 EER2[2]
- HSPF2 (Region 4)
- 10 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[2]
- Minimum outdoor heating temperature
- -22 F[1]
- Minimum outdoor cooling temperature
- 5 F[1]
- Maximum outdoor temperature
- 125 F[1]
- Indoor noise range
- 32-42 dB(A)[1]
- Outdoor noise rating
- 64 dBA[1]
- Indoor weight
- 22.05 lb[1]
- Outdoor weight
- 79.4 lb[1]
- Refrigerant
- R-454B[2]
- Refrigerant charge
- 38.1 oz[1]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Friedrich Floating Air professional-install sources publish required refrigerant line-set sizes and allowed min/max lengths, but no included line set.
- Maximum line-set length
- 130 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 50 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[3]
- AHRI certification number
- 217269480[2]
- Warranty
- not published
- Install path
- Professional install
- Retail price
- We could not find a published consumer price for this model when we last checked on 2026-07-27.
- Available retailers
- not published
- Manual links
- AHRI public directory record 217269480, ENERGY STAR record 4016076 for FPHFR12A3D / FAHFW12A3D, HVACDirect exact Friedrich Floating Air t78 model search summary, Friedrich Floating Air manufacturer page snapshot, Friedrich Floating Air ductless 2026 brochure, Friedrich Floating Air Pro X single-zone wall-mounted submittal, Friedrich Floating Air ductless warranty
- Specification sheet
- Friedrich Floating Air ductless 2026 brochure
- Last sourced date
- Jul 27, 2026
Electrical requirements
ShowHide
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 3/8 in[1]
- Line connection type
- not published
- Precharged length
- 25 ft[1]
- Included line-set length
- Friedrich Floating Air professional-install sources publish required refrigerant line-set sizes and allowed min/max lengths, but no included line set.
- Maximum line-set length
- 130 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 33-7/8 x 11-2/8 x 8-4/8 in[1]
- Outdoor dimensions
- 31-7/8 x 22-7/8 x 11 in[1]
- Indoor weight
- 22.05 lb[1]
- Outdoor weight
- 79.4 lb[1]
- Drain size
- not published
Related systems and guides
- More Friedrich systems
- Friedrich 230 V option
- Friedrich sibling model
- Friedrich 12k model
- AIRSTAGE Altair 300 12k
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- The best 12,000 BTU mini splits of 2026
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- One room won't heat or cool on a multi-zone mini split
- Mini split Wi-Fi not connecting
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Friedrich Floating Air Pro X 12,000 BTU R-454B 208/230V (FAHFW12A3D / FPHFR12A3D) myself, or do I need a pro?
- Friedrich Floating Air Pro X 12,000 BTU R-454B 208/230V (FAHFW12A3D / FPHFR12A3D) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Friedrich Floating Air Pro X 12,000 BTU R-454B 208/230V (FAHFW12A3D / FPHFR12A3D) keep heating in a cold winter?
- The manufacturer publishes 12,000 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Friedrich Floating Air Pro X 12,000 BTU R-454B 208/230V (FAHFW12A3D / FPHFR12A3D) need?
- Published electrical requirements: 230 V voltage, 12 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 130 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
