GE Appliances / GE Endure
GE Appliances GE Endure 32.4k R-454B 208/230V Mini-Split

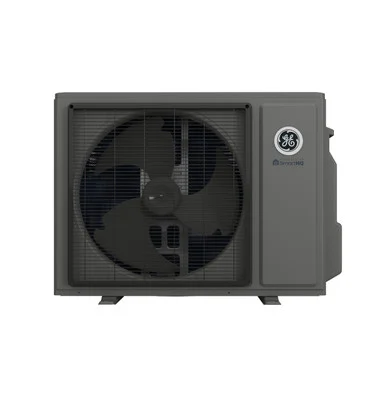

This is the largest Endure head, a single-zone 32,400 BTU cooling heat pump on 230V running low-GWP R-454B. It posts 20 SEER2, a 10.5 EER2, and 9.5 HSPF2, and it is both ENERGY STAR certified and cold-climate designated. It is the line's biggest heater, delivering 37,000 BTU at 47F and 26,200 BTU at 5F.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes
Image: GE Appliances
- Last sourced
- Jul 27, 2026
SplitAtlas score
8.1 / 10
(20.0 SEER2) among 36k systems
(9.5 HSPF2) among 36k systems
(5F certified capacity: 70.8% of the 47F rating; -22 F heating floor) among 36k systems
(40 dBA indoor min / 73 dBA outdoor) among 36k systems
(10 yr parts, no separate compressor term) across the catalogue
(6 verified features) across the catalogue
(8 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Best-fit use cases
Best for a very large room or open space in a cold climate that needs maximum single-head heating capacity from a certified, efficient premium unit.
Buyer review snapshot
Install difficulty
- Electrical: 230V; MCA 25 A; breaker/fuse 40 A.
- Line set: connection type not sourced; max 165 ft.
Alternatives
- Senville AURA 33,000 BTU R-454B 208/230V (SENA-33HF-IGG / SENA-33HF-OG)
8.8 score / 33k / SEER2 19.5 / -22 F heating floor / 187-253V
Exact destination at Senville: $2,199.99, checked Jul 24, 2026
- Blueridge XS5 All Climate Plus 33,000 BTU R-454B 208/230V (BXAFA33WM0 / BXS5A33UC0)
8.6 score / 33k / SEER2 19.5 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $2,619.00, checked Jul 24, 2026
- Blueridge XS2 Core 30,000 BTU R-454B 208/230V (BXS2A30WM0 / BXS2A30SC0)
8.5 score / 30k / SEER2 22.3 / -13 F heating floor / 230V
Exact destination at Alpine Home Air: $1,999.00, checked Jul 24, 2026
Availability and price context
This system needs a professional install, so its real price is an installed quote that depends on your home. We don't link to a listing for this exact model; get installation quotes to price it.
Source date
- Model data sourced
- Jul 27, 2026
- Page reviewed
- Jul 27, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 27, 2026
Warranty tiers
- Base
- 5 yr parts / no separate compressor term - limited parts warranty
- Registered
- 10 yr parts / no separate compressor term - registered limited parts warranty
The score uses Registered. Additional published terms are shown for reference and not counted in the score.
Model context
- Structured ratings
- Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -22 F.
Strengths
- Highest heat output in the line, 37,000 BTU at 47F and 26,200 BTU at 5F
- Cold-climate designated and ENERGY STAR certified even at this large capacity
- Holds a respectable 20 SEER2 for a 3-ton-class head
Weaknesses
- 10.5 EER2 is soft on peak-load efficiency versus the smaller Endure heads
- A 3-ton single head is a lot of load for one room; a zoned design often fits better
- Loudest of the group, with a 40 dB(A) floor
Climate suitability
- Minimum heating ambient
- -22 F[2]
- Certified heating at 5F
- 26,200 BTU/h[3]
- Rated heating at 17F
- 24,000 BTU/h[3]
- Rated heating at 47F
- 37,000 BTU/h[3]
Specifications
ShowHide
- Manufacturer
- GE Appliances
- Brand
- GE Appliances
- Product line
- GE Endure
- Model number
- GS36WB2BEA indoor / 1G3036ED2BEA outdoor
- Indoor unit model
- GS36WB2BEA
- Outdoor unit model
- 1G3036ED2BEA
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 32,400 BTU/h[3]
- Rated heating capacity
- 37,000 BTU/h[3]
- Voltage
- 230 V[1]
- MCA
- 25 A[2]
- Maximum fuse or breaker size
- 40 A[2]
- Breaker needed
- not published
- SEER2
- 20 SEER2[3]
- EER2
- 10.5 EER2[3]
- HSPF2 (Region 4)
- 9.5 HSPF2[3]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 1.8 COP[3]
- Minimum outdoor heating temperature
- -22 F[2]
- Minimum outdoor cooling temperature
- 23 F[2]
- Maximum outdoor temperature
- 115 F[2]
- Indoor noise range
- 56/54/50/44/40 dB(A)[1]
- Outdoor noise rating
- 73 dBA[2]
- Indoor weight
- 46.337 lb[1]
- Outdoor weight
- 165.42 lb[1]
- Refrigerant
- R-454B[3]
- Refrigerant charge
- 109.4 oz[2]
- Manufacturer coverage
- not published
- Line-set size
- 3/8 in liquid / 5/8 in suction
- Included line-set length
- not published
- Maximum line-set length
- 165 ft[2]
- Max line set per indoor
- not published
- Maximum elevation difference
- 100 ft[2]
- Max height between indoor units
- not published
- Wi-Fi support
- not published
- Energy Star status
- ENERGY STAR certified[4]
- AHRI certification number
- 217465737[3]
- Warranty
- Base: 5 yr parts / no separate compressor term (limited parts warranty); Registered: 10 yr parts / no separate compressor term (registered limited parts warranty). Score uses Registered.. 5-year limited parts warranty; 10-year registered limited parts warranty with registration.
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- AHRI public directory record 217465737, ENERGY STAR exact check 217465737, 1G3036ED2BEA / GS36WB2BEA GE installation instructions, 1G3036ED2BEA GE Appliances Air & Water product page, GS36WB2BEA GE Appliances Air & Water product page, 1G3036ED2BEA / GS36WB2BEA GE specification guide or submittal, 1G3036ED2BEA / GS36WB2BEA GE warranty
- Specification sheet
- 1G3036ED2BEA / GS36WB2BEA GE specification guide or submittal
- Last sourced date
- Jul 27, 2026
Installation considerations
ShowHide
- Liquid line
- 3/8 in[1]
- Suction line
- 5/8 in[1]
- Line connection type
- not published
- Precharged length
- not published
- Included line-set length
- not published
- Maximum line-set length
- 165 ft[2]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 51.8 in W x 14.4 in H x 10.8 in D[1]
- Outdoor dimensions
- 43.13 in W x 33.06 in H x 19.88 in D[2]
- Indoor weight
- 46.337 lb[1]
- Outdoor weight
- 165.42 lb[1]
- Drain size
- not published
Related systems and guides
- More GE Appliances systems
- GE Appliances GE Altitude 32.4k R-454B 208/230V Mini-Split
- LG Multi F 36k R-32 208/230V 4-Zone Mini-Split
- GE Appliances Altitude Multi 36k R-454B 208/230V 4-Zone Mini-Split
- Toshiba Carrier 26 High Wall 32k R-454B 208/230V Mini-Split
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- What size mini split do I need for a garage?
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split short cycling
- Mini split outdoor unit not running
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the GE Appliances Endure 32,400 BTU R-454B 208/230V (GS36WB2BEA / 1G3036ED2BEA) myself, or do I need a pro?
- GE Appliances Endure 32,400 BTU R-454B 208/230V (GS36WB2BEA / 1G3036ED2BEA) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the GE Appliances Endure 32,400 BTU R-454B 208/230V (GS36WB2BEA / 1G3036ED2BEA) keep heating in a cold winter?
- The AHRI/ENERGY STAR certification lists 26,200 BTU/h of heating capacity at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the GE Appliances Endure 32,400 BTU R-454B 208/230V (GS36WB2BEA / 1G3036ED2BEA) need?
- Published electrical requirements: 230 V voltage, 25 A minimum circuit ampacity, and 40 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 165 ft. Measure the planned routing before ordering.
- What warranty does the GE Appliances Endure 32,400 BTU R-454B 208/230V (GS36WB2BEA / 1G3036ED2BEA) carry?
- The manufacturer publishes these warranty tiers: Base: 5 yr parts / no separate compressor term (limited parts warranty); Registered: 10 yr parts / no separate compressor term (registered limited parts warranty). Score uses Registered.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
Data sources
ShowHide
- GE Appliances Air & Water: 1G3036ED2BEA / GS36WB2BEA GE Appliances product pagesSourced - manufacturer product page
Covers Frequency, Phase, Voltage, Voltage range, Indoor dimensions, Indoor noise range and more
- GE Appliances Air & Water: GE Endure Single Zone specification guide derived highwall valuesSourced - manufacturer technical document
Covers Maximum fuse size, Minimum circuit ampacity, Maximum elevation difference, Maximum line-set length, Outdoor dimensions, Outdoor noise rating and more
- Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for 1G3036ED2BEA / GS36WB2BEASourced - AHRI directory
Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more
- ENERGY STAR: ENERGY STAR exact row check for AHRI 217465737Sourced - Energy Star listing
Covers Energy Star status
Last updated
Jul 27, 2026
