GE Appliances / Altitude Multi

GE Appliances Altitude Multi 36k R-454B 208/230V 4-Zone Mini-Split

Certified capacity
35,000 BTU/h[3]
SEER2
20 SEER2[3]
Heating floor
-4 F[2]
Voltage
230 V[1]
Install path
Professional install

The GE Altitude Multi 4-zone covers four rooms from one 208/230V outdoor unit on R-454B refrigerant, with a certified nominal SEER2 of 20 (EER2 10, HSPF2 10). It is neither ENERGY STAR certified nor AHRI cold-climate designated, so it is the straightforward capacity option in the line rather than an efficiency or hard-freeze pick.

As with any multi-zone, that certified figure is the all-non-ducted nominal and depends on the heads you attach. Heating is rated at 36000 BTU at 47F, 24000 at 17F, and 23000 at 5F, so output tapers in deep cold - plan capacity for your coldest design day.

GE Appliances is a Haier-owned brand and this is the same hardware as the Haier FlexFit Multi, installed by professional dealers and priced by quote.

4 zonesProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

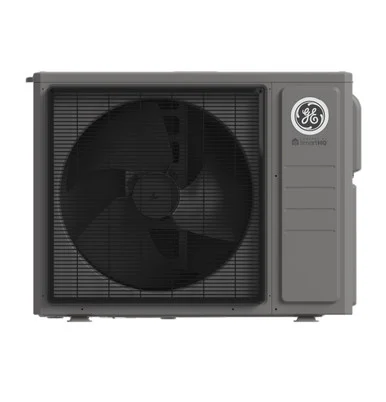

GE Appliances Altitude Multi 4-Zone 36,000 BTU R-454B 208/230V (4G36AD2BEA) mini-split heat pump outdoor condenser

Image: GE Appliances

Data completeness: 95%
Last sourced
Jul 29, 2026

SplitAtlas score

7.8 / 10

Methodology
Cooling efficiencyBelow average

(20.0 SEER2) among 36k systems

Heating efficiencyAbove average

(10.0 HSPF2) among 36k systems

Cold-weather performanceBottom quartile

(63.9% heat retained at 5F; -4 F heating floor) among 36k systems

WarrantyAbove average

(10 yr parts / 10 yr compressor) across the catalogue

Feature setBottom quartile

(3 verified features) across the catalogue

Documentation & partsBelow average

(8 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

35,000BTU/hNon-Ducted Indoor Units[3]

Rated heating

36,000BTU/hNon-Ducted Indoor Units[3]

Buyer review snapshot

Best for / skip if

Best for

  • 4-zone projects in the 36k outdoor capacity class.

Install difficulty

Complex professional install
  • Electrical: 230V; MCA 22 A; breaker/fuse 30 A.
  • Line set: connection type not sourced; precharged 131 ft; max 230 ft.
  • 4-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

We could not verify a current retail price for this model. GE Appliances multi-zone systems are sold through professional installation channels, so we link to contractor quotes rather than a retail price.

Source date

Model data sourced
Jul 29, 2026
Page reviewed
Jul 29, 2026
Source-backed records
4
Newest source retrieved
Jul 29, 2026

Warranty tiers

Warranty: 5 years parts and no separate compressor term published as standard; 10 years parts and no separate compressor term published if the system is registered.

Review methodology

Strengths

  • Four zones from a single outdoor unit and one 208/230V circuit.
  • 36000 BTU certified 47F heating output for whole-floor coverage.
  • Current R-454B refrigerant backed by GE's national parts and service network.

Weaknesses

  • Not ENERGY STAR certified and not cold-climate designated; heating tapers to 23000 BTU at 5F.
  • Lowest certified efficiency in the GE line (SEER2 20 / EER2 10).
  • Professional dealer installation required, priced by quote; four-zone capacity is shared.

Climate suitability

Minimum heating ambient
-4 F[2]
Rated heating at 5F
23,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating at 17F
24,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating at 47F
36,000 BTU/hNon-Ducted Indoor Units[3]

Specifications

Show
Manufacturer
GE Appliances
Brand
GE Appliances
Product line
Altitude Multi
Model number
4G36AD2BEA
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
4G36AD2BEA
Number of zones
4
Max indoor units
4 units[1]
Rated cooling capacity
35,000 BTU/hNon-Ducted Indoor Units[3]
Rated heating capacity
36,000 BTU/hNon-Ducted Indoor Units[3]
Voltage
230 V[1]
MCA
22 A[1]
Maximum fuse or breaker size
30 A[1]
Breaker needed
not published
SEER2
20 SEER2Non-Ducted Indoor Units[3]
EER2
10 EER2Non-Ducted Indoor Units[3]
HSPF2 (Region 4)
10 HSPF2Non-Ducted Indoor Units[3]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
not published
COP at 5F
1.8 COPNon-Ducted Indoor Units[3]
Minimum outdoor heating temperature
-4 F[2]
Minimum outdoor cooling temperature
14 F[2]
Maximum outdoor temperature
115 F[2]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
58 dBA[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
130 lb[1]
Refrigerant
R-454BNon-Ducted Indoor Units[3]
Refrigerant charge
81 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 3/8 in; 1/2 in adapter listed suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[2]
Maximum elevation difference
50 ft[1]
Max height between indoor units
not published
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
Not ENERGY STAR certified[4]
AHRI certification number
217009763Non-Ducted Indoor Units[3]
Warranty
Standard: 5 yr parts / no separate compressor term (limited parts warranty); Best case: 10 yr parts / no separate compressor term (registered limited parts warranty). 5-year limited parts warranty; 10-year registered limited parts warranty with registration.
Install path
Professional install
Retail price
GE Appliances multi-zone systems are sold through professional installation channels, so we link to contractor quotes rather than a retail price.
Available retailers
not published
Manual links
AHRI public detail for 4G36AD2BEA, ENERGY STAR exact AHRI rows for 4G36AD2BEA, 4G36AD2BEA GE Appliances installation instructions, 4G36AD2BEA GE Appliances Air & Water product page, Lead-gen/no-retail audit for 4G36AD2BEA, 4G36AD2BEA GE Appliances specification guide, 4G36AD2BEA GE Appliances Altitude Multi submittal, 4G36AD2BEA GE Appliances warranty
Specification sheet
4G36AD2BEA GE Appliances specification guide
Last sourced date
Jul 29, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
22 A[1]
Breaker needed
not published
Maximum breaker size
30 A[1]
Maximum fuse size
30 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
3/8 in; 1/2 in adapter listed[2]
Line connection type
not published
Precharged length
131 ft[2]
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[2]
Max height between indoor units
not published
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
37.1875 x 15.8125 x 30.125 in[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
130 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GE Appliances Altitude Multi 4-Zone 36,000 BTU R-454B 208/230V (4G36AD2BEA) myself, or do I need a pro?
GE Appliances Altitude Multi 4-Zone 36,000 BTU R-454B 208/230V (4G36AD2BEA) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GE Appliances Altitude Multi 4-Zone 36,000 BTU R-454B 208/230V (4G36AD2BEA) keep heating in a cold winter?
The manufacturer publishes 23,000 BTU/h of heating output at 5F. Rated heating operation extends down to -4 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GE Appliances Altitude Multi 4-Zone 36,000 BTU R-454B 208/230V (4G36AD2BEA) need?
Published electrical requirements: 230 V voltage, 22 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 230 ft, and the included line set comes pre-charged for 131 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the GE Appliances Altitude Multi 4-Zone 36,000 BTU R-454B 208/230V (4G36AD2BEA) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / no separate compressor term (limited parts warranty); Best case: 10 yr parts / no separate compressor term (registered limited parts warranty). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. GE Appliances Air & Water: 4G36AD2BEA GE Appliances Altitude Multi product pageSourced - manufacturer product page

    Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Voltage and more

  2. GE Appliances Air & Water: 4G36AD2BEA GE Appliances Altitude Multi submittalSourced - manufacturer technical document

    Covers electrical_spec.guaranteed_voltage_range, Precharged length, Suction line size, Max line set per indoor, Minimum outdoor cooling temperature, Minimum outdoor heating temperature and more

  3. Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for 4G36AD2BEASourced - AHRI directory

    Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more

  4. ENERGY STAR: ENERGY STAR product database exact AHRI rows for 4G36AD2BEASourced - secondary source

    Covers performance_spec.energy_star_cold_climate, Energy Star status
