Friedrich / Floating Air Pro X

Friedrich Floating Air Pro X 27k R-454B 208/230V 3-Zone Mini-Split

Certified capacity
27,000 BTU/h[2]
SEER2
23 SEER2[2]
Heating floor
-13 F[1]
Voltage
230 V[1]
Install path
Professional install

The Floating Air Pro X 3-zone covers three rooms from one 208/230V outdoor unit. It carries current R-454B refrigerant and a certified nominal SEER2 of 23 (EER2 12.85, HSPF2 10), and it is ENERGY STAR certified and AHRI cold-climate designated.

As with any multi-zone, that certified figure is the all-non-ducted nominal; your real efficiency depends on the heads you attach. Heating is rated at 27000 BTU at 47F, 17600 at 17F, and back to the full 27000 at 5F - the deep-cold output recovers to match the 47F rating.

Friedrich is an established American brand installed by professional dealers and priced by quote.

3 zonesProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

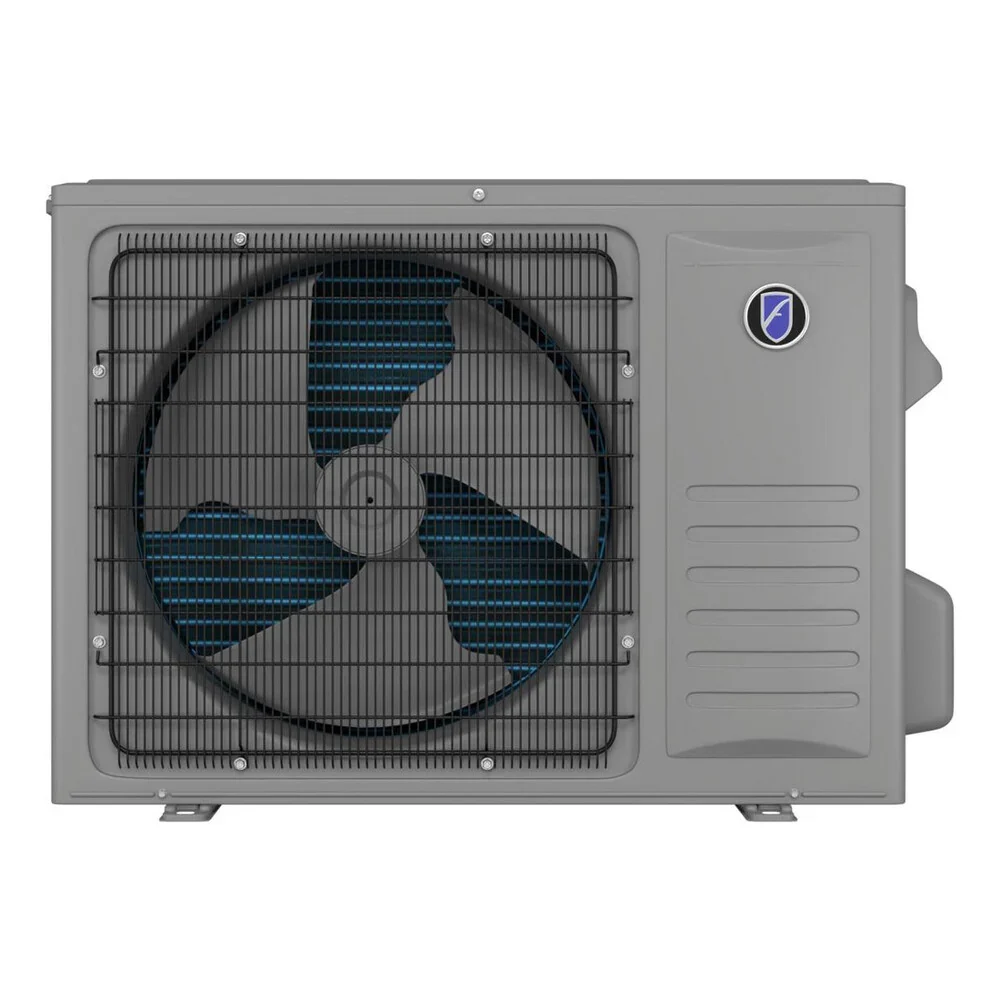

Friedrich Floating Air Pro X 3-Zone 27,000 BTU R-454B 208/230V (FPHMR27A3D) mini-split heat pump outdoor condenser

Image: Shop Appliances

Data completeness: 95%
Last sourced
Jul 29, 2026

SplitAtlas score

8.9 / 10

Methodology
Cooling efficiencyTop quartile

(23.0 SEER2) among 24k systems

Heating efficiencyAbove average

(10.0 HSPF2) among 24k systems

Cold-weather performanceTop 10%

(100% heat retained at 5F; -13 F heating floor) among 24k systems

WarrantyAbove average

(7 yr parts / 10 yr compressor) across the catalogue

Feature setBelow average

(4 verified features) across the catalogue

Documentation & partsBelow average

(8 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

27,000BTU/hNon-Ducted Indoor Units[2]

Rated heating

27,000BTU/hNon-Ducted Indoor Units[2]

Buyer review snapshot

Best for / skip if

Best for

  • 3-zone projects in the 24k outdoor capacity class.
  • High-efficiency shortlists; SEER2 is 23.

Install difficulty

Complex professional install
  • Electrical: 230V; MCA 25 A; breaker/fuse 30 A.
  • Line set: connection type not sourced; precharged 75 ft; max 230 ft.
  • 3-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-29.

Source date

Model data sourced
Jul 29, 2026
Page reviewed
Jul 29, 2026
Source-backed records
3
Newest source retrieved
Jul 29, 2026

Warranty tiers

Warranty: 7 years parts and 10 years compressor if the system is registered.

Review methodology

Model context

Install path
This is professional-install equipment; no verified current retail offer is attached.
Structured ratings
Certification: ENERGY STAR certified and ENERGY STAR cold-climate certified. Refrigerant: current low-GWP R-454B. Minimum heating ambient: -13 F.

Strengths

  • Three zones from one outdoor unit and one 208/230V circuit.
  • Certified nominal SEER2 23 / EER2 12.85 / HSPF2 10, ENERGY STAR certified.
  • 5F heat recovers to the full 27000 BTU 47F output, AHRI cold-climate designated.
  • Current R-454B refrigerant from an established, quality-focused American brand.

Weaknesses

  • Three-zone total capacity is shared; size to the condenser, not three full rooms.
  • Dealer-quoted pricing only, with a part-load efficiency penalty when only one zone is calling.

Climate suitability

Minimum heating ambient
-13 F[1]
Rated heating at 5F
27,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
17,600 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
27,000 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
Friedrich
Brand
Friedrich
Product line
Floating Air Pro X
Model number
FPHMR27A3D
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
FPHMR27A3D
Number of zones
3
Max indoor units
3 units[1]
Rated cooling capacity
27,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
27,000 BTU/hNon-Ducted Indoor Units[2]
Voltage
230 V[1]
MCA
25 A[1]
Maximum fuse or breaker size
30 A[1]
Breaker needed
not published
SEER2
23 SEER2Non-Ducted Indoor Units[2]
EER2
12.85 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
10 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
3.6 COP[1]
COP at 5F
1.82 COPNon-Ducted Indoor Units[2]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
5 F[1]
Maximum outdoor temperature
125 F[1]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
62 dBA[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
160.6 lb[1]
Refrigerant
R-454BNon-Ducted Indoor Units[2]
Refrigerant charge
76.2 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
49 ft[1]
Max height between indoor units
not published
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
215792839Non-Ducted Indoor Units[2]
Warranty
Best case: 7 yr parts / 10 yr compressor (registration). 7-year limited parts / 10-year compressor warranty with registration
Install path
Professional install
Retail price
We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-29.
Available retailers
not published
Manual links
Friedrich 2026 Floating Air ductless brochure, AHRI public detail for FPHMR27A3D, ENERGY STAR exact AHRI rows for FPHMR27A3D, Friedrich R-454B multi-zone outdoor installation manual, Friedrich Floating Air official page, HVACDirect exact-offer audit for FPHMR27A3D, Friedrich Floating Air Pro multi-zone R-454B service manual, Friedrich Floating Air Pro X Multi-Zone submittal
Specification sheet
Friedrich Floating Air Pro X Multi-Zone submittal
Last sourced date
Jul 29, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
25 A[1]
Breaker needed
not published
Maximum breaker size
30 A[1]
Maximum fuse size
30 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
4 x 14 AWG stranded THHN[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
3/8 in[1]
Line connection type
not published
Precharged length
75 ft[1]
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
not published
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
38-3/8 x 32-7/8 x 14-1/8 in[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
160.6 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Friedrich Floating Air Pro X 3-Zone 27,000 BTU R-454B 208/230V (FPHMR27A3D) myself, or do I need a pro?
Friedrich Floating Air Pro X 3-Zone 27,000 BTU R-454B 208/230V (FPHMR27A3D) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Friedrich Floating Air Pro X 3-Zone 27,000 BTU R-454B 208/230V (FPHMR27A3D) keep heating in a cold winter?
The manufacturer publishes 27,000 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Friedrich Floating Air Pro X 3-Zone 27,000 BTU R-454B 208/230V (FPHMR27A3D) need?
Published electrical requirements: 230 V voltage, 25 A minimum circuit ampacity, and 30 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 230 ft, and the included line set comes pre-charged for 75 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Friedrich Floating Air Pro X 3-Zone 27,000 BTU R-454B 208/230V (FPHMR27A3D) carry?
The manufacturer publishes these warranty tiers: Best case: 7 yr parts / 10 yr compressor (registration). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Friedrich Air Conditioning Co.: Friedrich Floating Air Pro X Multi-Zone submittalSourced - manufacturer technical document

    Covers Frequency, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase, Manufacturer wire notes and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for FPHMR27A3DSourced - AHRI directory

    Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more

  3. ENERGY STAR: ENERGY STAR product database exact AHRI rows for FPHMR27A3DSourced - secondary source

    Covers performance_spec.energy_star_cold_climate, Energy Star status

Last updated

Jul 29, 2026
