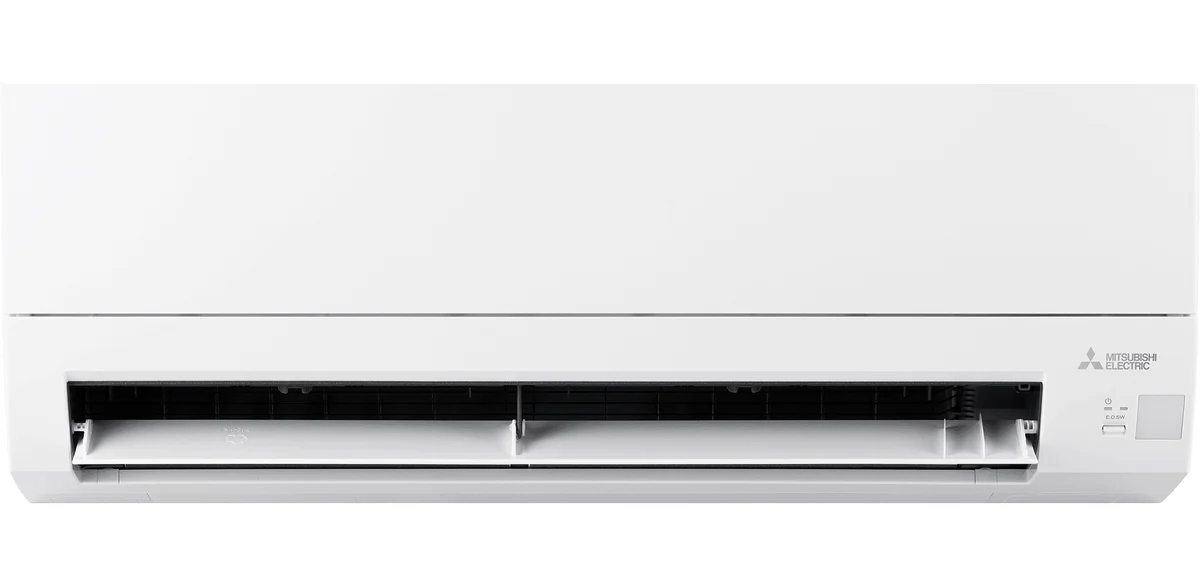

Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL)
Model data is drawn from manufacturer, retailer, and certification sources. Missing specifications remain marked as not published.
1 zoneProfessional installProfessional installCurrent
Get installation quotes
Free and no obligation. Takes about a minute.
Data completeness: 92%
- Last verified
- Jul 23, 2026
SplitAtlas score
7.5 / 10
Cooling efficiency13.5
Heating efficiency39.9
Cold-weather performance55.5
Noise36.5
Warranty5.0
Feature set0.0
Documentation & parts50.0
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) review summary
The M-Series JX 12k is the 1-ton, 115-volt value unit: SEER2 20, EER2 12.5, HSPF2 10, with 12,200 BTU of heat at 47F and 8,600 BTU held at 5F, on R-454B refrigerant. It brings the same circuit-friendly voltage as the JX 9k to a larger room.
Rated cooling
12,000BTU/hVerified - AHRI directory
Rated heating
12,200BTU/hVerified - AHRI directory
Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) best-fit use cases
A larger bedroom or small living room served by a 115V circuit where the buyer wants Mitsubishi reliability.
Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) specifications
- Manufacturer
- Mitsubishi Electric
- Brand
- Mitsubishi Electric
- Product line
- M-Series JX
- Model number
- MSZ-JX12WL-U1 indoor / MUZ-JX12WL-U1 outdoor
- Indoor unit model
- MSZ-JX12WL-U1
- Outdoor unit model
- MUZ-JX12WL-U1
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 12,000 BTU/hVerified - AHRI directory
- Rated heating capacity
- 12,200 BTU/hVerified - AHRI directory
- Voltage
- 115VVerified - manufacturer product page
- MCA
- 17 AVerified - manufacturer technical document
- Maximum fuse or breaker size
- 20 AVerified - manufacturer technical document
- Breaker needed
- 20 AVerified - manufacturer product page
- SEER2
- 20 SEER2Verified - AHRI directory
- EER2
- 12.5 EER2Verified - AHRI directory
- HSPF2 (Region 4)
- 10 HSPF2Verified - AHRI directory
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- 3.61 COPVerified - manufacturer technical document
- COP at 5F
- 1.8 COPVerified - AHRI directory
- Minimum outdoor heating temperature
- -5 FVerified - manufacturer product page
- Minimum outdoor cooling temperature
- not published
- Maximum outdoor temperature
- 115 FVerified - manufacturer product page
- Indoor noise range
- cooling 22 , 30 , 38 , 47; heating 23 , 30 , 38 , 43Verified - manufacturer technical documentmanufacturer published: cooling 22; heating 51 dB(A)
- Outdoor noise rating
- 51 dBAVerified - manufacturer technical documentmanufacturer published: 49 dBA
- Indoor weight
- 20 lbVerified - manufacturer technical documentmanufacturer published: 19.84 lb
- Outdoor weight
- 82 lbVerified - manufacturer technical documentmanufacturer published: 81.35 lb
- Refrigerant
- R-454BVerified - AHRI directory
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Mitsubishi submittals publish line-size and maximum/precharged piping data; the installer supplies the line set.
- Maximum line-set length
- 65 ftVerified - manufacturer technical document
- Max line set per indoor
- not published
- Maximum elevation difference
- 40 ftVerified - manufacturer technical document
- Max height between indoor units
- not published
- Wi-Fi support
- not published
- Energy Star status
- certifiedVerified - AHRI directory
- AHRI certification number
- 216626293Verified - AHRI directory
- Warranty
- 5 years parts / 7 years compressor. Standard residential M-Series warranty is 5 years parts and 7 years compressor from installation by a licensed HVAC contractor. Enhanced residential terms are 10 years parts and compressor for an owner-occupied residence registered within 90 days of installation, and 12 years parts and compressor when installed in an owner-occupied residence by a Diamond Contractor and registered by that Diamond Contractor within 90 days.
- DIY installation status
- Professional install
- Retail price
- HVACDirect exact model search returned 403 and no exact product page with visible price was retrieved on 2026-07-23.
- Installation type
- Professional install
- Available retailers
- not published
- Manual links
- AHRI certificate 216626293, AHRI public detail 216626293, ENERGY STAR exact row for AHRI 216626293, M-Series JX Mitsubishi Comfort product page, M-Series JX Mitsubishi Comfort product page, MitsubishiPro product record MUZ-JX12WL-U1, HVACDirect exact search for MSZ-JX12WL / MUZ-JX12WL, MSZ-JX12WL & MUZ-JX12WL Mitsubishi Electric submittal, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement
- Specification sheet
- MSZ-JX12WL & MUZ-JX12WL Mitsubishi Electric submittal
- Last verified date
- Jul 23, 2026
Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) strengths
- 115V operation on a 1-ton system - flexible for retrofits without a new 230V line.
- SEER2 20 / HSPF2 10 with a real 5F rating; current R-454B refrigerant.
- Mitsubishi dealer support and reliability reputation.
Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) weaknesses
- Efficiency trails the 230V GX 12k; 115V systems can draw high startup current on shared circuits.
- Professional dealer installation required; not DIY.
Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) climate suitability
- Minimum heating ambient
- -5 FVerified - manufacturer product page
- Rated heating at 5F
- 8,600 BTU/hVerified - AHRI directory
- Rated heating at 17F
- 7,800 BTU/hVerified - AHRI directory
- Rated heating at 47F
- 12,200 BTU/hVerified - AHRI directory
Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) electrical requirements
- Voltage
- not published
- Voltage range
- 115VVerified - manufacturer product page
- Phase
- 1Verified - manufacturer product page
- Frequency
- 60 HzVerified - manufacturer product page
- MCA
- 17 AVerified - manufacturer technical document
- Breaker needed
- 20 AVerified - manufacturer product page
- Maximum breaker size
- not published
- Maximum fuse size
- 20 AVerified - manufacturer technical document
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- 14 AWG indoor-outdoorVerified - manufacturer technical document
Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) installation considerations
- Liquid line
- 1/4 inVerified - manufacturer technical document
- Suction line
- 3/8 inVerified - manufacturer technical document
- Precharged length
- 25 ftVerified - manufacturer technical document
- Included line-set length
- Mitsubishi submittals publish line-size and maximum/precharged piping data; the installer supplies the line set.
- Maximum line-set length
- 65 ftVerified - manufacturer technical document
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 33 x 9-1/4 x 11-1/32 inVerified - manufacturer technical documentmanufacturer published: 32.992 x 9.252 x 11.024 in
- Outdoor dimensions
- 31-1/2 x 11-1/4 x 21-5/8 inVerified - manufacturer technical documentmanufacturer published: 31.496 x 11.22 x 21.654 in
- Indoor weight
- 20 lbVerified - manufacturer technical documentmanufacturer published: 19.84 lb
- Outdoor weight
- 82 lbVerified - manufacturer technical documentmanufacturer published: 81.35 lb
- Drain size
- 5/8 inVerified - manufacturer technical document
Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) related systems and guides
- More Mitsubishi Electric systems
- Mitsubishi Electric M-Series EX Designer 12,000 BTU R-454B 208/230V (MSZ-EX12NLW / SUZ-AA12NL)
- Mitsubishi Electric M-Series EX Designer Hyper-Heat 12,000 BTU R-454B 208/230V (MSZ-EX12NLW / SUZ-AA12NLHZ)
- Mitsubishi Electric M-Series FS 12k 230V (MSZ-FS12NA / MUZ-FS12NAH)
- Mitsubishi Electric M-Series FX Deluxe Hyper-Heat 12,000 BTU R-454B 208/230V (MSZ-FX12NL / MUZ-FX12NLHZ)
- Buying guide
- Single vs multi-zone
Frequently asked questions
- Can I install the Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) myself, or do I need a pro?
- Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) keep heating in a cold winter?
- The manufacturer publishes 8,600 BTU/h of heating output at 5F. Rated heating operation extends down to -5 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) need?
- Published electrical requirements: 115V voltage, 17 A minimum circuit ampacity, and 20 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 65 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
- What warranty does the Mitsubishi Electric M-Series JX 12,000 BTU R-454B 115V (MSZ-JX12WL / MUZ-JX12WL) carry?
- The manufacturer publishes 5 years parts coverage and 7 years compressor coverage. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
