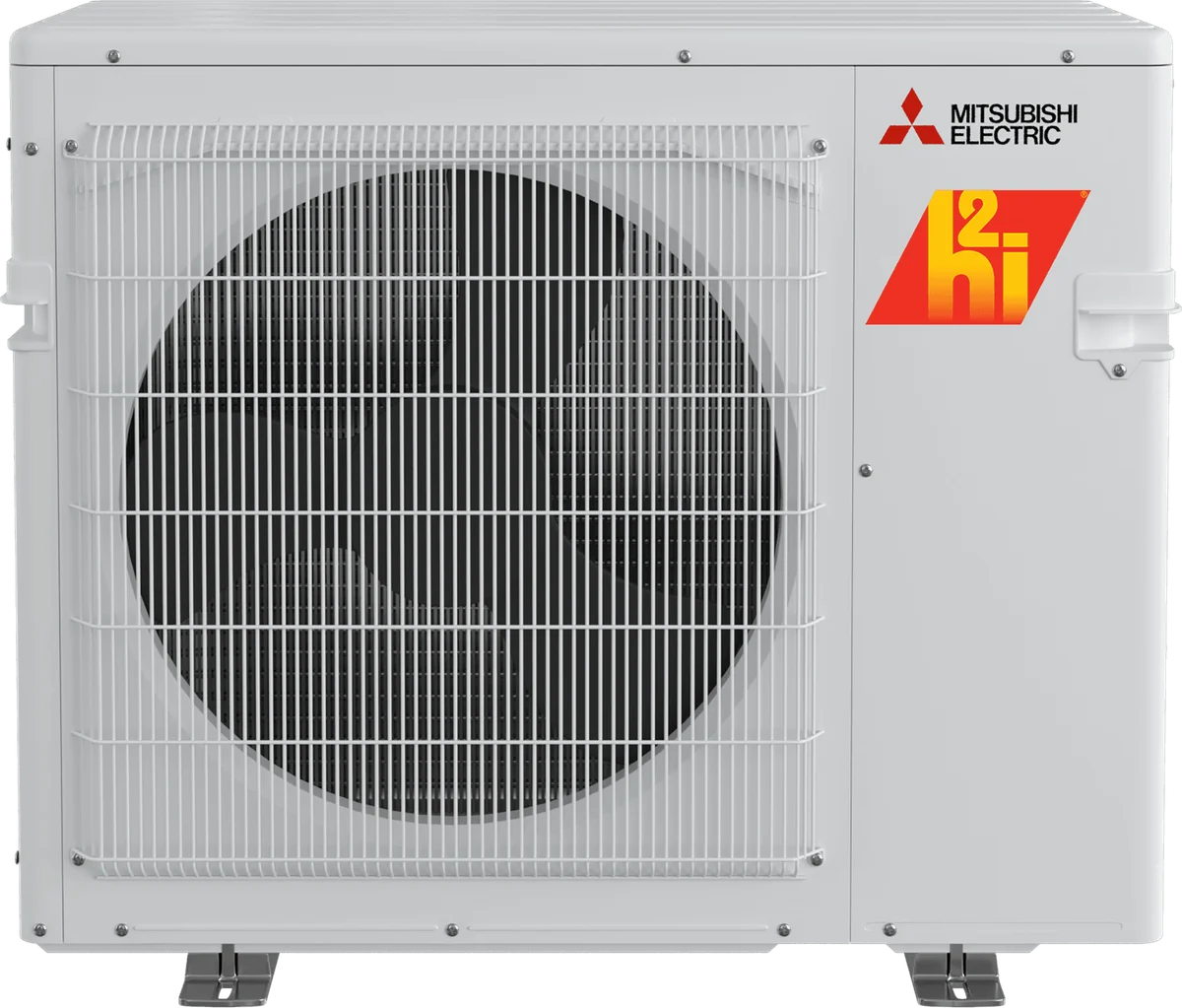

Mitsubishi MXZ-D Ported H2i 30k R-454B 208/230V 3-Zone Mini-Split

Certified capacity
28,400 BTU/h[2]
SEER2
20 SEER2[2]
Heating floor
-12 F[1]
Voltage
208/230V[1]
Install path
Professional install

The MXZ-3D30NLHZ is the larger-capacity three-zone Hyper-Heat: 28,400 BTU of nominal cooling and 28,600 of heating across three heads, for rooms that are bigger than the 24k unit can comfortably carry. It keeps the MXZ-D certified nominal SEER2 of 20 and H2i deep-cold heating; its EER2 of 11.5 is lower than the smaller three-zone units, the usual trade for packing more capacity into the same zone count. R-454B, ENERGY STAR certified, dealer-installed.

3 zonesProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes
Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ)

Image: Mitsubishi Electric

Data completeness: 97%
Last sourced
Jul 27, 2026

SplitAtlas score

8.5 / 10

Methodology
Cooling efficiencyBelow average

(20.0 SEER2) among 24k systems

Heating efficiencyAbove average

(10.0 HSPF2) among 24k systems

Cold-weather performanceTop 10%

(100% heat retained at 5F; -12 F heating floor) among 24k systems

WarrantyTop quartile

(12 yr parts / 12 yr compressor) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Documentation & partsTop quartile

(5 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

28,400BTU/hNon-Ducted Indoor Units[2]

Rated heating

28,600BTU/hNon-Ducted Indoor Units[2]

Best-fit use cases

Three larger rooms in a cold climate - a bigger primary suite, living area, and bonus room - where the 24k three-zone would run short and you want Hyper-Heat.

Buyer review snapshot

Best for / skip if

Best for

  • 3-zone projects in the 30k outdoor capacity class.

Install difficulty

Complex professional install
  • Electrical: 208/230V; MCA 38 A; breaker/fuse 65 A.
  • Line set: connection type not sourced; precharged 230 ft; max 230 ft.
  • 3-zone condenser; indoor-head matching and branch layout are part of the job.

Availability and price context

We could not verify a current retail price for this model. Mitsubishi Electric sells through dealers, so we link to contractor quotes rather than a retail price.

Source date

Model data sourced
Jul 27, 2026
Page reviewed
Jul 27, 2026
Source-backed records
4
Newest source retrieved
Jul 27, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard; 12 years parts and compressor if owner-occupied residence installed and registered by a Diamond Contractor within 90 days.

Review methodology

Strengths

  • More capacity per zone than the 24k three-zone - suits larger rooms or a more demanding three-room load.
  • H2i Hyper-Heat with certified nominal SEER2 20 / HSPF2 10, ENERGY STAR certified.
  • Current R-454B refrigerant and Mitsubishi dealer support.

Weaknesses

  • Professional dealer installation required; priced by quote.
  • Lower peak-cooling EER2 (11.5) than the smaller three-zone units - the cost of the extra capacity.
  • Three-zone shared capacity; size to the condenser, not three full rooms.
  • Part-load efficiency penalty at low demand.

Climate suitability

Minimum heating ambient
-12 F[1]
Rated heating at 5F
28,600 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
18,300 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
28,600 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
Mitsubishi Electric
Brand
Mitsubishi Electric
Product line
MXZ-D Ported Multi-Zone H2i
Model number
MXZ-3D30NLHZ
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
MXZ-3D30NLHZ
Number of zones
3
Max indoor units
3 units[1]
Rated cooling capacity
28,400 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
28,600 BTU/hNon-Ducted Indoor Units[2]
Voltage
208/230V[1]
MCA
38 A[1]
Maximum fuse or breaker size
65 A[1]
Breaker needed
not published
SEER2
20 SEER2Non-Ducted Indoor Units[2]
EER2
11.5 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
10 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-12 F[1]
Minimum outdoor cooling temperature
14 F[1]
Maximum outdoor temperature
115 F[1]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
58 dBA[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
152 lb[1]
Refrigerant
R-454B[2]
Refrigerant charge
99 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in all ports liquid / 1/2 in ports A; 3/8 in ports B/C suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
49 ft[1]
Max height between indoor units
MXZ-D direct-port submittals publish ODU-to-IDU elevation limits but no separate indoor-to-indoor height-difference limit.
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
216505934Non-Ducted Indoor Units[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Best case: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Standard residential M-Series and SMART MULTI warranty is 5 years parts and 7 years compressor from installation by a licensed HVAC contractor. Enhanced registered owner-occupied terms can extend to 10 years, or 12 years when installed and registered by a Diamond Contractor.
Install path
Professional install
Retail price
Mitsubishi Electric sells through dealers, so we link to contractor quotes rather than a retail price.
Available retailers
not published
Manual links
AHRI public detail 216505934, ENERGY STAR direct rows for Mitsubishi MXZ, Mitsubishi Electric MXZ-D product launch guide, MXZ-3D30NLHZ Mitsubishi Electric MXZ-D Ported Multi-Zone H2i submittal, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement
Specification sheet
MXZ-3D30NLHZ Mitsubishi Electric MXZ-D Ported Multi-Zone H2i submittal
Last sourced date
Jul 27, 2026

Parts and filters

Fits Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

control-interface

Mitsubishi M-NET Interface for MXZ

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ)
OEM part number
PAC-IF01MNT-E
Fit note
Fits MXZ-3D30NLHZ. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-3D30NLHZ Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-3D30NLHZ, page p. 3 (Control Interface M-NET Interface for MXZ PAC-IF01MNT-E)

service-tool-interface

Mitsubishi Maintenance Tool Interface

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ)
OEM part number
PAC-USCMS-MN-1
Fit note
Fits MXZ-3D30NLHZ. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-3D30NLHZ Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-3D30NLHZ, page p. 3 (Control/Service Tool Maintenance Tool Interface PAC-USCMS-MN-1)

drain-socket

Mitsubishi drain socket

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ)
OEM part number
PAC-SG60DS-E
Fit note
Fits MXZ-3D30NLHZ. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-3D30NLHZ Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-3D30NLHZ, page p. 3 (Drain Socket Drain Socket PAC-SG60DS-E)

air-outlet-guide

Mitsubishi air outlet guide

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ)
OEM part number
PAC-SH96SG-E
Fit note
Fits MXZ-3D30NLHZ. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-3D30NLHZ Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-3D30NLHZ, page p. 3 (Air Outlet Guide Air Outlet Guide 1 Piece PAC-SH96SG-E)

snow-rain-diverter

Mitsubishi snow/rain diverter

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ)
OEM part number
SRD-4
Fit note
Fits MXZ-3D30NLHZ. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-3D30NLHZ Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-3D30NLHZ, page p. 3 (Snow/Rain Diverter SnowRain Diverter SRD-4)
Replacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
38 A[1]
Breaker needed
not published
Maximum breaker size
65 A[1]
Maximum fuse size
not published
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in all ports[1]
Suction line
1/2 in ports A; 3/8 in ports B/C[1]
Line connection type
not published
Precharged length
230 ft[1]
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
MXZ-D direct-port submittals publish ODU-to-IDU elevation limits but no separate indoor-to-indoor height-difference limit.
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
37-13/32 x 13 x 31-11/32 in[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
152 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ) myself, or do I need a pro?
Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ) keep heating in a cold winter?
The manufacturer publishes 28,600 BTU/h of heating output at 5F. Rated heating operation extends down to -12 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ) need?
Published electrical requirements: 208/230V voltage, 38 A minimum circuit ampacity, and 65 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 230 ft, and the included line set comes pre-charged for 230 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Mitsubishi Electric MXZ-D Ported Multi-Zone H2i 3-Zone 30,000 BTU R-454B 208/230V (MXZ-3D30NLHZ) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Best case: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
