Mitsubishi Electric / MXZ-D Ported Multi-Zone

Mitsubishi MXZ-D Ported 30k R-454B 208/230V 4-Zone Mini-Split

Certified capacity
28,600 BTU/h[2]
SEER2
21 SEER2[2]
Heating floor
-4 F[1]
Voltage
208/230V[1]
Install path
Professional install

The MXZ-4D30NL spreads 28,600 BTU across four zones from one 208/230V outdoor unit - the way to bring four rooms onto a single Mitsubishi condenser without stepping up to the SMART MULTI line. It posts the highest certified nominal SEER2 in the D-series, 21, with EER2 13 and ENERGY STAR certification.

Because it is a standard (non-Hyper-Heat) unit, it is a moderate-climate choice; cold-winter buyers who need four zones should look at the SMART MULTI SM36NLHZ. R-454B, dealer-installed.

4 zonesProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

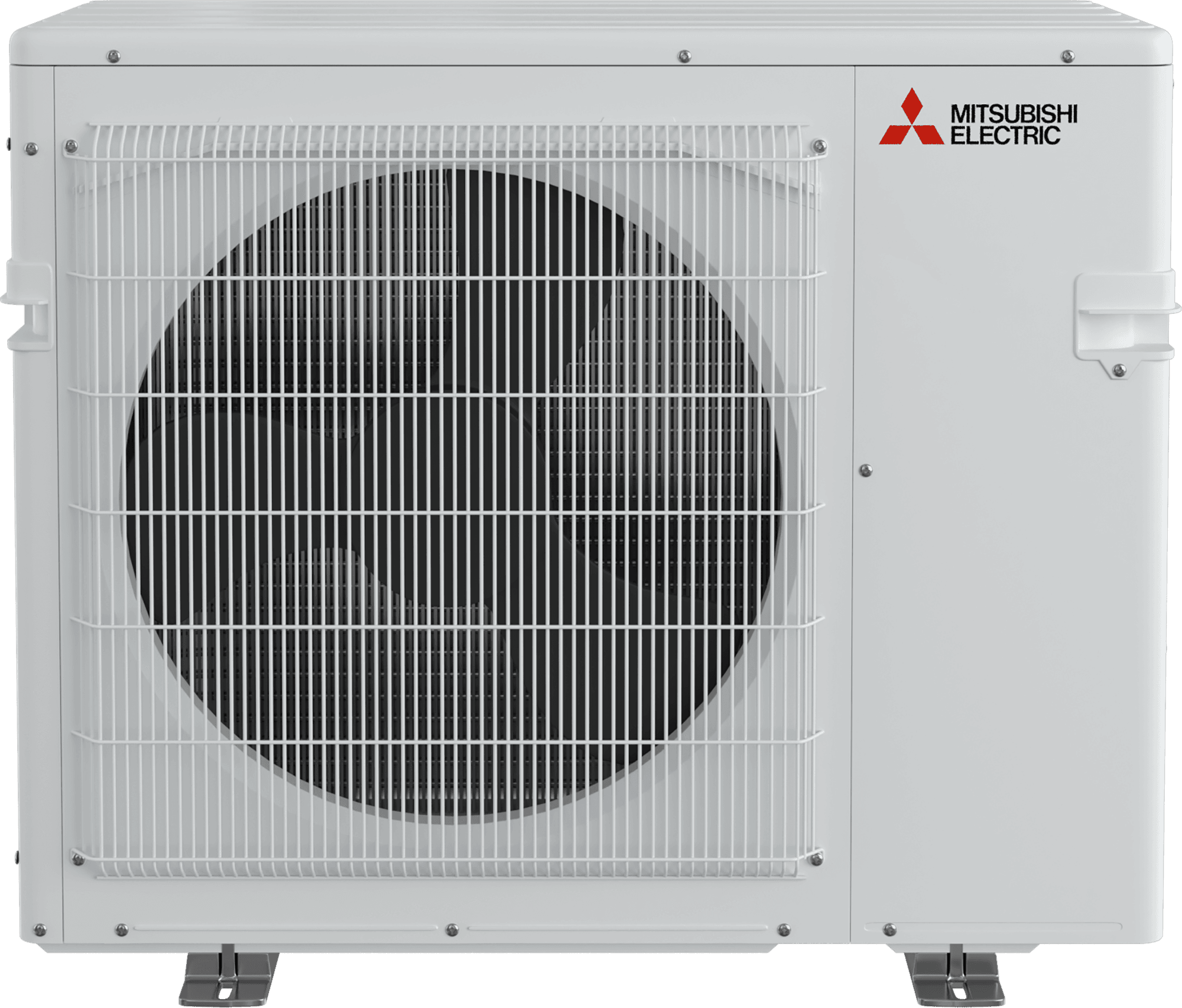

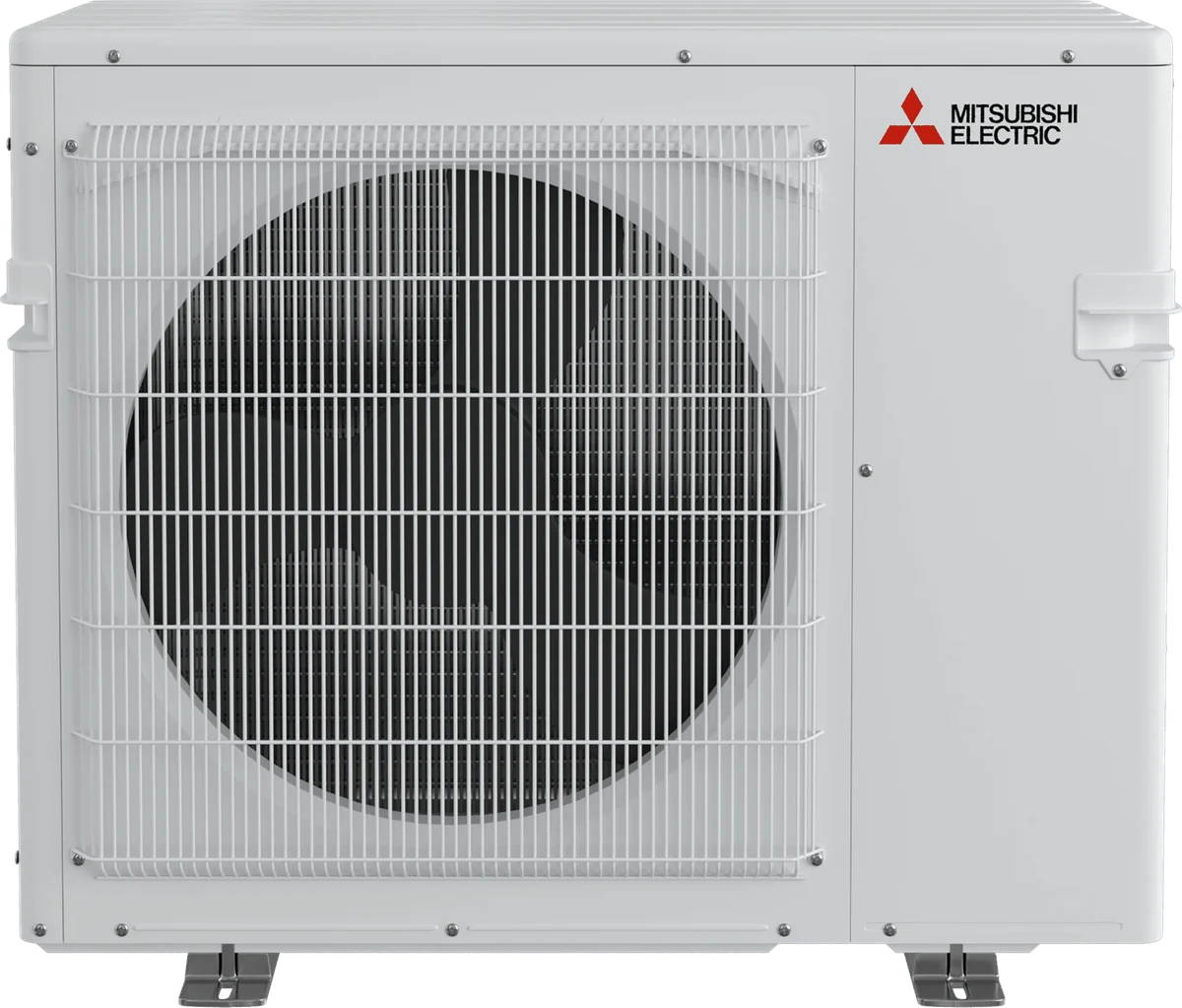

Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL)

Image: Mitsubishi Electric

Data completeness: 97%
Last sourced
Jul 27, 2026

SplitAtlas score

8.1 / 10

Methodology
Cooling efficiencyBelow average

(21.0 SEER2) among 24k systems

Heating efficiencyAbove average

(10.0 HSPF2) among 24k systems

Cold-weather performanceBottom quartile

(69.2% heat retained at 5F; -4 F heating floor) among 24k systems

WarrantyTop quartile

(12 yr parts / 12 yr compressor) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Documentation & partsTop 10%

(5 manuals; spec sheet; 34 error-code rows; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

28,600BTU/hNon-Ducted Indoor Units[2]

Rated heating

28,600BTU/hNon-Ducted Indoor Units[2]

Best-fit use cases

Four smaller rooms - bedrooms and a home office on one floor - in a moderate climate where four-zone Mitsubishi coverage on one efficient condenser is the goal.

Buyer review snapshot

Best for / skip if

Best for

  • 4-zone projects in the 30k outdoor capacity class.

Install difficulty

Complex professional install
  • Electrical: 208/230V; MCA 28.7 A; breaker/fuse 48 A.
  • Line set: connection type not sourced; precharged 230 ft; max 230 ft.
  • 4-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

We could not verify a current retail price for this model. Mitsubishi Electric sells through dealers, so we link to contractor quotes rather than a retail price.

Source date

Model data sourced
Jul 27, 2026
Page reviewed
Jul 27, 2026
Source-backed records
4
Newest source retrieved
Jul 27, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard; 12 years parts and compressor if owner-occupied residence installed and registered by a Diamond Contractor within 90 days.

Review methodology

Model context

Install path
This is professional-install equipment; no verified current retail offer is attached.

Strengths

  • Four zones from one outdoor unit - four rooms, one condenser, one circuit.
  • Highest certified nominal SEER2 in the D-series (21), EER2 13, ENERGY STAR certified.
  • Current R-454B refrigerant and the Mitsubishi dealer ecosystem.

Weaknesses

  • Standard, non-Hyper-Heat - not the pick for hard winters; the SMART MULTI four-zone units heat far better in deep cold.
  • 30k shared across four zones is modest per room - best for smaller rooms, not four large spaces.
  • Part-load penalty when a single small zone runs.

Climate suitability

Minimum heating ambient
-4 F[1]
Rated heating at 5F
19,800 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
18,200 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
28,600 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
Mitsubishi Electric
Brand
Mitsubishi Electric
Product line
MXZ-D Ported Multi-Zone
Model number
MXZ-4D30NL
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
MXZ-4D30NL
Number of zones
4
Max indoor units
4 units[1]
Rated cooling capacity
28,600 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
28,600 BTU/hNon-Ducted Indoor Units[2]
Voltage
208/230V[1]
MCA
28.7 A[1]
Maximum fuse or breaker size
48 A[1]
Breaker needed
not published
SEER2
21 SEER2Non-Ducted Indoor Units[2]
EER2
13 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
10 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-4 F[1]
Minimum outdoor cooling temperature
14 F[1]
Maximum outdoor temperature
115 F[1]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
56 dBA[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
137 lb[1]
Refrigerant
R-454B[2]
Refrigerant charge
85 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in all ports liquid / 1/2 in ports A; 3/8 in ports B/C/D suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
49 ft[1]
Max height between indoor units
MXZ-D direct-port submittals publish ODU-to-IDU elevation limits but no separate indoor-to-indoor height-difference limit.
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
216498926Non-Ducted Indoor Units[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Best case: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Standard residential M-Series and SMART MULTI warranty is 5 years parts and 7 years compressor from installation by a licensed HVAC contractor. Enhanced registered owner-occupied terms can extend to 10 years, or 12 years when installed and registered by a Diamond Contractor.
Install path
Professional install
Retail price
Mitsubishi Electric sells through dealers, so we link to contractor quotes rather than a retail price.
Available retailers
not published
Manual links
AHRI public detail 216498926, ENERGY STAR direct rows for Mitsubishi MXZ, Mitsubishi Electric MXZ-D product launch guide, MXZ-4D30NL Mitsubishi Electric MXZ-D Ported Multi-Zone submittal, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement
Specification sheet
MXZ-4D30NL Mitsubishi Electric MXZ-D Ported Multi-Zone submittal
Last sourced date
Jul 27, 2026

Parts and filters

Fits Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

control-interface

Mitsubishi M-NET Interface for MXZ

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL)
OEM part number
PAC-IF01MNT-E
Fit note
Fits MXZ-4D30NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-4D30NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-4D30NL, page p. 3 (Control Interface M-NET Interface for MXZ PAC-IF01MNT-E)

service-tool-interface

Mitsubishi Maintenance Tool Interface

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL)
OEM part number
PAC-USCMS-MN-1
Fit note
Fits MXZ-4D30NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-4D30NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-4D30NL, page p. 3 (Control/Service Tool Maintenance Tool Interface PAC-USCMS-MN-1)

drain-socket

Mitsubishi drain socket

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL)
OEM part number
PAC-SG60DS-E
Fit note
Fits MXZ-4D30NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-4D30NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-4D30NL, page p. 3 (Drain Socket Drain Socket PAC-SG60DS-E)

air-outlet-guide

Mitsubishi air outlet guide

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL)
OEM part number
PAC-SH96SG-E
Fit note
Fits MXZ-4D30NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-4D30NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-4D30NL, page p. 3 (Air Outlet Guide Air Outlet Guide 1 Piece PAC-SH96SG-E)

snow-rain-diverter

Mitsubishi snow/rain diverter

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL)
OEM part number
SRD-4
Fit note
Fits MXZ-4D30NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-4D30NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-4D30NL, page p. 3 (Snow/Rain Diverter SnowRain Diverter SRD-4)

defrost-heater

Mitsubishi optional defrost heater

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL)
OEM part number
PAC-645BH-E
Fit note
Fits MXZ-4D30NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-4D30NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-4D30NL, page p. 3 (Optional Defrost Heater Optional Defrost Heater PAC-645BH-E)
Replacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
28.7 A[1]
Breaker needed
not published
Maximum breaker size
48 A[1]
Maximum fuse size
not published
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in all ports[1]
Suction line
1/2 in ports A; 3/8 in ports B/C/D[1]
Line connection type
not published
Precharged length
230 ft[1]
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
230 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
MXZ-D direct-port submittals publish ODU-to-IDU elevation limits but no separate indoor-to-indoor height-difference limit.
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
37-13/32 x 13 x 31-11/32 in[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
137 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL) myself, or do I need a pro?
Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL) keep heating in a cold winter?
The manufacturer publishes 19,800 BTU/h of heating output at 5F. Rated heating operation extends down to -4 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL) need?
Published electrical requirements: 208/230V voltage, 28.7 A minimum circuit ampacity, and 48 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 230 ft, and the included line set comes pre-charged for 230 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Mitsubishi Electric MXZ-D Ported Multi-Zone 4-Zone 30,000 BTU R-454B 208/230V (MXZ-4D30NL) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Best case: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Mitsubishi Electric Trane HVAC US LLC: MXZ-4D30NL Mitsubishi Electric MXZ-D Ported Multi-Zone submittalSourced - manufacturer technical document

    Covers Frequency, electrical_spec.guaranteed_voltage_range, Maximum breaker size, Minimum circuit ampacity, Phase, Voltage range and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail 216498926Sourced - AHRI directory

    Covers AHRI certification number, Rated cooling capacity, EER2, Rated heating capacity, HSPF2 (Region 4), Rated heating at 17F and more

  3. ENERGY STAR: ENERGY STAR Central Air Conditioners and Air-Source Heat Pumps product data rows for Mitsubishi MXZSourced - Energy Star listing

    Covers Energy Star status

  4. Mitsubishi Electric Trane HVAC US LLC: METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty StatementSourced - secondary source

    Covers Best-case compressor warranty, Best-case warranty conditions, Best-case parts warranty, Legacy compressor warranty value, Legacy warranty value, Standard compressor warranty and more
