Mitsubishi Electric / MXZ-D Ported Multi-Zone

Mitsubishi MXZ-D Ported 42k R-454B 208/230V 5-Zone Mini-Split

Certified capacity
40,500 BTU/h[2]
SEER2
19.3 SEER2[2]
Heating floor
-4 F[1]
Voltage
208/230V[1]
Install path
Professional install

The MXZ-5D42NL is the largest of the older MXZ-D five-zone units at 40,500 BTU nominal, and it is the honest budget end of Mitsubishi's multi-zone range: its certified EER2 of 9.3 and HSPF2 of 9.1 are the lowest of any MXZ multi-zone we list, and it is not ENERGY STAR certified. It still delivers real five-zone Mitsubishi coverage on one condenser, but the newer SMART MULTI SM42NLHZ - also five zones, similar capacity - is dramatically more efficient and adds Hyper-Heat.

Choose this only when first cost is decisive. R-454B, dealer-installed.

5 zonesProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

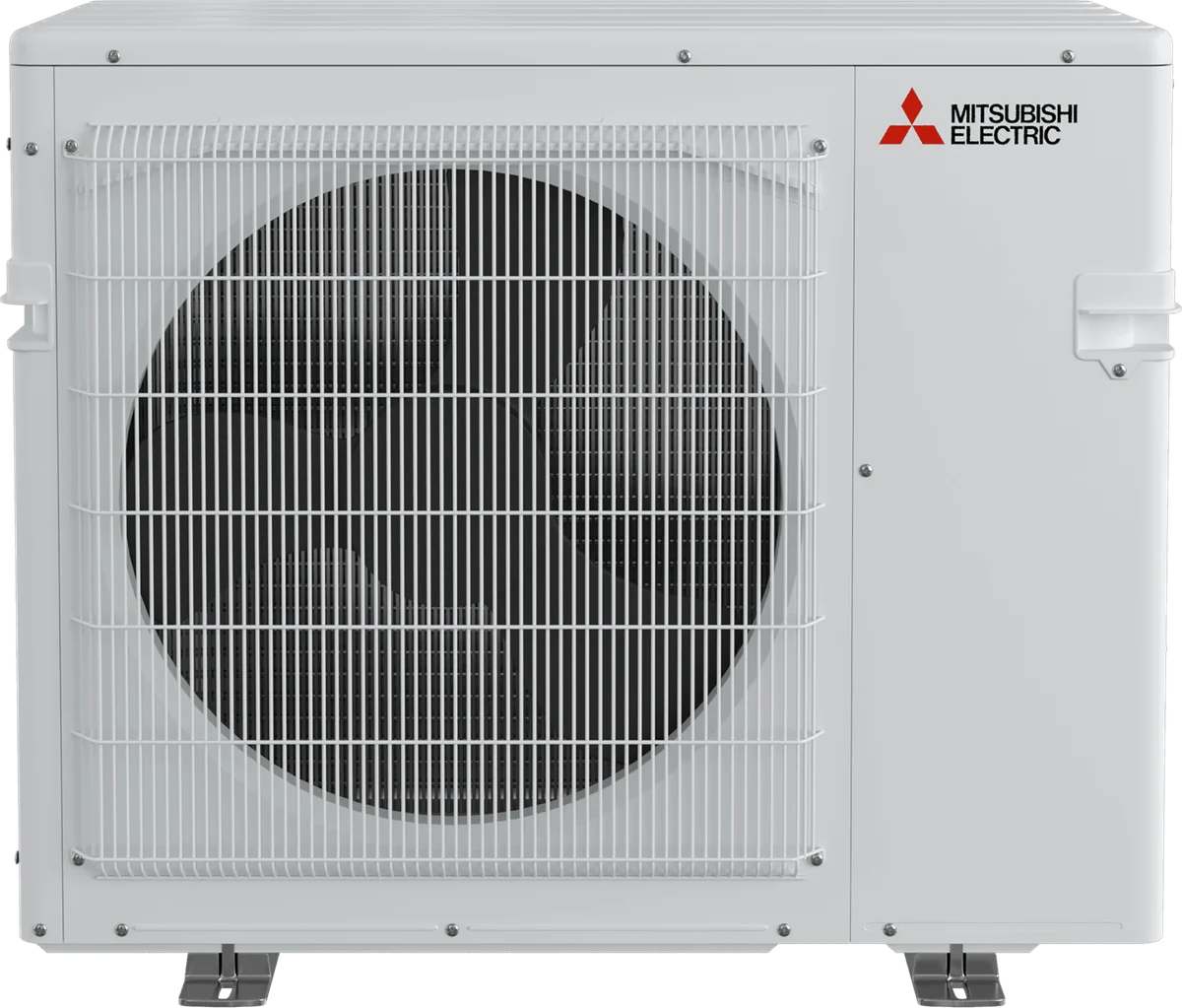

Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL)

Image: Mitsubishi Electric

Data completeness: 97%
Last sourced
Jul 27, 2026

SplitAtlas score

7.5 / 10

Methodology
Cooling efficiencyBelow average

(19.3 SEER2) among >36k systems

Heating efficiencyBottom quartile

(9.1 HSPF2) among >36k systems

Cold-weather performanceBottom quartile

(55.6% heat retained at 5F; -4 F heating floor) among >36k systems

WarrantyTop quartile

(12 yr parts / 12 yr compressor) across the catalogue

Feature setBottom quartile

(2 verified features) across the catalogue

Documentation & partsTop 10%

(5 manuals; spec sheet; 34 error-code rows; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

40,500BTU/hNon-Ducted Indoor Units[2]

Rated heating

45,000BTU/hNon-Ducted Indoor Units[2]

Best-fit use cases

A five-room home where up-front price is the deciding factor and the owner accepts lower efficiency and no ENERGY STAR certification in exchange for Mitsubishi five-zone coverage on one condenser.

Buyer review snapshot

Best for / skip if

Best for

  • 5-zone projects in the 42k outdoor capacity class.

Install difficulty

Complex professional install
  • Electrical: 208/230V; MCA 39.2 A; breaker/fuse 67 A.
  • Line set: connection type not sourced; max 262 ft.
  • 5-zone condenser; indoor-head matching and branch layout are part of the job.

Alternatives

Availability and price context

We could not verify a current retail price for this model. Mitsubishi Electric sells through dealers, so we link to contractor quotes rather than a retail price.

Source date

Model data sourced
Jul 27, 2026
Page reviewed
Jul 27, 2026
Source-backed records
4
Newest source retrieved
Jul 27, 2026

Warranty tiers

Warranty: 5 years parts and 7 years compressor as standard; 12 years parts and compressor if owner-occupied residence installed and registered by a Diamond Contractor within 90 days.

Review methodology

Model context

Mitsubishi dealer channel
Mitsubishi Electric is dealer-quoted in this catalog; installed price depends on the local contractor, and the brand context is dealer support and reliability reputation.

Strengths

  • Full 40,500 BTU across five zones - the most capacity in the D-series five-zone tier.
  • Current R-454B refrigerant on a single Mitsubishi outdoor unit and circuit.

Weaknesses

  • The least efficient multi-zone in our catalog: certified EER2 9.3 / HSPF2 9.1, and not ENERGY STAR certified.
  • The SMART MULTI SM42NLHZ is a far more efficient, Hyper-Heat five-zone at similar capacity - the better long-run value for most buyers.
  • Professional dealer installation required; quote-based pricing.
  • Standard, non-Hyper-Heat; part-load penalty applies.

Climate suitability

Minimum heating ambient
-4 F[1]
Rated heating at 5F
25,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 17F
29,000 BTU/hNon-Ducted Indoor Units[2]
Rated heating at 47F
45,000 BTU/hNon-Ducted Indoor Units[2]

Specifications

Show
Manufacturer
Mitsubishi Electric
Brand
Mitsubishi Electric
Product line
MXZ-D Ported Multi-Zone
Model number
MXZ-5D42NL
Indoor unit model
Indoor heads are selected separately on a multi-zone system
Outdoor unit model
MXZ-5D42NL
Number of zones
5
Max indoor units
5 units[1]
Rated cooling capacity
40,500 BTU/hNon-Ducted Indoor Units[2]
Rated heating capacity
45,000 BTU/hNon-Ducted Indoor Units[2]
Voltage
208/230V[1]
MCA
39.2 A[1]
Maximum fuse or breaker size
67 A[1]
Breaker needed
not published
SEER2
19.3 SEER2Non-Ducted Indoor Units[2]
EER2
9.3 EER2Non-Ducted Indoor Units[2]
HSPF2 (Region 4)
9.1 HSPF2Non-Ducted Indoor Units[2]
HSPF2 (Region 5)
Certified per indoor-unit combination, not per outdoor unit
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-4 F[1]
Minimum outdoor cooling temperature
14 F[1]
Maximum outdoor temperature
115 F[1]
Indoor noise range
Indoor heads are selected separately on a multi-zone system
Outdoor noise rating
59 dBA[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
152 lb[1]
Refrigerant
R-454B[2]
Refrigerant charge
99 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in all ports liquid / 1/2 in ports A; 3/8 in ports B/C/D/E suction
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
262 ft[1]
Max line set per indoor
82 ft[1]
Maximum elevation difference
49 ft[1]
Max height between indoor units
MXZ-D direct-port submittals publish ODU-to-IDU elevation limits but no separate indoor-to-indoor height-difference limit.
Wi-Fi support
Indoor heads are selected separately on a multi-zone system
Energy Star status
Not ENERGY STAR certified[3]
AHRI certification number
216505932Non-Ducted Indoor Units[2]
Warranty
Standard: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Best case: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Standard residential M-Series and SMART MULTI warranty is 5 years parts and 7 years compressor from installation by a licensed HVAC contractor. Enhanced registered owner-occupied terms can extend to 10 years, or 12 years when installed and registered by a Diamond Contractor.
Install path
Professional install
Retail price
Mitsubishi Electric sells through dealers, so we link to contractor quotes rather than a retail price.
Available retailers
not published
Manual links
AHRI public detail 216505932, ENERGY STAR direct rows for Mitsubishi MXZ, Mitsubishi Electric MXZ-D product launch guide, MXZ-5D42NL Mitsubishi Electric MXZ-D Ported Multi-Zone submittal, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement
Specification sheet
MXZ-5D42NL Mitsubishi Electric MXZ-D Ported Multi-Zone submittal
Last sourced date
Jul 27, 2026

Parts and filters

Fits Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

control-interface

Mitsubishi M-NET Interface for MXZ

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL)
OEM part number
PAC-IF01MNT-E
Fit note
Fits MXZ-5D42NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-5D42NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-5D42NL, page p. 3 (Control Interface M-NET Interface for MXZ PAC-IF01MNT-E)

service-tool-interface

Mitsubishi Maintenance Tool Interface

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL)
OEM part number
PAC-USCMS-MN-1
Fit note
Fits MXZ-5D42NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-5D42NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-5D42NL, page p. 3 (Control/Service Tool Maintenance Tool Interface PAC-USCMS-MN-1)

drain-socket

Mitsubishi drain socket

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL)
OEM part number
PAC-SG60DS-E
Fit note
Fits MXZ-5D42NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-5D42NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-5D42NL, page p. 3 (Drain Socket Drain Socket PAC-SG60DS-E)

air-outlet-guide

Mitsubishi air outlet guide

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL)
OEM part number
PAC-SH96SG-E
Fit note
Fits MXZ-5D42NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-5D42NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-5D42NL, page p. 3 (Air Outlet Guide Air Outlet Guide 1 Piece PAC-SH96SG-E)

snow-rain-diverter

Mitsubishi snow/rain diverter

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL)
OEM part number
SRD-4
Fit note
Fits MXZ-5D42NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-5D42NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-5D42NL, page p. 3 (Snow/Rain Diverter SnowRain Diverter SRD-4)

defrost-heater

Mitsubishi optional defrost heater

Fits
Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL)
OEM part number
PAC-645BH-E
Fit note
Fits MXZ-5D42NL. Manufacturer documentation publishes this OEM part number for this model family. No live HVACDirect exact-part offer was found; source through an authorized Mitsubishi Electric dealer with the model and serial number.
Source
Mitsubishi Electric MXZ-5D42NL Submittal, OUTDOOR UNIT ACCESSORIES: MXZ-5D42NL, page p. 3 (Optional Defrost Heater Optional Defrost Heater PAC-645BH-E)
Replacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
39.2 A[1]
Breaker needed
not published
Maximum breaker size
67 A[1]
Maximum fuse size
not published
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in all ports[1]
Suction line
1/2 in ports A; 3/8 in ports B/C/D/E[1]
Line connection type
not published
Precharged length
not published
Included line-set length
Indoor heads are selected separately on a multi-zone system
Maximum line-set length
262 ft[1]
Max line set per indoor
82 ft[1]
Max height between indoor units
MXZ-D direct-port submittals publish ODU-to-IDU elevation limits but no separate indoor-to-indoor height-difference limit.
Indoor dimensions
Indoor heads are selected separately on a multi-zone system
Outdoor dimensions
37-13/32 x 13 x 31-11/32 in[1]
Indoor weight
Indoor heads are selected separately on a multi-zone system
Outdoor weight
152 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL) myself, or do I need a pro?
Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL) keep heating in a cold winter?
The manufacturer publishes 25,000 BTU/h of heating output at 5F. Rated heating operation extends down to -4 F. Certified heating efficiency is 9.1 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL) need?
Published electrical requirements: 208/230V voltage, 39.2 A minimum circuit ampacity, and 67 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 262 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Mitsubishi Electric MXZ-D Ported Multi-Zone 5-Zone 42,000 BTU R-454B 208/230V (MXZ-5D42NL) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation); Best case: 12 yr parts / 12 yr compressor (owner-occupied residence installed and registered by a Diamond Contractor within 90 days). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Mitsubishi Electric Trane HVAC US LLC: MXZ-5D42NL Mitsubishi Electric MXZ-D Ported Multi-Zone submittalSourced - manufacturer technical document

    Covers Frequency, electrical_spec.guaranteed_voltage_range, Maximum breaker size, Minimum circuit ampacity, Phase, Voltage range and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail 216505932Sourced - AHRI directory

    Covers AHRI certification number, Rated cooling capacity, EER2, Rated heating capacity, HSPF2 (Region 4), Rated heating at 17F and more

  3. ENERGY STAR: ENERGY STAR Central Air Conditioners and Air-Source Heat Pumps product data rows for Mitsubishi MXZSourced - Energy Star listing

    Covers Energy Star status

  4. Mitsubishi Electric Trane HVAC US LLC: METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty StatementSourced - secondary source

    Covers Best-case compressor warranty, Best-case warranty conditions, Best-case parts warranty, Legacy compressor warranty value, Legacy warranty value, Standard compressor warranty and more
