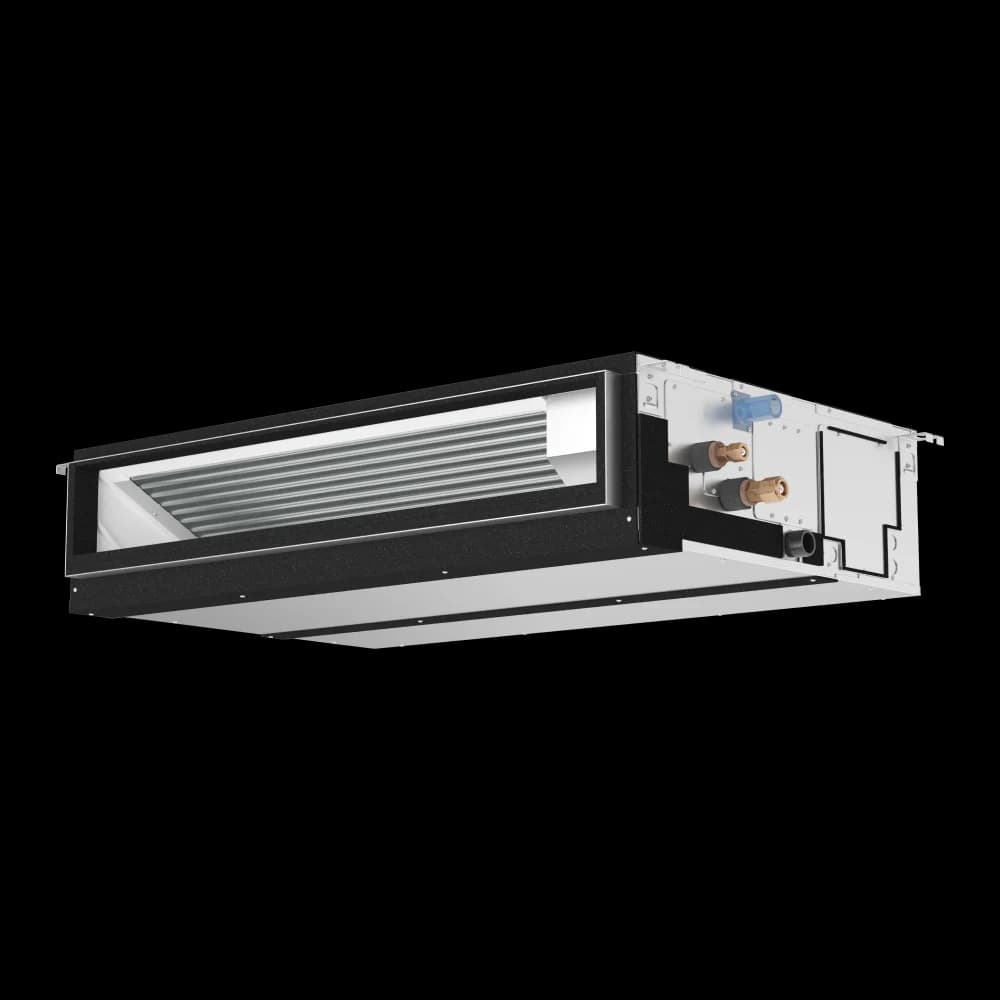

Mitsubishi P-Series PEAD Horizontal Ducted 12k Concealed Ducted 208/230V Mini-Split
The P-Series PEAD Horizontal Ducted 12k is Mitsubishi's concealed-ducted route for hiding the indoor unit above a ceiling and feeding one room or a small zone through short ducts. It certifies at 12,000 BTU cooling with 18,000 BTU of 47F heat. The standard outdoor unit favors efficiency and moderate-climate balance, with SEER2 20, EER2 14.4, HSPF2 9.5, and 7,900 BTU at 5F.
The catch is duct design: SEER2 20 and HSPF2 9.5 are certified for this exact pairing, but a cramped return, high static pressure, or inaccessible service panel can make a ducted mini-split feel worse than the numbers suggest.
Refrigerant generation
R-454B - current-generation refrigerant
Need this installed?
Get installation quotes
- Last sourced
- Aug 5, 2026
SplitAtlas score
7.6 / 10
(20.0 SEER2) among 12k systems
(9.5 HSPF2) among 12k systems
(5F certified capacity: 43.9% of the 47F rating; -4 F heating floor) among 12k systems
(27 dBA indoor min / 46 dBA outdoor) among 12k systems
(5 yr parts / 7 yr compressor) across the catalogue
(3 verified features) across the catalogue
(6 manuals; spec sheet) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Best-fit use cases
Primary rooms, suites, and small ducted zones around 400-600 sq ft where the owner wants the indoor unit hidden and has space for proper ductwork.
Buyer review snapshot
Install difficulty
- Electrical: 230V; MCA 16 A; breaker/fuse 27 A maximum (calculated recommendation: 25 A is the nearest standard breaker size at or below that maximum).
- Line set: connection type not sourced; precharged 100 ft; max 100 ft.
Alternatives
- Blueridge XS6 Max Efficiency 12,000 BTU R-454B 208/230V (BXS6A12WM0 / BXS6A12UC0)
9.0 score / 12k / SEER2 29.4 / -22 F heating floor / 230V
Exact destination at Alpine Home Air: $1,979.00, checked Jul 24, 2026
- Senville ELITE 12,000 BTU R-454B 208/230V (SENE-12EL-IHH / SENE-12EL-OH)
8.9 score / 12k / SEER2 29.4 / -22 F heating floor / 187-253V
Exact destination at Senville: $1,699.99, checked Jul 24, 2026
- ACiQ Extreme 12,000 BTU R-454B 208/230V (ACIQ-12W-HH-MD / ACIQ-12ZPL-HP230C)
8.9 score / 12k / SEER2 25.4 / -22 F heating floor / 230V
Exact destination at HVACDirect: $1,649.99, checked Jul 26, 2026
Availability and price context
This Mitsubishi Electric system is sold through dealers, so its price comes as an installed quote that depends on your home. Get installation quotes to price it.
Source date
- Model data sourced
- Aug 5, 2026
- Page reviewed
- Aug 2, 2026
- Source-backed records
- 3
- Newest source retrieved
- Aug 5, 2026
Warranty tiers
- Base
- 5 yr parts / 7 yr compressor - licensed HVAC contractor installation
The score uses Base. Additional published terms are shown for reference and not counted in the score.
Model context
- Mitsubishi dealer channel
- Mitsubishi Electric equipment is sold through its dealer network; installed price depends on the local contractor.
- Install path
- This is professional-install equipment; price it with an installed quote.
- Installation context
- Concealed ducted installs depend on duct layout, static pressure, return-air path, condensate routing, and service access.
Strengths
- 20 SEER2 / 14.4 EER2 / 9.5 HSPF2 certified efficiency.
- 12,000 BTU hidden ducted capacity without a full central air handler.
- 9,200 BTU at 17F and 7,900 BTU at 5F give real heating numbers to size against.
Weaknesses
- Not AHRI cold-climate designated; 5F heat falls to 7,900 BTU, so size carefully in northern winters.
Climate suitability
- Minimum heating ambient
- -4 F[1]
- Certified heating at 5F
- 7,900 BTU/h[2]
- Maximum heating at 5F (manufacturer)
- 7,900 BTU/h[1]
- Rated heating at 17F
- 9,200 BTU/h[2]
- Rated heating at 47F
- 18,000 BTU/h[2]
Specifications
ShowHide
- Manufacturer
- Mitsubishi Electric
- Brand
- Mitsubishi Electric
- Product line
- P-Series PEAD Horizontal Ducted
- Model number
- PEAD-AA12NL indoor / PUZ-AK12NL-U1 outdoor
- Indoor unit model
- PEAD-AA12NL
- Outdoor unit model
- PUZ-AK12NL-U1
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 12,000 BTU/h[2]
- Rated heating capacity
- 18,000 BTU/h[2]
- Voltage
- 230 V[1]
- MCA
- 16 A[1]
- Maximum fuse or breaker size
- 27 A[1]
Calculated recommendation: 25 A is the nearest standard breaker size at or below the published 27 A maximum.
- Breaker needed
- not published
- SEER2
- 20 SEER2[2]
- EER2
- 14.4 EER2[2]
- HSPF2 (Region 4)
- 9.5 HSPF2[2]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- 3.3 COP[1]
- COP at 5F
- 2.1 COP[2]
- Minimum outdoor heating temperature
- -4 F[1]
- Minimum outdoor cooling temperature
- 23 F[1]
- Maximum outdoor temperature
- 115 F[1]
- Indoor noise range
- cooling 27 , 29 , 31 , 34; heating 27 , 29 , 31 , 34[1]
- Outdoor noise rating
- 46 dBA[1]
- Indoor weight
- 58 lb[1]
- Outdoor weight
- 99 lb[1]
- Refrigerant
- R-454B[1]
- Refrigerant charge
- not published
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 1/2 in suction
- Included line-set length
- Mitsubishi submittals publish line-size and maximum/precharged piping data; the installing contractor supplies the line set.
- Maximum line-set length
- 100 ft[1]
- Max line set per indoor
- not published
- Maximum elevation difference
- 100 ft[1]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[1]
- Energy Star status
- ENERGY STAR certified[2]
- AHRI certification number
- 215712173[2]
- Warranty
- Base: 5 yr parts / 7 yr compressor (licensed HVAC contractor installation). Score uses Base.. METUS residential warranty terms list a standard 5-year parts and 7-year compressor term when installed by a licensed HVAC contractor, with enhanced registered coverage available under program conditions.
- Install path
- Professional install
- Retail price
- Installed quote only
- Available retailers
- not published
- Manual links
- AHRI public detail 215712173, SH_HWE24030_PEAD-AA_NL.pdf, MitsubishiPro product record PEAD-AA12NL, MitsubishiPro product record PUZ-AK12NL, PEAD-AA12NL / PUZ-AK12NL Mitsubishi Electric submittal, METUS Residential M-Series, P-Series and SMART MULTI Limited Warranty Statement
- Specification sheet
- PEAD-AA12NL / PUZ-AK12NL Mitsubishi Electric submittal
- Last sourced date
- Aug 5, 2026
Electrical requirements
ShowHide
- Voltage
- 230 V[1]
- Voltage range
- not published
- Phase
- 1[1]
- Frequency
- 60 Hz[1]
- MCA
- 16 A[1]
- Breaker needed
- not published
- Maximum breaker size
- 27 A[1]
Calculated recommendation: 25 A is the nearest standard breaker size at or below the published 27 A maximum.
- Maximum fuse size
- 27 A[1]
Calculated recommendation: 25 A is the nearest standard fuse size at or below the published 27 A maximum.
- Maximum cooling current
- not published
- Maximum heating current
- not published
- Manufacturer wire notes
- 14 AWG indoor-outdoor[1]
Installation considerations
ShowHide
- Liquid line
- 1/4 in[1]
- Suction line
- 1/2 in[1]
- Line connection type
- not published
- Precharged length
- 100 ft[1]
- Included line-set length
- Mitsubishi submittals publish line-size and maximum/precharged piping data; the installing contractor supplies the line set.
- Maximum line-set length
- 100 ft[1]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 35-7/16 x 28-7/8 x 9-7/8 in[1]
- Outdoor dimensions
- 34-19/64 x 11-13/16 x 24-13/16 in[1]
- Indoor weight
- 58 lb[1]
- Outdoor weight
- 99 lb[1]
- Drain size
- 1-1/4 in[1]
