Panasonic / ClimaPure XZ Series

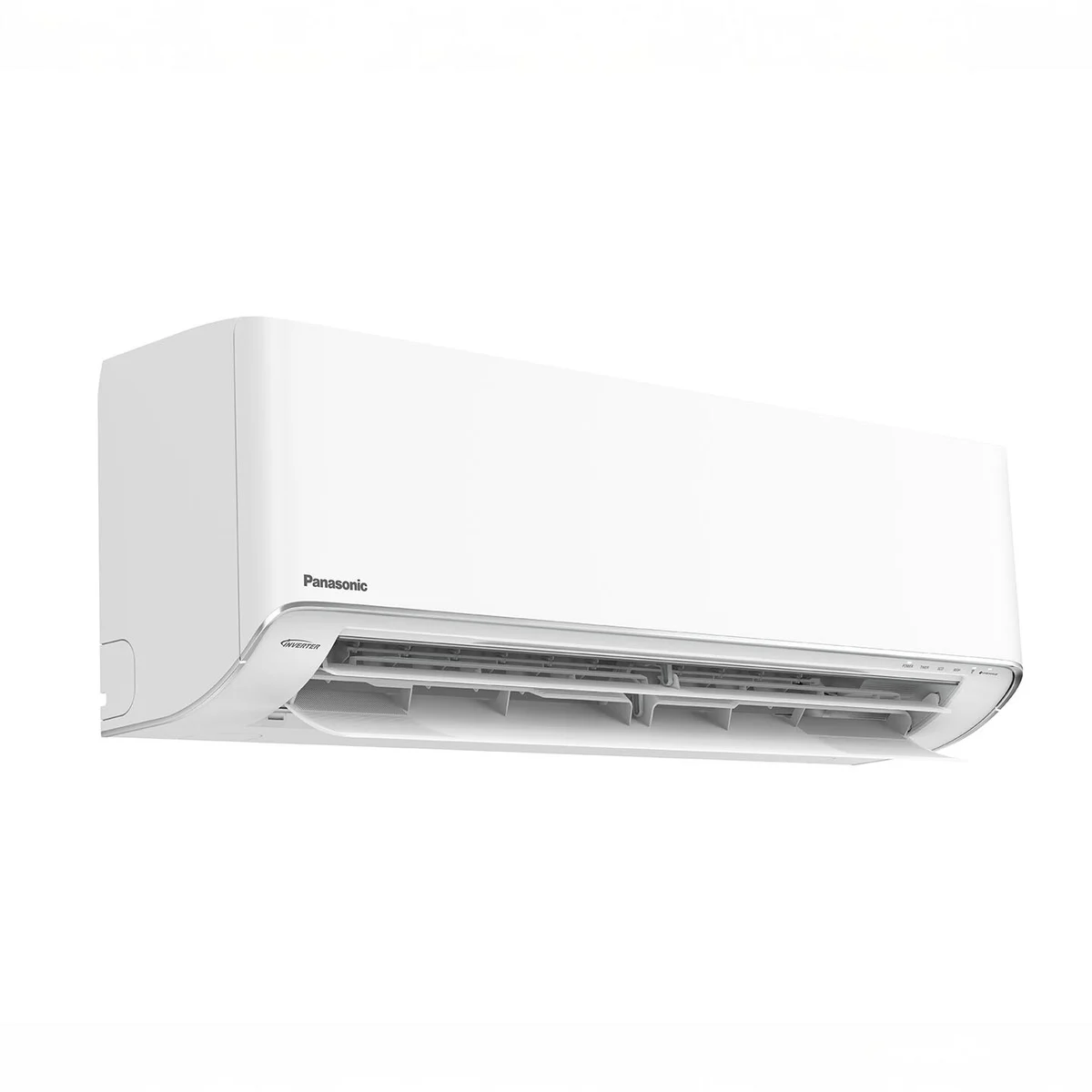

Panasonic ClimaPure XZ 9k R-32 208/230V Mini-Split
The Panasonic ClimaPure XZ 9k is Panasonic's flagship single-zone and one of the most capable cold-climate units in our catalog: SEER2 27.5, EER2 16.4, HSPF2 12 on R-32, and its heating actually climbs from 8,700 BTU at 47F to 14,500 BTU at 17F, still 11,700 BTU at 5F (COP 2.31) - it ramps up as it gets colder, the hallmark of a true cold-climate inverter. ClimaPure is Panasonic's air-quality line, pairing this performance with nanoe-X air purification.
1 zoneProfessional installCurrent
Refrigerant generation
R-32 - current-generation refrigerant
Need this installed?
Get installation quotes
Image: Panasonic
Data completeness: 95%
- Last sourced
- Jul 24, 2026
SplitAtlas score
9.5 / 10
Cooling efficiencyTop quartile
(27.5 SEER2) among <=9k systems
Heating efficiencyAbove average
(12.0 HSPF2) among <=9k systems
Cold-weather performanceTop quartile
(100% heat retained at 5F; -15 F heating floor) among <=9k systems
NoiseTop 10%
(-42 dBA indoor min / 48 dBA outdoor) among <=9k systems
Feature setTop 10%
(8 verified features) across the catalogue
Documentation & partsTop quartile
(8 manuals; spec sheet; 56 error-code rows) across the catalogue
Not evaluated
- Installation accessibility — not applicable (professional install)N/A
professional install - DIY-accessibility not applicable
- Price-to-value — not evaluatedN/A
This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.
Get a quote
Key ratings
Buyer review snapshot
Best for / skip if
Best for
- Top efficiency shortlists; SEER2 is 27.5.
Install difficulty
Professional install
- Electrical: 230V; MCA 15 A; breaker/fuse 15 A.
- Line set: connection type not sourced; precharged 25 ft; max 66 ft.
Availability and price context
We could not verify a current retail price for this model. We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-24.
Source date
- Model data sourced
- Jul 24, 2026
- Page reviewed
- Jul 23, 2026
- Source-backed records
- 4
- Newest source retrieved
- Jul 24, 2026
Strengths
- SEER2 27.5 / HSPF2 12 - among the highest certified efficiency at 9k in our database.
- Heating boosts to 14,500 BTU at 17F and holds 11,700 BTU at 5F - excellent deep-cold performance.
- Current R-32 refrigerant; Panasonic's nanoe-X air purification and dealer support.
Weaknesses
- Premium price; professional installation required (not DIY).
- No current online retail listing - buy through a Panasonic dealer.
Climate suitability
- Minimum heating ambient
- -15 F[2]
- Rated heating at 5F
- 11,700 BTU/h[3]
- Rated heating at 17F
- 14,500 BTU/h[3]
- Rated heating at 47F
- 8,700 BTU/h[3]
Specifications
ShowHide
- Manufacturer
- Panasonic
- Brand
- Panasonic
- Product line
- ClimaPure XZ Series
- Model number
- CS-XZ9AKUAW indoor / CU-XZ9AKUAC outdoor
- Indoor unit model
- CS-XZ9AKUAW
- Outdoor unit model
- CU-XZ9AKUAC
- Number of zones
- 1
- Max indoor units
- not published
- Rated cooling capacity
- 8,700 BTU/h[3]
- Rated heating capacity
- 8,700 BTU/h[3]
- Voltage
- 230 V[1]
- MCA
- 15 A[2]
- Maximum fuse or breaker size
- 15 A[2]
- Breaker needed
- not published
- SEER2
- 27.5 SEER2[3]
- EER2
- 16.4 EER2[3]
- HSPF2 (Region 4)
- 12 HSPF2[3]
- HSPF2 (Region 5)
- not published
- COP
- not published
- COP at 47F
- not published
- COP at 5F
- 2.31 COP[3]
- Minimum outdoor heating temperature
- -15 F[2]
- Minimum outdoor cooling temperature
- 0 F[2]
- Maximum outdoor temperature
- 115 F[2]
- Indoor noise range
- 19-42 dB(A)[2]
- Outdoor noise rating
- 48 dBA[2]
- Indoor weight
- 24 lb[1]
- Outdoor weight
- 11 lb[1]
- Refrigerant
- R-32[3]
- Refrigerant charge
- 31.8 oz[2]
- Manufacturer coverage
- not published
- Line-set size
- 1/4 in liquid / 3/8 in suction
- Included line-set length
- Panasonic current R-32 high-wall professional-install sources publish refrigerant piping size, maximum length, and precharged length, but no included line set.
- Maximum line-set length
- 66 ft[2]
- Max line set per indoor
- not published
- Maximum elevation difference
- 49.2 ft[2]
- Max height between indoor units
- not published
- Wi-Fi support
- supported[2]
- Energy Star status
- ENERGY STAR certified[4]
- AHRI certification number
- 214837752[3]
- Warranty
- not published
- Install path
- Professional install
- Retail price
- We could not find this exact model in stock at a retailer we work with when we last checked on 2026-07-24.
- Available retailers
- not published
- Manual links
- AHRI certificate 214837752, AHRI public directory record 214837752, ENERGY STAR exact Panasonic row for CS-XZ9AKUAW / CU-XZ9AKUAC, HVACDirect exact Panasonic search summary for CS-XZ9AKUAW / CU-XZ9AKUAC, Panasonic ClimaPure XZ Series 9k installation manual, Panasonic ClimaPure XZ Series 9k product page extracted text, Panasonic ClimaPure XZ Series 9k product page snapshot, Panasonic ClimaPure XZ Series 9k system submittal
- Specification sheet
- Panasonic ClimaPure XZ Series 9k product page snapshot
- Last sourced date
- Jul 24, 2026
Installation considerations
ShowHide
- Liquid line
- 1/4 in[2]
- Suction line
- 3/8 in[2]
- Line connection type
- not published
- Precharged length
- 25 ft[2]
- Included line-set length
- Panasonic current R-32 high-wall professional-install sources publish refrigerant piping size, maximum length, and precharged length, but no included line set.
- Maximum line-set length
- 66 ft[2]
- Max line set per indoor
- not published
- Max height between indoor units
- not published
- Indoor dimensions
- 34-9/32 x 9-1/32 x 11-5/8 in[1]
- Outdoor dimensions
- 32-15/32 x 11-25/32 x 24-1/2 in[1]
- Indoor weight
- 24 lb[1]
- Outdoor weight
- 11 lb[1]
- Drain size
- not published
Related systems and guides
- More Panasonic systems
- Senville 230 V option
- Panasonic 8.7k model
- Panasonic 230 V option
- Cooper & Hunter Slim Duct 6.5k 230V
- Guide library
- Mini split buying guide
- Single-zone vs multi-zone mini splits
- Troubleshooting
- Do mini splits work in cold weather?
- The best cold-climate mini splits of 2026
- The best mini splits for heating of 2026
- Mini split heating capacity in the cold: what your unit actually delivers at 5F
- The mini split defrost cycle, explained
- The best DIY mini splits of 2026
- What "DIY mini split" actually means
- How to install a mini split (DIY overview)
- R-32 vs R-454B: the mini split refrigerant change explained
- Mini split for a hot upstairs
- Mini split not heating
- Mini split indoor unit freezing up
- Mini split remote not working
- Mini split short cycling
- Mini split making loud noise
- Line sets
- Line-set covers
Frequently asked questions
- Can I install the Panasonic ClimaPure XZ Series 9,000 BTU R-32 208/230V (CS-XZ9AKUAW / CU-XZ9AKUAC) myself, or do I need a pro?
- Panasonic ClimaPure XZ Series 9,000 BTU R-32 208/230V (CS-XZ9AKUAW / CU-XZ9AKUAC) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
- Will the Panasonic ClimaPure XZ Series 9,000 BTU R-32 208/230V (CS-XZ9AKUAW / CU-XZ9AKUAC) keep heating in a cold winter?
- The manufacturer publishes 11,700 BTU/h of heating output at 5F. Rated heating operation extends down to -15 F. Certified heating efficiency is 12 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
- What electrical circuit does the Panasonic ClimaPure XZ Series 9,000 BTU R-32 208/230V (CS-XZ9AKUAW / CU-XZ9AKUAC) need?
- Published electrical requirements: 230 V voltage, 15 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
- How far can the outdoor unit be from the indoor head?
- The published maximum line-set length is 66 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
