SplitAtlas

Senville / AURA

Senville AURA 6k R-454B 208/230V Mini-Split

Certified capacity
6,000 BTU/h[2]
SEER2
25.5 SEER2[2]
Heating floor
-22 F[1]
Voltage
187-253[1]
Install path
Professional install

The Senville AURA 6k is a tiny, remarkably efficient single-zone on R-454B: SEER2 25.5, EER2 18, HSPF2 14.8, with heating that climbs from 7,000 BTU at 47F to 8,700 BTU at 17F and holds 7,700 BTU at 5F. It fills the smallest slot in Senville's mainstream line for a small room or a spot that a 9k would oversize.

1 zoneProfessional installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Paid link

$1,100 / Fresh price - checked Jul 24, 2026

Check price at Senville

Need this installed?

Get installation quotes
Error Codes

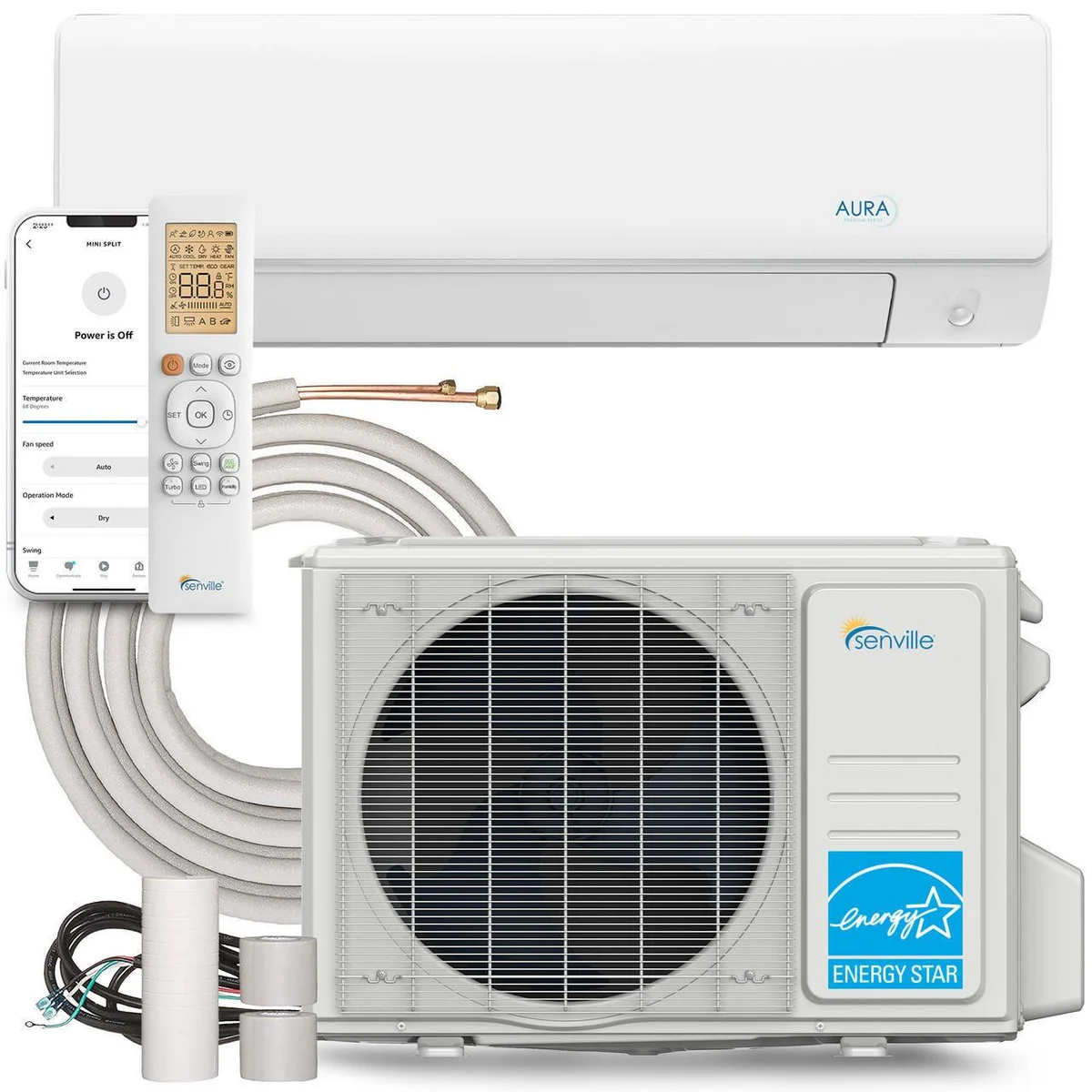

Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG) mini-split heat pump indoor wall unit and outdoor condenser

Image: Senville

Data completeness: 85%
Last sourced
Jul 24, 2026

SplitAtlas score

8.9 / 10

Methodology
Cooling efficiencyTop quartile

(25.5 SEER2) among <=9k systems

Heating efficiencyTop 10%

(14.8 HSPF2) among <=9k systems

Cold-weather performanceTop quartile

(100% heat retained at 5F; -22 F heating floor) among <=9k systems

NoiseBelow average

(22 dBA indoor min / 53 dBA outdoor) among <=9k systems

WarrantyBelow average

(5 yr parts / 10 yr compressor) across the catalogue

Feature setAbove average

(6 verified features) across the catalogue

Price-to-performanceBottom quartile

($1,100 median retail) among <=9k systems

Documentation & partsTop quartile

(9 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

Key ratings

Rated cooling

6,000BTU/h[2]

Rated heating

7,000BTU/h[2]

Buyer review snapshot

Best for / skip if

Best for

  • Top efficiency shortlists; SEER2 is 25.5.

Install difficulty

Professional install
  • Electrical: 187-253V; MCA 12 A; breaker/fuse 15 A.
  • Line set: connection type not sourced; precharged 25 ft; included 16 ft.

Availability and price context

  • Verified current price: $1,099.99 at Senville; availability in_stock; checked Jul 24, 2026.

Source date

Model data sourced
Jul 24, 2026
Page reviewed
Jul 24, 2026
Source-backed records
3
Newest source retrieved
Jul 24, 2026

Warranty tiers

Warranty: 5 years parts and 10 years compressor as standard.

Review methodology

Strengths

  • EER2 18 / HSPF2 14.8 - exceptional efficiency for a compact unit.
  • Heating boosts to 8,700 BTU at 17F - genuine cold-weather capability.
  • Current R-454B refrigerant; a right-sized 6,000 BTU option.

Weaknesses

  • 6,000 BTU suits only a small bedroom, office, or nook.
  • Senville is an online/DIY value brand with a thinner support network than the premium names; professional install recommended.

Climate suitability

Minimum heating ambient
-22 F[1]
Rated heating at 5F
7,700 BTU/h[2]
Rated heating at 17F
8,700 BTU/h[2]
Rated heating at 47F
7,000 BTU/h[2]

Specifications

Show
Manufacturer
Senville
Brand
Senville
Product line
AURA
Model number
SENA-06HF-IGG indoor / SENA-06HF-OG outdoor
Indoor unit model
SENA-06HF-IGG
Outdoor unit model
SENA-06HF-OG
Number of zones
1
Max indoor units
not published
Rated cooling capacity
6,000 BTU/h[2]
Rated heating capacity
7,000 BTU/h[2]
Voltage
187-253[1]
MCA
12 A[1]
Maximum fuse or breaker size
15 A[1]
Breaker needed
not published
SEER2
25.5 SEER2[2]
EER2
18 EER2[2]
HSPF2 (Region 4)
14.8 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
2.39 COP[2]
Minimum outdoor heating temperature
-22 F[1]
Minimum outdoor cooling temperature
not published
Maximum outdoor temperature
not published
Indoor noise range
44.0 / 36.5 / 32.5 / 22.0[1]
Outdoor noise rating
53 dBA[1]
Indoor weight
22.93 lb[1]
Outdoor weight
62.17 lb[1]
Refrigerant
R-454B[2]
Refrigerant charge
32.45 oz[1]
Manufacturer coverage
not published
Line-set size
not published
Included line-set length
16 ft[1]
Maximum line-set length
not published
Max line set per indoor
not published
Maximum elevation difference
not published
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
215735294[2]
Warranty
Standard: 5 yr parts / 10 yr compressor (published warranty terms). 10 Years Compressor / 5 Years Parts
Install path
Professional install
Retail price
$1,099.99
Available retailers
Senville
Manual links
AURA 6,000 BTU ahri certificate, AHRI Appendix M1 public detail record 215735294, AURA 6,000 BTU energy guide, ENERGY STAR exact-match row check for AHRI 215735294, AURA 6,000 BTU installation manual, AURA 6,000 BTU owner manual, HVACDirect exact search outcome for SENA-06HF-OG / SENA-06HF-IGG, AURA 6,000 BTU service manual, AURA 6,000 BTU Senville product-page specifications
Specification sheet
AURA 6,000 BTU Senville product-page specifications
Last sourced date
Jul 24, 2026

Retail purchase context

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at Senville

$1,100 / Fresh price - checked Jul 24, 2026

Parts and filters

Fits Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-optional

High density filter (optional accessory)

Fits
Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG)
Fit note
Fits SENA-06HF-IGG / SENA-06HF-OG. Senville catalogs the high-density filter as an AURA optional accessory, but I did not find a current IGG-family store SKU. Use Senville parts/support with the exact model and serial; do not substitute older IZ/IQ/IAA filter pages without confirmation.
Source
Senville Product Catalog, Features AURA - Optional Features, page p. 3 (HIGH DENSITY FILTER)

air-cleaning-accessory

Plasma ionizer (optional accessory)

Fits
Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG)
Fit note
Fits SENA-06HF-IGG / SENA-06HF-OG. Senville catalogs a plasma ionizer option for AURA, but does not publish a model-specific orderable SKU for the current IGG wall units. Confirm through Senville support before ordering.
Source
Senville Product Catalog, Features AURA - Optional Features, page p. 3 (PLASMA IONIZER)

wired-control

Wired wall controller (optional accessory)

Fits
Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG)
Fit note
Fits SENA-06HF-IGG / SENA-06HF-OG. Senville catalogs wired control as an AURA option, but the current WRD-RMT23 store page is limited to concealed duct and ceiling cassette models from 2022 and earlier. Kept null until Senville publishes an IGG wall-unit controller SKU.
Source
Senville Product Catalog, Features AURA - Optional Features, page p. 3 (WIRED CONTROL)

remote-control

Remote control (IAA / IGG)

Fits
Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG)
OEM part number
PAR753
Fit note
Fits SENA-06HF-IGG / SENA-06HF-OG. Senville sells the IAA/IGG replacement remote directly at https://senville.com/remote-control-iaa-igg/. HVACDirect did not expose an exact Senville remote page, so no affiliate offer is attached.
Source
Senville Remote Control (IAA - IGG), Product details, page product page (PAR753)

smart-wifi-usb-kit

Senville Smart WiFi USB Kit for Mini Split, Works with Alexa

Fits
Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG)
OEM part number
SEN20-ACK1T
Fit note
Fits SENA-06HF-IGG / SENA-06HF-OG. Senville publishes SEN20-ACK1T for compatible post-2019 indoor units and sells it directly at https://senville.com/senville-smart-wifi-usb-kit-for-mini-split-works-with-alexa/. HVACDirect did not expose an exact Senville Wi-Fi kit page, so no affiliate offer is attached.
Source
Senville Smart WiFi USB Kit for Mini Split, Works with Alexa, Product details, page product page (SEN20-ACK1T)

line-set-installation-kit

25 ft flared line-set installation kit - 1/4 x 3/8

Fits
Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG)
OEM part number
PJX-1-75E
Fit note
Fits SENA-06HF-IGG / SENA-06HF-OG. Use this size for 6k, 9k, and 12k Senville indoor units or matching multizone ports. Senville sells the PJX-1-75E line set directly; HVACDirect was verified as a live exact-dimension 25 ft install-kit page on 2026-08-01. First-party path: https://senville.com/25-ft-insulated-line-set-1-4-and-3-8/.
Source
Senville 25 Ft. Insulated Line Set - 1/4 and 3/8, Technical Specifications, page product page (SKU | PJX-1-75E)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect
Replacement Parts & Filters

Electrical requirements

Show
Voltage
not published
Voltage range
187-253[1]
Phase
single-phase[1]
Frequency
60 Hz[1]
MCA
12 A[1]
Breaker needed
not published
Maximum breaker size
not published
Maximum fuse size
15 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
14*4 AWG[1]

Installation considerations

Show
Liquid line
not published
Suction line
not published
Line connection type
not published
Precharged length
25 ft[1]
Included line-set length
16 ft[1]
Maximum line-set length
not published
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
33.4 in W x 11.76 in H x 9.18 in D[1]
Outdoor dimensions
30.12 in W x 21.85 in H x 11.93 in D[1]
Indoor weight
22.93 lb[1]
Outdoor weight
62.17 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG) myself, or do I need a pro?
Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG) keep heating in a cold winter?
The manufacturer publishes 7,700 BTU/h of heating output at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 14.8 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG) need?
Published electrical requirements: 187-253 voltage, 12 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
What warranty does the Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG) carry?
The manufacturer publishes these warranty tiers: Standard: 5 yr parts / 10 yr compressor (published warranty terms). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. Senville: Senville AURA 6,000 BTU R-454B 208/230V (SENA-06HF-IGG / SENA-06HF-OG) official product pageSourced - manufacturer product page

    Covers Frequency, Maximum fuse size, Minimum circuit ampacity, Phase, Manufacturer wire notes, Voltage range and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI Appendix M1 public detail for SENA-06HF-OG / SENA-06HF-IGGSourced - AHRI directory

    Covers AHRI certification number, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity, HSPF2 (Region 4) and more

  3. ENERGY STAR: ENERGY STAR exact row check for AHRI 215735294Sourced - Energy Star listing

    Covers Energy Star status

Last updated

Jul 24, 2026
