GREE / Vireo R32

GREE Vireo 12k R-32 115V Mini-Split

Certified capacity
12,000 BTU/h[2]
SEER2
24.5 SEER2[2]
Heating floor
-22 F[4]
Voltage
115 V[1]
Install path
Professional install

The Vireo 12k on 115V is the standout small-room system in GREE's range: SEER2 24.5 and rated heating to -22F, on a standard household circuit. Getting deep-cold capability without a new 230V run is rare, and it is the main reason to choose this over the Livo 12k 115V, which certifies SEER2 19 and stops at -13F. For a cold-climate bedroom or office this is the one to buy.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes
GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO)

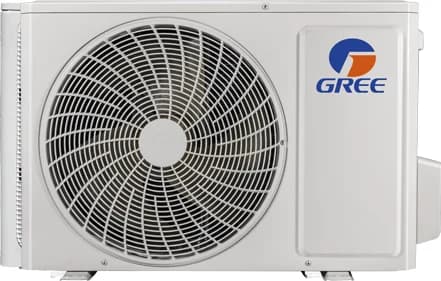

Image: GREE

Data completeness: 100%
Last sourced
Jul 24, 2026

SplitAtlas score

8.5 / 10

Methodology
Cooling efficiencyTop quartile

(24.5 SEER2) among 12k systems

Heating efficiencyBelow average

(9.5 HSPF2) among 12k systems

Cold-weather performanceAbove average

(5F certified capacity: 79.2% of the 47F rating; -22 F heating floor) among 12k systems

NoiseTop quartile

(20 dBA indoor min / 52 dBA outdoor) among 12k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setAbove average

(5 verified features) across the catalogue

Documentation & partsTop quartile

(10 manuals; spec sheet; parts channel) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

12,000BTU/h[2]

Rated heating

12,000BTU/h[2]

Buyer review snapshot

Install difficulty

Professional flared-line install
  • Electrical: 115V; MCA 10 A; breaker/fuse 19 A maximum (calculated recommendation: 15 A is the nearest standard breaker size at or below that maximum).
  • Line set: Flared line connections; precharged 25 ft; max 66 ft.

Alternatives

Availability and price context

This system needs a professional install, and its warranty depends on who installs it. Its real price is an installed quote that depends on your home, so get installation quotes to price it.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE offers a 10-year extended warranty through GREE Select dealers, with registration.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Jul 24, 2026
Page reviewed
Jul 23, 2026
Source-backed records
5
Newest source retrieved
Jul 24, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - eligible residential system

The score uses Base. Additional published terms are shown for reference and not counted in the score.

Review methodology

Model context

Structured ratings
Certification: ENERGY STAR certified and AHRI cold-climate designated. Refrigerant: current low-GWP R-32. Minimum heating ambient: -22 F.

Strengths

  • SEER2 24.5 with -22F rated heating on a standard 115V circuit.
  • Far ahead of the Livo 12k 115V on both axes.

Weaknesses

  • 115V inrush can disturb other loads on a shared circuit.
  • Professional install required.

Climate suitability

Minimum heating ambient
-22 F[4]
Certified heating at 5F
9,500 BTU/h[2]
Rated heating at 17F
10,000 BTU/h[2]
Rated heating at 47F
12,000 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Vireo R32
Model number
VIR12HP115V1R32AH indoor / VIR12HP115V1R32AO outdoor
Indoor unit model
VIR12HP115V1R32AH
Outdoor unit model
VIR12HP115V1R32AO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
12,000 BTU/h[2]
Rated heating capacity
12,000 BTU/h[2]
Voltage
115 V[1]
MCA
10 A[1]
Maximum fuse or breaker size
19 A[1]

Calculated recommendation: 15 A is the nearest standard breaker size at or below the published 19 A maximum.

Breaker needed
not published
SEER2
24.5 SEER2[2]
EER2
13 EER2[2]
HSPF2 (Region 4)
9.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
1.95 COP[2]
Minimum outdoor heating temperature
-22 F[4]
Minimum outdoor cooling temperature
-20 F[4]
Maximum outdoor temperature
122 F[4]
Indoor noise range
20-43 dB(A)[1]
Outdoor noise rating
52 dBA[1]
Indoor weight
20.9 lb[1]
Outdoor weight
69.5 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
28.2 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 1/2 in suction
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
66 ft[1]
Max line set per indoor
not published
Maximum elevation difference
40 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
ENERGY STAR certified[3]
AHRI certification number
214813258[2]
Warranty
Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Standard residential GREE single-zone mini-split warranty is 5 years parts and 7 years compressor for eligible units.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
AHRI public detail VIR12HP115V1R32AO / VIR12HP115V1R32AH, ENERGY STAR exact row lookup for VIR12HP115V1R32AO / VIR12HP115V1R32AH, GREE Vireo R32 extended ratings, GREE Vireo R32 installation/owner manual, GREE current Vireo R32 product/catalog page, GREE Vireo R32 sales brochure, GREE Vireo R32 service manual, GREE Vireo R32 12k submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
GREE Vireo R32 12k submittal
Last sourced date
Jul 24, 2026

Parts and filters

Fits GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO). Part numbers and fit notes identify compatibility only; no manufacturer endorsement is implied.

filter-washable

Indoor washable filter assembly

Fits
GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO)
Filter care
Washable. Wash with clean water or use a duster, then shade-dry every 3 months. No replacement interval or condition is published for this reusable filter.
Fit note
Fits VIR12HP115V1R32AH / VIR12HP115V1R32AO. GREE documents the filter assembly in the service/owner source but does not publish a model-specific orderable filter part number there; source by indoor model and serial through GREE or an authorized distributor.
Source
GREE Vireo R32 Service Manual, Indoor unit exploded view, page p. 81 (14-2 Filter Sub-Assy)

remote-control

Wireless remote controller - YBE1FBF

Fits
GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO)
OEM part number
YBE1FBF
Fit note
Fits VIR12HP115V1R32AH / VIR12HP115V1R32AO. GREE publishes YBE1FBF in the model submittal; no HVACDirect exact replacement remote page was verified, so order through GREE/distributor parts support by indoor model and remote code.
Source
GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO) Submittal, Controller options, page p. 1 (YBE1FBF)

wired-controller

XE71 wired wall controller

Fits
GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO)
OEM part number
XE71
Fit note
Fits VIR12HP115V1R32AH / VIR12HP115V1R32AO where the GREE submittal lists the XE71 wired controller option. HVACDirect was verified as a live exact GREE XE71 product page on 2026-08-01; its retailer model/SKU is MC20700970.
Source
GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO) Submittal, Controller options, page p. 1 (XE71)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect

line-set-installation-kit

25 ft flared line-set installation kit - 1/4 x 1/2

Fits
GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO)
Fit note
Fits VIR12HP115V1R32AH / VIR12HP115V1R32AO by the 1/4 x 1/2 flared line-set dimensions in the GREE submittal. The HVACDirect page was verified live on 2026-08-01 as an exact-dimension 25 ft install-kit page, not a GREE OEM exact-part listing.
Source
GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO) Submittal, Refrigerant pipe connections, page p. 1 (Connections in 1/4 - 1/2)

Some retailer links may earn us a commission at no extra cost; paid relationships never change scores or recommendations. Affiliate disclosure

Paid link

Check price at HVACDirect
Find this model's filterReplacement Parts & Filters

Electrical requirements

Show
Voltage
115 V[1]
Voltage range
115V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
10 A[1]
Breaker needed
not published
Maximum breaker size
19 A[1]

Calculated recommendation: 15 A is the nearest standard breaker size at or below the published 19 A maximum.

Maximum fuse size
19 A[1]

Calculated recommendation: 15 A is the nearest standard fuse size at or below the published 19 A maximum.

Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
not published

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
1/2 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
66 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
32-31/64 x 11-17/32 x 7-23/32 in[1]
Outdoor dimensions
31-37/64 x 21-27/32 x 13-25/32 in[1]
Indoor weight
20.9 lb[1]
Outdoor weight
69.5 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO) myself, or do I need a pro?
GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 9,500 BTU/h of heating capacity at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO) need?
Published electrical requirements: 115 V voltage, 10 A minimum circuit ampacity, and 19 A maximum breaker or fuse sizing. Calculated recommendation: 15 A is the nearest standard breaker size at or below the published 19 A maximum. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 66 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the GREE Vireo R32 12,000 BTU R-32 115V (VIR12HP115V1R32AH / VIR12HP115V1R32AO) carry?
The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.

Data sources

Show
  1. GREE Comfort: GREE Vireo R32 12k submittalSourced - manufacturer technical document

    Covers Frequency, electrical_spec.indoor_mca_amps, Maximum breaker size, Maximum fuse size, Minimum circuit ampacity, Phase and more

  2. Air-Conditioning, Heating, and Refrigeration Institute: AHRI public detail for VIR12HP115V1R32AO / VIR12HP115V1R32AHSourced - AHRI directory

    Covers AHRI certification number, performance_spec.cold_climate_designation, Rated cooling capacity, COP at 5F, EER2, Rated heating capacity and more

  3. ENERGY STAR: ENERGY STAR exact row lookup for VIR12HP115V1R32AO / VIR12HP115V1R32AHSourced - Energy Star listing

    Covers Energy Star status

  4. GREE Comfort: GREE current Zeno R32 product/catalog pageSourced - manufacturer product page

    Covers Minimum outdoor cooling temperature, Minimum outdoor heating temperature, performance_spec.max_ambient_heating_temp_f, Maximum outdoor temperature

  5. GREE Comfort: GREE DFS warranty statement for units installed after 2021-12-31Sourced - manufacturer technical document

    Covers Legacy compressor warranty value, Legacy warranty value, Base compressor warranty, Base warranty conditions, Base parts warranty, Warranty notes
