GREE / Vireo R32

GREE Vireo 12k One-Way Cassette R-32 208/230V Mini-Split

Certified capacity
12,000 BTU/h[2]
SEER2
21.5 SEER2[2]
Heating floor
-22 F[1]
Voltage
230 V[1]
Install path
Professional install

The 12,000 BTU one-way Vireo cassette uses the OWC12 head and certifies at 21.5 SEER2 with 9.5 HSPF2, rated to -22F. It is the most useful size in the one-way range - enough capacity for a real living space, in a housing shallow enough to go where a four-way cassette cannot.

The trade against the four-way version of the same capacity is straightforward: you lose about a point and a half of SEER2 and gain half a point of HSPF2, plus a shape that fits awkward ceilings. In a heating-dominated climate that is arguably the better end of the trade.

1 zoneProfessional installCurrent

Refrigerant generation

R-32 - current-generation refrigerant

This system's warranty depends on licensed installation — get quotes from installers in your area.

Get installation quotes
Error Codes

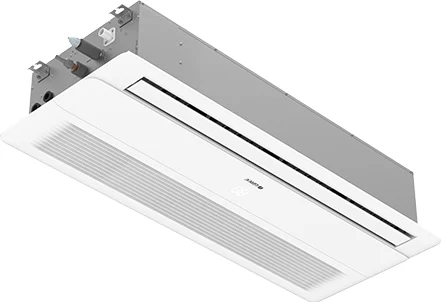

GREE one-way ceiling cassette indoor unit for R32 mini-split systems.

Image: GREE Comfort official All-Match One-Way Cassette R32 product page

Data completeness: 100%
Last sourced
Aug 2, 2026

SplitAtlas score

7.9 / 10

Methodology
Cooling efficiencyBelow average

(21.5 SEER2) among 12k systems

Heating efficiencyBelow average

(9.5 HSPF2) among 12k systems

Cold-weather performanceAbove average

(5F certified capacity: 83.3% of the 47F rating; -22 F heating floor) among 12k systems

NoiseBelow average

(28 dBA indoor min / 52 dBA outdoor) among 12k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Feature setBelow average

(5 verified features) across the catalogue

Documentation & partsBelow average

(6 manuals; spec sheet) across the catalogue

Not evaluated

  • Installation accessibility — not applicable (professional install)N/A

    professional install - DIY-accessibility not applicable

  • Price-to-value — not evaluatedN/A

    This is a professionally installed, quote-only system, so we can't score its price. Get an installed quote to compare real cost.

    Get a quote

Key ratings

Rated cooling

12,000BTU/h[2]

Rated heating

12,000BTU/h[2]

Buyer review snapshot

Install difficulty

Professional flared-line install
  • Electrical: 230V; MCA 10 A; breaker/fuse 15 A.
  • Line set: Flared line connections; precharged 25 ft; max 66 ft.

Alternatives

Availability and price context

This system needs a professional install, and its warranty depends on who installs it. Its real price is an installed quote that depends on your home, so get installation quotes to price it.

Purchase channel policy

GREE publishes an online/retail warranty-claim path for equipment purchased online, Home Depot, or Lowes rather than treating online purchase as a warranty voidance.

Warranty impact
Online purchase changes the claim path: routine parts use GREE's online claim form, while compressor failures and refrigerant leaks require tech-support confirmation before the online claim.
Installation condition
Warranty claims for online/retail purchases must be completed by a contractor after an on-site diagnosis, with required documentation such as purchase receipt or installation invoice and data-plate photos.
Authorized channel
GREE distributor path for distributor purchases; GREE online warranty claim form for equipment purchased online, Home Depot, or Lowes; GREE offers a 10-year extended warranty through GREE Select dealers, with registration.

GREE online purchases have a manufacturer-published warranty path, but buyers should keep purchase and installation documents and use a licensed HVAC contractor for diagnosis and claims.

Compare online-purchase warranty rules by brand

Source: GREE Comfort: How Does the GREE Warranty Work? Coverage, Claims, and 10-Year Extension Guide; retrieved Aug 15, 2026.

Source date

Model data sourced
Aug 2, 2026
Page reviewed
Aug 2, 2026
Source-backed records
4
Newest source retrieved
Aug 2, 2026

Warranty tiers

Base
5 yr parts / 7 yr compressor - eligible residential system

The score uses Base. Additional published terms are shown for reference and not counted in the score.

Review methodology

Strengths

  • 9.5 HSPF2, better heating efficiency than the four-way head at the same capacity.
  • Fits shallower ceiling cavities than a four-way cassette.
  • Full 12,000 BTU of heating and cooling, rated to -22F.

Weaknesses

  • 21.5 SEER2 trails the four-way version's 23.
  • Directional throw demands careful placement in the room.
  • No current price is shown; professional install and a contractor quote.

Climate suitability

Minimum heating ambient
-22 F[1]
Certified heating at 5F
10,000 BTU/h[2]
Rated heating at 17F
10,000 BTU/h[2]
Rated heating at 47F
12,000 BTU/h[2]

Specifications

Show
Manufacturer
GREE
Brand
GREE
Product line
Vireo R32
Model number
OWC12HP230V1R32AH indoor / VIR12HP230V1R32AO outdoor
Indoor unit model
OWC12HP230V1R32AH
Outdoor unit model
VIR12HP230V1R32AO
Number of zones
1
Max indoor units
not published
Rated cooling capacity
12,000 BTU/h[2]
Rated heating capacity
12,000 BTU/h[2]
Voltage
230 V[1]
MCA
10 A[1]
Maximum fuse or breaker size
15 A[1]
Breaker needed
not published
SEER2
21.5 SEER2[2]
EER2
12.3 EER2[2]
HSPF2 (Region 4)
9.5 HSPF2[2]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
not published
Minimum outdoor heating temperature
-22 F[1]
Minimum outdoor cooling temperature
-20 F[1]
Maximum outdoor temperature
122 F[1]
Indoor noise range
28-41 dB(A)[1]
Outdoor noise rating
52 dBA[1]
Indoor weight
43 lb[1]
Outdoor weight
67.3 lb[1]
Refrigerant
R-32[2]
Refrigerant charge
28.2 oz[1]
Manufacturer coverage
not published
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
GREE professional single-zone cassette and ducted systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
66 ft[1]
Max line set per indoor
not published
Maximum elevation difference
40 ft[1]
Max height between indoor units
not published
Wi-Fi support
not supported[1]
Energy Star status
ENERGY STAR certified[2]
AHRI certification number
215415564[2]
Warranty
Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Standard residential GREE mini-split coverage is 5 years parts and 7 years compressor for eligible post-2021 systems.
Install path
Professional install
Retail price
Installed quote only
Available retailers
not published
Manual links
All Match One-Way Cassette R32 service/installation manual, GREE All Match One-Way Cassette R32 official product page, All Match One-Way Cassette R32 owner manual, OWC12HP230V1R32AH / VIR12HP230V1R32AO All Match One-Way Cassette R32 submittal, GREE DFS warranty statement for units installed after 2021-12-31
Specification sheet
OWC12HP230V1R32AH / VIR12HP230V1R32AO All Match One-Way Cassette R32 submittal
Last sourced date
Aug 2, 2026

Electrical requirements

Show
Voltage
230 V[1]
Voltage range
208/230V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
10 A[1]
Breaker needed
not published
Maximum breaker size
15 A[1]
Maximum fuse size
15 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
Interconnecting wire size AWG 14 / 4; main power wire per local code.[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
3/8 in[1]
Line connection type
Flared line connections[1]
Precharged length
25 ft[1]
Included line-set length
GREE professional single-zone cassette and ducted systems publish field-supplied flared line sizes and maximum/precharged piping data; no included consumer line set length is published.
Maximum line-set length
66 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
38-55/64 x 15-5/32 x 7-1/64 in[1]
Outdoor dimensions
31-37/64 x 13-25/32 x 21-27/32 in[1]
Indoor weight
43 lb[1]
Outdoor weight
67.3 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the GREE Vireo R32 12,000 BTU One-Way Ceiling Cassette R-32 208/230V (OWC12HP230V1R32AH / VIR12HP230V1R32AO) myself, or do I need a pro?
GREE Vireo R32 12,000 BTU One-Way Ceiling Cassette R-32 208/230V (OWC12HP230V1R32AH / VIR12HP230V1R32AO) is built for professional installation: the line set must be flared, evacuated, and charged, which requires EPA-certified refrigerant handling. Installing it outside the manufacturer's requirements can void the warranty, so budget for a qualified HVAC installer.
Will the GREE Vireo R32 12,000 BTU One-Way Ceiling Cassette R-32 208/230V (OWC12HP230V1R32AH / VIR12HP230V1R32AO) keep heating in a cold winter?
The AHRI/ENERGY STAR certification lists 10,000 BTU/h of heating capacity at 5F. Rated heating operation extends down to -22 F. Certified heating efficiency is 9.5 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the GREE Vireo R32 12,000 BTU One-Way Ceiling Cassette R-32 208/230V (OWC12HP230V1R32AH / VIR12HP230V1R32AO) need?
Published electrical requirements: 230 V voltage, 10 A minimum circuit ampacity, and 15 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 66 ft. The outdoor unit's factory charge covers up to 25 ft of line; longer runs need added refrigerant. Measure the planned routing before ordering.
What warranty does the GREE Vireo R32 12,000 BTU One-Way Ceiling Cassette R-32 208/230V (OWC12HP230V1R32AH / VIR12HP230V1R32AO) carry?
The manufacturer publishes these warranty tiers: Base: 5 yr parts / 7 yr compressor (eligible residential system). Score uses Base.. Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
