Klimaire DIY 12k R-454B 115V Mini-Split

Certified capacity
12,000 BTU/h[1]
SEER2
23 SEER2[10]
Heating floor
-13 F[1]
Voltage
115 V[1]
Install path
DIY install

Klimaire's 12,000 BTU DIY head keeps the 115V convenience and adds capacity, posting SEER2 23, EER2 13, and HSPF2 10 on R-454B. It's cold-climate designated, heating 12,400 BTU at 47F, 10,000 BTU at 17F, and 8,900 BTU at 5F. With precharged quick-connect line sets, it's built for a handy homeowner to install without a vacuum pump or refrigerant work.

1 zoneDIY installCurrent

Refrigerant generation

R-454B - current-generation refrigerant

Need this installed?

Get installation quotes
Error Codes

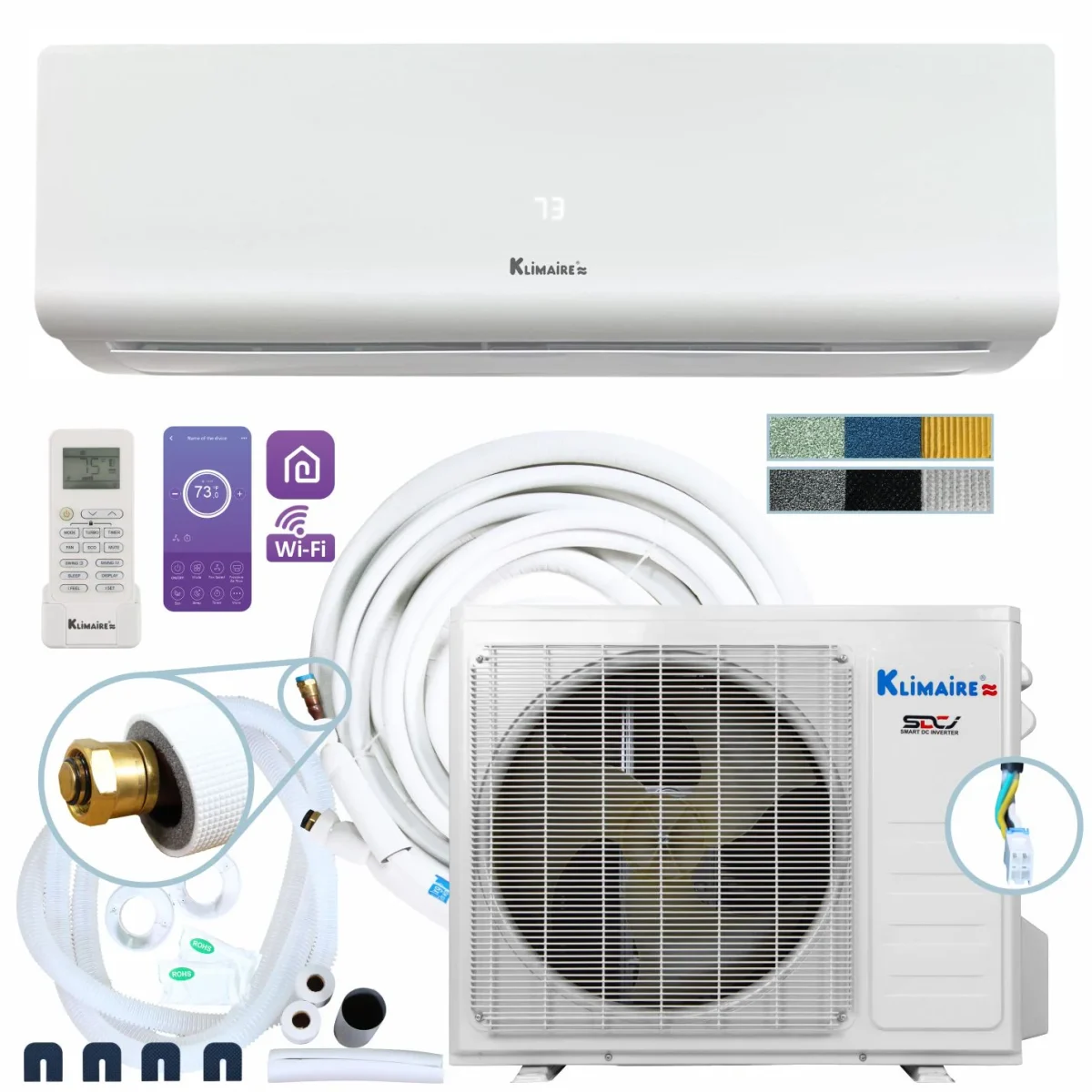

Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 110-115V (KIWQ12H1-45T / KOIQ12H1-45T) mini-split heat pump indoor wall unit and outdoor condenser kit

Image: Klimaire

Data completeness: 98%
Last sourced
Aug 17, 2026

SplitAtlas score

8.7 / 10

Methodology
Cooling efficiencyAbove average

(23.0 SEER2) among 12k systems

Heating efficiencyBelow average

(10.0 HSPF2) among 12k systems

Cold-weather performanceAbove average

(71.8% heat retained at 5F; -13 F heating floor) among 12k systems

NoiseTop 10%

(-46 dBA indoor min / 52 dBA outdoor) among 12k systems

WarrantyBelow average

(5 yr parts / 7 yr compressor) across the catalogue

Installation accessibilityTop 10%

(DIY-marketed; 25 ft precharged; 25 ft included line set) across the catalogue

Feature setTop 10%

(8 verified features) across the catalogue

Documentation & partsBottom quartile

(10 manuals; 51 error-code rows) across the catalogue

Key ratings

Rated cooling

12,000BTU/h[1]

Rated heating

12,400BTU/h[1]

Best-fit use cases

Great for a bedroom, den, or bonus room in a cold-winter region where a 115V outlet is available and you'd rather self-install than pay for labor.

Where this system ranks

Buyer review snapshot

Install difficulty

DIY-friendly
  • Electrical: 115V; MCA 16 A; breaker/fuse 25 A.
  • Line set: Quick-connect line connections; precharged 25 ft; included 25 ft; max 49 ft.

Alternatives

Availability and price context

We could not verify a current retail price for this model. We could not find a published consumer price for this model when we last checked on 2026-08-17.

Source date

Model data sourced
Aug 17, 2026
Page reviewed
Jul 22, 2026
Source-backed records
12
Newest source retrieved
Aug 17, 2026

Warranty tiers

Warranty: 3 years parts as standard; 5 years parts and 7 years compressor if registered residential use within 45 days.

Review methodology

Strengths

  • HSPF2 10 plus cold-climate designation means heat barely sags: 10,000 BTU at 17F and 8,900 BTU at 5F against 12,400 BTU at 47F.
  • The precharged DIY line set and 115V circuit let a capable owner mount and connect it without a tech or specialized tools.
  • SEER2 23 on current low-GWP R-454B is excellent efficiency for a value-brand, distributor-sold unit.

Weaknesses

  • Not ENERGY STAR certified, and Klimaire's support and parts network trails premium brands.
  • DIY means you own the commissioning and warranty registration, and the A2L refrigerant requires attention to line-set handling.

Climate suitability

Minimum heating ambient
-13 F[1]
Rated heating at 5F
8,900 BTU/h[9]
Rated heating at 17F
10,000 BTU/h[8]
Rated heating at 47F
12,400 BTU/h[1]

Specifications

Show
Manufacturer
Klimaire
Brand
Klimaire
Product line
Klimaire KIWQ-KOIQ DIY
Model number
KIWQ12H1-45T indoor / KOIQ12H1-45T outdoor
Indoor unit model
KIWQ12H1-45T
Outdoor unit model
KOIQ12H1-45T
Number of zones
1
Max indoor units
not published
Rated cooling capacity
12,000 BTU/h[1]
Rated heating capacity
12,400 BTU/h[1]
Voltage
115 V[1]
MCA
16 A[1]
Maximum fuse or breaker size
25 A[1]
Breaker needed
not published
SEER2
23 SEER2[10]
EER2
13 EER2[5]
HSPF2 (Region 4)
10 HSPF2[7]
HSPF2 (Region 5)
not published
COP
not published
COP at 47F
not published
COP at 5F
2.1 COP[4]
Minimum outdoor heating temperature
-13 F[1]
Minimum outdoor cooling temperature
5 F[1]
Maximum outdoor temperature
131 F[1]
Indoor noise range
30-46 dB(A)[1]
Outdoor noise rating
52 dBA[1]
Indoor weight
23.1 lb[1]
Outdoor weight
58.4 lb[1]
Refrigerant
R-454B[1]
Refrigerant charge
not published
Manufacturer coverage
550 sq ft[1]
Line-set size
1/4 in liquid / 3/8 in suction
Included line-set length
25 ft[1]
Maximum line-set length
49 ft[1]
Max line set per indoor
not published
Maximum elevation difference
33 ft[1]
Max height between indoor units
not published
Wi-Fi support
supported[1]
Energy Star status
Not ENERGY STAR certified[6]
AHRI certification number
218067068[3]
Warranty
Standard: 3 yr parts (base residential coverage); Best case: 5 yr parts / 7 yr compressor (registered residential use within 45 days). DIY Mini-Split Systems: 5 years parts / 7 years compressor when registered for residential use within 45 days; base coverage is 3 years parts; commercial use is 3 years parts and compressor.
Install path
DIY install
Retail price
We could not find a published consumer price for this model when we last checked on 2026-08-17.
Available retailers
not published
Manual links
AHRI public directory record 218067068, Klimaire KIWQ-KOIQ DIY brochure, ENERGY STAR exact check 218067068, KIWQ/KOIQ 2026 Installation and Users Manual, Klimaire mini-split wall-mount collection, 12,000 BTU KIWQ-KOIQ DIY Series Do-It-Yourself High Wall-Mounted Ductless Mini Split Heat Pump Air Conditioner with E-Z Kuick Connect Kit - 110-115V, Klimaire KIWQ-KOIQ DIY product page quick-connect documentation, HVACDirect exact Klimaire offer check klimaire-kiwq-koiq-diy-12k-r454b-115v, Klimaire KIWQ-KOIQ DIY 5th Generation Service Manual, section 3.1 Failure code and 3.2 Troubleshooting, Klimaire warranty information
Specification sheet
not published
Last sourced date
Aug 17, 2026

Electrical requirements

Show
Voltage
115 V[1]
Voltage range
110-115V[1]
Phase
1[1]
Frequency
60 Hz[1]
MCA
16 A[1]
Breaker needed
not published
Maximum breaker size
25 A[1]
Maximum fuse size
25 A[1]
Maximum cooling current
not published
Maximum heating current
not published
Manufacturer wire notes
16 AWG, 4-conductor connection wiring[1]

Installation considerations

Show
Liquid line
1/4 in[1]
Suction line
3/8 in[1]
Line connection type
Quick-connect line connections[2]
Precharged length
25 ft[1]
Included line-set length
25 ft[1]
Maximum line-set length
49 ft[1]
Max line set per indoor
not published
Max height between indoor units
not published
Indoor dimensions
32.28 x 12.05 x 7.68 in[1]
Outdoor dimensions
31.89 x 12.01 x 21.61 in[1]
Indoor weight
23.1 lb[1]
Outdoor weight
58.4 lb[1]
Drain size
not published

Related systems and guides

Frequently asked questions

Can I install the Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 110-115V (KIWQ12H1-45T / KOIQ12H1-45T) myself, or do I need a pro?
Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 110-115V (KIWQ12H1-45T / KOIQ12H1-45T) is sold as a DIY-installable system with a pre-charged 25 ft line set, so no refrigerant handling or vacuum pump is required for a standard install. The electrical circuit is the part that is not DIY: plan on a licensed electrician for the dedicated circuit, and check whether your local permit office requires a permit for the install.
Will the Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 110-115V (KIWQ12H1-45T / KOIQ12H1-45T) keep heating in a cold winter?
The manufacturer publishes 8,900 BTU/h of heating output at 5F. Rated heating operation extends down to -13 F. Certified heating efficiency is 10 HSPF2. Match those numbers against your climate's design temperature - in cold regions, output at 5F matters far more than the nameplate capacity measured at 47F.
What electrical circuit does the Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 110-115V (KIWQ12H1-45T / KOIQ12H1-45T) need?
Published electrical requirements: 115 V voltage, 16 A minimum circuit ampacity, and 25 A maximum breaker or fuse sizing. Confirm the final circuit against the unit nameplate and local code with a licensed electrician.
How far can the outdoor unit be from the indoor head?
The published maximum line-set length is 49 ft, and the included line set comes pre-charged for 25 ft. Longer runs than the included set allows typically mean added refrigerant and a pro visit, so measure the planned routing before ordering.
What warranty does the Klimaire KIWQ-KOIQ DIY 12,000 BTU R-454B 110-115V (KIWQ12H1-45T / KOIQ12H1-45T) carry?
The manufacturer publishes these warranty tiers: Standard: 3 yr parts (base residential coverage); Best case: 5 yr parts / 7 yr compressor (registered residential use within 45 days). Registration requirements and proof of qualified installation commonly affect coverage, so read the warranty terms before install day.
